Coating evaluation Cell [8ml-80ml]

Coating evaluation Cell [8ml-80ml]

Product Description
Shipping & Delivery
Product Overview

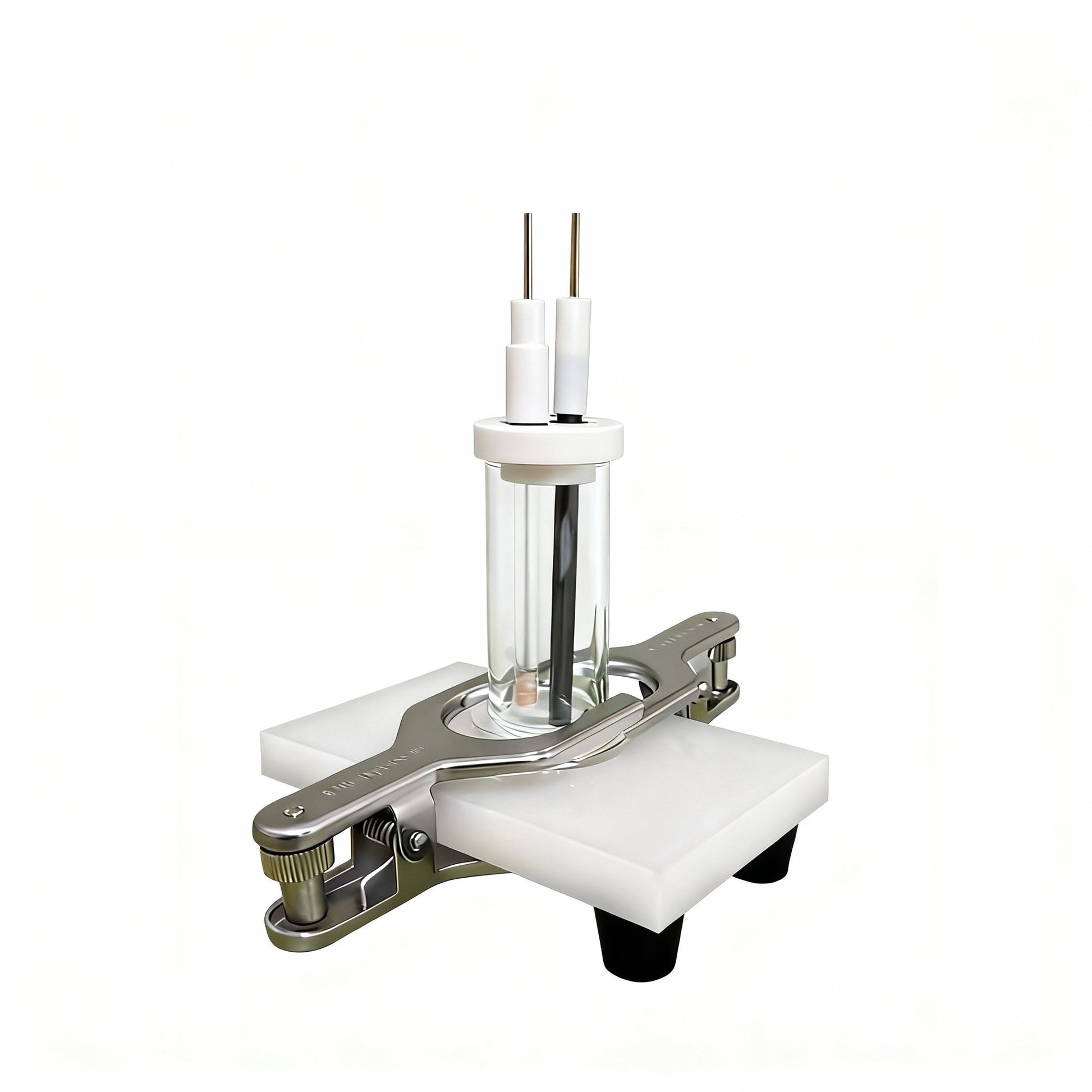

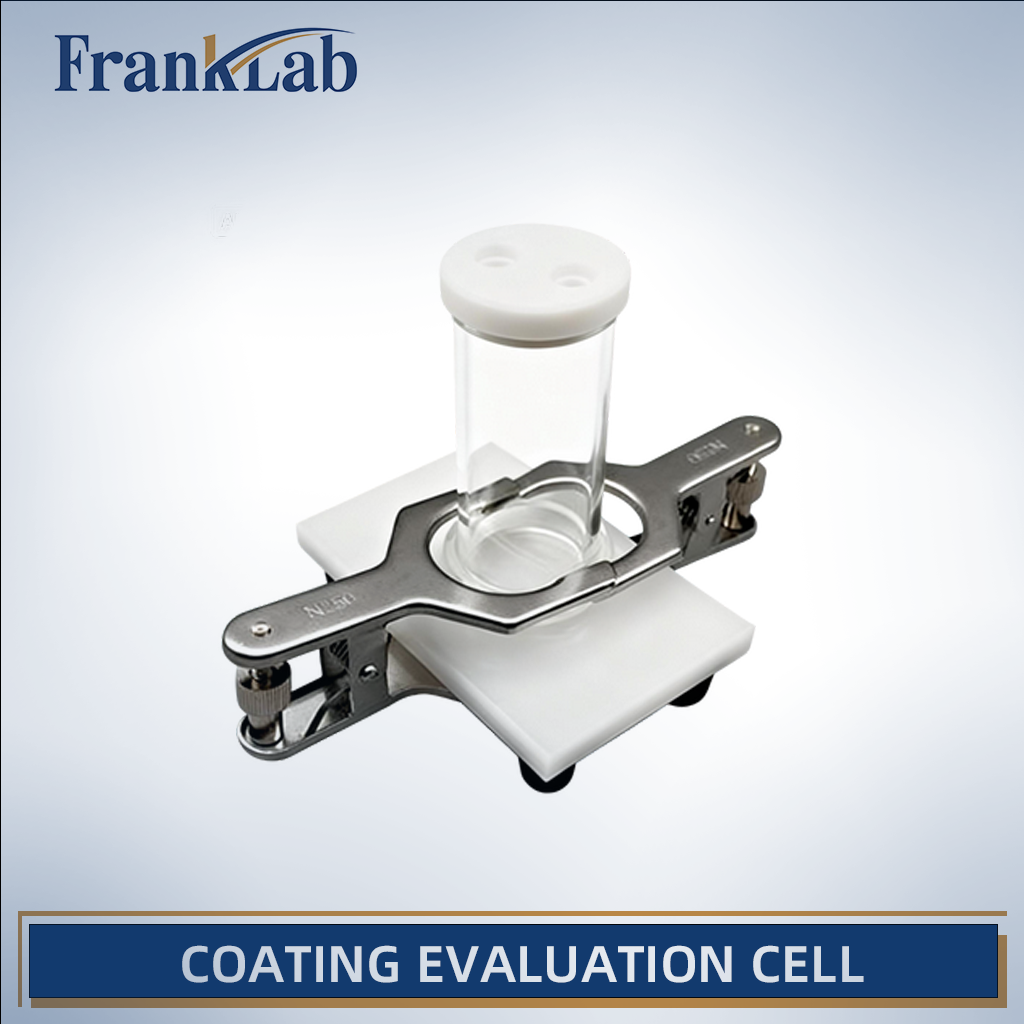

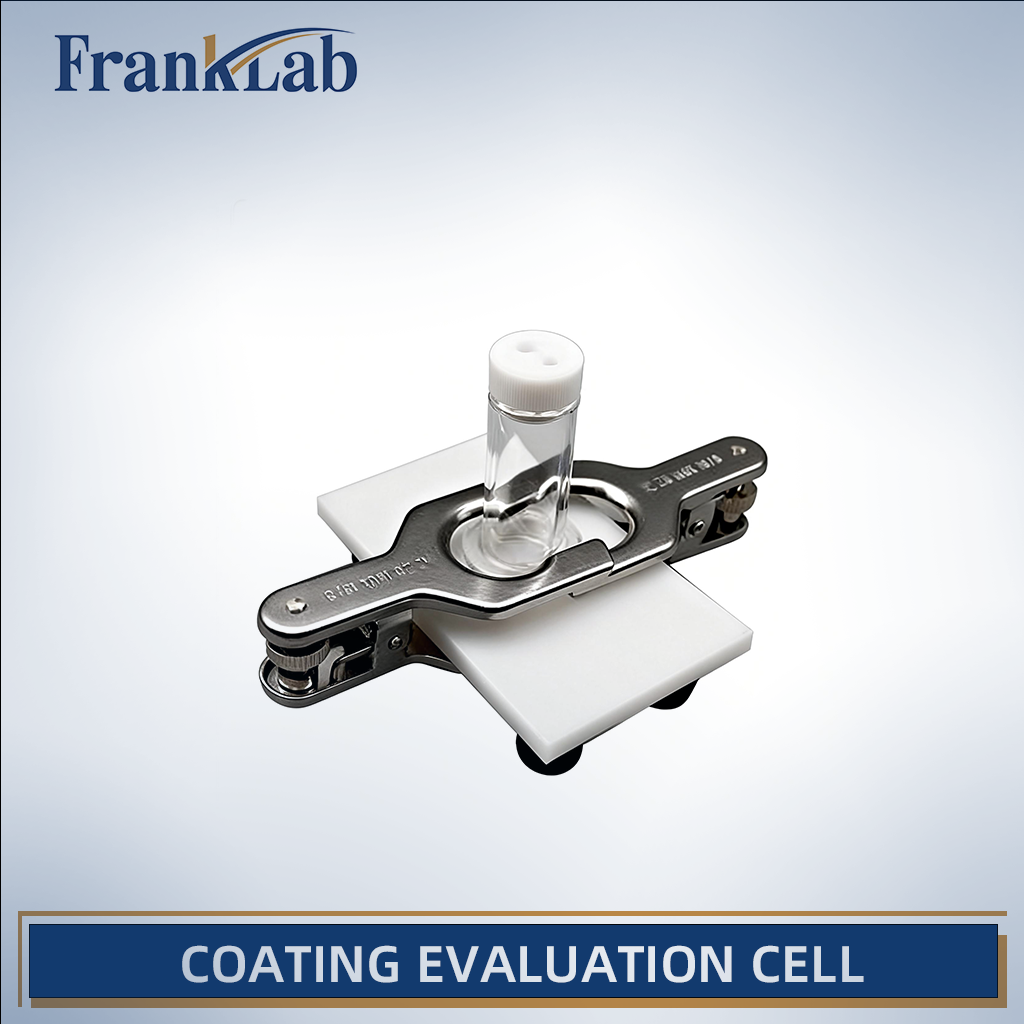

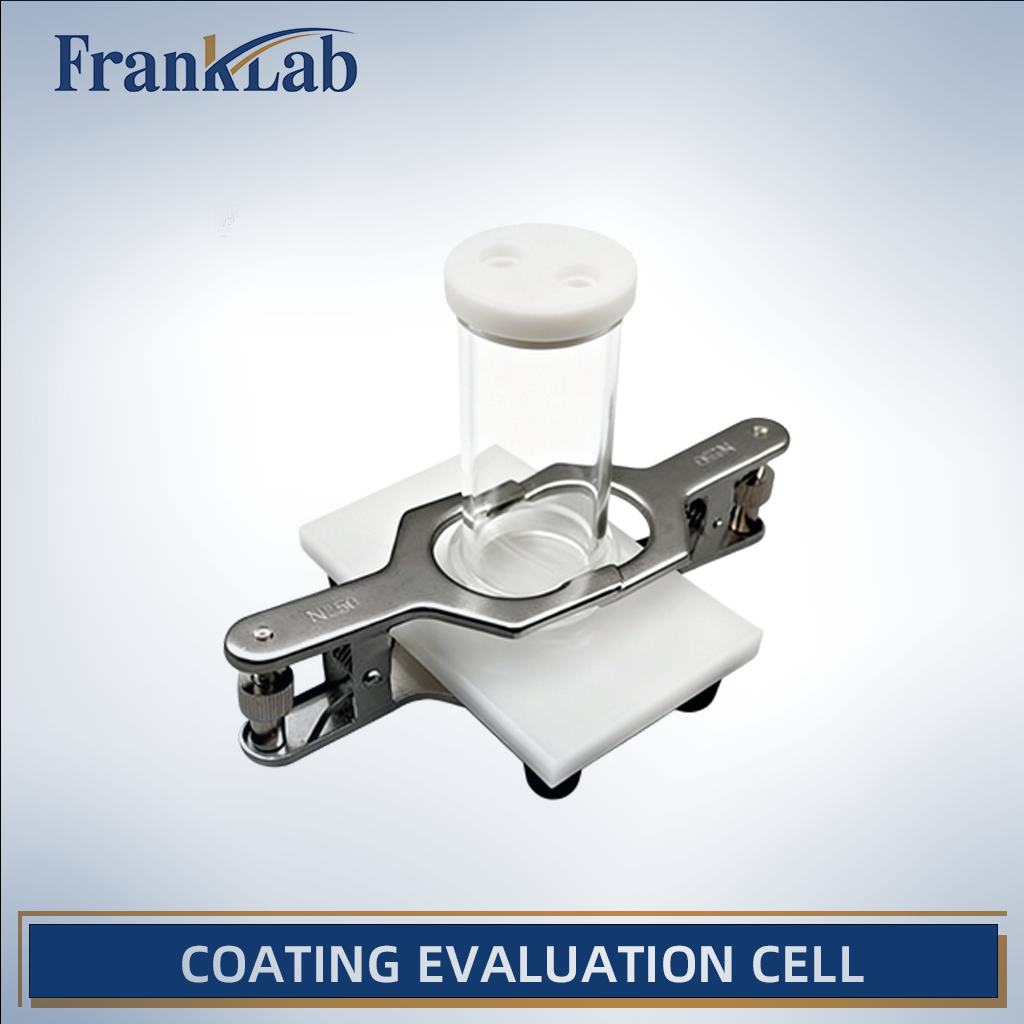

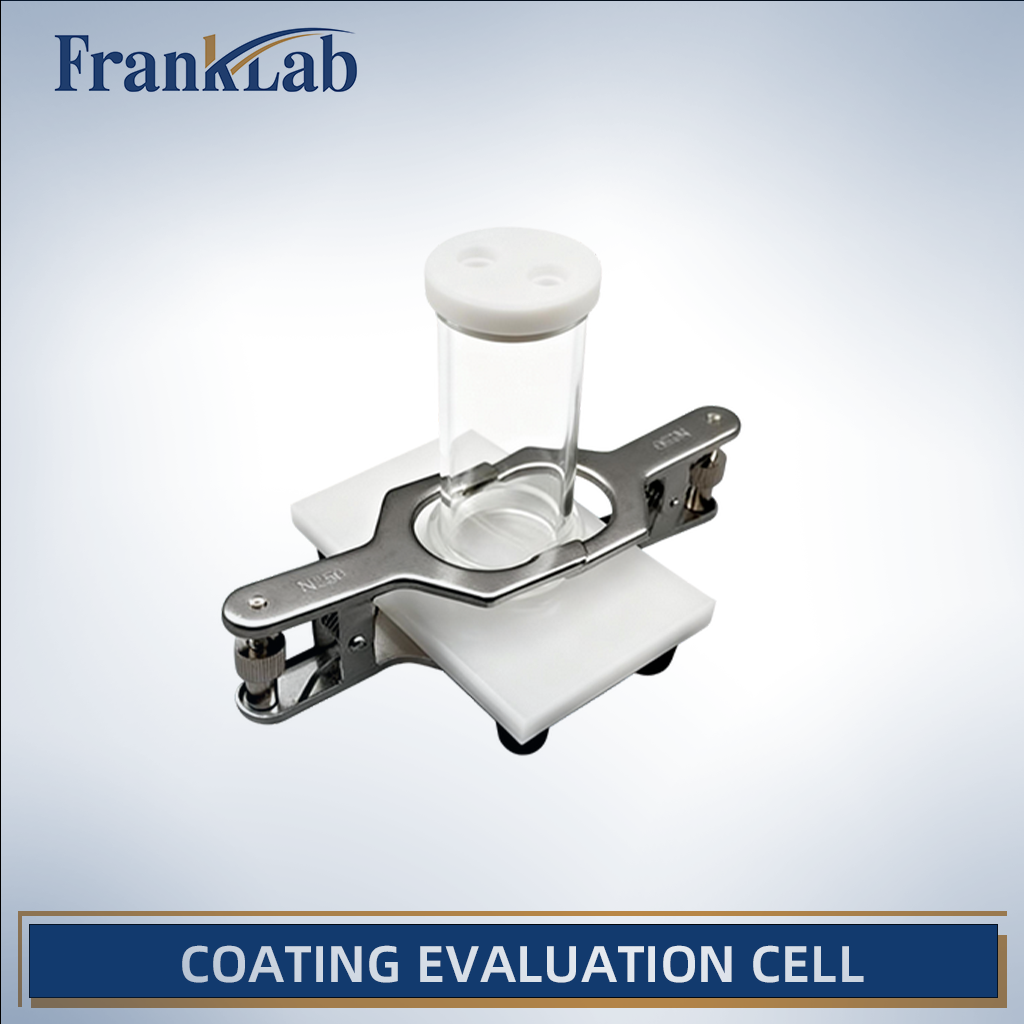

The FrankLab Coating Evaluation Electrochemical Cell is a localized electrochemical testing platform designed for quantitative evaluation of protective coatings, surface treatments, and corrosion-resistant layers.
Unlike conventional immersion cells that expose the entire sample to electrolyte, this system enables precise, well-defined exposure of a limited surface area, allowing researchers and engineers to isolate coating performance from edge effects, substrate interference, and uncontrolled wetting.
This cell is widely used in corrosion science, coating durability studies, surface engineering, and industrial qualification testing, where reproducibility, geometric control, and data comparability are critical.

Structural Design & Configuration
Localized Exposure Geometry
•Circular exposure window defined by precision sealing gaskets
•Only the target coating area is in contact with electrolyte
•Substrate backside and edges remain fully isolated
This design ensures accurate current density normalization and reliable comparison across samples.

Mechanical Clamping & Sealing System
•Rigid stainless-steel clamp applies uniform pressure
•PTFE sealing gaskets prevent leakage and lateral undercutting
•Nylon base provides electrical insulation and mechanical stability
The sealing system is optimized for long-term electrochemical stability without creep or drift.

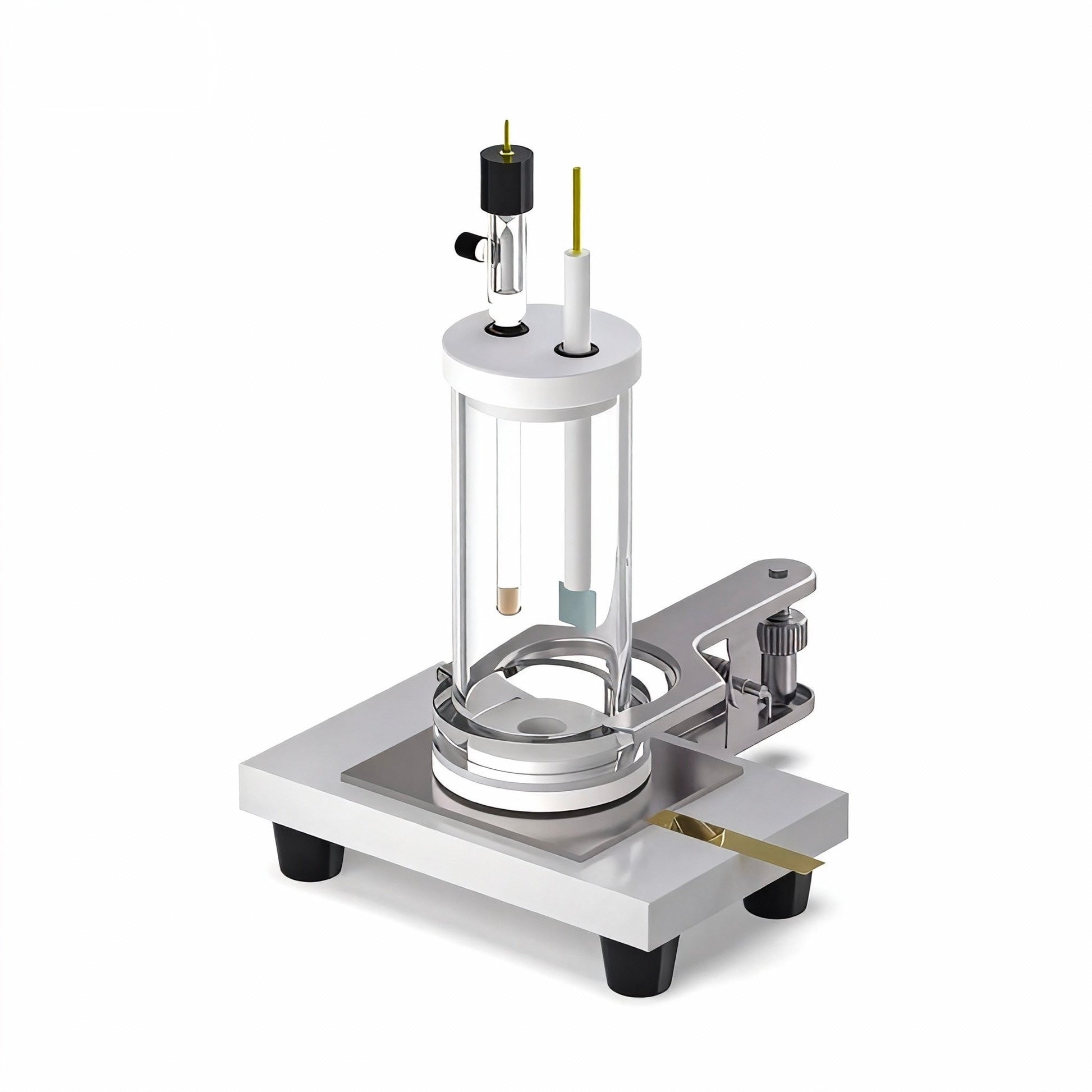

Three-Electrode Compatibility
•Working electrode: coated sample (substrate-mounted)
•Counter electrode: graphite rod (standard)
•Reference electrode: external Ag/AgCl (via adapter)
Fully compatible with potentiostats for EIS, LSV, CV, Tafel, and long-term polarization testing.

Available Cell Volumes & Exposure Sizes
Nominal Volume Inner Diameter (ID) Typical Application
8 mL 15 mm Micro-area screening, high-value coatings
30 mL 24 mm Laboratory corrosion evaluation
50 mL 35 mm Standard coating performance tests
80 mL 35 mm Extended duration or higher current tests
✔ Defined exposure area for precise current density calculation
✔ Custom diameters and volumes available upon request

Technical Specifications
Parameter Specification
Cell type Localized coating evaluation electrochemical cell
Body material High-purity borosilicate glass
Clamp material Stainless steel
Base material Nylon (electrically insulating)
Sealing system PTFE gaskets + elastomer O-rings
Electrode configuration Three-electrode
Working electrode Coated metal substrate
Counter electrode Graphite rod (standard)
Reference electrode Ag/AgCl (external)
Operating temperature Ambient to moderate heating
Pressure Atmospheric
Measurement compatibility CV, EIS, LSV, Tafel, chrono methods
Key Advantages
• Defined Working Area
Eliminates ambiguity in exposed surface area, enabling accurate current density and corrosion rate calculations.
• High Reproducibility
Uniform sealing pressure and standardized geometry ensure experiment-to-experiment consistency, critical for comparative studies.
• Low Electrolyte Volume
Minimizes reagent consumption and accelerates testing cycles without compromising data quality.
• Coating-Focused Evaluation
Separates coating performance from bulk substrate behavior and edge corrosion effects.
•Research-to-Industry Transfer
Suitable for both fundamental corrosion research and engineering qualification workflows.

Typical Applications
•Corrosion resistance testing of protective coatings
•Barrier performance evaluation of surface treatments
•Electrochemical impedance spectroscopy (EIS) of coatings
•Tafel and polarization resistance measurements
•Quality control and batch comparison
•Industrial coating qualification and R&D screening

Standard Package Contents
•Borosilicate glass cell body
•PTFE top cap
•Stainless steel clamping arms (2 pcs)
•Nylon insulating base
•Bottom sealing gaskets
•Electrode sealing rings
•Graphite counter electrode
•Electrical connector
(Working sample, reference electrode, and diameter adapters sold separately)

Customization Options (On Request)
•Custom exposure diameters
•Alternative gasket materials
•Larger or asymmetric volumes
•Integration with temperature control
•Industrial test configurations
•Batch testing fixtures



For Custom Orders or Inquiries

If you have custom requirements or any additional questions, feel free to contact us:

Email: support@franklab.shop


Why Choose FrankLab?

FrankLab electrochemical cells are designed by electrochemists, for electrochemists. Our focus is on:

•Clean geometry

•Chemical reliability

•Experimental reproducibility

•Compatibility with real research workflows

Used by universities, national labs, and industrial R&D teams worldwide.
