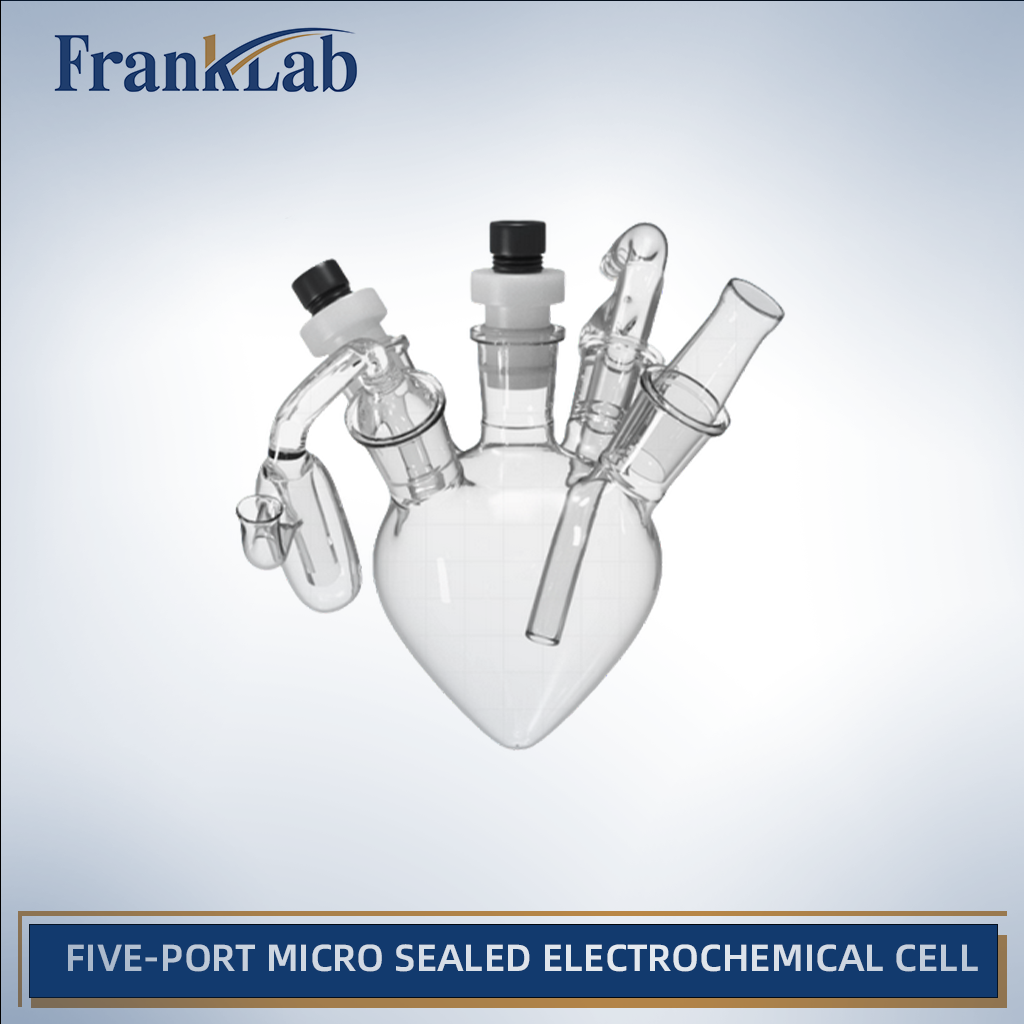

Five-Port Micro Sealed Electrochemical Cell

Five-Port Micro Sealed Electrochemical Cell

Product Description
Shipping & Delivery
Product Overview

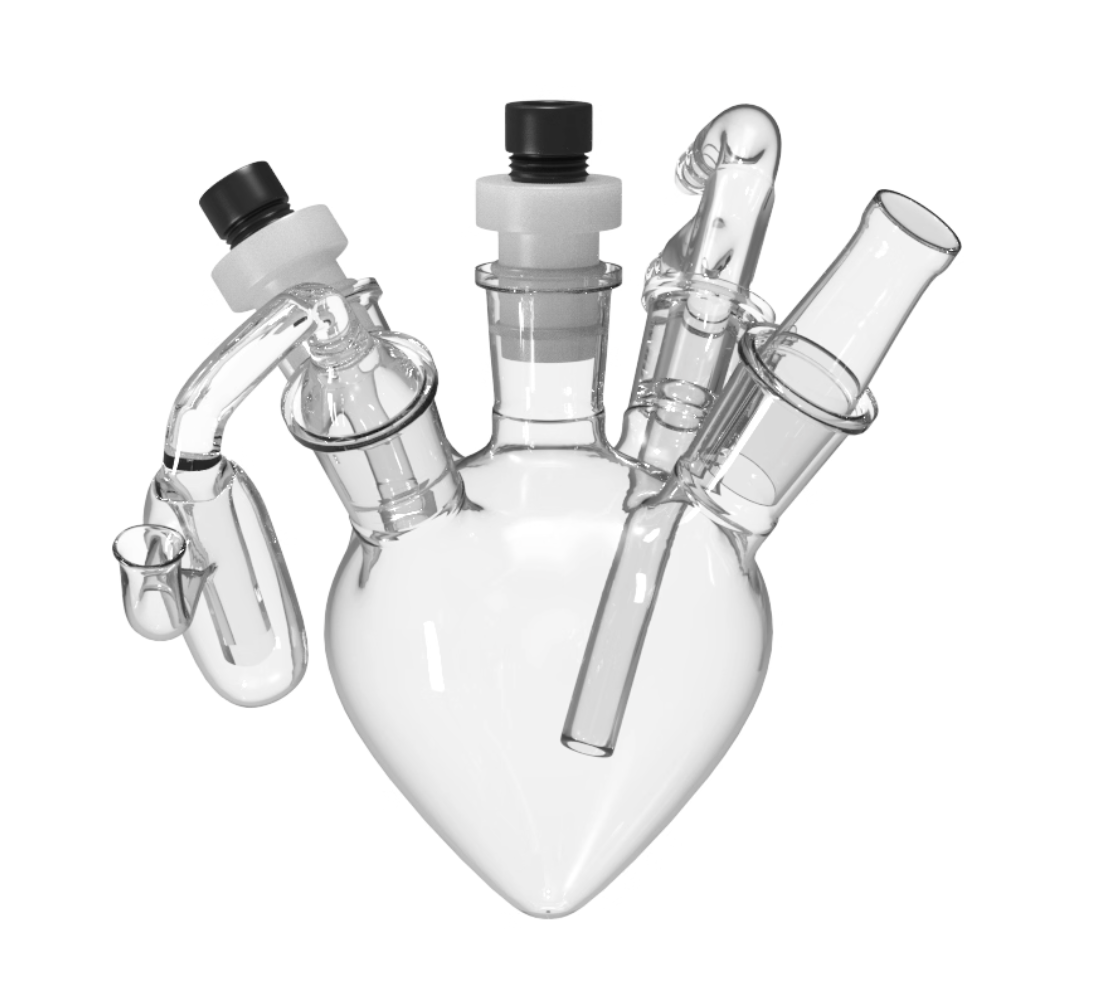

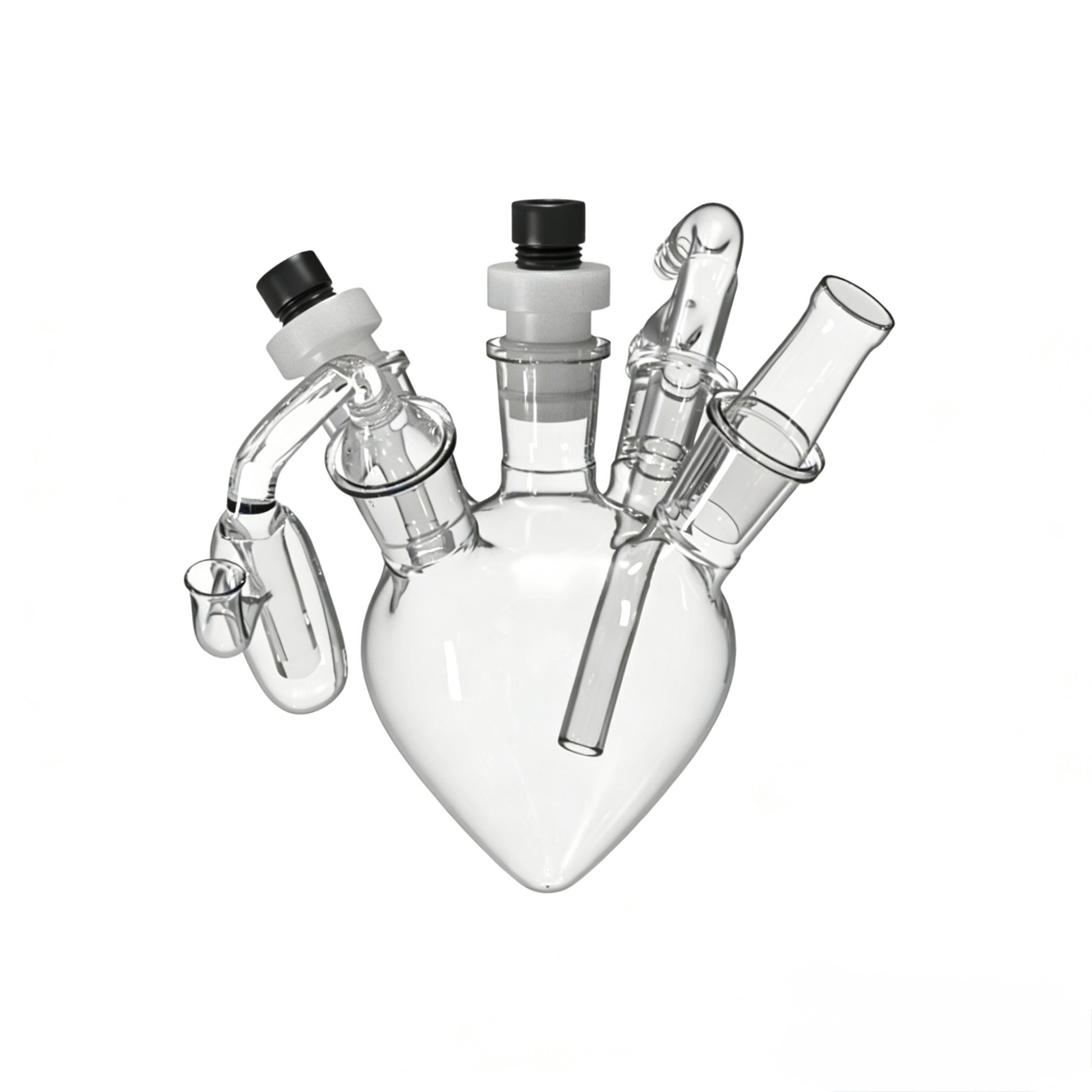

The Five-Port Micro Sealed Electrochemical Cell is a compact, fully enclosed glass reactor designed for precision electrochemical measurements under controlled gas and liquid environments. Its multi-neck, heart-shaped micro-reactor geometry offers excellent mixing, minimal dead volume, and stable mass-transfer behavior—ideal for advanced mechanistic studies, catalyst screening, and oxygen/moisture-sensitive electrochemistry.
Available in 5 mL / 10 mL / 20 mL / 30 mL / 50 mL, with optional borosilicate or high-purity quartz.
This cell is engineered for researchers requiring small-volume, high-precision, gas-tight electrochemical operation.

Key Features

1. Five Functional Ports (Customizable)

Each microcell includes 5 independent access ports:
·Working electrode port (GL-standard thread or custom adapter)
·Counter electrode port
·Reference electrode port
·Gas inlet / bubbler port
·Gas outlet / condenser / sampling port
This configuration supports:
✔ Gas purging (Ar / N₂)
✔ In-situ electrolysis
✔ Real-time analytical sampling
✔ Moisture-sensitive or air-sensitive experiments

2. High-Performance Glass Body

You may choose:
·Borosilicate glass (standard)
·Excellent chemical resistance
·-80 °C to 200 °C stability
·Shock-resistant
·Quartz (premium)
·Ultra-low metal contamination
·High-temperature stability up to 1000 °C
·Ideal for photoelectrochemistry (UV transparency)

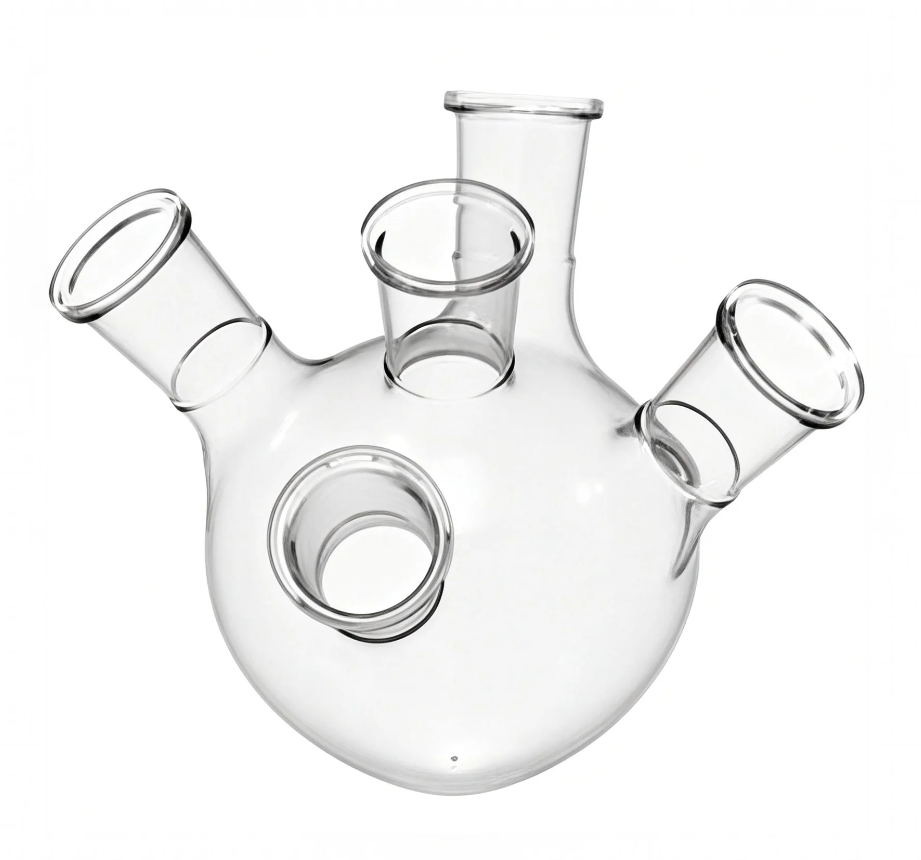

3. Micro-Volume, High Sensitivity Design

The unique vessel shape minimizes:
·solution dead volume
·ohmic drop
·diffusion distance
This improves signal-to-noise ratio and enables high-precision kinetic measurements, even with expensive or rare catalysts.

4. Gas-Tight PTFE or PEEK Stoppers

Every port is sealed using chemically inert materials:
·PTFE (standard)
·PEEK (optional, high-temperature)
Ensures long-term airtight operation.

5. Full Electrode Compatibility

Supports:
·Glassy carbon rod
·Platinum wire / mesh
·Gold electrode
·Ag/AgCl or Hg/HgO reference electrodes
·Rotating electrode adapters (optional)

Technical Specifications
Parameter Value
Available volumes 5 mL, 10 mL, 20 mL, 30 mL, 50 mL
Material Borosilicate glass / Quartz
Ports 5-Neck design with PTFE/PEEK stoppers
Seal type Threaded gas-tight micro stopper
Temperature range -80 °C to 200 °C (Borosilicate); up to 1000 °C (Quartz)
Applications Electrochemistry, CO₂RR, ORR, HER/OER, electrosynthesis, gas-phase experiments
(Custom neck sizes, joint types, and stopper formats available.)

Applications
·Micro-volume electrocatalyst screening
·Gas-involved electrochemical reactions (ORR / CO₂RR / NRR)
·Moisture-sensitive or oxygen-sensitive experiments
·Photoelectrochemical studies (quartz)
·Analytical electrochemistry
·In-situ spectroscopic coupling (optional ports can be customized)

Advantages of FrankLab Five-Port Micro Cell
  1. Ultra-small volume saves catalyst and electrolyte.
  2. Five-port multipurpose design supports complex workflows.
  3. Sealed system → minimizes contamination & evaporation.
  4. Customizable to any electrode type or joint size.
  5. Compatible with all major potentiostats (CHI, Metrohm, Gamry, Autolab, etc.)
Customization Options
FrankLab provides OEM / ODM customization:
·Vessel volume
·Port positions & angles
·Joint size (14#, 19#, 24#, GL-thread)
·PTFE / PEEK sealing system
·Integrated condenser or gas diffuser
·Electrode adapters for GC / Pt / Au / RDE
Quotations available within 24 hours.



For Custom Orders or Inquiries

If you have custom requirements or any additional questions, feel free to contact us:

Email: support@franklab.shop


Why Choose FrankLab?

FrankLab electrochemical cells are designed by electrochemists, for electrochemists. Our focus is on:

•Clean geometry

•Chemical reliability

•Experimental reproducibility

•Compatibility with real research workflows

Used by universities, national labs, and industrial R&D teams worldwide.
