Fused Quartz Sealed Optical Electrochemical Cell

Product Overview

The FrankLab Fused Quartz Sealed Optical Electrochemical Cell (50 × 50 × 50 mm) is a fully enclosed, multi-port electrochemical reactor designed for optical, spectroelectrochemical, and gas-controlled electrochemical experiments.

Constructed entirely from high-purity fused quartz, this cell provides excellent optical transparency, chemical resistance, and thermal stability, making it ideal for experiments involving UV–Vis spectroscopy, photoelectrochemistry, gas–liquid electrochemistry, and sealed electrolysis.

The square geometry ensures uniform optical path length and stable electrode positioning, while the PTFE sealing system enables airtight operation for volatile, air-sensitive, or gas-involved reactions.

Cell Configuration

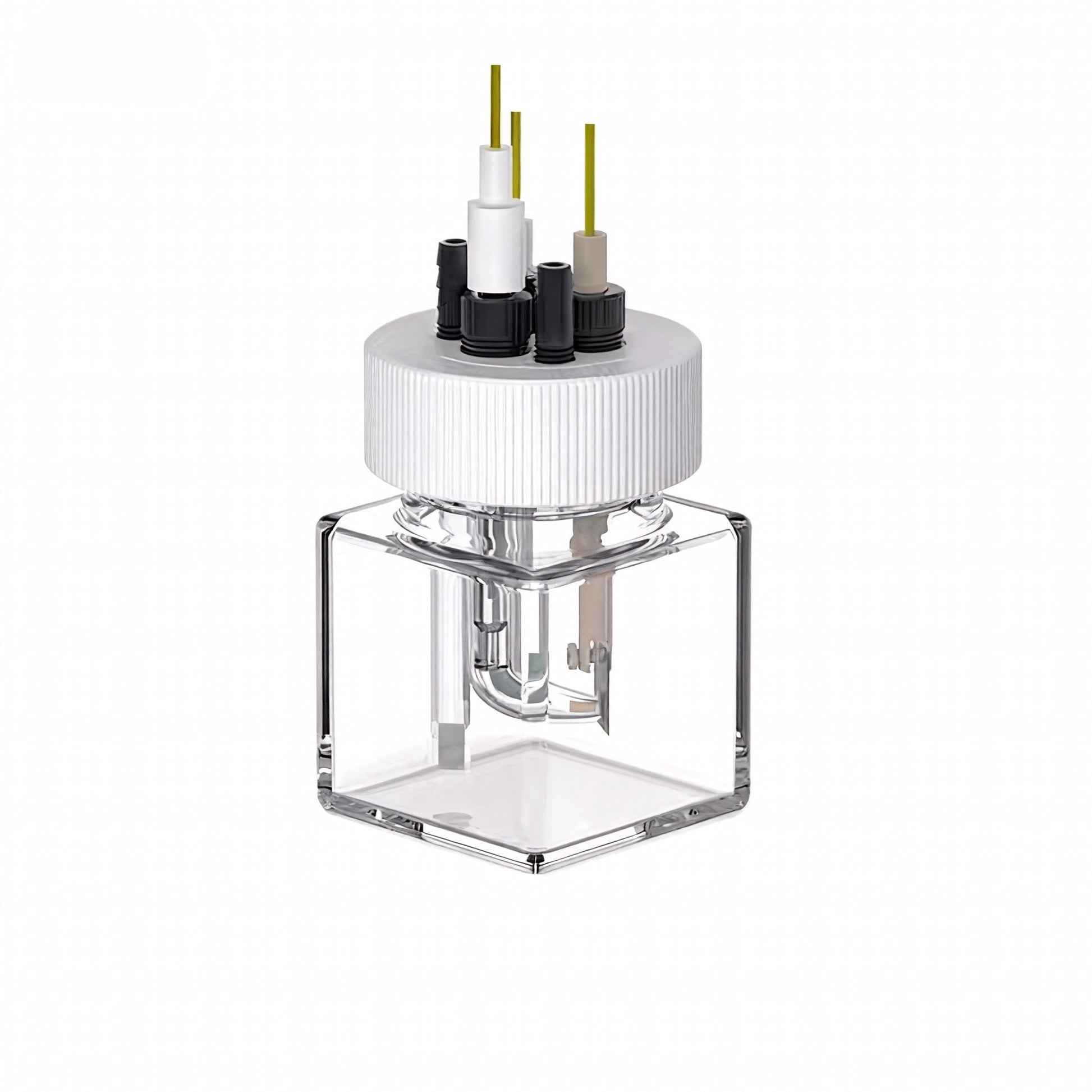

Sealed Square Quartz Optical Cell

•Internal dimensions: 50 × 50 × 50 mm

•Fully enclosed quartz body with integrated sealing threads

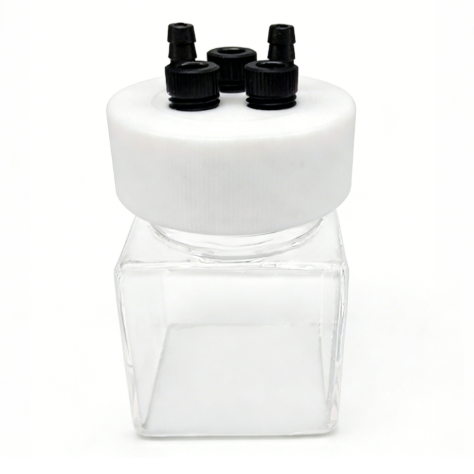

•Multi-port PTFE cap with independent electrode and gas ports

•Internal salt bridge included for reference electrode isolation

•Compatible with three-electrode electrochemical systems

✔ Designed for quantitative optical + electrochemical measurements
✔ Suitable for closed-system and gas-controlled experiments

Standard Package Contents

Each complete set includes:

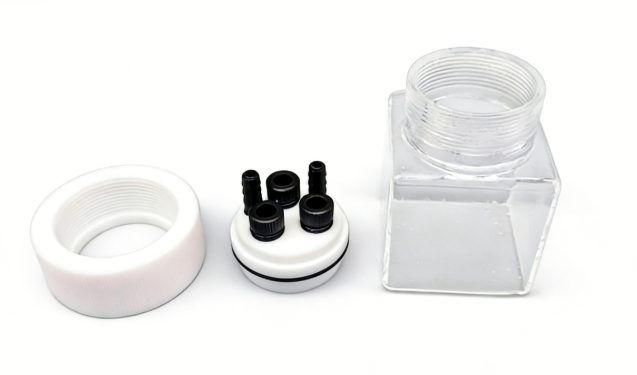

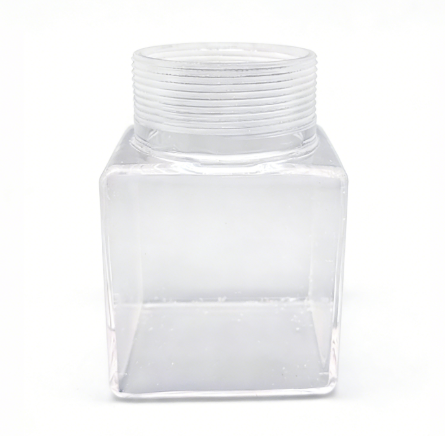

1. Optical-grade fused quartz cell body (with threaded neck) × 1
2. PTFE outer cap × 1
3. PTFE inner sealing cap × 1
4. Cup sealing gaskets × 2
5. Black PTFE threaded plugs (electrode ports) × 3
6. Black PTFE threaded plugs (gas ports) × 2
7. O-rings (for electrode & gas ports) × multiple
8. PTFE gas tubing × 2 m
9. Internal salt bridge × 1
10. Gas inlet / bubbling tube × 1

⚠ Electrodes are not included by default and can be selected separately according to experimental requirements.

Technical Specifications

Key Features

• Optical-Grade Fused Quartz Construction

Provides high UV–Vis transparency, minimal background absorption, and excellent durability for:

•UV–Vis spectroelectrochemistry

•Photoelectrochemical measurements

•In-situ optical monitoring

• Fully Sealed, Gas-Tight Design

Independent PTFE sealing for each port enables:

•Airtight electrolysis

•Inert gas purging (Ar / N₂ / CO₂)

•Handling of volatile or air-sensitive electrolytes

•Stable long-term experiments

• Multi-Port Electrochemical Flexibility

Supports standard three-electrode configurations:

•Working electrode: metal plates, mesh, films, or optical electrodes

•Counter electrode: Pt mesh / wire

•Reference electrode: Ag/AgCl, Hg/HgO, SCE (via salt bridge)

Ports can be reassigned for gas inlet, gas outlet, or sampling.

• Square Geometry for Optical Accuracy

The square design ensures:

•Consistent optical path length

•Reduced light scattering

•Improved reproducibility in spectroscopic measurements

Typical Applications

•UV–Vis spectroelectrochemistry

•Photoelectrochemical studies

•CO₂ reduction (CO₂RR) with optical monitoring

•Oxygen evolution / reduction reactions (OER / ORR)

•Sealed electrolysis with gas control

•Electro-organic synthesis with in-situ observation

Customization Options

Available upon request:

•Alternative internal dimensions (custom quartz machining)

•Additional electrode or gas ports

•Modified port angles or positions

•Quartz thickness upgrade for higher temperature or pressure tolerance

•Custom electrode holders (PTFE / PEEK)

•Integration with optical fiber probes or light sources

• Why Choose FrankLab?

FrankLab electrochemical cells are designed by electrochemists for real laboratory workflows, focusing on:

•Mechanical reliability

•Sealing integrity

•Optical and electrochemical compatibility

•Long-term experimental stability

This model is widely used in research institutes, university laboratories, and industrial R&D requiring high-precision optical electrochemistry.
