Product Overview

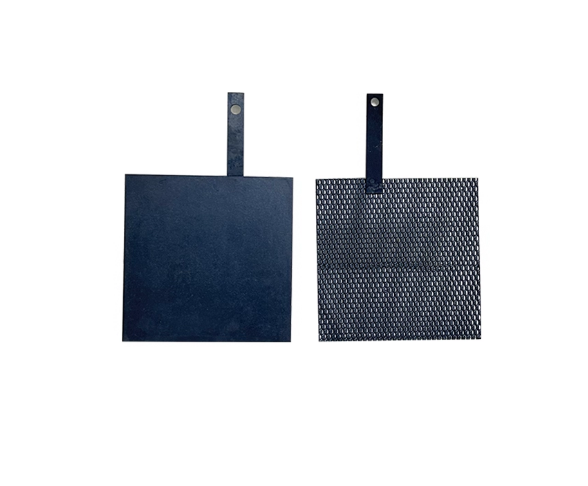

The FrankLab Ir–Ta Titanium Sheet Electrode is a high-performance MMO (Mixed Metal Oxide) anode designed for electrochemical systems requiring extreme durability, high oxygen evolution efficiency, and long-term structural integrity.
This electrode features a titanium substrate coated with an Iridium–Tantalum oxide layer, forming a stable, conductive, and corrosion-resistant surface optimized for OER, CER, electro-oxidation, electrosynthesis, industrial electrolysis, and wastewater treatment applications.

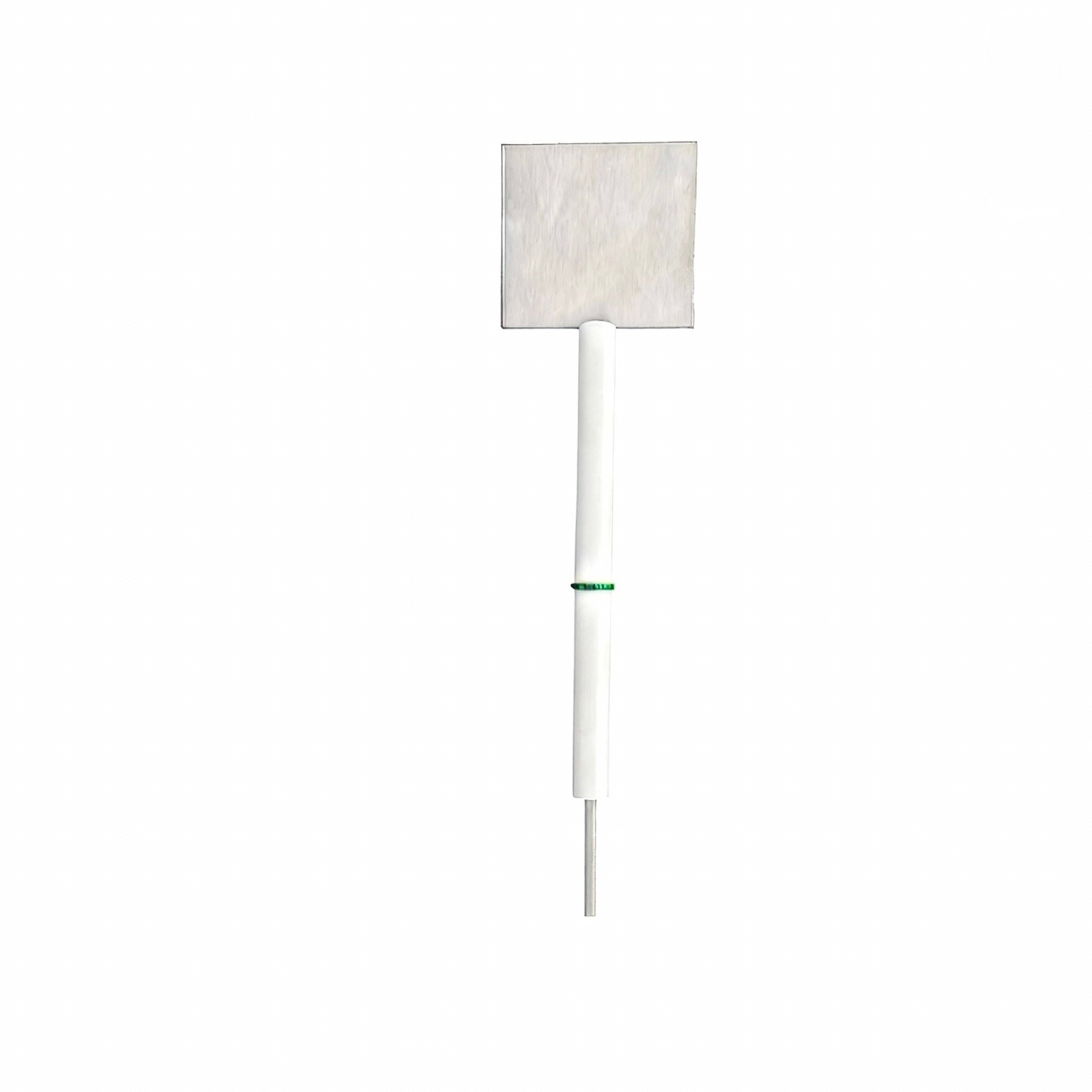

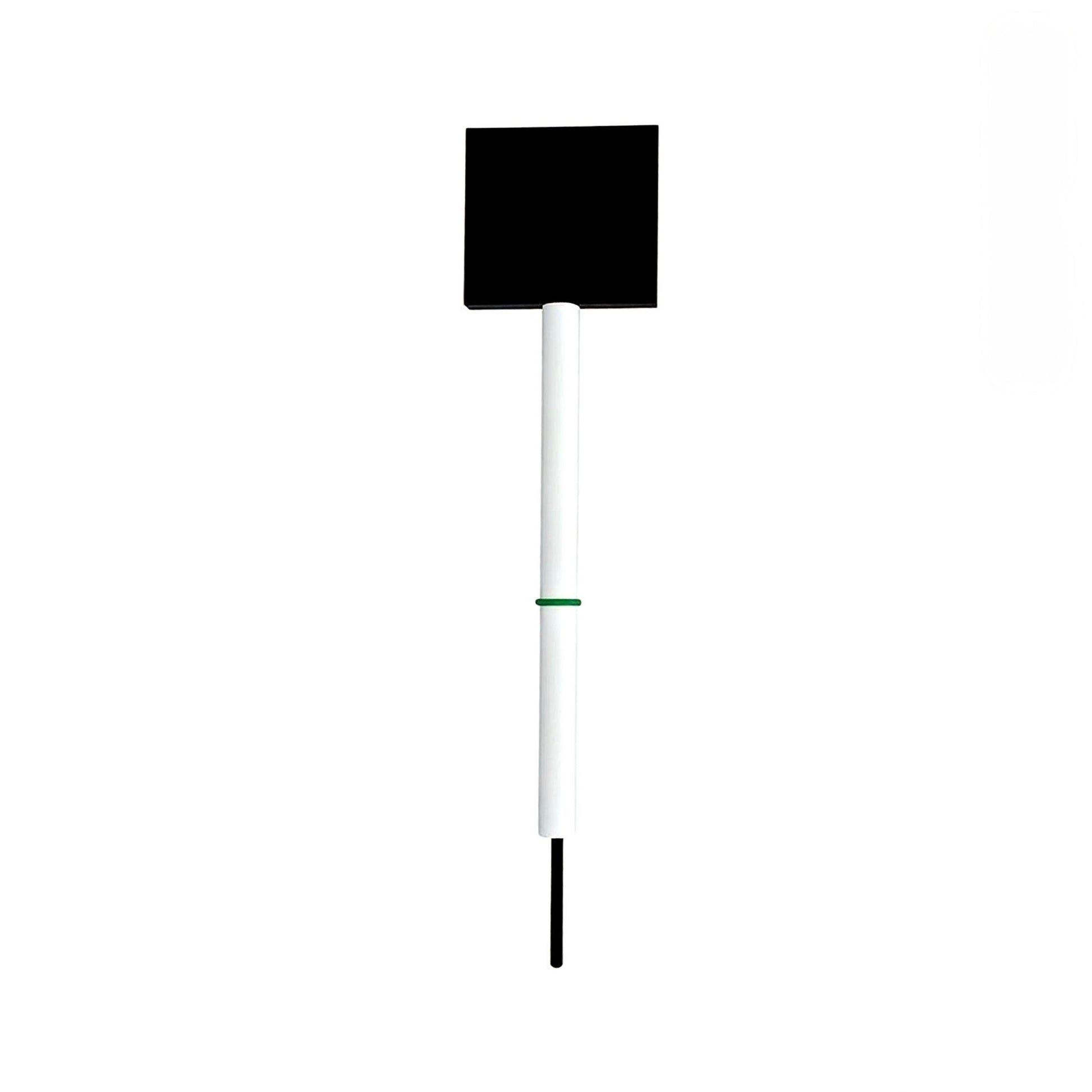

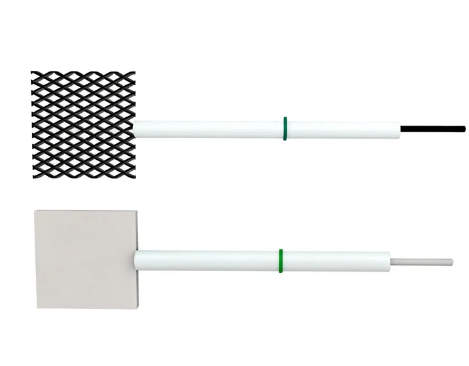

Each electrode is composed of:
• Titanium Sheet (Grade 1 or 2)
• Ir–Ta Mixed Metal Oxide Coating（customizable loading & thickness）
• PTFE Electrode Rod（chemically inert）
• Gold-Plated Copper Terminal（FrankLab standard）
The MMO coating provides catalytic activity comparable to noble metals while offering superior cost efficiency and long lifespan.
Key Features
• Ir–Ta Mixed Metal Oxide Coating (MMO)
• Highly stable under high anodic potentials
• Excellent catalytic activity for OER and CER
• Long operational lifetime in acidic, alkaline, and chloride-containing media
• Resistant to coating degradation even in oxidizing conditions
• Customizable Ir/Ta ratio and coating thickness
• Titanium Sheet Substrate
• Lightweight, strong, highly corrosion-resistant
• Maintains structural stability during long electrolysis cycles
• Grade 1 or Grade 2 titanium available
• PTFE Electrode Rod
• Chemically inert, solvent-resistant, heat-stable
• Prevents contamination and ensures consistent immersion depth
• Length and diameter customizable
• Gold-Plated Copper Terminal (Standard FrankLab Configuration)
• High electrical conductivity
• Corrosion-resistant and non-contaminating
• Ensures stable, low-noise current flow
• Compatible with all electrochemical workstations
(Custom terminal materials available upon request.)
Technical Specifications
|
Component
|
Specification
|
|
Active Material
|
Ir–Ta Mixed Metal Oxide
|
|
Substrate
|
Titanium (Grade 1 / Grade 2)
|
|
Electrode Geometry
|
Titanium sheet
|
|
Coating Thickness
|
Customizable (typical 1–10 μm)
|
|
Ir/Ta Ratio
|
Customizable to application
|
|
Electrode Rod
|
PTFE
|
|
Terminal Rod
|
Gold-plated copper (standard)
|
|
Operating Media
|
Acidic, alkaline, chloride, oxidizing environments
|
|
Typical Lifetime
|
Long service life even under high-current conditions
|
Recommended Applications
Electrocatalysis & Oxygen Evolution
• OER (Oxygen Evolution Reaction)
• High-potential anodic processes
• Stability testing of electrolyzers
Industrial & Environmental Electrochemistry
• Electro-oxidation of organics
• Electro-chlorination (CER)
• Wastewater treatment
• Electrochemical synthesis of oxidants
General Laboratory Electrochemistry
• CV, LSV, CA/CP, EIS
• Coating degradation studies
• Corrosion resistance evaluations

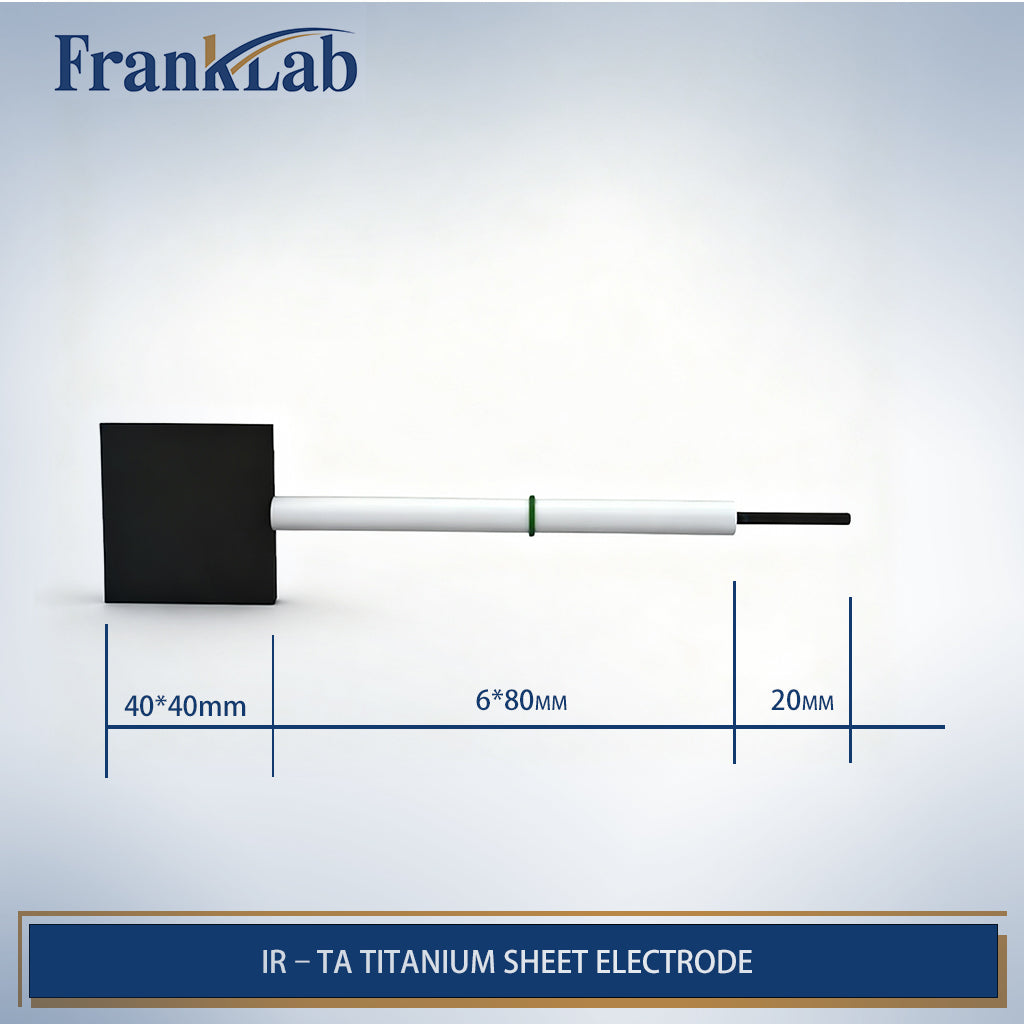

Available Sizes（Standard Options）
5×5 mm
10×10 mm
10×20 mm
15×15 mm
20×20 mm
25×25 mm
30×30 mm
40×40 mm
50×50 mm
Thickness: 0.1–2.0 mm customizable.
Customization Available
FrankLab specializes in custom Ir–Ta MMO electrode fabrication.
Custom Options Include
• Ir/Ta coating ratio
• Coating thickness
• Titanium sheet size & thickness
• PTFE rod geometry
• Terminal material (Au-plated Cu, stainless steel, Ti)
• Edge rounding or reinforcement

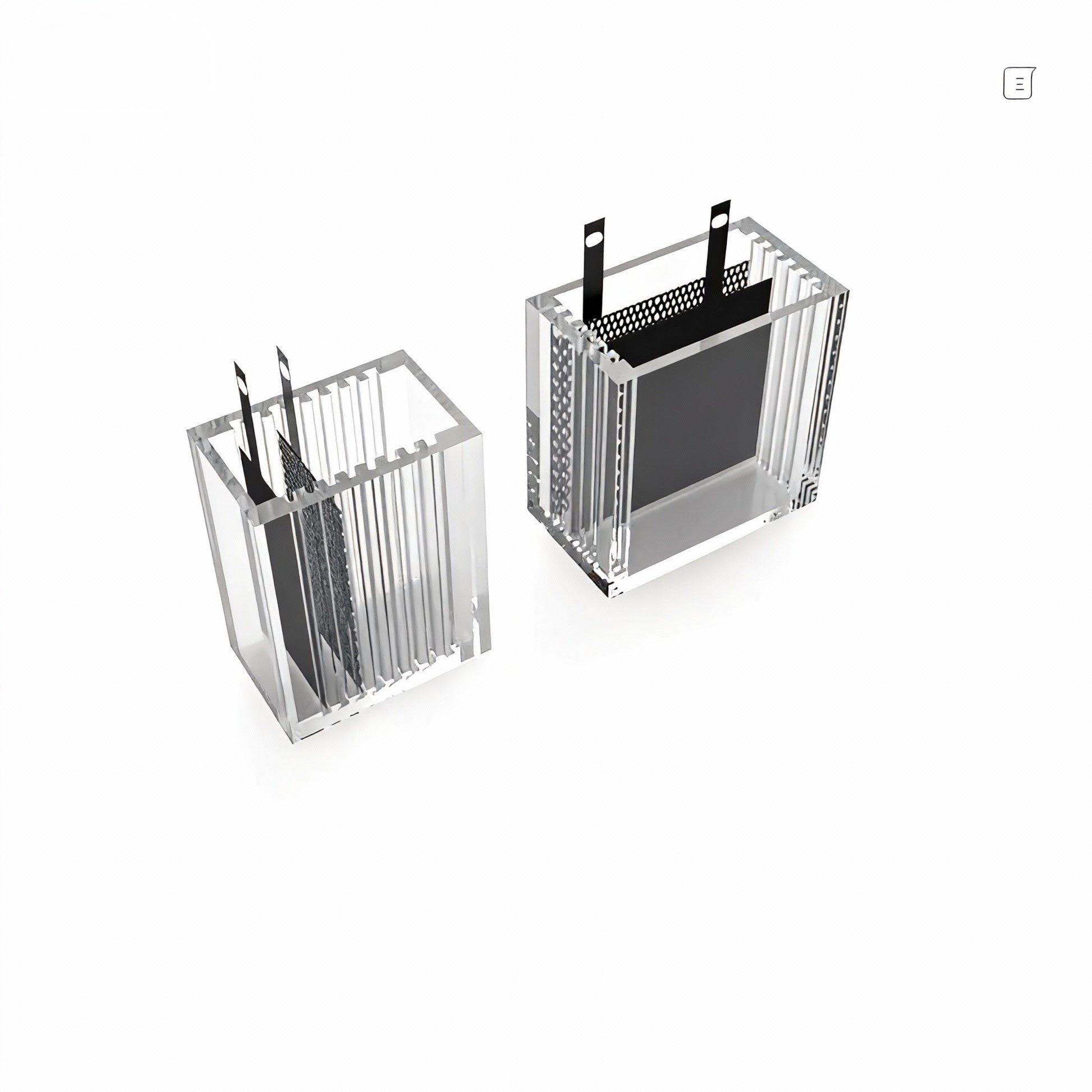

• Special shapes for H-cells or flow electrolyzers
You will receive custom design + quotation within 24 hours.
For Custom Orders or Inquiries
If you have custom requirements or any additional questions, feel free to contact us:
Email: support@franklab.shop
Why Choose FrankLab?
FrankLab Focused on electrochemical & research materials
•Stable quality for repeatable experiments
•Flexible customization capability
•Trusted by universities, institutes, and industrial R&D labs
