MEA Electrolysis Cell (Non-metallic Cathode)

MEA Electrolysis Cell (Non-metallic Cathode)

Product Description
Shipping & Delivery

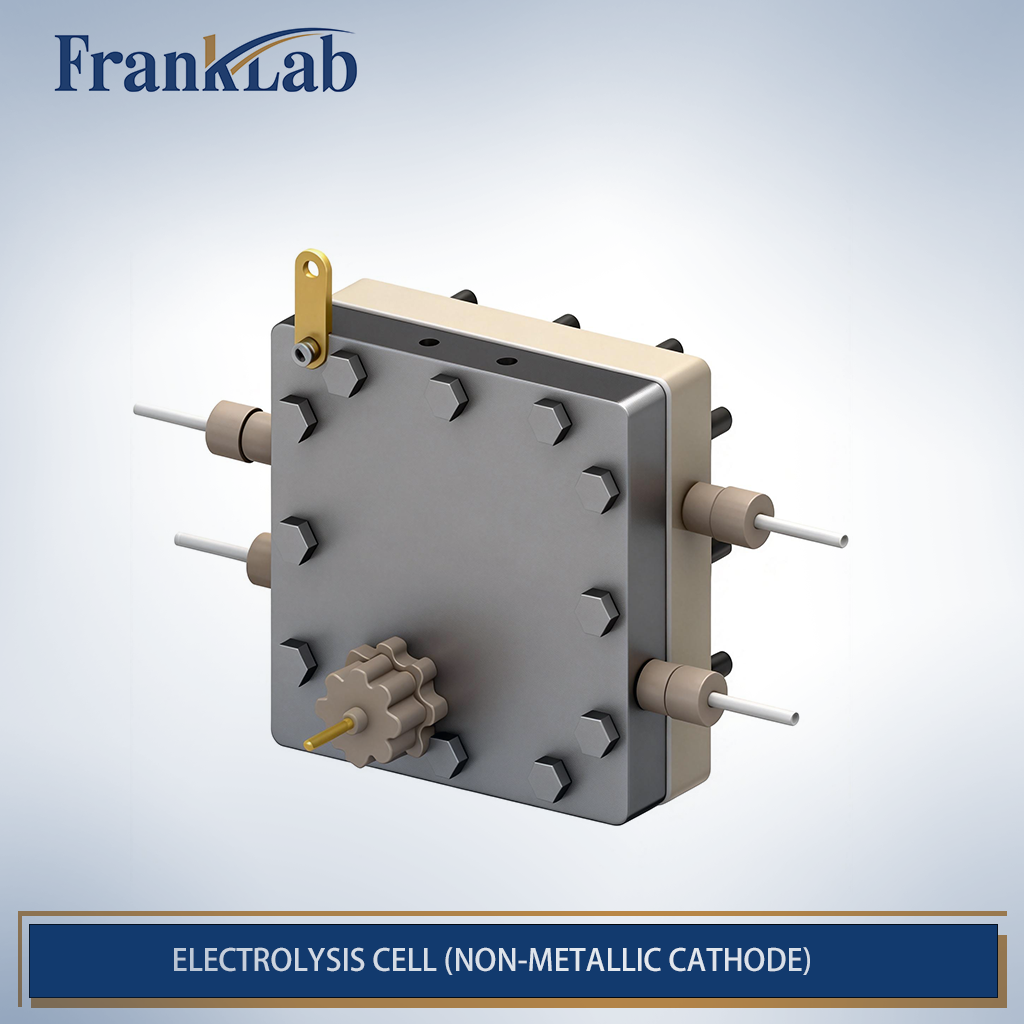

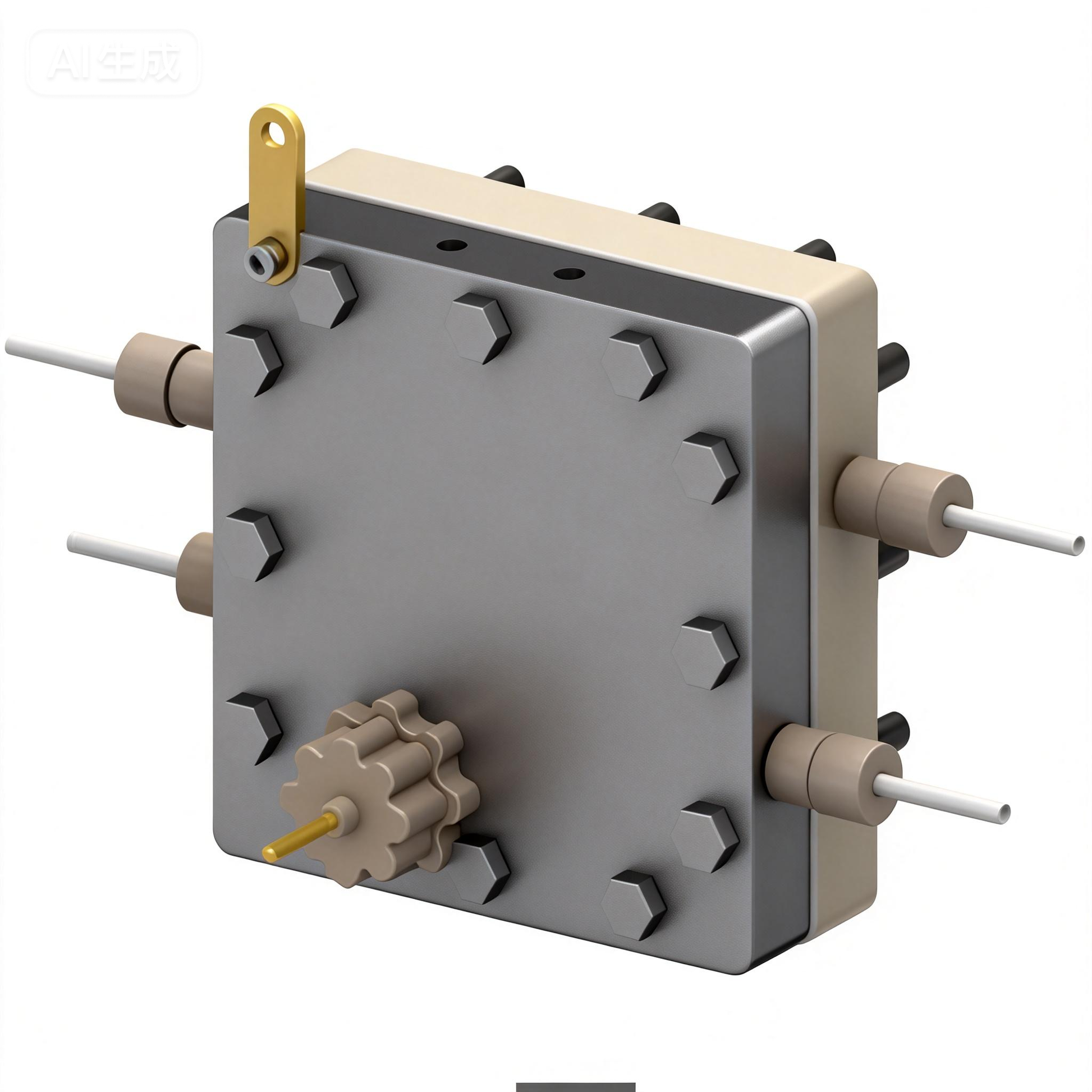

Electrolysis Cell (Non-metallic Cathode)

Product Overview
This electrolysis cell is a membrane-electrode electrolyzer specially designed with a non-metallic cathode flow plate, aimed at electrochemical systems where metal contamination, parasitic reactions, or background interference must be strictly avoided.
The cell integrates a membrane-separated structure, serpentine flow field, and asymmetric electrode material design, making it particularly suitable for CO₂ electroreduction, electrosynthesis, membrane electrolysis, and long-term stability studies.
Unlike conventional full-metal electrolyzers, the cathode side adopts PEEK (polyether ether ketone) as the structural flow-field material, significantly improving chemical compatibility while maintaining mechanical strength and sealing reliability.

Structural Design & Configuration
• Cell type: Membrane Electrode Electrolysis Cell
• Cathode material (flow plate): PEEK (non-metallic, high-performance polymer)
• Anode material (flow plate): High-purity titanium (Ti)
• Membrane position: Sandwiched between cathode and anode chambers
• Flow field: Serpentine channel design (uniform distribution, enhanced mass transfer)
• Assembly type: Bolt-compressed modular structure with replaceable internal components
The asymmetric material design ensures electrochemical inertness on the cathode side while retaining excellent conductivity and corrosion resistance on the anode side.

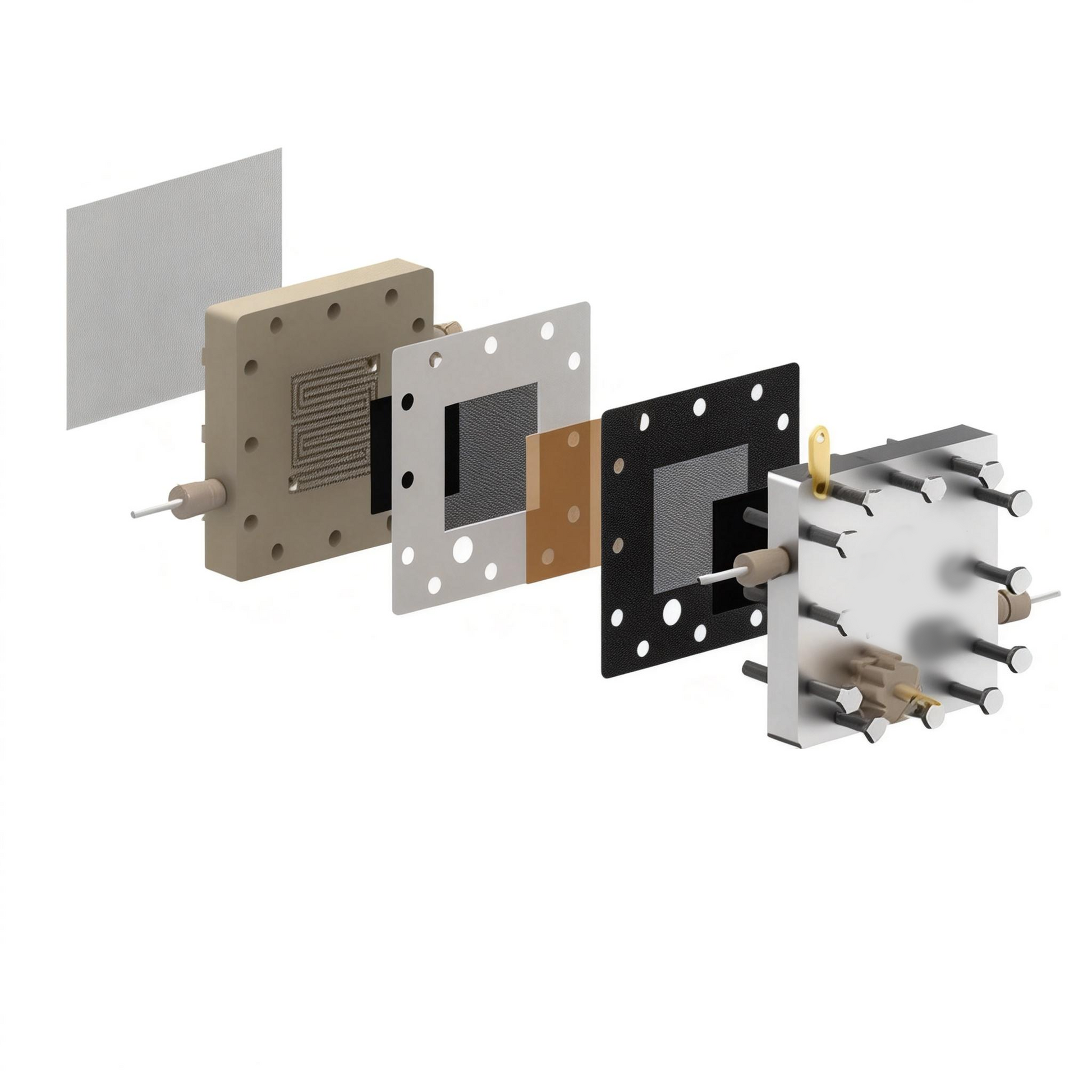

Key Structural Components
• Cathode chamber
PEEK flow plate with serpentine channel
Cathode outlet and inlet ports
Compatible with carbon paper, carbon cloth, catalyst-coated substrates
• Anode chamber
Titanium flow plate
Supports oxygen evolution or oxidative reactions
Optional heating rod port (φ4 mm)
Optional thermocouple port (φ4 mm)
• Membrane layer
Compatible with PEM, AEM, BPM (Nafion, Sustainion, FAA series, etc.)
Easy replacement and alignment
• Sealing system
High-precision O-ring sealing
Excellent leak resistance under continuous operation

Technical Specifications
•Effective reaction area:
50 × 50 mm (standard)
Customizable sizes available
• Flow channel type:
Serpentine flow field
• Cathode–anode separation:
Defined by membrane thickness and gasket configuration
• Electrode connection:
Cathode current collector: titanium (material customizable)
Anode current collector: gold-plated copper
• Ports & interfaces:
Independent electrolyte inlet / outlet for cathode and anode
Standard tubing interfaces (custom options available)

Performance Advantages
• Non-metallic cathode environment
Eliminates metal ion leaching
Ideal for sensitive electrocatalytic reactions
• Excellent chemical resistance
PEEK withstands strong acids, bases, and organic solvents
• Enhanced mass transport
Serpentine channel increases reactant residence time
• High experimental flexibility
Compatible with multiple membrane types and electrode materials
• Thermal & electrochemical expandability
Heating rod and thermocouple ports support temperature-controlled experiments

Typical Applications
•CO₂ electroreduction (CO₂RR)
•Membrane-based electrosynthesis
• Fundamental electrochemical mechanism studies
• Catalyst stability and durability testing
• Electrolysis systems requiring ultra-clean cathode environments

Customization Options
•Flow channel geometry (serpentine / parallel / custom)
• Reaction area size
• Port position and interface type
• Electrode ear material
• Heating and temperature sensing integration

For Custom Orders or Inquiries

If you have custom requirements or any additional questions, feel free to contact us:

Email: support@franklab.shop
