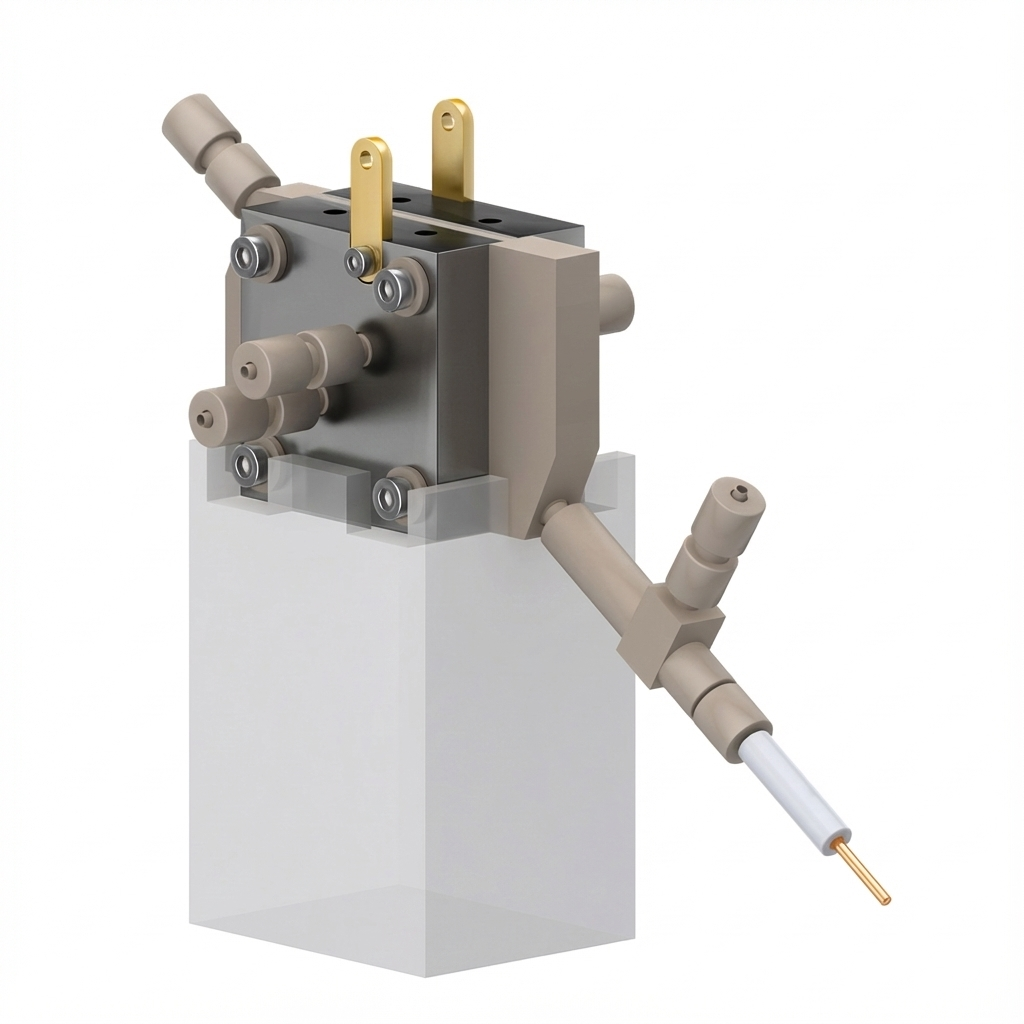

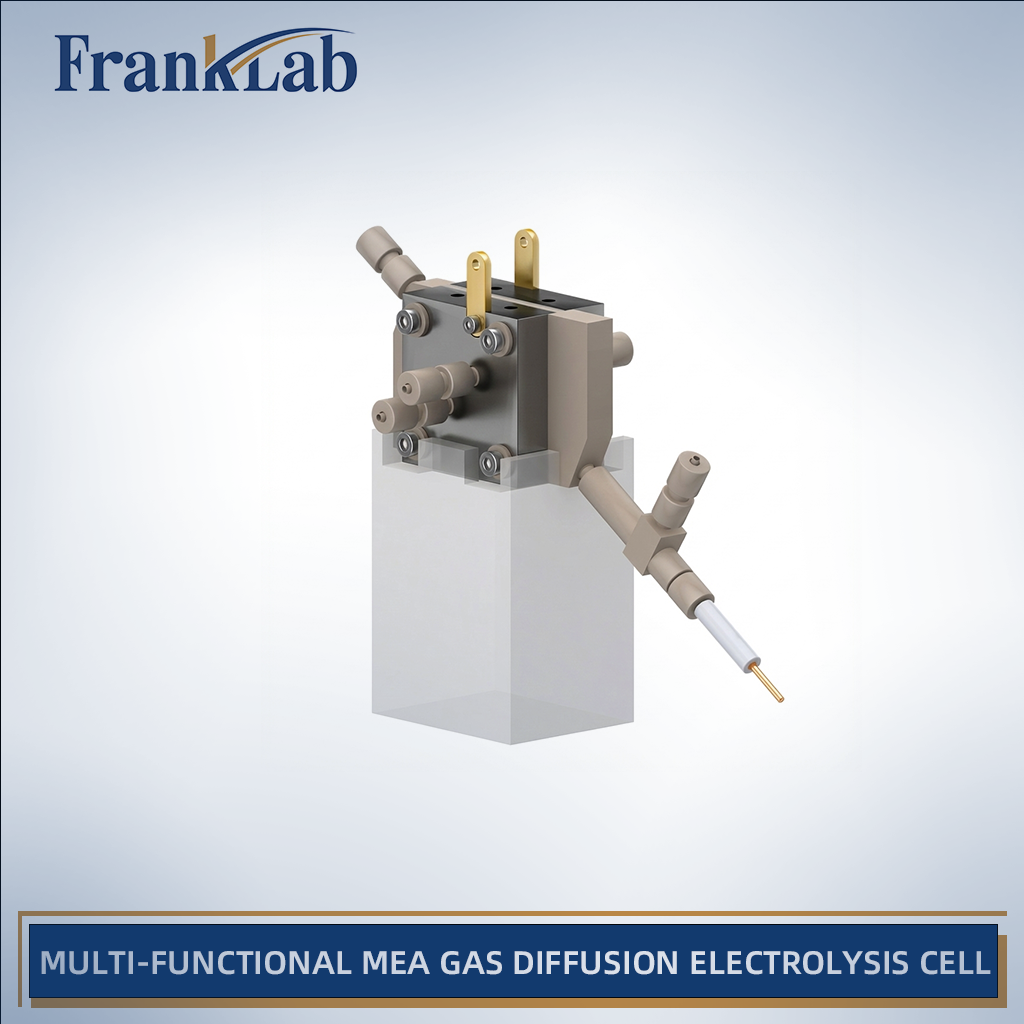

Multi-functional MEA Gas Diffusion Electrolysis Cell

Product Description

The Multi-functional MEA Gas Diffusion Electrolysis Cell (Model 101018) is a modular research-grade electrochemical reactor designed to integrate three mainstream CO₂ reduction configurations into a single platform: gas diffusion electrolysis, gas–solid electrochemistry, and membrane electrode assembly (MEA) electrolysis.

The cell adopts a sandwich-structured architecture, enabling precise construction of gas–solid interfaces and supporting the use of solid electrolytes or ion-exchange membranes in place of conventional liquid electrolytes. This design effectively suppresses the introduction of extraneous anions/cations, making it especially suitable for the direct production of high-purity liquid products from CO₂ electroreduction.

A key advantage of this system is its high degree of configurability: by replacing selected functional modules (A/B/C components), users can rapidly switch between different electrolysis modes without changing the core cell body.

Core Configurations Supported

1. CO₂ Reduction Gas Diffusion Electrolysis Cell

Designed for high-current-density CO₂RR studies using gas diffusion electrodes (GDEs).

•Gas supplied through a serpentine flow field to enhance gas–catalyst contact time

•Optimized electrode spacing for reduced ohmic loss

•Suitable for formate, CO, hydrocarbons, and alcohol product studies

2. Solid-State Electrolysis Cell for Pure Liquid Product Generation

Configured for solid electrolyte or membrane-based operation, minimizing ionic cross-contamination.

•Ideal for high-purity liquid product collection

•Eliminates bulk liquid electrolyte effects

•Enables mechanistic and selectivity studies under controlled ion transport

3. CO₂ Reduction MEA Electrolysis Cell

Membrane-electrode-assembly configuration for advanced MEA research.

•Compact electrode spacing

•Stable operation at elevated current densities

•Compatible with various ion-exchange membranes

Structural Design Highlights

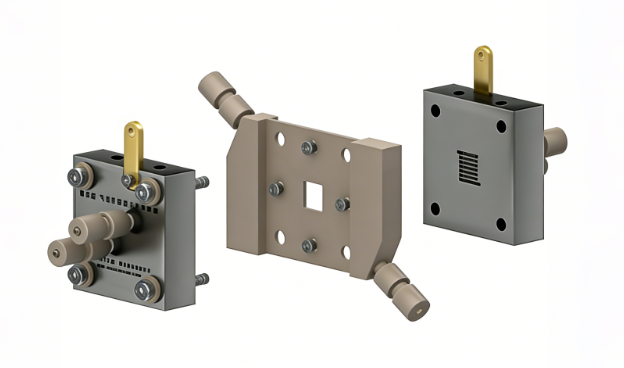

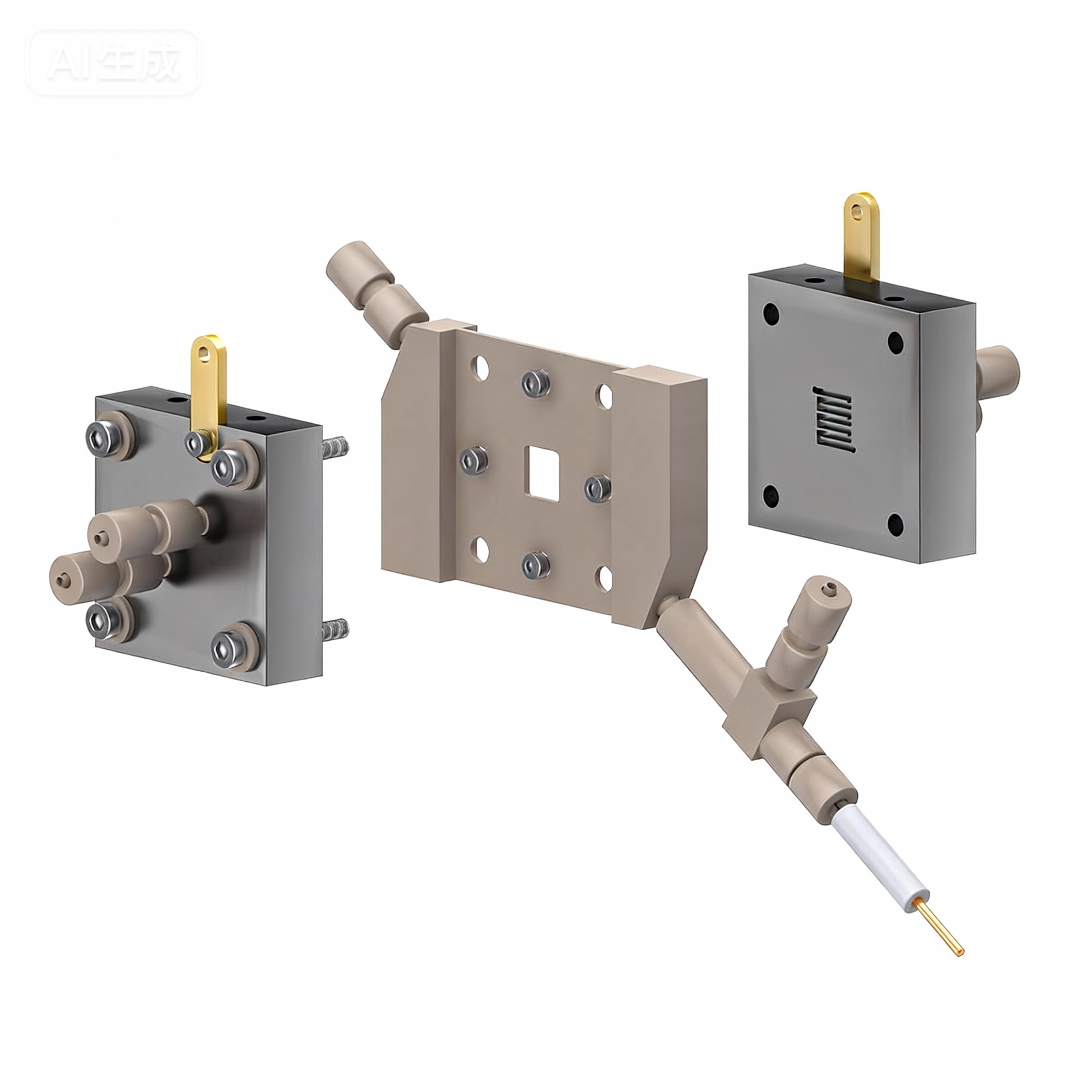

•Sandwich-type modular structure: fast assembly, easy reconfiguration

•Stacked sealing design for gas diffusion operation, simplifying cathode installation

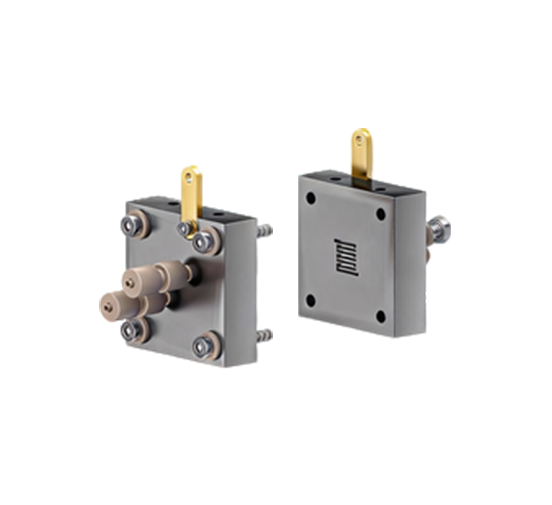

•Serpentine gas flow field improves mass transfer efficiency

•Short anode–cathode distance minimizes internal resistance

•Robust sealing ensures stable long-term operation under gas and liquid flow

Key Features

•One cell body, three CO₂ reduction solutions

•Supports gas diffusion, gas–solid, and MEA electrolysis modes

•High chemical resistance and mechanical stability

•Reduced electrode spacing for enhanced efficiency

•Modular components for rapid experimental switching

•Suitable for both fundamental research and performance benchmarking

Technical Specifications

Typical Applications

•CO₂ reduction reaction (CO₂RR) mechanism studies

•High-current-density GDE electrolysis

•MEA electrolysis optimization

•Gas–solid interface electrochemistry

•High-purity liquid product synthesis

•Catalyst screening and durability testing

Package Includes

•Modular electrochemical cell body (Model 101018)

•Titanium flow plates

•PEEK spacer layers

•Fastening screws and sealing components

•Assembly compatible with multiple configuration modules

For Custom Orders or Inquiries

If you have custom requirements or any additional questions, feel free to contact us:

Email: support@franklab.shop
