PTFE Sealed Electrolytic Cell with Quartz Optical Window

PTFE Sealed Electrolytic Cell with Quartz Optical Window

Gas-Tight · In-Situ Optical Electrochemistry · Three-Electrode System

Product Overview

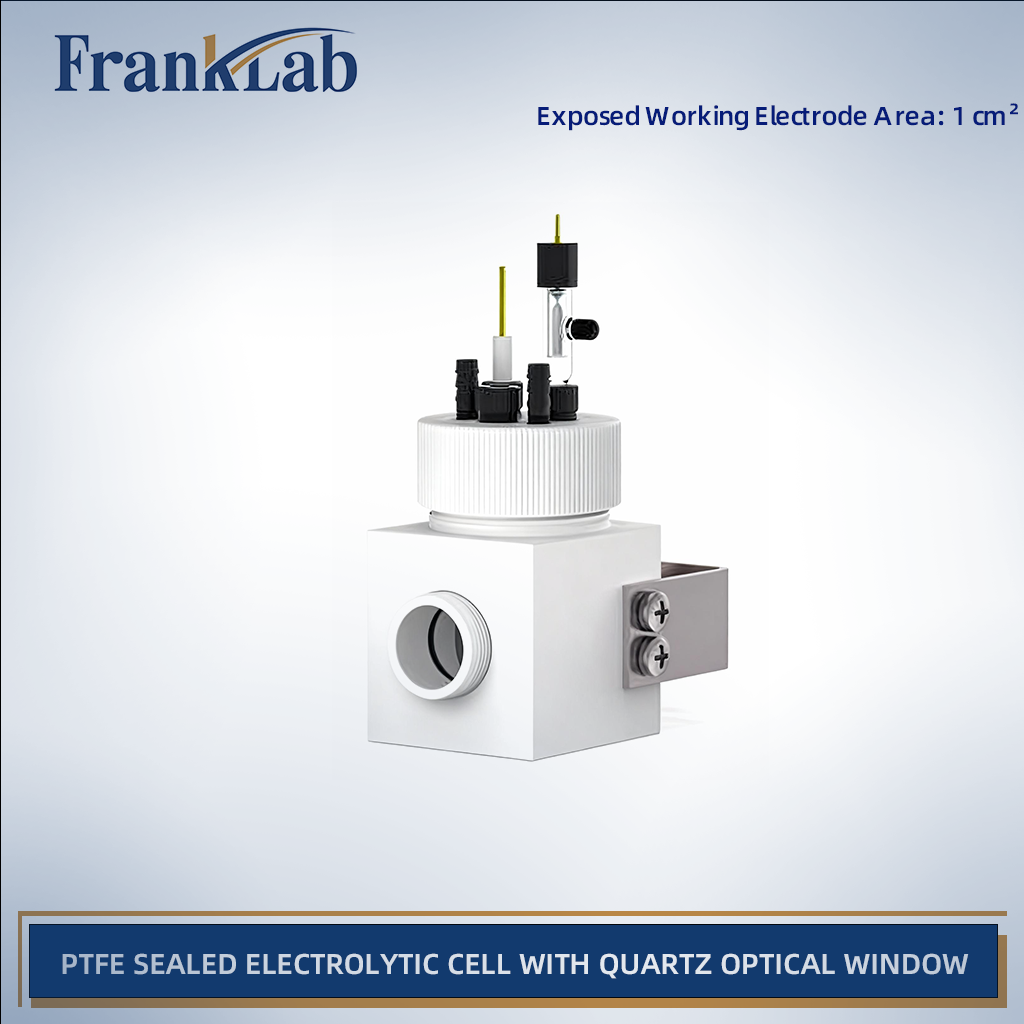

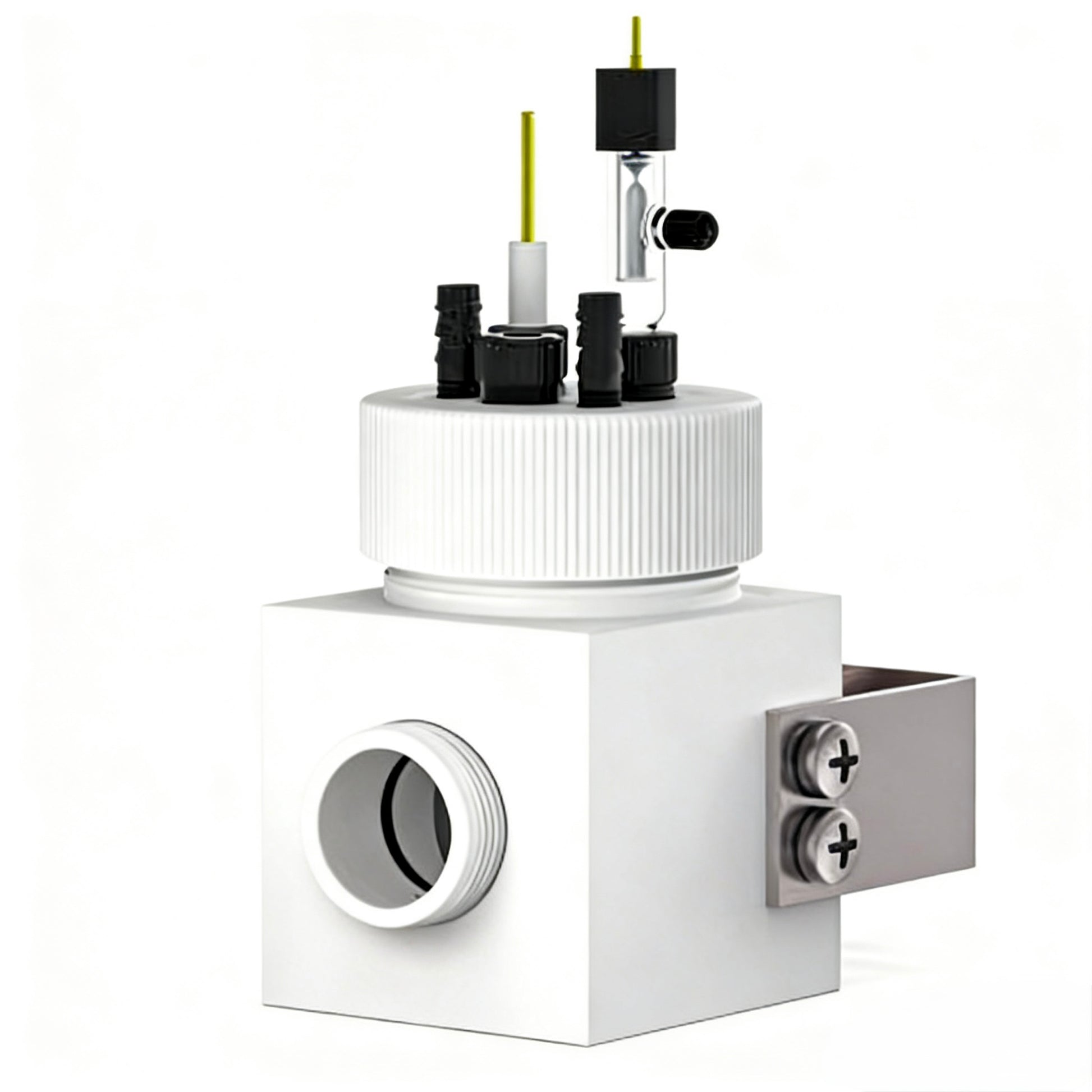

The FrankLab PTFE Sealed Electrolytic Cell with Quartz Optical Window is a fully sealed, chemically inert electrochemical reactor designed for in-situ optical electrochemistry, enabling simultaneous electrochemical control and real-time optical observation.

This cell integrates a UV-grade fused quartz optical window into a gas-tight PTFE body, making it suitable for experiments involving photoelectrochemistry, UV–Vis/Raman monitoring, and gas-sensitive or volatile electrolytes.

This product is available only in a sealed configuration to ensure experimental reproducibility, mass balance control, and optical stability.

Key Design

Electrochemistry you can see, under conditions you can control.

Technical Specifications

Key Features

• Fully Sealed PTFE Structure

•Gas-tight design for controlled-atmosphere experiments

•Prevents electrolyte evaporation and air contamination

•Suitable for long-term electrolysis and volatile systems

• Integrated Quartz Optical Window

•High transparency from UV to visible range

•Enables real-time in-situ spectroscopic observation

•Ideal for photoelectrochemical and mechanistic studies

• True Three-Electrode Compatibility

Supports standard electrochemical configurations:

•Working electrode: metal plates, foils, carbon materials, photoelectrodes

•Counter electrode: Pt wire / Pt mesh / graphite

•Reference electrode: Ag/AgCl, Hg/HgO, SCE (via adapter)

• Gas-Controlled Electrochemistry

•Independent gas inlet and outlet ports

•Supports Ar / N₂ / CO₂ purging

•Enables gas–liquid coupled electrochemical reactions

• Modular & Customizable

•Optical window size and thickness customizable

•Port number and thread size customizable

•Optional electrode holders or clamps

•Compatible with external light sources and spectrometers

Typical Applications

•Photoelectrochemical water splitting

•In-situ UV–Vis electrochemistry

•CO₂ reduction reaction (CO₂RR)

•Oxygen reduction / evolution reactions (ORR / OER)

•Catalyst stability and degradation studies

•Optical–electrochemical coupling experiments

Standard Package Contents (Sealed Version)

•PTFE sealed optical cell body ×1

•Inner PTFE cap ×1

•Outer PTFE cap ×1

•Quartz optical windows ×2

•Optical window sealing O-rings ×2

•Electrode port sealing screws × multiple

•Gas port sealing screws × multiple

•PTFE gas tubing × 2 m

•O-ring set (electrode + gas ports) × multiple

•Stainless steel compression bracket (pre-assembled)

Note: Electrodes are not included by default and can be supplied separately.

Customization Options

Available upon request:

•Larger or thinner quartz optical windows

•Dual-window or side-window design

•Photoelectrode clamping structures

•Magnetic stirring integration

•Special port layouts for spectrometers

•Reinforced sealing for low-pressure operation

For Custom Orders or Inquiries

If you have custom requirements or any additional questions, feel free to contact us:

Email: support@franklab.shop
