Visual Gas–Solid Electrochemical Cell
Visual Gas–Solid Electrochemical Cell
Regular price
$1,680.00 USD
Regular price
Sale price
$1,680.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Share
Product Description

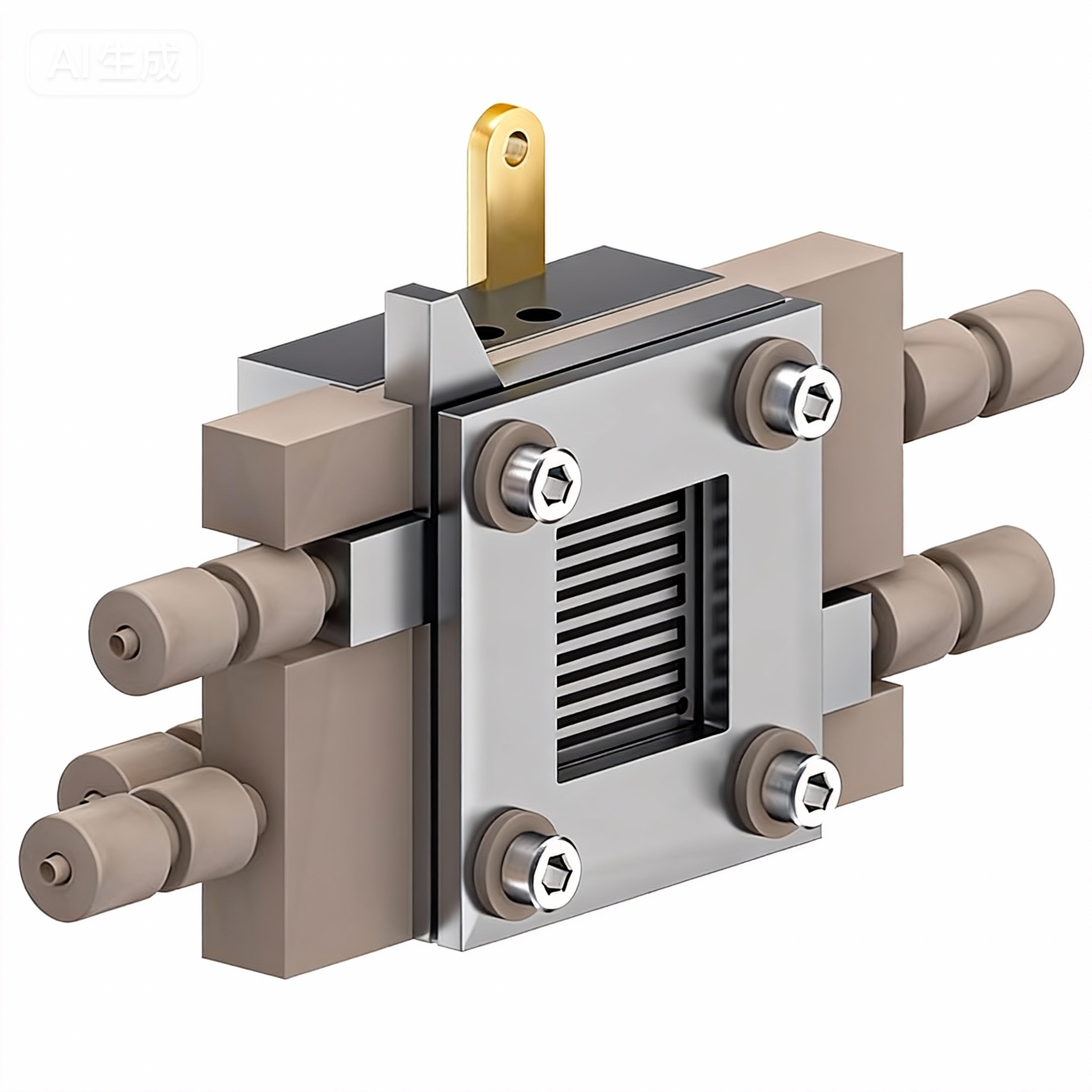

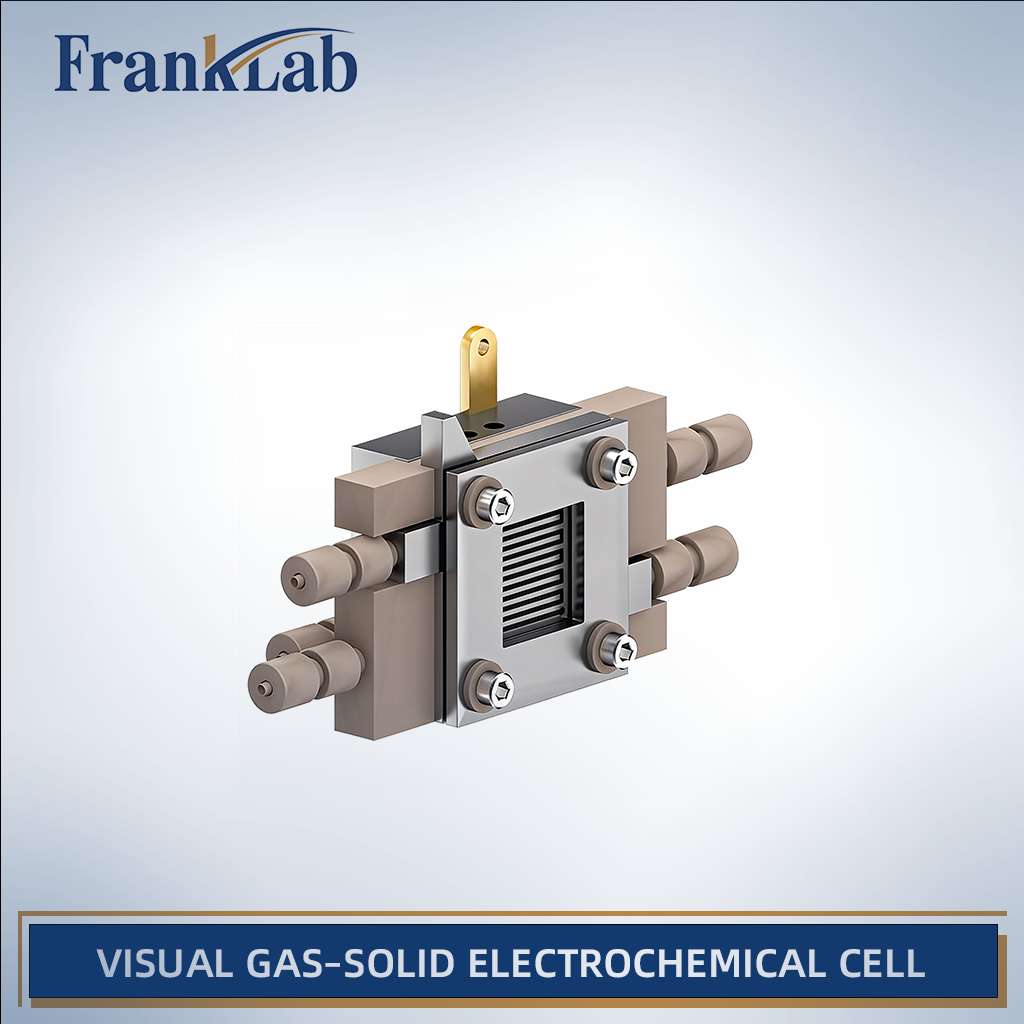

Visual Gas–Solid Electrochemical Cell
Titanium Construction · Quartz Optical Window · Three-Layer Sandwich Architecture
Product Overview
The Visual Gas–Solid Electrochemical Cell (Titanium Version) is a research-grade, optically accessible electrochemical reactor designed for gas–solid and gas–solid–liquid interfacial studies. The cell adopts a three-layer sandwich architecture that enables the construction of a stable gas–solid reaction interface, allowing experiments to be conducted using solid or polymer electrolytes as an alternative to conventional liquid electrolytes.
By eliminating free-flowing electrolyte in the reaction zone, the system prevents the introduction of extraneous anions and cations, making it particularly suitable for the preparation and study of high-purity liquid products and ion-sensitive electrochemical processes.
A high-transmittance quartz optical window provides direct visual access to the working electrode surface, enabling real-time optical observation, illumination, or spectroscopic coupling during operation.
Core Design Philosophy

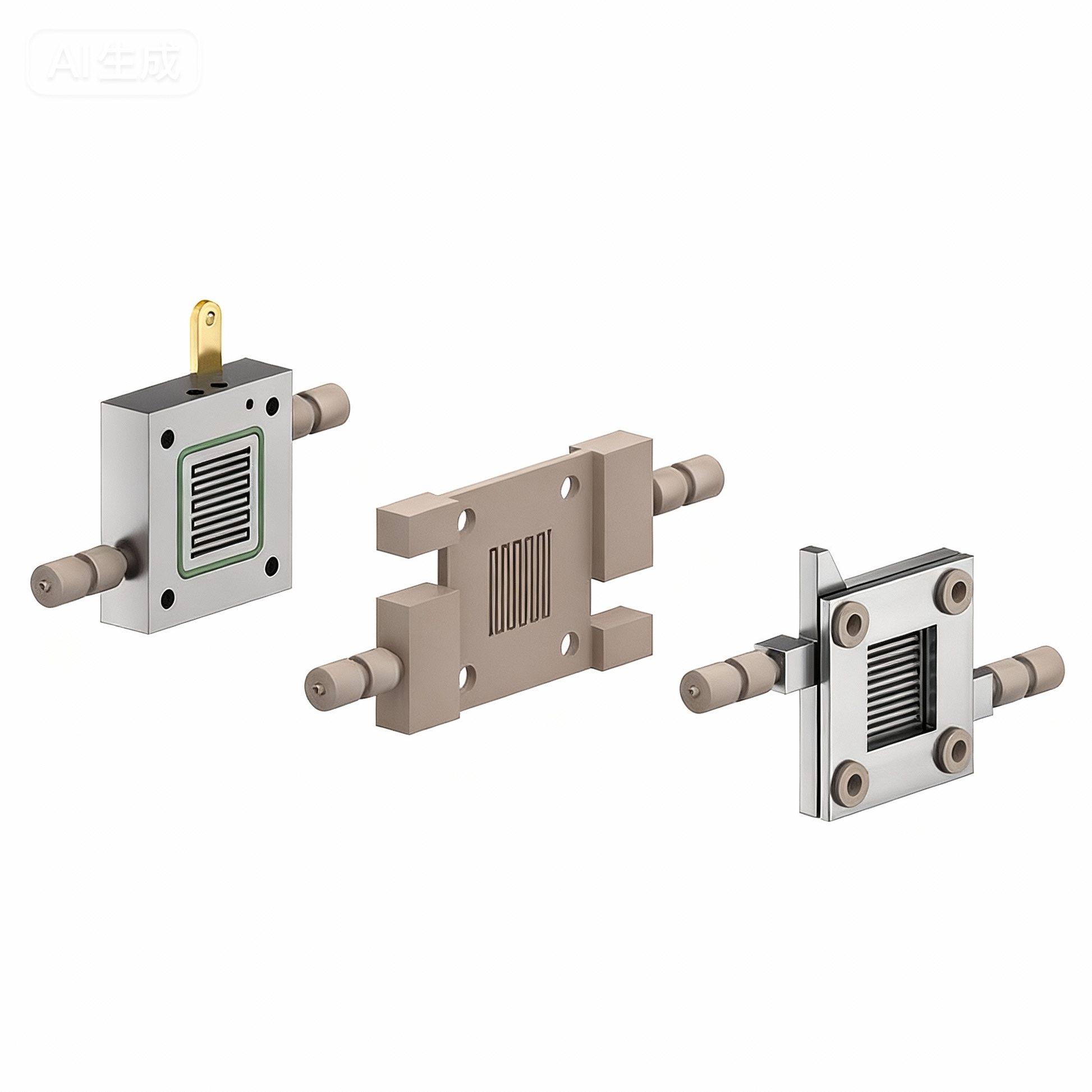

Three-Layer Sandwich Structure
The reactor is built around a precision-machined sandwich configuration:
1.Front Bipolar Plate (Titanium)
•Provides mechanical support and electrical conductivity
•Integrates flow channels for gas or reactant delivery
2.Hollow Intermediate Layer (PEEK)
•Defines the reaction chamber volume
•Electrically insulating and chemically resistant
•Supports solid electrolyte or membrane integration
3.Rear Bipolar Plate (Titanium)
•Completes the current path
•Ensures uniform compression and sealing
This architecture allows precise control of reaction geometry, interface pressure, and mass transport, closely resembling practical gas–solid electrochemical devices.
Visualized Reaction Interface
•Quartz optical window with high transmittance enables:
Direct observation of the working electrode surface
In-situ optical monitoring of reaction dynamics
Optional external illumination for photo-electrochemical coupling
•Alignment with cameras, microscopes, or optical probes
The visualization capability makes this cell ideal for mechanistic studies, rather than black-box electrochemical testing.
Materials & Construction
•Bipolar Plates: High-purity titanium
Excellent electrical conductivity
Outstanding corrosion resistance
Suitable for acidic, alkaline, and neutral systems
•Intermediate Layer: PEEK
Chemically inert
High mechanical strength
Electrically insulating
•Optical Window: High-transmittance quartz glass
Suitable for visible and near-UV observation
Stable under electrochemical conditions
Technical Specifications
| Parameter | Specification |
| Cell architecture | Three-layer sandwich structure |
| Bipolar plate material | High-purity titanium |
| Flow channel area | 20 × 20 mm |
| Intermediate layer material | PEEK |
| Intermediate layer area | 20 × 20 mm |
| Intermediate layer thickness | 3 mm |
| Optical window material | High-transmittance quartz |
| Reaction interface | Gas–solid (solid electrolyte compatible) |
| Electrolyte type | Solid electrolyte / membrane (user-supplied) |
| Visualization | Direct optical access to working electrode |
Electrochemical Advantages
•Gas–Solid Interface Construction Enables electrochemical reactions without bulk liquid electrolyte, ideal for solid-state or membrane-based systems.
•Ion-Contamination Suppression Avoids the introduction of unwanted anions/cations from liquid electrolytes, supporting high-purity product formation.
• High Structural Stability Titanium plates ensure long-term dimensional and electrochemical stability under continuous operation.
• Optical Accessibility Quartz window allows real-time visualization, illumination, and diagnostics at the electrode surface.
Typical Applications
•Gas–solid electrochemical reactions
•Solid-electrolyte electrolysis systems
•High-purity liquid product preparation
•CO₂ conversion with solid electrolytes
•Mechanistic studies of gas–electrode interfaces
•Photo-assisted electrochemical reactions
•Fundamental research on interfacial electrochemistry
Package Contents
•Titanium bipolar plate set (front & rear)
•PEEK intermediate reaction layer
•Quartz optical observation window
•Sealing gaskets and fasteners
(Electrodes, solid electrolytes, membranes, and external fittings are not included unless specified.)
Customization Options
•Alternative channel geometries and sizes
•Different intermediate layer thicknesses
•Optical window size or material selection
•Integration with external gas flow systems
•Customized electrode mounts and current collectors
