304 Stainless Steel Sheet Electrode

304 Stainless Steel Sheet Electrode

Product Description
Shipping & Delivery
304 Stainless Steel Sheet Electrode | Corrosion-Resistant SS Plate | FrankLab
High Mechanical Strength · Excellent Chemical Stability · Ideal for Corrosion Studies, Electrocatalysis & General Electrochemical Testing

Product Overview
The FrankLab 304 Stainless Steel Sheet Electrode is a durable and chemically stable metallic plate designed for electrochemical and materials research. 304 stainless steel (SS304) is widely used due to its:
•Excellent corrosion resistance
•Mechanical robustness
•Stable passive oxide film
•Compatibility with acidic, neutral, and alkaline electrolytes
This makes SS304 sheets suitable for:
•Corrosion and passivation studies
•Electrocatalysis (OER/HER in alkaline media)
•Fuel cell testing
•Battery and supercapacitor research
•General-purpose electrochemical electrodes
•Thin-film deposition substrates
FrankLab offers SS304 sheets in multiple sizes and thicknesses, with customizable machining options.

Key Features
• High-Quality 304 Stainless Steel
•Chromium-rich alloy forming a stable passive oxide layer
•Excellent resistance to rust, chemical attack, and high-temperature oxidation
•Reliable performance in both acidic and alkaline conditions

• Strong, Rigid & Easy to Fabricate
304 stainless steel offers:
•High mechanical strength
•Good machinability
•Ability to withstand clamping, polishing, and repeated cycling

• Reproducible Electrochemical Behavior
•Passive oxide film provides stable background
•Suitable for studying passivation, breakdown, and corrosion kinetics
•Can be polished to controlled surface roughness

• Smooth Surface Finishing
Available in:
•As-cut (standard)
•Polished finish
•Mirror finish (for high-precision studies)

Technical Specifications
Parameter Specification
Material 304 Stainless Steel (SS304)
Purity Standard engineering-grade alloy
Available Thickness 0.2–3 mm (other thicknesses on request)
Surface Finish As-cut / polished / mirror-polished
Density 7.93 g/cm³
Electrical Conductivity ~1.45 × 10⁶ S/m
Corrosion Resistance Excellent in acidic, neutral & alkaline solutions
Applications Corrosion, electrocatalysis, fuel cells, materials science

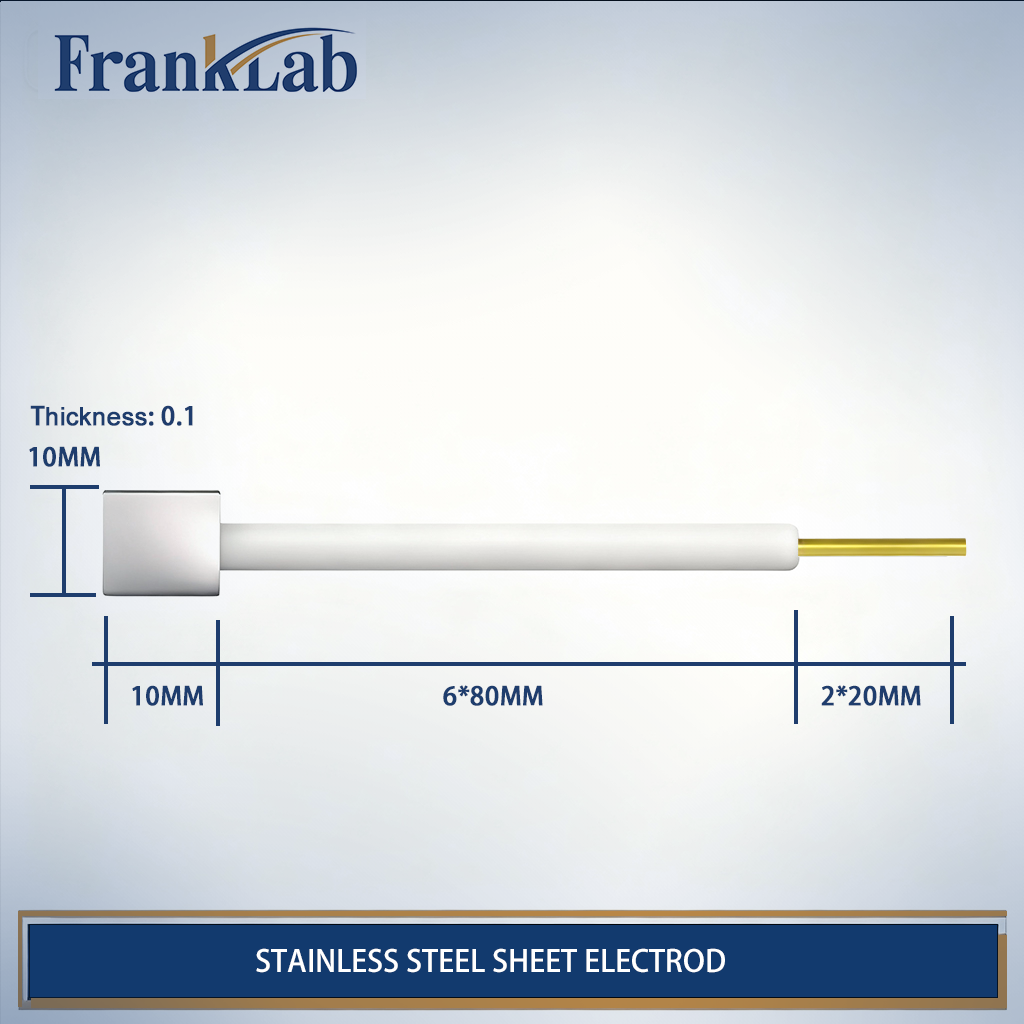

Standard Sizes (Stainless Steel Sheet Electrode)
(Length × Width × Thickness — fully customizable)
Small Format
•10 × 10 × 0.5 mm
•10 × 20 × 0.5 mm
•10 × 10 × 1 mm
•10 × 20 × 1 mm
Medium Format
•20 × 20 × 1 mm
•20 × 30 × 1 mm
•25 × 25 × 1 mm
Large Format
•30 × 30 × 1–2 mm
•40 × 40 × 1–2 mm
•50 × 50 × 1–2 mm
(Additional thicknesses and larger sheets available.)

Recommended Applications
Corrosion & Passivation Studies
•Potentiodynamic polarization
•Passive film characterization
•Pitting corrosion tests
Electrocatalysis
•HER/OER in alkaline environments
•Stability testing of catalysts on stainless steel substrates
Energy Research
•Fuel cell components
•Battery current collectors (alkaline systems)
•Metal–air electrode studies
Surface Science & Materials Research
•Coating, deposition, and thin-film growth
•Mechanical polishing & roughness control
•Substrates for nanoscale characterization

Customization Available
FrankLab provides full machining and finishing options:
•Custom dimensions (5–300 mm)
•Thickness from 0.05–5 mm
•Laser cutting, drilling, or shaping
•Edge chamfering
•Polished or mirror surface finishing
•Pre-cleaned, degreased surfaces for electrochemical experiments
Send your drawings or specifications for a 24-hour quotation.
