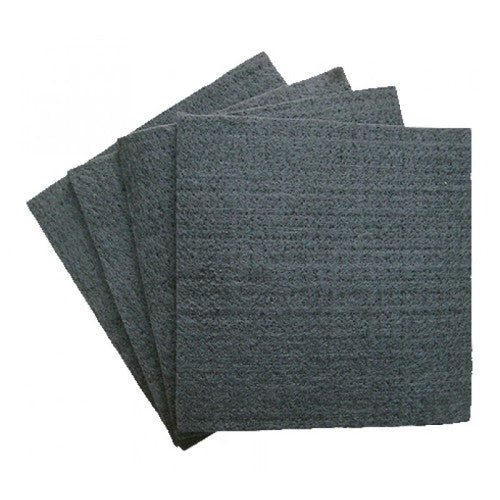

AvCarb Graphite Felt & Carbon Felt

Electrode Materials for Flow Batteries, Electrolysis & Electrochemical Systems

Product Overview
AvCarb Graphite Felt and Carbon Felt are high-performance porous carbon materials widely used as electrode substrates in advanced electrochemical systems. These materials provide excellent electrical conductivity, chemical stability, and high surface area, making them ideal for applications requiring efficient electron transfer and fluid transport.
The Graphite Felt (G Series) offers superior electrical conductivity and corrosion resistance, making it suitable for demanding environments such as redox flow batteries and water electrolysis systems.
The Carbon Felt (C Series) provides a cost-effective alternative with good conductivity and mechanical stability, commonly used in laboratory experiments and fuel cell systems.

Key Features
·High electrical conductivity for efficient electron transfer
·Excellent chemical stability in electrochemical environments
·High porosity structure enabling efficient electrolyte transport
·Good mechanical strength and compressibility
·Available in multiple thicknesses for different reactor designs
·Suitable for high-temperature and corrosive environments

Product Series
Graphite Felt (G Series)
Graphite felt is produced by high-temperature graphitization of carbon fibers, resulting in improved conductivity and enhanced corrosion resistance.
Typical applications include:
·Redox Flow Batteries (Vanadium Flow Batteries, Iron Flow Batteries)
·Water Electrolysis Systems
·Electrochemical Flow Reactors
·Hydrogen Production Systems
·Electrochemical Energy Storage

Carbon Felt (C Series)
Carbon felt is a carbon fiber-based porous electrode material offering good conductivity and mechanical stability at a lower cost.
Typical applications include:
·Fuel Cell Research
·Laboratory Electrochemical Experiments
·Electrode Substrates for Catalyst Coating
·Gas Diffusion Systems

Technical Specifications
Graphite Felt (G Series)
Model Material Thickness Bulk Density Areal Weight Through-Plane Resistivity Carbon Content Ash Content Notes
G100 Graphite Felt 3.2 mm (3200 μm) 0.08 g/cm³ 245 g/m² <3 Ω·mm ≥99% <0.2% —
G150 Graphite Felt 4.8 mm 0.11 g/cm³ 480 g/m² 250 mΩ·cm — — —
G200 Graphite Felt 6.5 mm (6500 μm) 0.07 g/cm³ 480 g/m² <3 Ω·mm ≥99% <0.2% —
G280A Graphite Felt (Hydrophilic) 2.8 mm @1.7 kPa 0.08 g/cm³ 225 g/m² <150 mΩ·cm² @43 kPa — — Pre-oxidized
G300A Graphite Felt 3.4 mm (3400 μm) 0.09 g/cm³ 300 g/m² 125 mΩ·cm² — — —
G475A Graphite Felt 4.7 ±0.7 mm 0.107 ±0.018 g/cm³ 440 ±44 g/m² <200 mΩ·cm² @6.3 psi — — Oxidation Rate <4%
G600A Graphite Felt 6.1 mm (6100 μm) 0.11 g/cm³ 639 g/m² 109 mΩ·cm² — — —
G650A Graphite Felt (Hydrophilic) 6.5 mm 0.11 g/cm³ 665 ±50 g/m² <200 mΩ·cm² — — Pre-oxidized
Carbon Felt (C Series)
Model Material Thickness Bulk Density Areal Weight Through-Plane Resistivity Carbon Content Ash Content
C100 Carbon Felt 3.2 mm (3200 μm) 0.09 g/cm³ 285 g/m² <4 Ω·mm ≥95% <0.4%
C200 Carbon Felt 6.5 mm (6500 μm) 0.08 g/cm³ 530 g/m² <4 Ω·mm ≥95% <0.4%
C280 Carbon Felt 3.2 mm 0.09 g/cm³ 285 g/m² <4 Ω·mm ≥95% <0.4%
Parameter Explanation
Parameter Description
Thickness Thickness of the felt material
Bulk Density Density of the material structure
Areal Weight Weight per unit area
Through-Plane Resistivity Electrical resistivity in the vertical direction
Carbon Content Percentage of carbon in the material
Ash Content Residual inorganic content after combustion
Oxidation Rate Rate of oxidation under high-temperature conditions
Graphite Felt vs Carbon Felt
Material Characteristics Typical Applications
Graphite Felt (G Series) Higher conductivity and corrosion resistance Flow batteries, electrolysis systems
Carbon Felt (C Series) Lower cost, moderate conductivity Fuel cells, laboratory electrochemical experiments
Available Sizes
Standard cutting sizes include:

·10 × 10 cm

·20 × 20 cm

·40 × 40 cm

Custom sizes and bulk sheets are available upon request.
