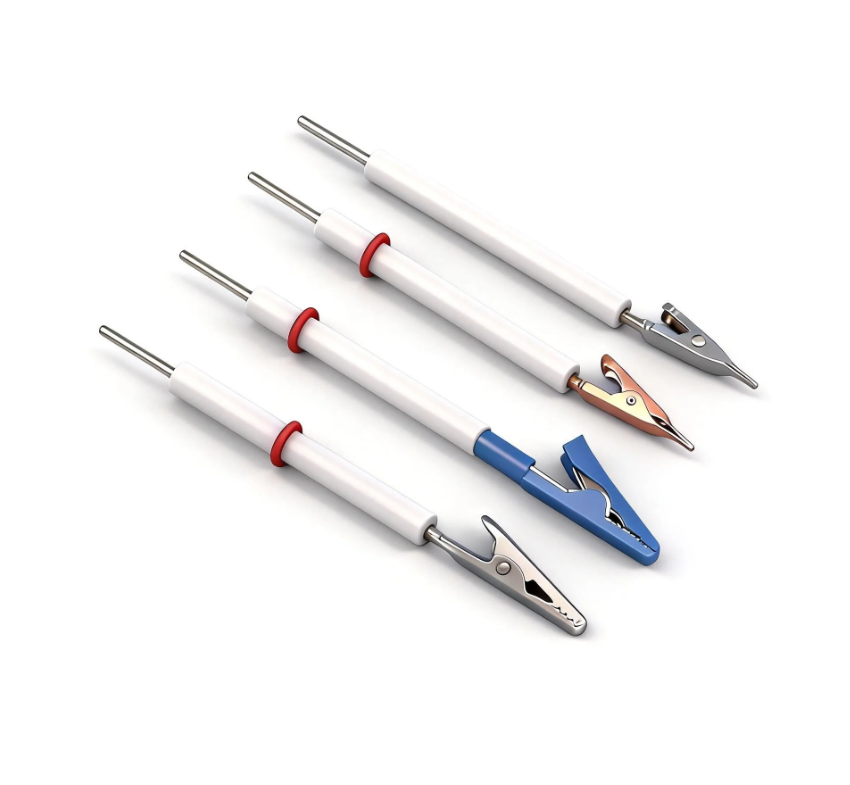

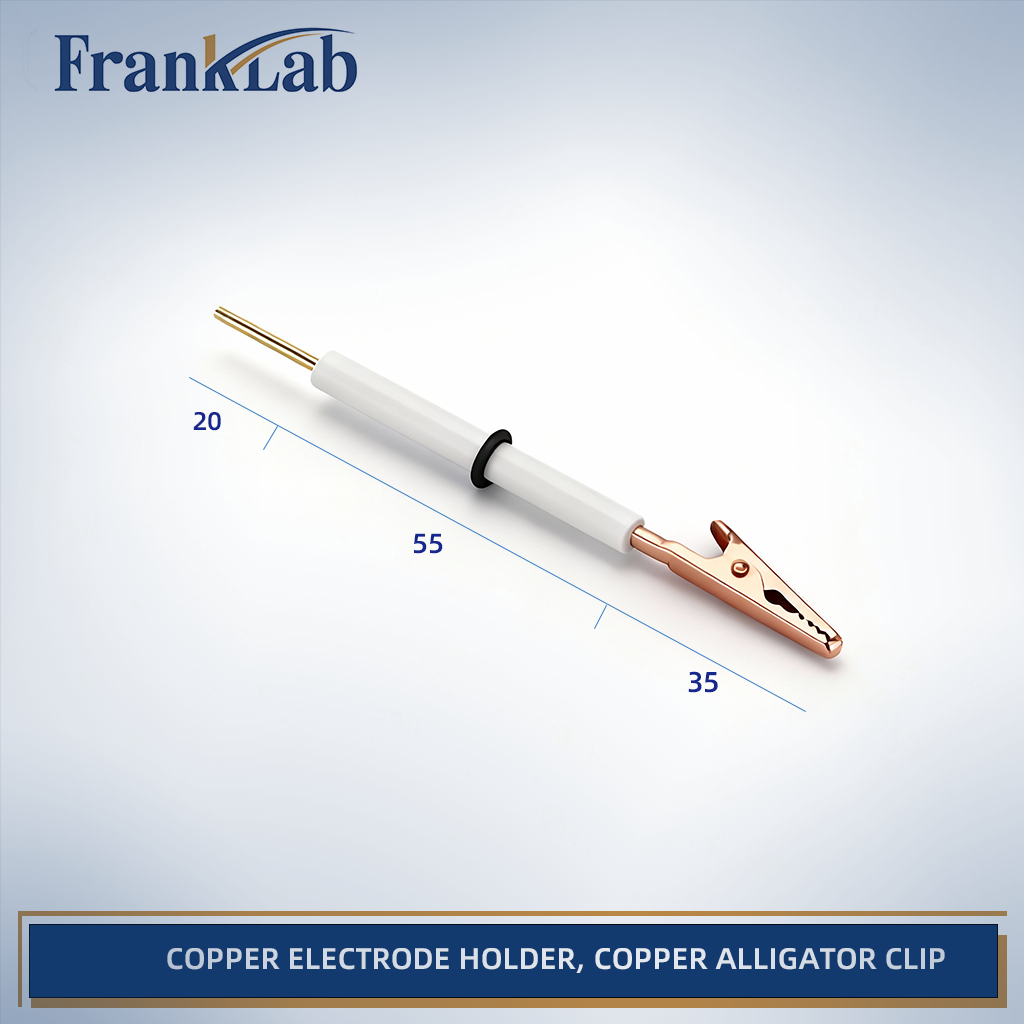

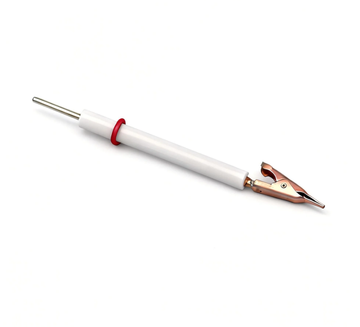

Copper Electrode Holder, Copper Alligator Clip, 0.1-5 mm Clampable Thickness

Copper Electrode Holder, Copper Alligator Clip, 0.1-5 mm Clampable Thickness

Product Description
Shipping & Delivery
Copper Electrode Holder | Copper Alligator Clip | FrankLab
PTFE Body | Copper Contact Clip | Gold-Plated Copper Terminal For Sheet, Rod, Foil & Thin-Plate Electrodes

Product Overview
The FrankLab Copper Electrode Holder (Copper Alligator Clip Type) is designed for securely clamping high-conductivity electrode materials such as metal foils, rods, wires, thin plates, and carbon substrates. With a solid copper contact clip, a PTFE chemical-resistant body, and a gold-plated copper terminal rod, this holder offers excellent electrical performance for electrochemical measurements requiring low resistance and high signal stability.
Ideal for CV, LSV, EIS, CA/CP, corrosion testing, and electrocatalysis, and compatible with 50 mL and larger electrolytic cells.

Key Features

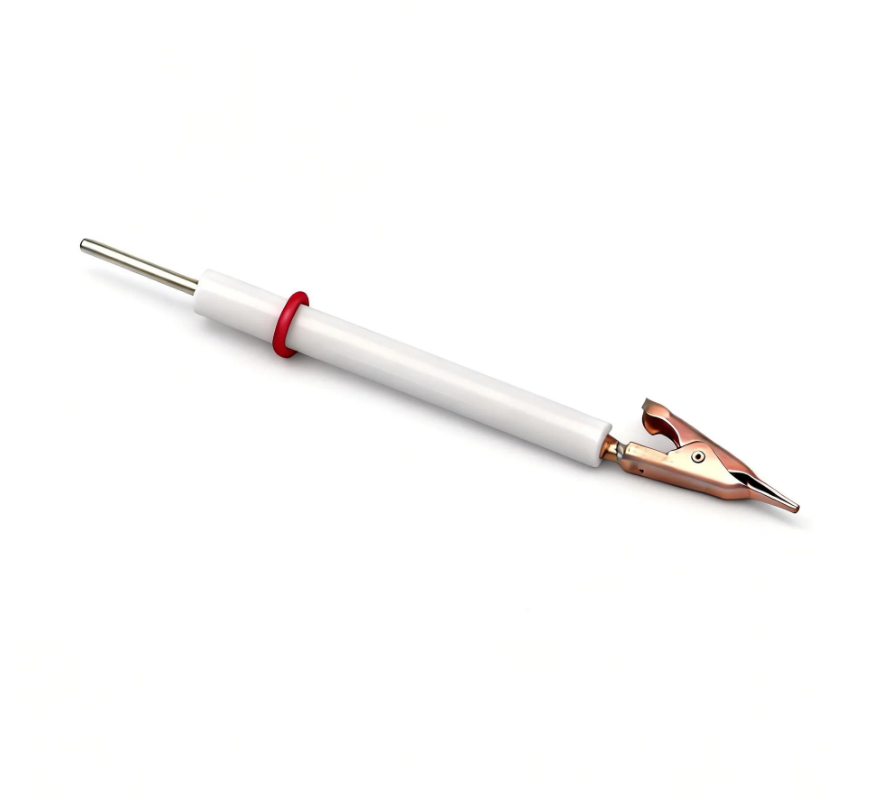

• High-Conductivity Copper Alligator Clip
• Pure copper clip provides extremely low contact resistance
• Ensures strong electrical coupling to metal foils, rods, plates, and carbon materials
• Suitable for systems where maximum conductivity is required
• Optional coatings available (nickel-plated or gold-plated copper) for enhanced corrosion resistance

• Gold-Plated Copper Terminal Rod
• High-performance electrical connection to the potentiostat
• Corrosion-resistant, non-contaminating, stable over long experiments
• Ensures accurate and low-noise electrochemical signals


• PTFE Body with Complete Chemical Resistance
• Highly resistant to acids, bases, salts, and organic solvents
• Electrically insulating, preventing stray current paths
• Easy to clean, lab-grade durability

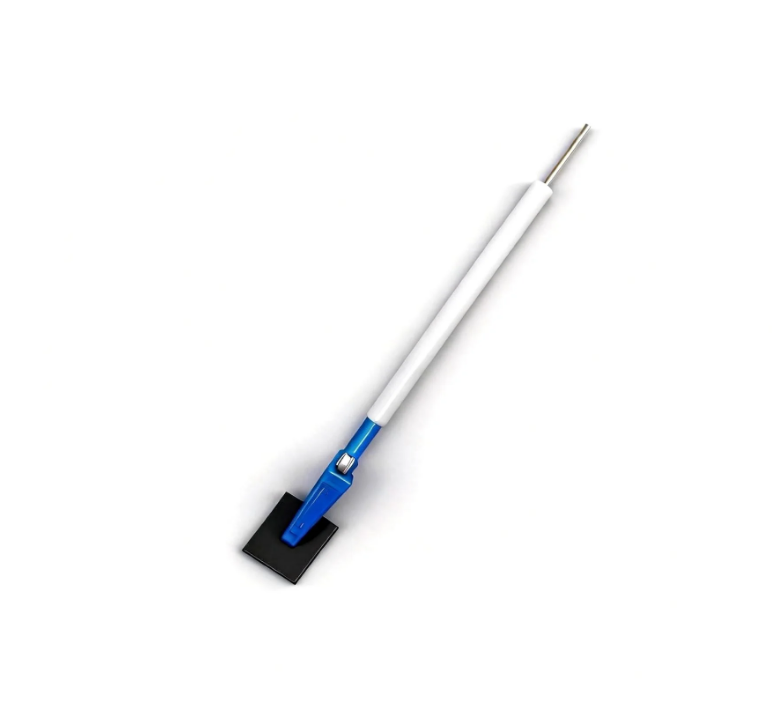

• Suitable for Multiple Electrode Formats
Securely clamps:
• Copper, nickel, stainless steel, titanium foils
• Precious metal plates (Au, Pt)
• Rods and wires
• Mesh and carbon-based electrodes

• Compatible with ≥50 mL Electrochemical Cells
Works with:
• StonyLab electrolytic cells
• H-type reactors and PTFE vessels

Technical Specifications
Component Material
Clip Material Pure copper (optional Ni-plated / Au-plated)
Body Material PTFE
Terminal Rod Gold-plated copper
Chemical Resistance Excellent (limited only by copper clip corrosion in strong acids)
Supported Electrode Types Sheet, foil, rod, plate, mesh
Cell Compatibility ≥100 mL
Recommended Applications
High-Conductivity Systems
• Electrocatalysis requiring minimal contact resistance
• Battery current collector evaluation (Cu foils, Al foils)
• Electrical connection to thick metal plates or rods
Material Science & Corrosion
• Copper alloy corrosion studies
• Conductive metal testing
• Carbon paper, graphite foil evaluation
General Electrochemistry
• CV, LSV, EIS
• Long-term CA/CP measurements
• In-situ monitoring setups

Customization Available
FrankLab supports multiple custom options:
Customizable Components
• Clip material: pure copper / Ni-plated copper / Au-plated copper

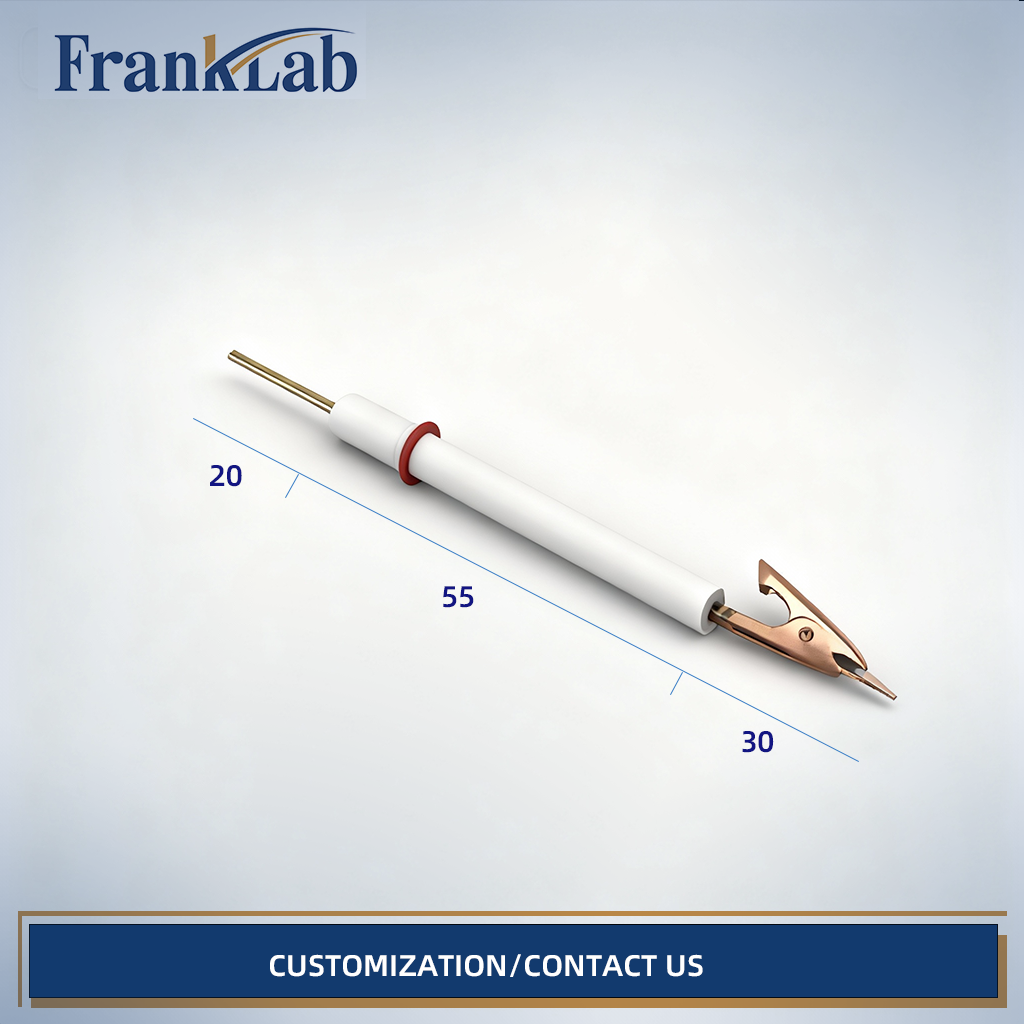

• PTFE body length & outer diameter
• Terminal type: Au-plated Cu (default), Ni-plated Cu, stainless steel, titanium
• Clamp size, jaw width, and pressure design
A custom design + quotation will be provided within 24 hours.
