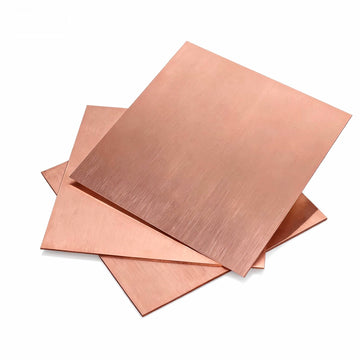

Copper Sheet，Purity >99.99% | Electrochemical & Research Grade
Copper Sheet，Purity >99.99% | Electrochemical & Research Grade
Regular price
$13.90 USD
Regular price
Sale price
$13.90 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Share
Product Description
Product Overview
FrankLab high-purity Copper Sheets (≥99.99%) are precision-manufactured for electrochemical research, materials science, and advanced laboratory applications.
Each copper sheet is produced from ultra-high-purity raw material, ensuring excellent electrical conductivity, uniform thickness, and stable surface quality. The sheets are suitable for use as electrodes, current collectors, substrates, and functional components in both fundamental research and applied electrochemical systems.
All dimensions, thicknesses, and surface finishes can be customized upon request.
Key Features
•Ultra-High Purity: ≥99.99% Cu
•Excellent Electrical Conductivity
•Uniform Thickness & Flatness
•Low Impurity Content (trace metals strictly controlled)
•Suitable for Cutting, Polishing, Coating, and Machining
•Custom Sizes & Thicknesses Available
Technical Specifications
| Parameter | Specification |
| Material | Copper (Cu) |
| Purity | ≥99.99% |
| Form | Sheet / Plate |
| Thickness Options | 0.01 – 1.0 mm |
| Width Options | 10 – 400 mm |
| Length | Standard 1 m (custom lengths available) |
| Surface Finish | As-rolled / Polished (optional) |
| Manufacturing Tolerance | ±0.01–0.05 mm (depending on thickness) |
| Packaging | Vacuum sealed, anti-oxidation protection |
Available Size Options (Examples)
Thickness: 0.01 mm / 0.02 mm / 0.03 mm / 0.05 mm / 0.08 mm / 0.1 mm / 0.15 mm / 0.2 mm / 0.3 mm / 0.5 mm / 1.0 mm
Width: 10 mm / 15 mm / 20 mm / 25 mm / 30 mm / 40 mm / 50 mm / 60 mm / 80 mm / 100 mm / 150 mm / 200 mm / 300 mm / 400 mm
Other dimensions available upon request.
Typical Applications
•Electrochemical electrodes & current collectors
•CO₂ reduction (CO₂RR) & electrocatalysis studies
•Battery and supercapacitor research
•Corrosion testing & surface engineering
•Materials science & thin-film deposition substrates
•Laboratory prototyping & academic research
Quality Control
•Raw material purity verification
•Thickness and flatness inspection
•Surface defect inspection
•Batch traceability available
Packaging & Delivery
•Protective packaging to prevent oxidation and deformation
•Custom cutting and labeling available
•Global shipping supported
Why Choose FrankLab?
FrankLab specializes in electrochemical materials and precision metal components for research laboratories worldwide. We understand experimental requirements and provide consistent quality, flexible customization, and fast technical support.
Customization Options
FrankLab provides full customization services to meet diverse research and industrial needs.
Customizable Parameters
•Material purity (standard ≥99.99%, higher purity on request)
•Dimensions (thickness, width, length)
•Surface finish (as-rolled, polished, cleaned, coated)
•Shape (sheet, wire, rod, foil, disc, custom-cut pieces)
•Packaging (vacuum sealed, inert gas protection, individual labeling)
Custom Length & Cutting
•Standard length or sheet size
•Precision cutting according to drawings or sketches
•Small-batch and prototype support
For Custom Orders or Inquiries
If you have custom requirements or any additional questions, feel free to contact us:
Email: support@franklab.shop
Why Choose FrankLab?
FrankLab Focused on electrochemical & research materials
•Stable quality for repeatable experiments
•Flexible customization capability
•Trusted by universities, institutes, and industrial R&D labs
