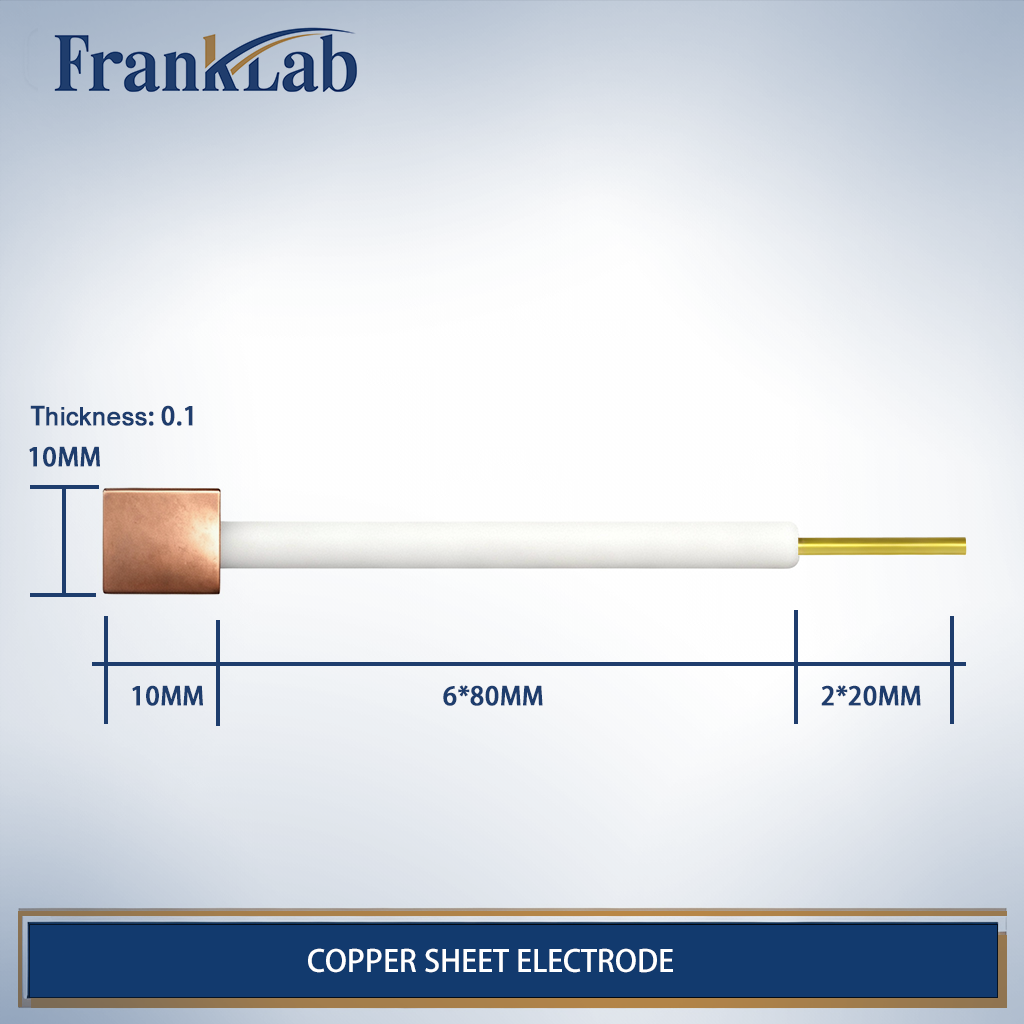

Copper Sheet Electrode

Copper Sheet Electrode

Product Description
Shipping & Delivery
Copper Sheet Electrode | High-Conductivity Cu Plate | FrankLab
99.9% Purity · Excellent Conductivity · Ideal for Electrodeposition, Corrosion Studies & Electrochemical Research

Product Overview

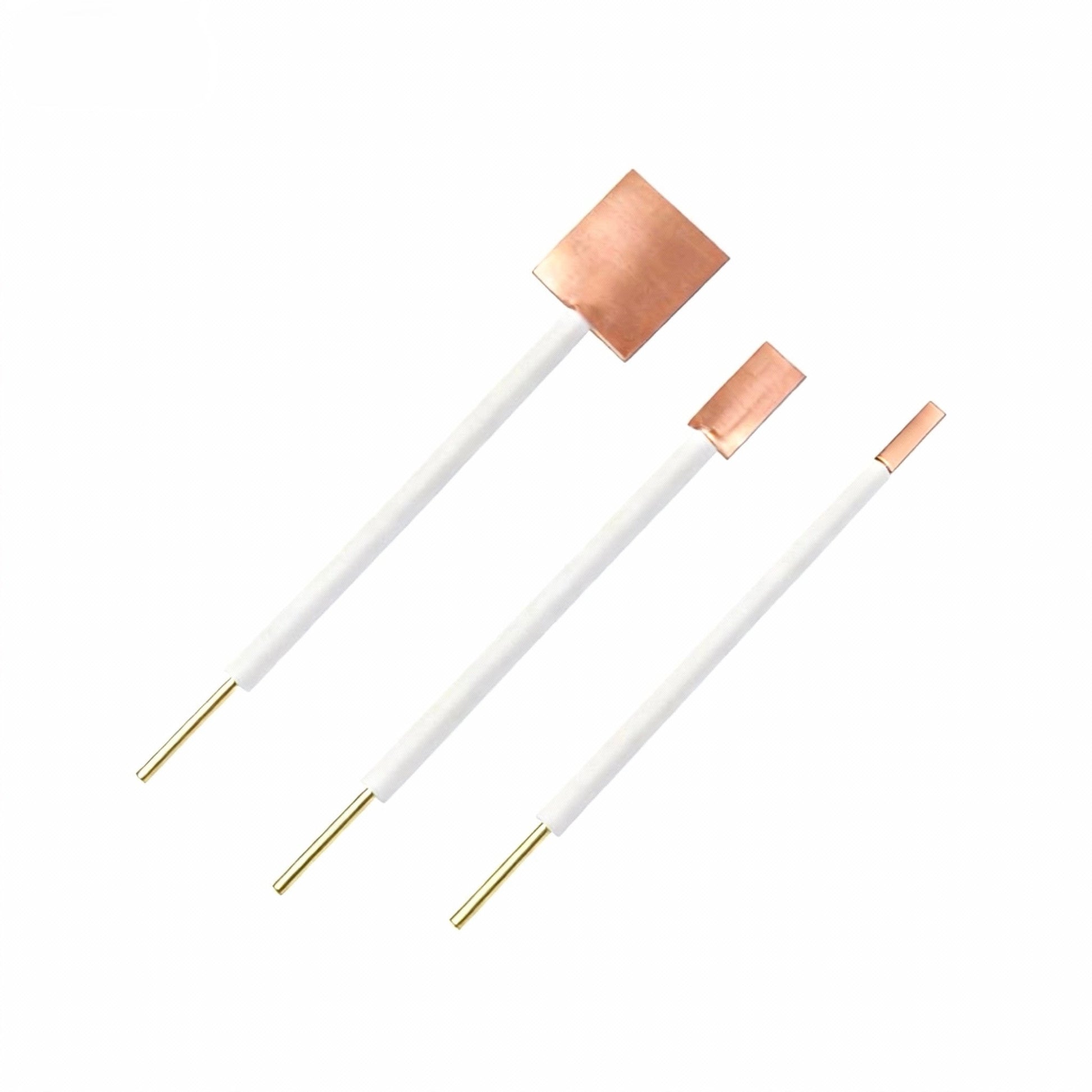

The FrankLab Copper Sheet Electrode is a high-purity copper plate designed for electrochemical applications requiring excellent conductivity, stable redox behavior, and controlled surface chemistry. Copper sheets are widely used in:
• Electrodeposition and stripping experiments
• Corrosion testing
• Copper oxidation/reduction studies
• Battery and supercapacitor research
• Catalysis and surface modification
• Electrode material fabrication
With high purity (≥99.9%) and precise machining, our copper sheets provide reproducible electrochemical performance for both academic and industrial environments.

Key Features
• High-Purity Copper (Cu ≥ 99.9%)
Ensures stable redox behavior in acidic and neutral electrolytes.
Ideal for Cu/Cu²⁺ electrochemical systems.

• Excellent Electrical Conductivity
Copper offers:
• Fast electron transfer
• Low resistance
• High sensitivity during voltammetry
Perfect for plating, deposition, and corrosion studies.

• Smooth Surface & Uniform Thickness
• Enables reproducible CV, LSV, and EIS results
• Suitable for thin-film deposition
• Reduced variability in kinetic studies
Optional polished or mirror-finish surfaces available.

• Easy to Machine & Customize
Copper can be:
• Cut
• Drilled
• Polished
• Formed into custom electrode structures

• Stable in Multiple Electrolytes
Compatible with:
• Acidic solutions
• Neutral electrolytes
• Organic solvents
(Note: Copper is reactive in strong oxidizers or complexing agents such as ammonia and cyanide solutions.)

Technical Specifications
Parameter Specification
Material High-purity copper (≥99.9%)
Available Thickness 0.2–3 mm (custom options available)
Surface Finish As-cut, polished, or mirror-polished
Conductivity ~5.8 × 10⁷ S/m
Density 8.96 g/cm³
Chemical Stability Reactive in oxidizing media; stable in many acids/neutral solutions
Applications Plating, corrosion, deposition, electrochemistry

Standard Sizes (Copper Sheet Electrode)
(Length × Width × Thickness — full customization available)
Small Formats
• 10 × 10 × 0.5 mm
• 10 × 20 × 0.5 mm
• 10 × 10 × 1 mm
• 10 × 20 × 1 mm
Medium Formats
• 20 × 20 × 1 mm
• 20 × 30 × 1 mm
• 25 × 25 × 1 mm
Large Formats
• 30 × 30 × 1–2 mm
• 40 × 40 × 1–2 mm
• 50 × 50 × 1–2 mm
(Additional sizes provided upon request.)

Recommended Applications
Electrochemical Research
• Copper oxidation/reduction
• Electrodeposition and stripping (Cu plating)
• Surface oxide studies
• Kinetic measurements
Corrosion Testing
• Localized corrosion
• Pitting studies
• Uniform corrosion rate evaluation
Materials & Energy Research
• Battery current collectors
• Catalyst support plates
• Thin-film growth substrates
Analytical Chemistry
• Standard copper reference surfaces
• Calibration substrates

Customization Available
FrankLab provides full OEM machining and customization:
• Custom size from 5 mm to 200 mm
• Thickness 0.05–5 mm
• Polished or mirror-finished surfaces
• Drilled mounting holes
• Rounded or chamfered edges
• Pre-cleaned and packed for electrochemistry
• Multi-layer copper laminates
Submit your dimensions or drawings and receive a quotation within 24 hours.
