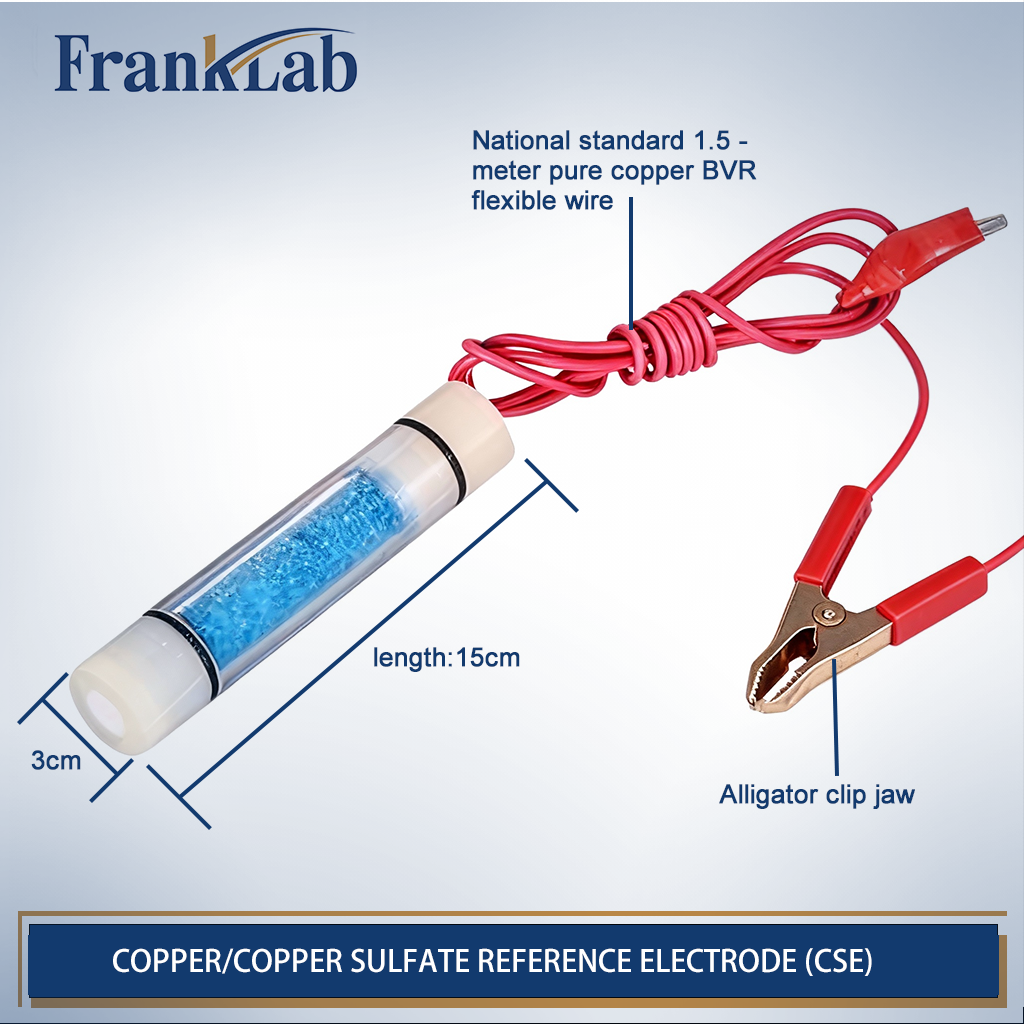

Copper Sulfate Reference Electrode

Copper Sulfate Reference Electrode

Product Description
Shipping & Delivery
The FrankLab Copper Sulfate Reference Electrode (Cu/CuSO₄) is a widely used reference system in corrosion studies, concrete/steel structure monitoring, soil electrochemistry, environmental testing, and field-based measurements. It provides a stable, reproducible potential, excellent durability, and strong ionic stability in sulfate-based environments.
Constructed with high borosilicate glass, a pure copper internal element, and saturated CuSO₄ electrolyte, this electrode is designed for both laboratory and field use, offering reliable performance over extended periods.

Key Features

• Stable & Well-Defined Reference Potential

The Cu/CuSO₄ redox couple provides:

• Highly stable potential

• Excellent reproducibility in soil and corrosion systems

• Long-term performance in field or laboratory environments

Typical potential (25°C): +0.316 V vs. NHE (in saturated CuSO₄ solution)

• High Borosilicate Glass Body

FrankLab electrodes use premium high borosilicate glass, offering:

•High chemical stability in sulfate electrolytes.

•Excellent resistance to temperature fluctuation.



•Smooth surfaces that reduce contamination



•Long-term mechanical durability



• Corrosion & Environmental Applications

Ideal for:

•Steel rebar corrosion monitoring (reinforced concrete)

•Pipeline and underground structure testing

•Soil electrochemistry

•Cathodic protection systems

•General corrosion analysis in sulfate media

This electrode is frequently used in civil engineering, geochemistry, and corrosion R&D.

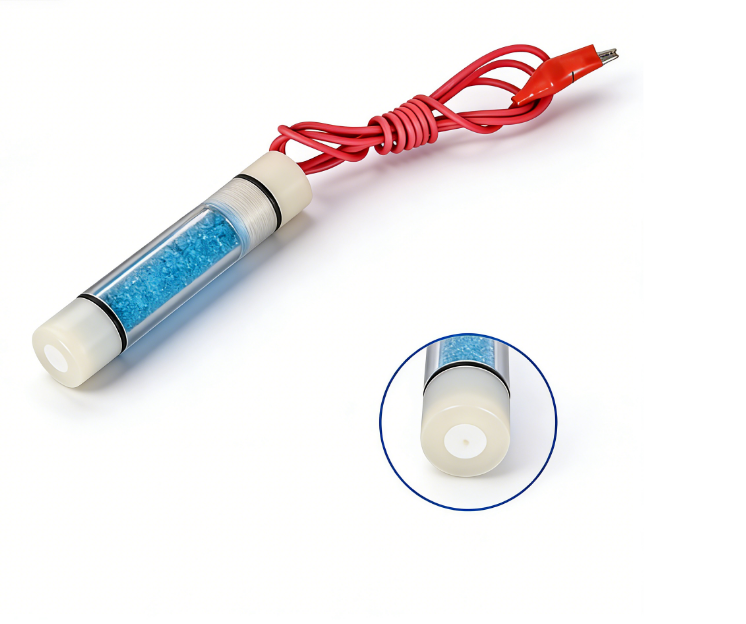

• Low-Leakage Porous Junction

Available porous materials:

• Porous glass

• Ceramic junction

• PTFE low-leak variants

Benefits:
  • Stable ionic contact
  • Reduced contamination into soil or liquid media
  • Long-term stability in high-resistance environments

Technical Specifications

Parameter Value
Type Cu/CuSO₄ Reference Electrode
Reference System Cu / CuSO₄
Internal Electrolyte Saturated CuSO₄
Reference Potential +0.316 V vs. NHE (25°C)
Internal Element High-purity copper rod
Body Material High Borosilicate Glass
Cap Material PTFE
Junction Porous glass / ceramic / PTFE
Length 65–150 mm
Diameter ~6–12 mm
Operating Environment Laboratory or field use
Temperature Range 0–50°C
Storage Solution Saturated CuSO₄
Expected Lifetime 6–12 months (depending on use)

Recommended Applications

 Corrosion Monitoring

•Steel in concrete

•Underground steel pipelines

•Marine or coastal structures

•Cathodic protection research

Soil / Environmental Electrochemistry

•Soil potential measurements

•Environmental redox studies

•Geochemical sampling

Laboratory Electrochemistry

•Cu-based redox chemistry

•Sulfate-containing electrolytes

•Non-chloride environments

The Cu/CuSO₄ system is widely preferred where chloride interference must be avoided.

Customization Available (Fully Customizable by FrankLab)

FrankLab provides complete customization for civil engineering labs, corrosion R&D groups, and environmental monitoring applications.

Customizable Options

•Electrode length & diameter

•Porous junction type & porosity

•Internal CuSO₄ concentration

•Copper rod thickness & purity level

•High-durability field version (impact-resistant)

•Sealed or semi-sealed construction

•Angled or bent body for tight spaces

•Adapters for probe holders or soil insertion devices

Submit a Custom Request

You will receive a recommended design + quotation within 24 hours.
