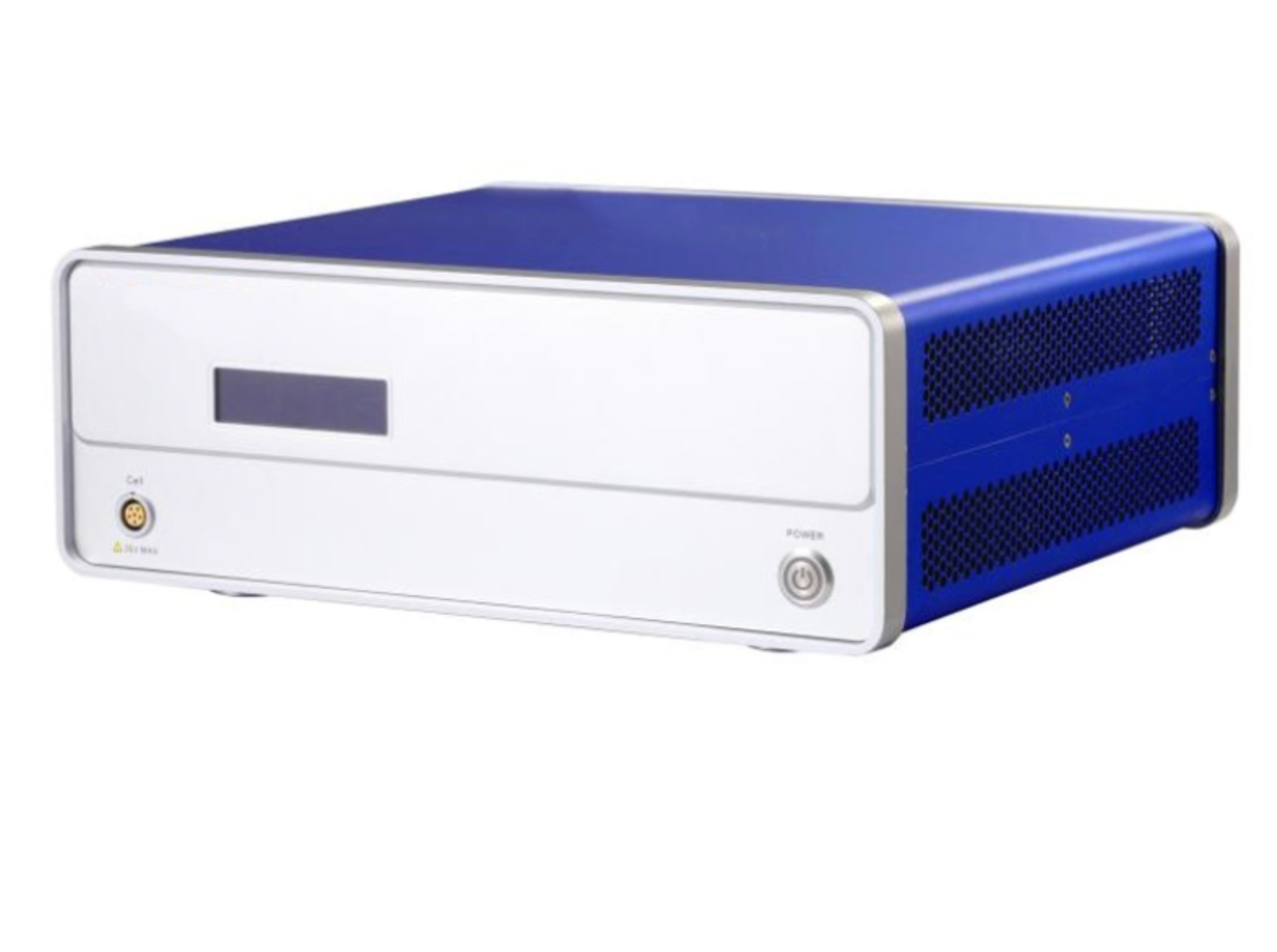

Corrtest Single Channel Potentiostat / Galvanostat Electrochemical Workstation

Corrtest Single Channel Potentiostat / Galvanostat Electrochemical Workstation

Product Description
Shipping & Delivery

Single Channel Potentiostat / Galvanostat

Franklab offers electrochemical workstation (potentiostat/galvanostat) in single channel. It contains a fast digital function generator, high-speed data acquisition circuitry, a potentiostat and a galvanostat. With high performance in stability and accuracy with advanced hardware and well-functioned software, it is a comprehensive research platform for corrosion, batteries, electrochemical analysis, sensor, life science and environmental chemistry etc.Applications:

(1) Reaction mechanism of electrosynthesis, electrodeposition (electroplating), anodic oxidation, etc

(2) Electrochemical analysis and sensor

(3) New energy materials (Li-ion battery, solar cell, fuel cell, super capacitors), advanced functional materials, photoelectronic materials

(4) Corrosion study of metals in water, concrete, soil, etc

(5) Fast evaluation of corrosion inhibitor, water stabilizer, coating and cathodic protection efficiency

Included:

a. Instrument Host x 1

b. Software x 1

c. Power Cable x 1

d. USB Cable x 1

e. Electrode Cable x 2

f. Dummy Cell (1kΩ||100µF) x 1

Technical Specifications:

Dimension 365mm x 305mm x 160mm
Power Supply  110V
Potential Control Range ± 10V
Potential Control Accuracy 0.1% × full range ± 1mV
Potential Resolution 10μV (> 100Hz), 3μV (< 10Hz)
Current Control Range ± 2A
Current Control Accuracy 0.1% × full range
Current Sensitivity 1pA
Rise Time < 1μS (< 10mA), < 10μS (< 2A)
Reference Electrode Input Impedance 1012Ω || 20pF
Current Range 2nA ~ 2A (10 ranges)
Compliance Voltage ± 21V
Maximum Current Output 2A
CV and LSV Scan Rate 0.001mV/s ~ 10,000V/s
CA & CC Pulse Width 0.0001 ~ 65,000s
Current Increment During Scan 1mA at 1A/ms
Potential Increment During Scan 0.076mV at 1V/ms
SWV Frequency 0.001 ~ 100kHz
DPV & NPV Pulse Width  0.0001s ~ 1000s
Potential Increment during Scan 0.076mV at 1V/ms
AD Data Acquisition 16bit at 1MHz, 20bit at 1kHz
DA Resolution 16bit, setup time: 1μs
Minimum Potential Increment in CV 0.075mV
IMP Frequency 10μHz ~ 1MHz
Low-pass Filters covering 8-decade
Limited Warranty 5 years


Electrochemical Impedance Spectroscopy (EIS)

Signal Generator:

Frequency Range 10μHz ~ 1MHz
Frequency Accuracy 0.005%
AC Signal Amplitude 1mV ~ 2500mV
Signal Resolution 0.1mV RMS
DC Bias -10 ~ +10
Output Impedance 50Ω
Waveform Sine wave, triangular wave and square wave
Wave Distortion < 1%
Scan Mode Logarithmic/linear, increase/decrease



Signal Analyzer:

Integral Time Minimum 10ms or the longest time of a cycle
Maximum 106 cycles or 105s
Measurement Delay 0 ~ 105s



DC Offset Compensation:

Potential Automatic Compensation Range -10V ~ +10V
Current Compensation Range -1A ~ +1A
Bandwidth 8-decade frequency range, automatic and manual setting



OS Requirement

Communications Interface: isolated Universal Serial Bus (USB 2.0)

Operating System: Windows 2000/XP/ Win7/Win8/Win10

Software/ Techniques (please note x means included):

Techniques

SC150M

SC300M

SC310M

SC350M

Stable Polarization

Open Circuit Potential (OCP)

x

x

x

x

Potentiostatic (I-T Curve)

x

x

x

x

Galvanostatic

x

x

x

x

Potentiodynamic (Tafel Plot)

x

x

x

x

Galvanodynamic

x

x

x

x

Transient Polarization

Multi-Potential Steps

x

x

x

x

Multi-Current Steps

x

x

x

x

Potential Stair-Step (VSTEP)

x

x

x

x

Galvanic Stair-Step (ISTEP)

x

x

x

x

Chrono Methods

Chronopotentiometry (CP)



x

x

x

Chronoamperometry (CA)



x

x

x

Chronocoulometry (CC)



x

x

x

Voltammetry

Cyclic Voltammetry (CV)

x

x

x

x

Linear Sweep Voltammetry (LSV)

x

x

x

x

Staircase Voltammetry (SCV)



x



x

Square Wave Voltammetry (SWV)



x



x

Differential Pulse Voltammetry (DPV)



x



x

Normal Pulse Voltammetry (NPV)



x



x

Differential Normal Pulse Voltammetry (DNPV)#



x



x

AC Voltammetry (ACV) #



x



x

2nd Harmonic A.C.Voltammetry (SHACV)



x



x

Amperometry

Differential Pulse Amperometry (DPA)







x

Double Differential Pulse Amperometry (DDPA)







x

Triple Pulse Amperometry (TPA)







x

Integrated Pulse Amperometric Detection (IPAD)







x

EIS

EIS vs Frequency (IMP)





x

x

EIS vs Time (IMPT)





x

x

EIS vs Potential (IMPE)(Mott-Schottky)





x

x

Corrosion Test

Electrochemical Potentiokinetic Reactivation (EPR)

x

x

x

x

Electrochemical Noise (EN)

x

x

x

x

Zero Resistance Ammeter (ZRA)

x

x

x

x

Battery Test

Battery Charge and Discharge

x

x

x

x

Galvanostatic Charge and Discharge (GCD)

x

x

x

x

Potentiostatic Charging and Discharging (PCD)

x

x

x

x

Potentiostatic Intermittent Titration Technique (PITT)

x

x

x

x

Galvanostatic Intermittent Titration Technique (GITT)

x

x

x

x

Extensions

Data Logger

x

x

x

x

Electrochemical Stripping/Deposition

x

x



x

Bulk Electrolysis with Coulometry (BE)

x

x

x

x
