Detachable Disk Electrode — Au / Pt / Glassy Carbon / Ag / Cu / Fe / Ni / Ti / Al / Zn
Modular PTFE or PEEK Electrode Head · Replaceable Metal/Carbon Disk · High-Precision Electrochemistry

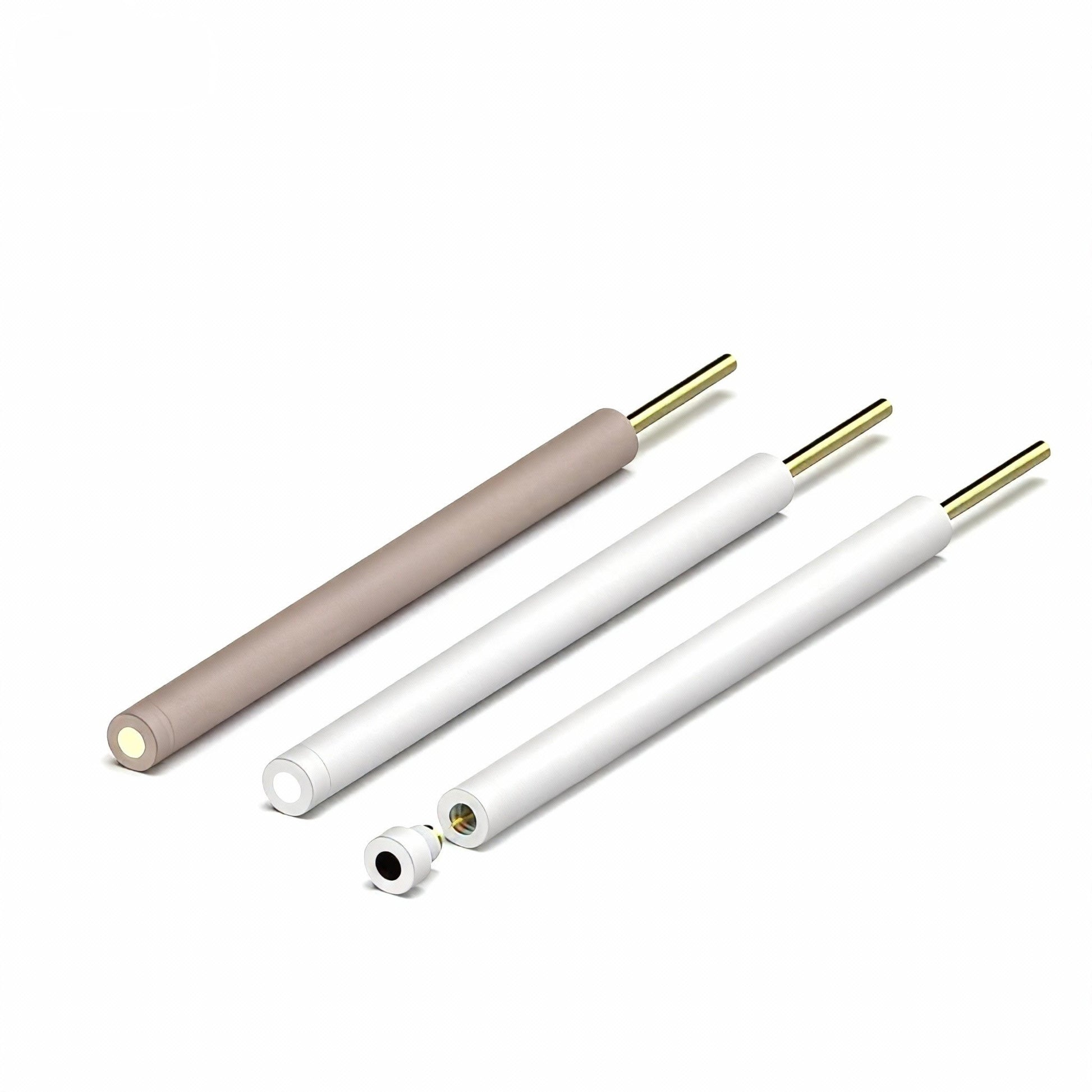

The FrankLab Detachable Disk Electrode System is a modular, laboratory-grade working electrode designed for researchers who require flexible disk materials, quick replacement, and long-term durability.
This electrode head allows the analyst to swap only the metal/carbon disk, significantly reducing cost while maintaining consistent geometry and electrochemical performance.
Available in 10+ materials, including noble metals, transition metals, and high-purity glassy carbon, this system is ideal for voltammetry, surface chemistry, electrocatalysis, and sensor research.

Core Advantages

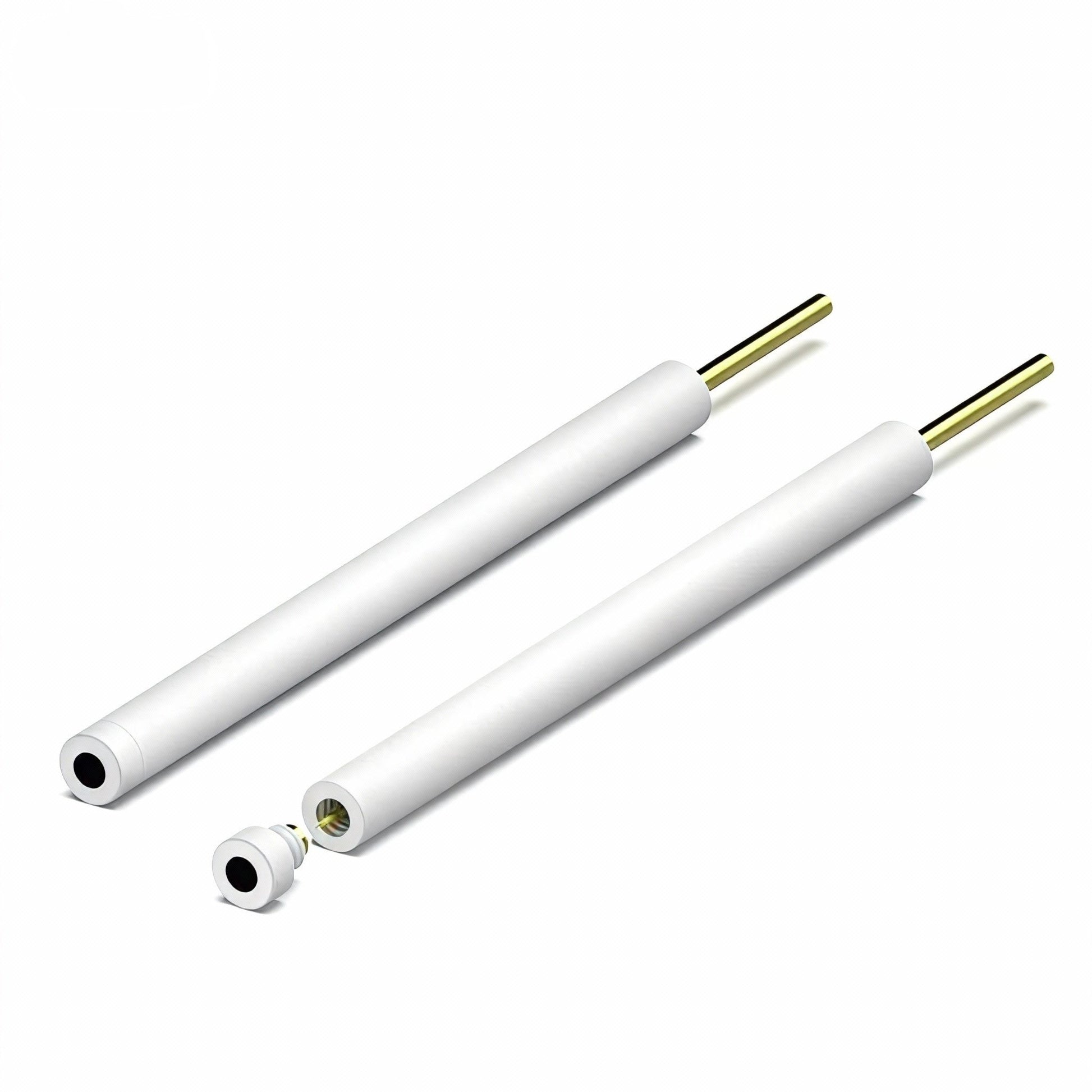

· Fully Detachable Electrode Head
Replace only the front disk — no need to replace the full electrode body.
· Universal Disk Material Options
Au, Pt, GC, Ag, Cu, Fe, Ni, Ti, Al, Zn — one handle supports multiple experiments.
· Precision-Machined PTFE or PEEK Housing
Low background current
Chemically inert
Excellent stability even in strong acids/alkalis
• Laboratory Standard Geometry
Perfect alignment between disk and insulation surface ensures reproducible diffusion fields.

Technical Specifications
Option Material Availability
Ø2 mm Au / Pt / GC / Ag / Cu / Ni / Fe / Ti / Al / Zn
Ø3 mm Au / Pt / GC / Ag / Cu / Ni / Fe / Ti / Al / Zn
Ø4 mm Au / Pt / GC / Ag / Cu / Ni / Fe / Ti / Al / Zn
Ø5 mm Au / Pt / GC / Ag / Cu / Ni / Fe / Ti / Al / Zn
Ø6 mm Au / Pt / GC / Ag / Cu / Ni / Fe / Ti / Al / Zn

Electrode Body Dimensions
Parameter Value
Straight Rod Length 80 mm
Lead Wire Length 20 mm
Electrode Head Height 8 mm
Material PTFE or PEEK
Connection Method Screw-on detachable head
Terminal Pin Gold-plated copper
Custom Options Pure Au, Pt pin available
Available Disk Materials
Noble Metals
· Gold (Au ≥99.99%) — SAMs, thiol chemistry, surface studies
· Platinum (Pt ≥99.95%) — harsh media, electrocatalysis
Carbon-Based
· Glassy Carbon (GC) — low background current, ideal for CV, sensors
Silver-Based
· Ag (≥99.9%) — Cl⁻ chemistry, Ag/AgCl reference fabrication
Base Metals
· Copper (Cu) — corrosion, electrodeposition
· Nickel (Ni) — HER/OER, redox chemistry
· Iron (Fe) — corrosion studies, battery R&D
· Titanium (Ti) — biomedical R&D, surface modification
· Aluminum (Al) — corrosion, passivation
· Zinc (Zn) — battery research, plating studies

Key Features

1. Swap Heads in Seconds

No tools required — simply unscrew the head and install another material.

2. Perfect Flush Surface

Disk and insulator remain level, ensuring stable mass transport during CV/LSV.

3. Mirror-Polished Disk Surface

Ready for high-precision electrochemical experiments.

4.Multi-Material Electrode Library

One handle supports up to 10 materials, drastically lowering cost per experiment.

5. PTFE or PEEK Options

PEEK recommended for:
✔ high temperature (up to 200°C)
✔ strong oxidizer environments

Applications
· Cyclic Voltammetry (CV)
· LSV, DPV, SWV
· Electrocatalyst screening
· SAM & surface modification
· Corrosion & passivation
· Metal deposition & stripping
· Battery material testing

Customization Options
FrankLab supports OEM/ODM manufacturing:
· Disk diameter: 0.5–10 mm
· Housing material: PTFE / PEEK /
· Lead terminal: Au-plated Cu / Pure Au / Pt
· Rod length: 20–150 mm
· Thread type: metric or custom
· Laser-etched logo, coding, batch ID
Engineering drawing + quotation ready within 24 hours.
