Disk Electrode Polishing Kit – Complete Electrode Surface Preparation System

Disk Electrode Polishing Kit

Complete Electrode Surface Preparation Kit for Electrochemical Experiments

Product Overview

Proper polishing of disk electrodes is essential for maintaining reliable electrochemical performance. During electrochemical experiments, redox products and contaminants can accumulate on the surface of the working electrode, which may affect measurement accuracy and reproducibility.

This Disk Electrode Polishing Kit provides a complete solution for electrode surface preparation, allowing researchers to remove surface contaminants, eliminate scratches, and restore the electrode surface to a smooth mirror finish.

The kit includes multiple grades of alumina polishing powder, polishing cloths, sandpaper, and glass polishing bases, making it suitable for routine maintenance of glassy carbon electrodes, platinum electrodes, and other metal disk electrodes.

Why Electrode Polishing is Important

Polishing helps to:

•Remove redox products accumulated on the electrode surface

•Restore a clean and active electrode surface

•Improve electrochemical measurement accuracy

•Maintain stable performance in static cells and flow cells

Regular polishing ensures that the working electrode remains in optimal condition during electrochemical testing.

Recommended Polishing Procedure

Step 1 – Remove Deep Scratches

If scratches are visible on the electrode surface:

Use P1200 grit sandpaper to perform initial grinding.

Step 2 – Coarse Polishing

Use 1.0 μm alumina polishing powder together with nylon polishing cloth (black) to remove remaining scratches and prepare the surface for fine polishing.

Step 3 – Fine Polishing

Use 0.3 μm alumina polishing powder with microcloth polishing flannel to refine the electrode surface.

Step 4 – Final Polishing

Use 0.05 μm alumina polishing powder for final polishing to obtain a mirror-like electrode surface.

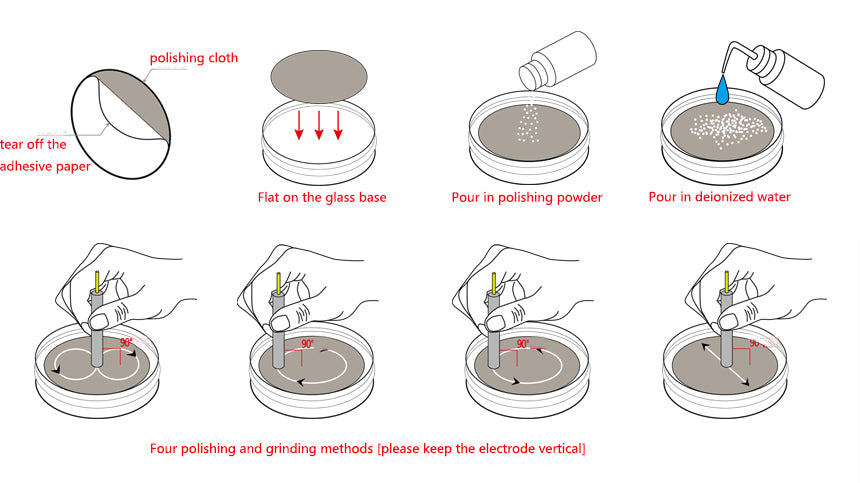

Polishing Tips

•Sprinkle a small amount of alumina powder onto the polishing cloth.

•Add a few drops of distilled water to moisten the surface.

•Hold the electrode vertically and polish using circular or figure-eight motions.

•Apply gentle pressure to avoid damaging the electrode surface.

•If the polishing cloth becomes dry, add distilled water before continuing.

Before switching to finer polishing powders, thoroughly wash the electrode and rinse your hands to prevent cross-contamination.

Important Handling Notes

To maintain polishing quality:

•Always use separate spoons for different alumina powders.

•Do not mix large particle powders with smaller particle powders.

•Do not exchange bottle caps between different powder containers.

•Handle polishing powders carefully to avoid contamination.

Cross-contamination between different polishing powders may reduce polishing performance.

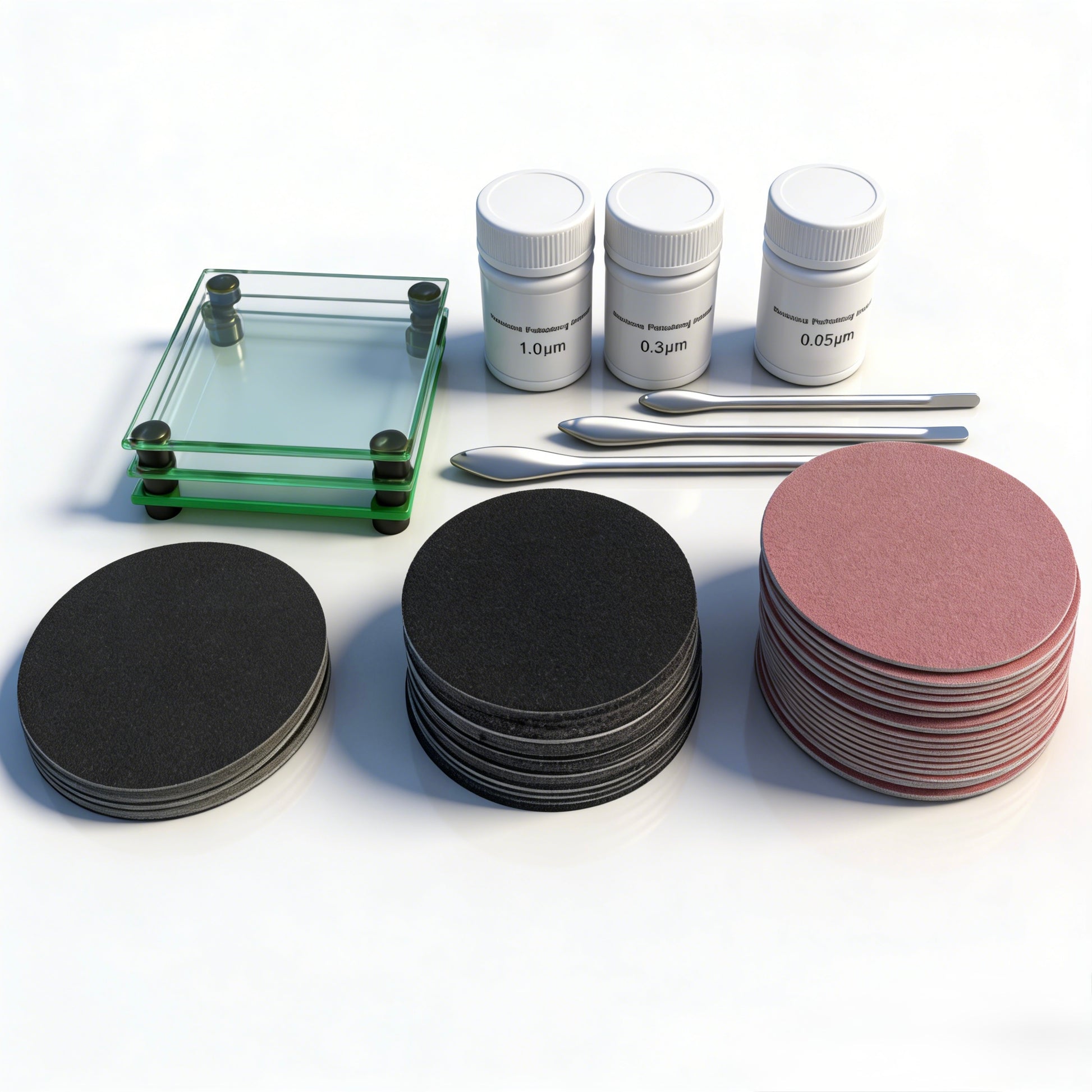

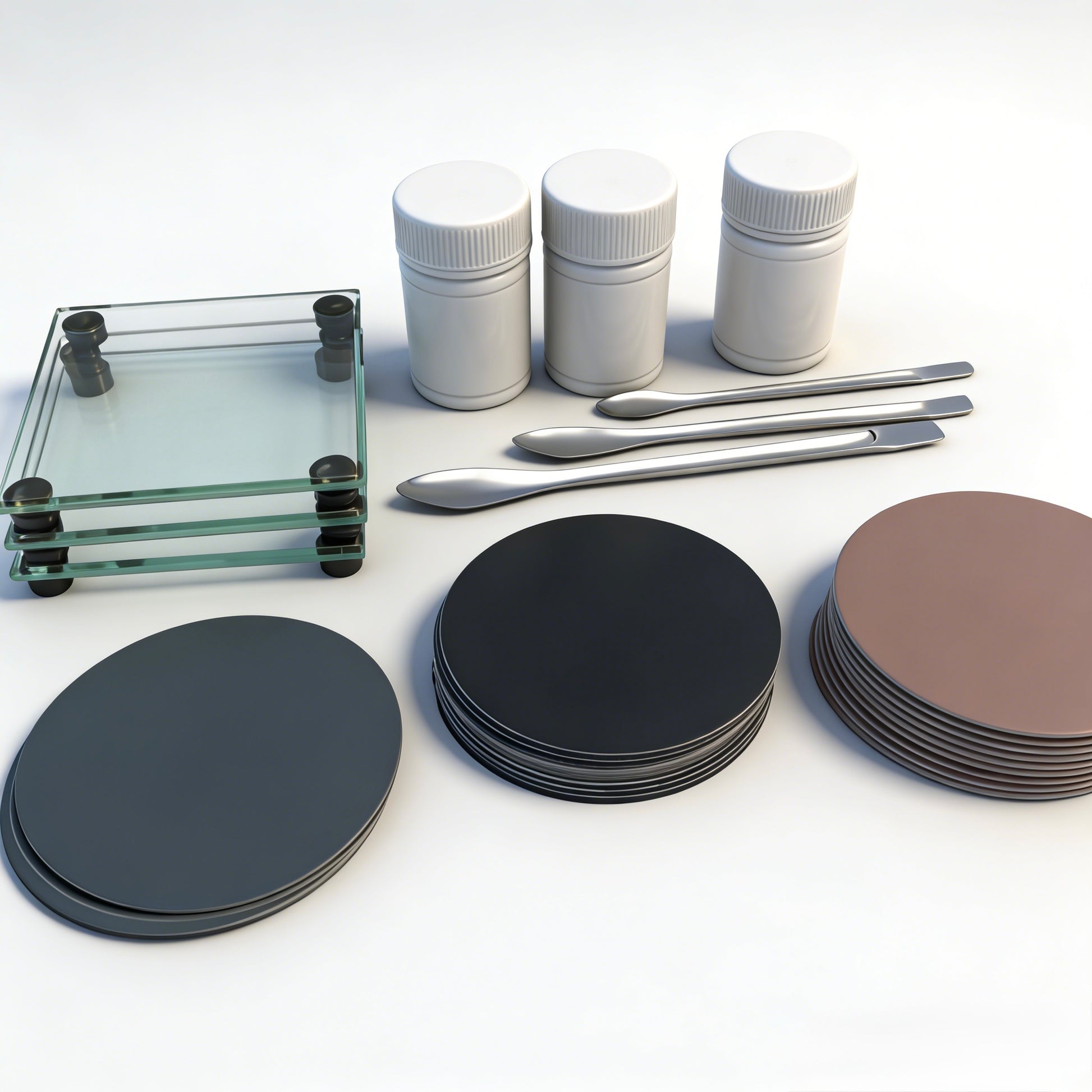

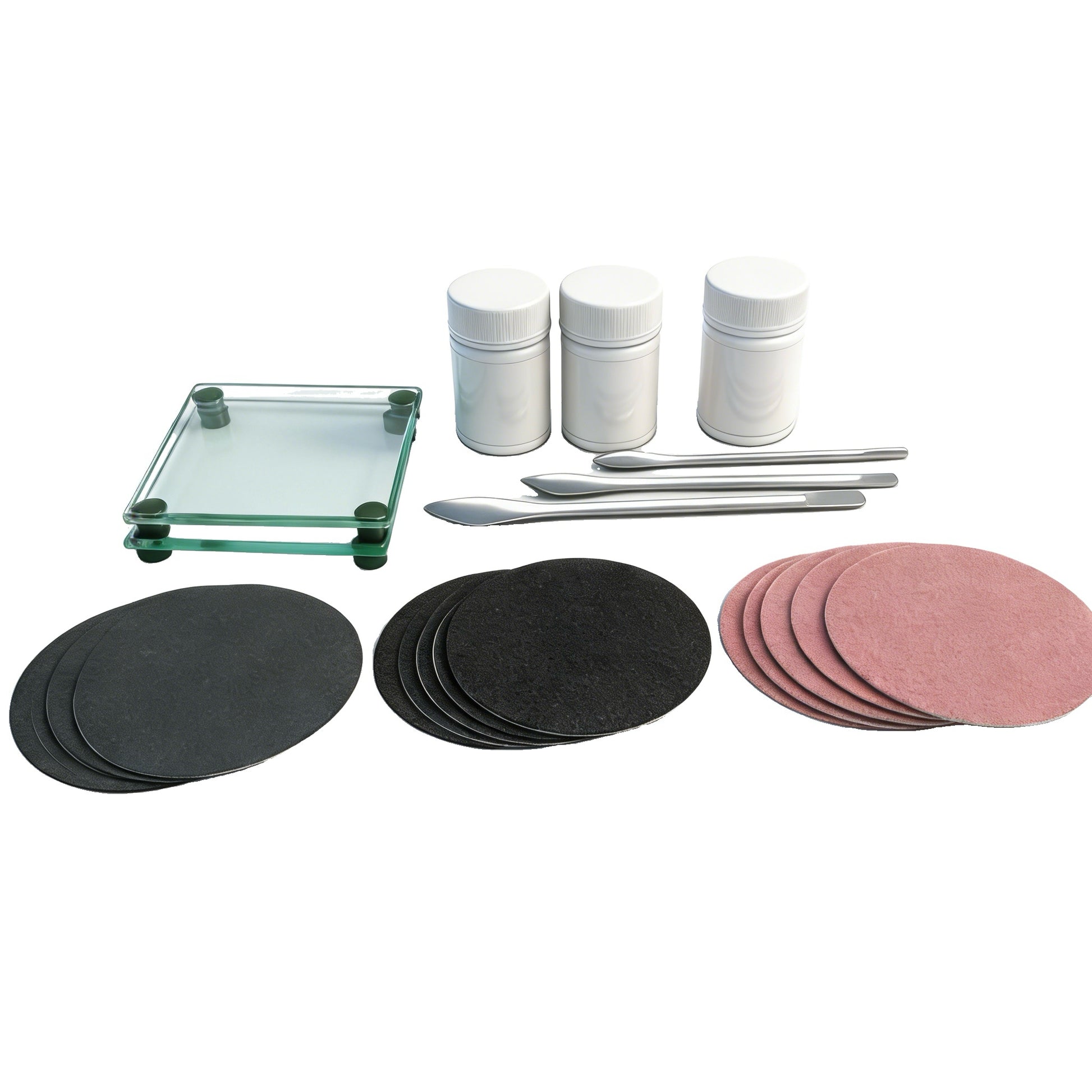

Product Includes

Typical Applications

This electrode polishing kit is widely used for:

•Glassy carbon electrode polishing

•Platinum electrode polishing

•Gold electrode polishing

•Disk electrode maintenance

•Electrochemical catalyst testing preparation

•Surface preparation before electrochemical measurements

Advantages

•Complete electrode polishing solution

•Multiple polishing stages for optimal surface preparation

•Compatible with most disk electrodes

•Easy-to-use laboratory polishing system

•Ensures consistent and reproducible electrochemical results
