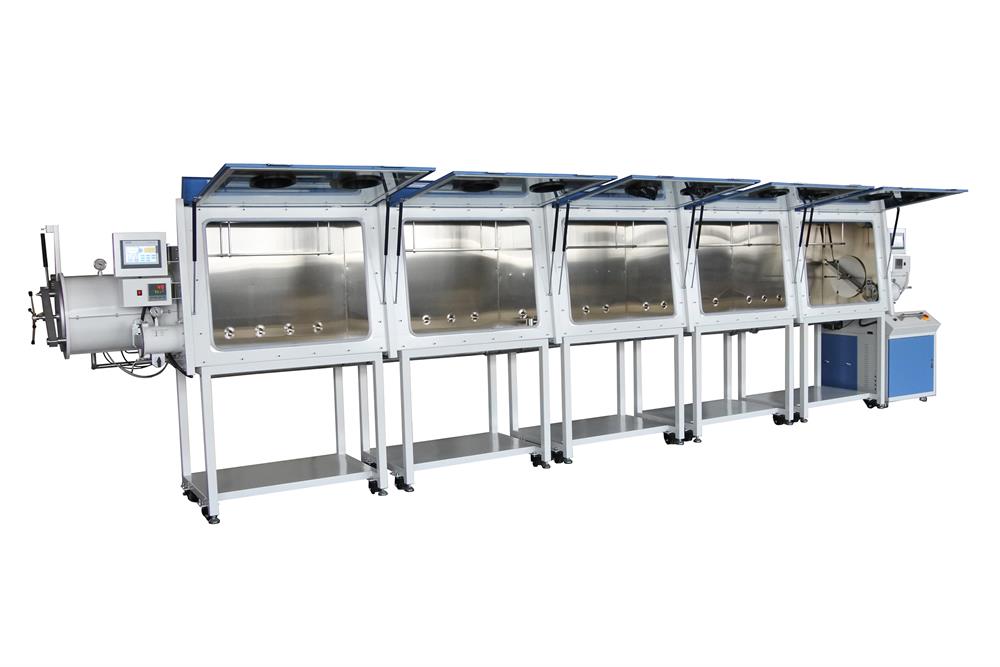

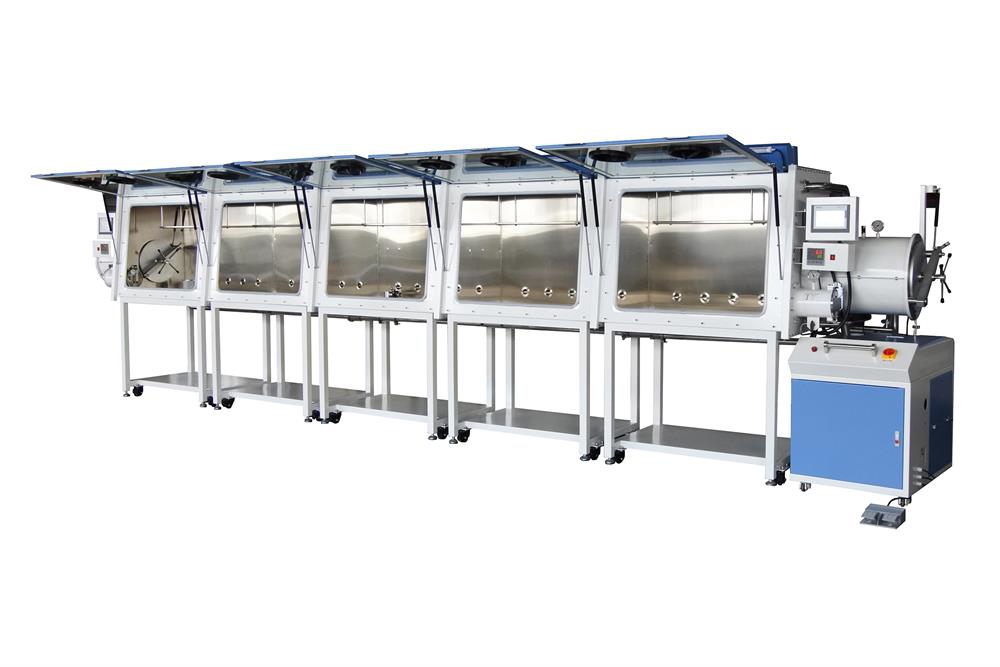

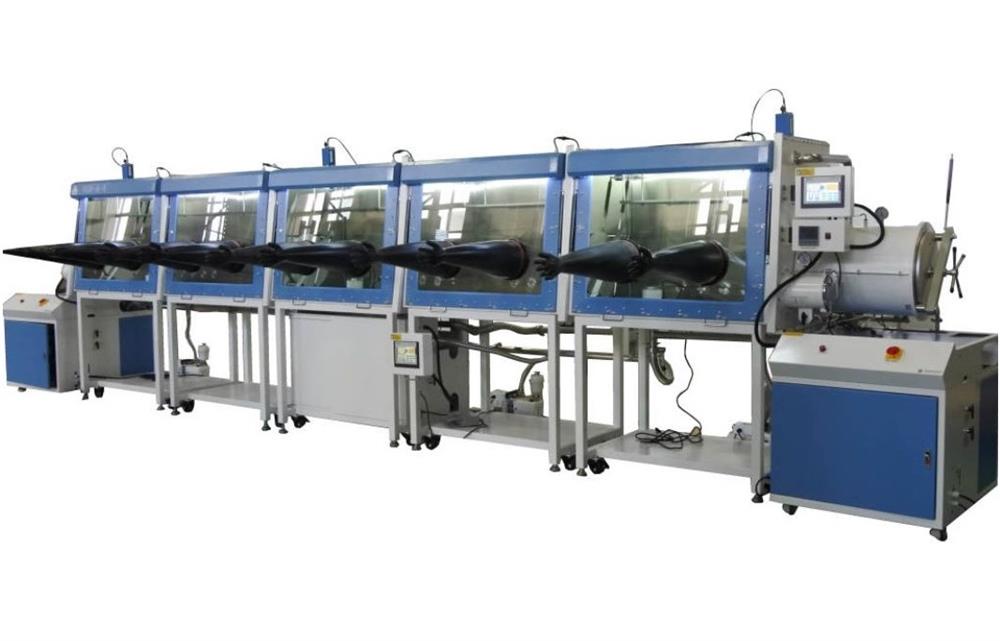

Five Chambers Glove Box with Gas Purification System ( H2O&O2 < 1ppm) - VGB-6-V-LD

• AC 220V 50/60 Hz Single Phase

• 6 KW

• Material: Stainless Steel 304
• Dimensions:7800 mm (L) x 1050 mm (W) x 2000 mm (H)
• 12 mm thick double layer laminated safety glass with corrosion protection film for operating in a safe and easy manner
• Five main chambers and three purification systems
• Can be divided into three separated units: [Chamber 1,2]: [Chamber 3,4]: [Chamber 5]
• Ample space for the cell fabrication line

• Dimensions for single chamber: 1200 (L) × 800 (W) × 930 mm (H)
• Water concentration: < 1 ppm (20°C, 1 atm)
• Oxygen concentration: < 1 ppm (20°C, 1 atm)

• <0.05 Vol% / hr (Depending on oxygen concentration inside the glove box)

• Two Antechambers and two small chambers on both sides of the glove box
• Antechamber Dimension: 385 mm (Dia.) x 588 mm (L)
• Small Chamber Dimension: 150 mm (Dia.) x 300 mm (L)
• Maximum vacuum level: 100 Pa

• Operating gas: Inert gas such as N2, Ar, He
• Regeneration gas: Mixture of H2(5%) and Operating gas
• For a purification system with only water adsorbing function, regenerating gas would be the same as Operating gas

• Two Purification Cylinders are included due to the large glove box
• Organic Solvent Filter System filled with replaceable activated carbon
• Built-in HEPA filter can eliminate particle size > 0.3μm

• Siemens PLC control system with 6' touchscreen display
• Water concentration: 0 - 1000 ppm with an accuracy of 0.1 ppm
• Oxygen concentration: 0 - 1000 ppm with an accuracy of 0.1 ppm
• Pressure: -2500 to 2500 Pa with an accuracy of 1Pa
• Purification limitation
• Water concentration:  <1 ppm (20°C, 1 atm)
• Oxygen concentration: <1 ppm (20°C, 1 atm)
• Regeneration Temperature Controller is built-in for automatically regenerating the filters
• An automatically purging function is built in for quickly reducing O2 < 200ppm & H2O < 50 ppm before recycling.
• The automatic pressure control system is built in to keep the pressure at a constant level.

• A Rotary Vane Pump is included for each catalyst box

• Flow Rate: 90m³/h

• 304 Stainless Steel, KF40 Port

• A pair of NORTH Butyl gloves is included to provide better protection against toxic materials for one chamber
• Four pairs in total

• Built-in LED lamp

• Five slidable shelves are built on top of the inside glove chamber with dimensions of 300mm x 250mm
• 300 mm away from the roof

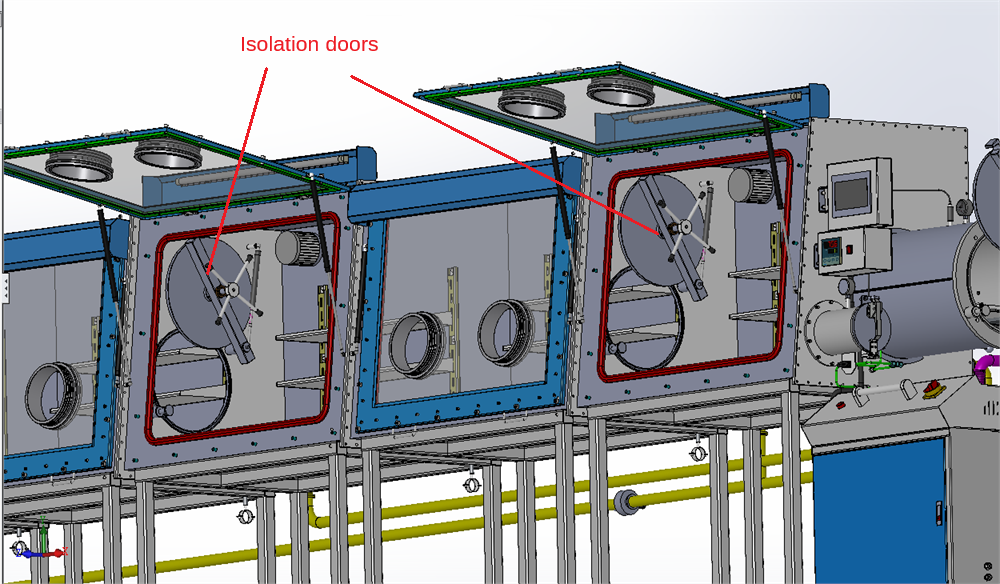

• The separating door is designed to separate the chamber when the accident happens, and let other chambers keep running.
• The shutter doors shown are in chambers 2nd and 4th.
•

• The universal terminal panel is a convenient part with various feedthroughs built-in for VGB series glove boxes to transfer gas/vacuum pipelines, circuit cables, etc. ( Pic. 1-2)
• Dimensions: 420x280mm
• Adapter: 10 Φ6 ports, 4 Φ8 ports, 4 Φ12 ports
• Heatable Antechamber: 200C max., DN360×600mm (L), extra cost $7699
• The extra purification system is available to avoid accidents from happening.
• Carbon filtering and sloven vaper filtering systems are available upon request. (Pic. 6)

    Pic. 1   Pic. 2    Pic. 3 Pic. 4  Pic. 5

• 7800 mm(L) x 1050 mm(W) x 2000 mm(H) (310' x 41' x 78')

• TBD

          Request for more information

• One-year limited warranty with lifetime support
• Rusting and damage due to the improper storage condition or maintenance would not be covered by warranty
• Gloves are consumable parts and are not covered by warranty

• The use of corrosive gasses is prohibited as they will damage the water and oxygen sensors.
• Regularly perform regeneration to maintain optimum purification efficiency.
• The O2 removing rate is largely dependent on the type of purging gas used. For a faster chamber purging process, Nitrogen is preferred over Argon due to its lighter mass.
• Corrosive liquid (such as LiPF6 electrolyte) must be remain sealed in a container inside the glove box. Otherwise, liquid-vapor may condense and corrode the steel chamber and purification pipeline
