Five-Port Electrochemical Cell,Single Layer/Double Layer

Five-Port Electrochemical Cell,Single Layer/Double Layer

$89.00 USD
$89.00 USD
Sale Sold out
Shipping calculated at checkout.
Type
Capacity
View full details

Product Description

Product Overview

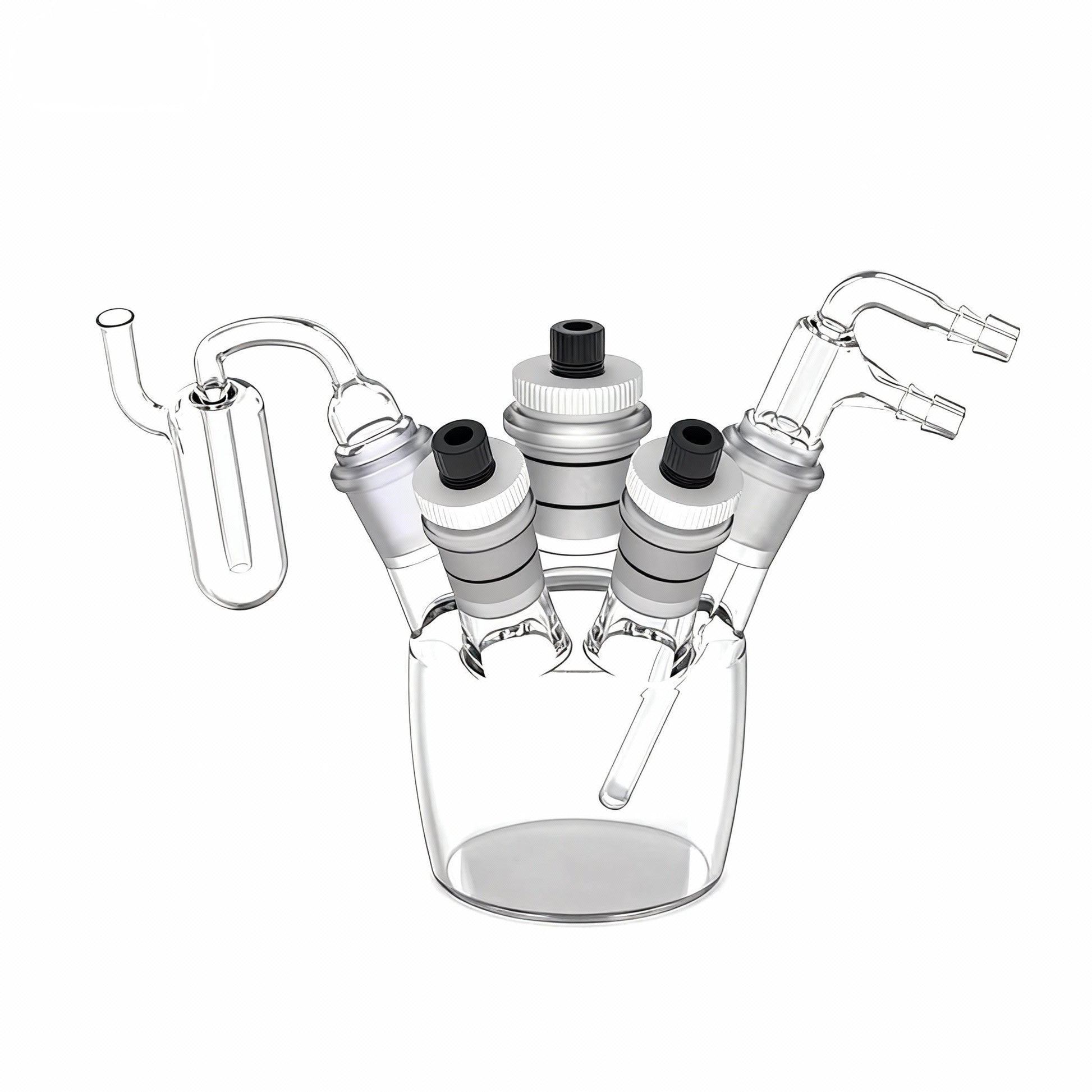

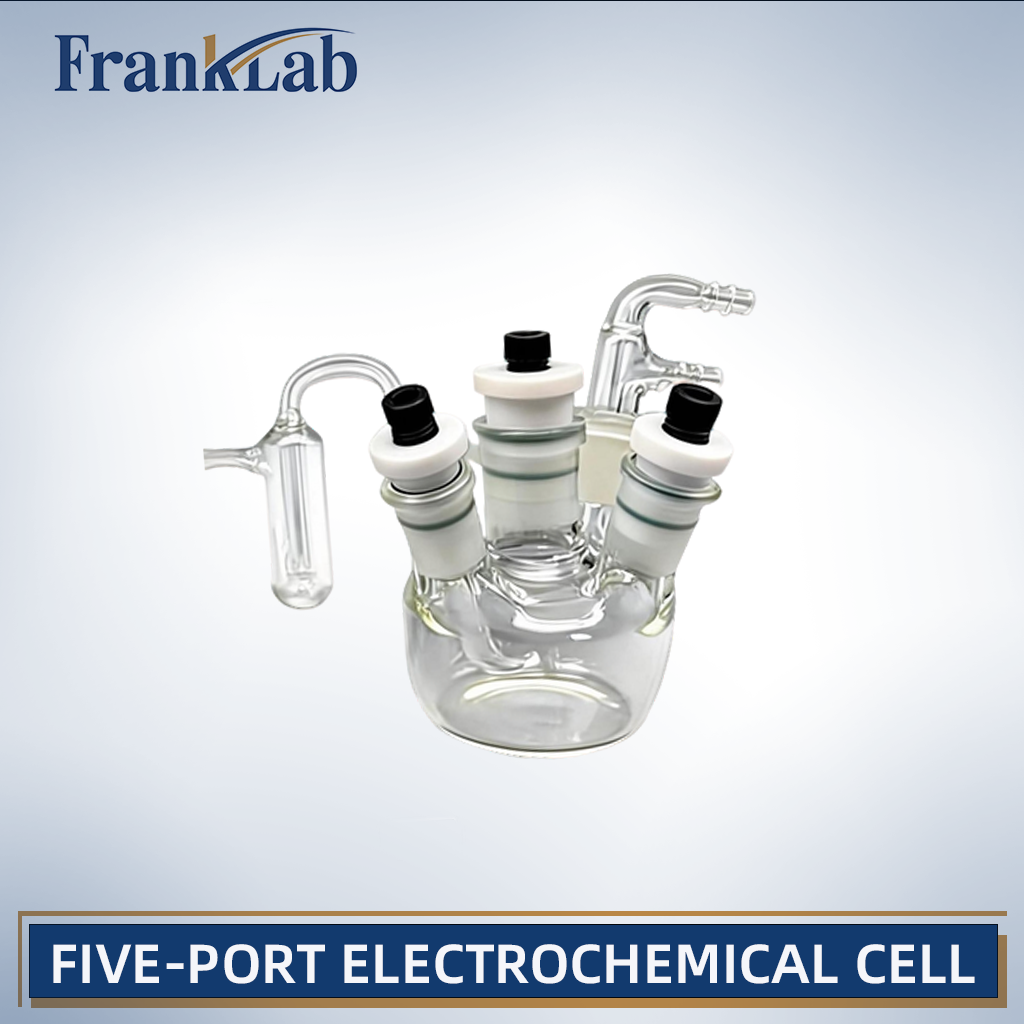

The FrankLab Five-Port Electrochemical Cell is a versatile, high-performance reaction vessel engineered for RDE/RRDE studies, CO₂RR/O₂RR, electrocatalysis, corrosion testing, and gas–liquid electrochemistry. Available in single-layer and double-layer (water bath) versions, this cell supports temperature-controlled experiments, gas bubbling/purging, sampling, and multi-electrode configurations.

It is widely used in academic laboratories, industrial R&D, and precision electrochemical mechanism studies.

Key Features

1. Five-Port Modular Design

Each port is designed for a critical function:
Port Function Description
Working Electrode Port Accepts rod electrodes or RDE/RRDE (fits your GC/Pt/Au disks).
Counter Electrode Port Typically Pt wire/mesh or graphite rod.
Reference Electrode Port Standard 19# or 24# taper; compatible with Ag/AgCl, Hg/HgO, SCE, etc.
Gas Inlet (F-type Tube) For bubbling, saturating, or purging (N₂ / Ar / CO₂).
Sampling / Outgas / Additional WE Port Can be used for solution sampling or auxiliary electrodes.

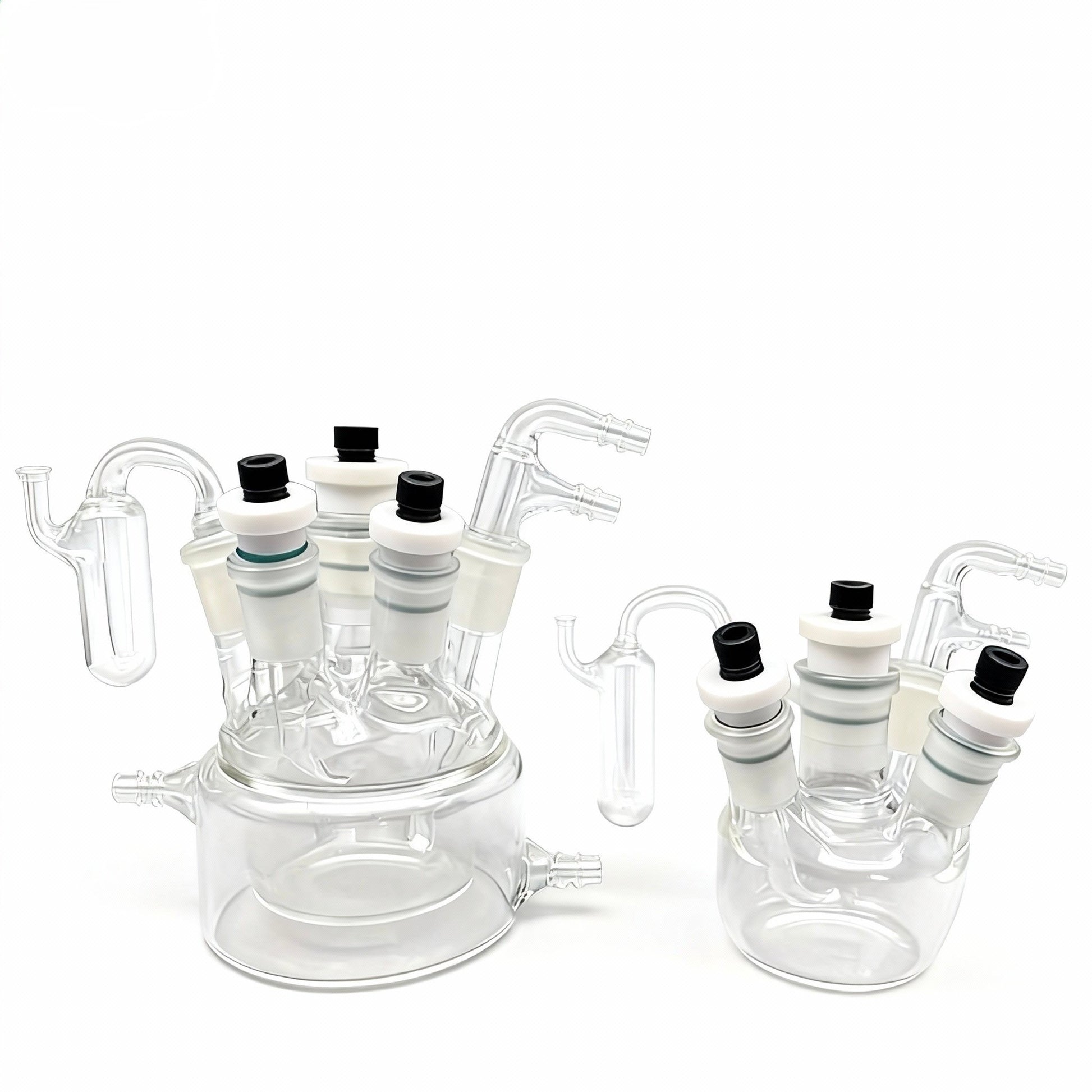

2. Single-Layer vs Double-Layer Options

Version Key Advantage Typical Application
Single-Layer Cost-efficient; ideal for ambient-temperature electrochemistry ORR, CO₂RR, HER/OER

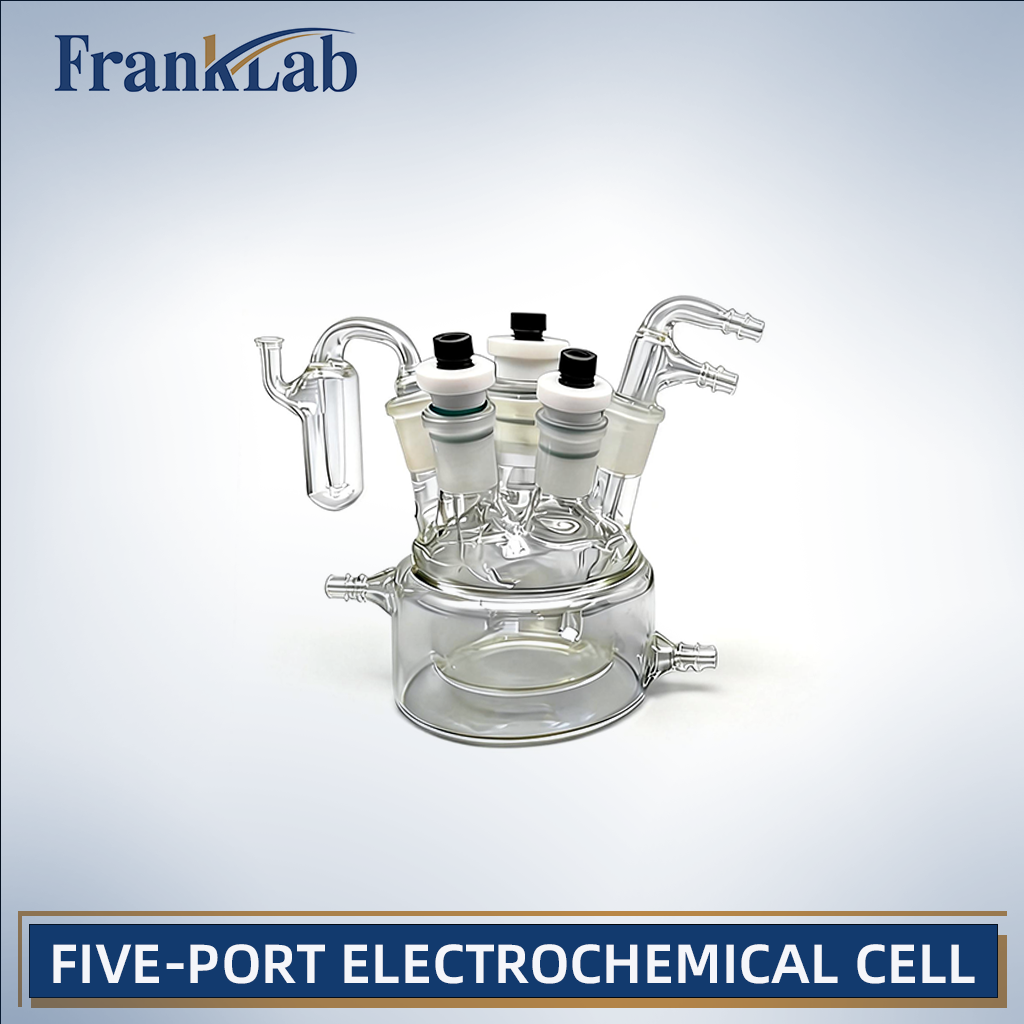

Double-Layer Supports water bath heating/cooling (0–80 °C) Kinetics studies, temperature-controlled catalysis



3. High Chemical Durability

•Borosilicate glass or high-purity quartz
•Resistant to acid, base, organic solvents, high ionic strength electrolytes
•PTFE sealing system ensures low contamination and long-term stability

4. Full Electrode Compatibility

Compatible with all FrankLab electrodes, including:
•GC / Pt / Au rod electrodes
•Detachable metal disk electrodes (2–6 mm)
•L-shape and U-shape electrodes
•RDE / RRDE (Metrohm, ALS, PINE-compatible)
•Salt bridge assemblies
•Gas sparging tubes & sampling needles

5. Precision Sealing System

•Each port includes PTFE or PEEK screw-cap adaptors
•Ensures gas-tight (micro-sealed) operation
•Supports inert atmosphere electrochemistry

Technical Specifications
Available Volumes
Single-Layer
•50 mL
•75 mL
•100 mL
•150 mL
•250 mL
•300 mL
•500 mL
Double-Layer / Water Bath
•50 mL
•75 mL
•100 mL
•150 mL
•250 mL
•300 mL
•500 mL

Standard Taper Joint Sizes
Port Size
Working Electrode Port 24# (fits RDE/RRDE)
Reference Electrode Port 19#
Counter Electrode Port 19#
Gas Inlet (F-type) Ground taper or hose connector
Sampling Port 19# or custom
Custom taper sizes available upon request.

Included Components
•Five-port glass cell body
•PTFE or PEEK sealing caps
•Gas-inlet bubbler tube
•Sampling port stopper
•Optional liquid-seal for sensitive experiments
(Electrodes are sold separately.)

Typical Applications
•Oxygen Reduction Reaction (ORR)
•Hydrogen Evolution / Oxygen Evolution (HER/OER)
•CO₂ Electroreduction (CO₂RR)
•Electrocatalysis mechanism studies
•Corrosion and passivation testing
•Controlled-atmosphere electrochemistry
•Temperature-dependent kinetics (with jacketed version)

Customization Options
FrankLab provides full customization:
•Quartz or borosilicate glass
•Custom volume (5 mL–1000 mL)
•Additional ports (5–7 ports)
•Custom taper size (14#, 19#, 24#, 29#)
•Built-in frit, salt bridge, or membrane separation
•Magnetic stirring compatibility
•Integrated gas dispersion frit
Custom drawings → Quotation within 24 hours

For Custom Orders or Inquiries

If you have custom requirements or any additional questions, feel free to contact us:

Email: support@franklab.shop


Why Choose FrankLab?

FrankLab electrochemical cells are designed by electrochemists, for electrochemists. Our focus is on:

•Clean geometry

•Chemical reliability

•Experimental reproducibility

•Compatibility with real research workflows

Used by universities, national labs, and industrial R&D teams worldwide.
