Glassy Carbon Sheet

Product Description
Shipping & Delivery

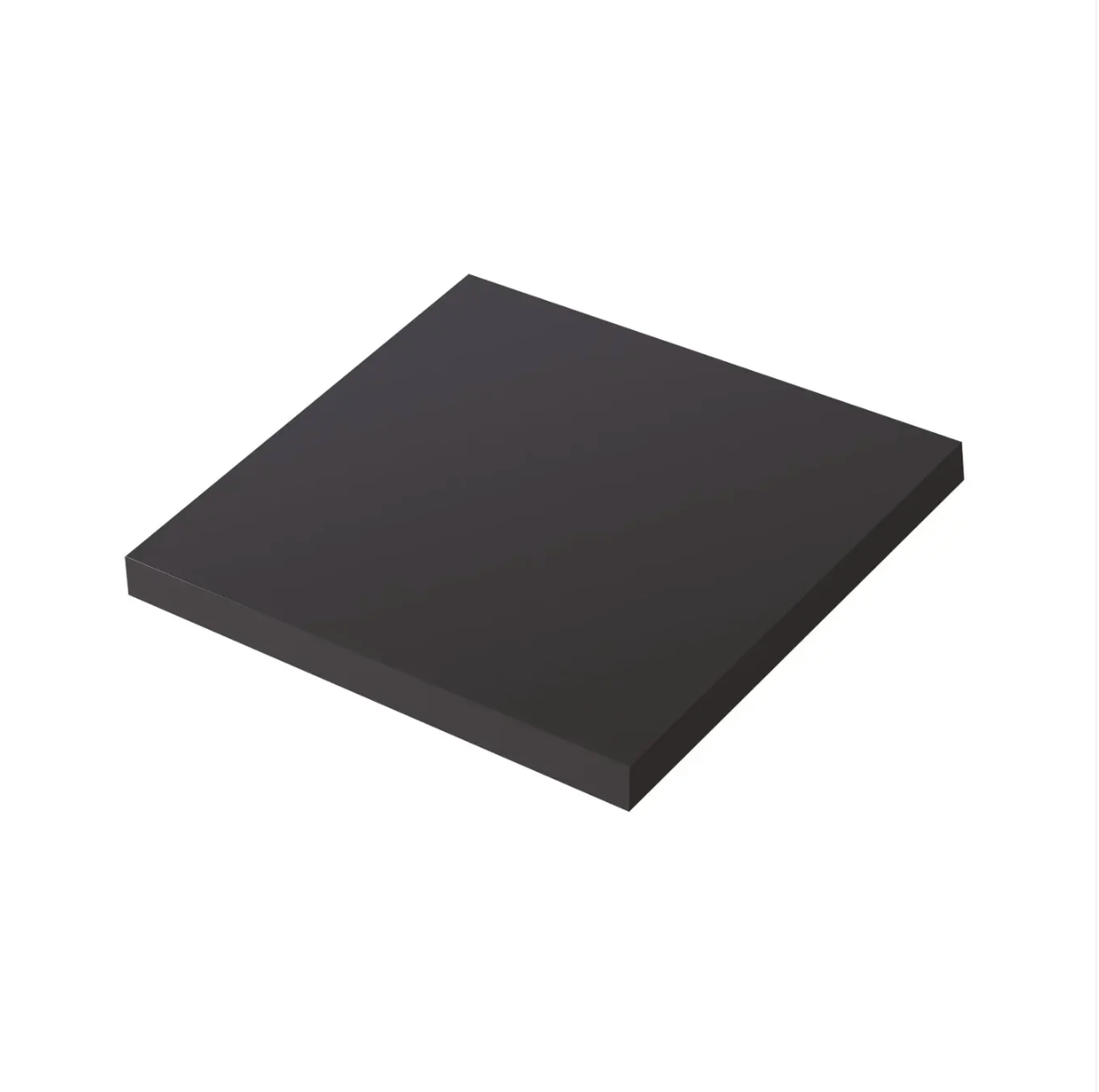

FrankLab Glassy Carbon Sheet
• Ultra-Pure · Gas-Tight · Highly Corrosion-Resistant · Ideal for Scientific & Industrial Applications

Product Overview
Glassy Carbon, is one of the world’s highest-grade carbon materials. It combines:
• the chemical inertness of ceramic materials
• the electrical conductivity of graphite
• a pore-free, gas-tight microstructure unique to glassy carbon
These sheets are widely used as inert substrates in:
• Electrochemical research
• Semiconductor and vacuum technology
• High-temperature applications
• Corrosion testing
• Analytical instruments
• Thin-film deposition
• Sample holders and precision components
FrankLab provides sheets in all standard sizes and supports custom machining.

Key Advantages of Glassy Carbon
• Certified purity
• Traceability
• Consistent material properties
• Reliability for scientific and industrial applications
• Ultra-High Purity (<100 ppm ash)
Ensures low contamination and stable electrochemical background.
• Completely Gas-Tight
No open porosity → no absorption of electrolytes, gases, or solvents.
• Exceptional Chemical Resistance
Stable in:
• Strong acids
• Organic solvents
• Corrosive electrolytes
• High-purity water
• Extreme Temperature Resistance
• Up to 1000°C in air
• Up to 3000°C in inert gas
• High Mechanical Strength & Hardness
Suitable for precision machining, cutting, drilling, and polishing.

Material Properties
Property SIGRADUR® G
Density 1.42 g/cm³
Electrical Resistivity 45 × 10⁻⁴ Ω·cm
Vickers Hardness 230 HV
Flexural Strength 260 N/mm²
Compressive Strength 480 N/mm²
Thermal Expansion 2.6×10⁻⁶ 1/K
Thermal Conductivity 6.3 W/m·K
Open Porosity 0%
Max Temperature Same
Corrosion Performance
Corrosion test in 65% nitric acid at 120°C shows:
• Very low mass loss over time
• Stability of flexural strength even after long exposure


Standard Sizes (Glassy Carbon Sheets)
(Length × Width × Thickness)
Small Pieces
• 5 × 5 × 0.5 mm
• 5 × 10 × 0.5 mm
• 5 × 15 × 0.5 mm
10 mm Series
• 10 × 10 × 0.5 / 1 / 2 / 3 mm
• 10 × 15 × 1 / 2 / 3 mm
20 mm Series
• 10 × 20 × 1 / 2 / 3 mm
• 20 × 20 × 1 / 2 / 3 mm
30 mm Series
• 30 × 30 × 1 / 2 / 3 mm
50 mm Series
• 50 × 50 × 1 / 2 / 3 mm
Large Format
• 50 × 100 × 0.5 / 1 / 2 / 3 mm
• 100 × 100 × 1 / 2 / 3 mm
(All sizes originate from your internal specification table.)

Applications
• Electrochemical research (as inert substrate or active material)
• Semiconductor and vacuum technology
• High-purity chemical environments
• Corrosion and stability studies
• High-temperature sample supports
• Thin-film deposition and coating processes
• Analytical instruments and scientific tools

Customization Available
we can provide:
• Custom-cut sheets
• Custom thickness (0.2–20 mm)
• CNC machining, drilling, shaping
• Polished surfaces (fine or mirror finish)
• Circular or irregular custom geometries
Engineering drawings + quotation provided within 24 hours.
