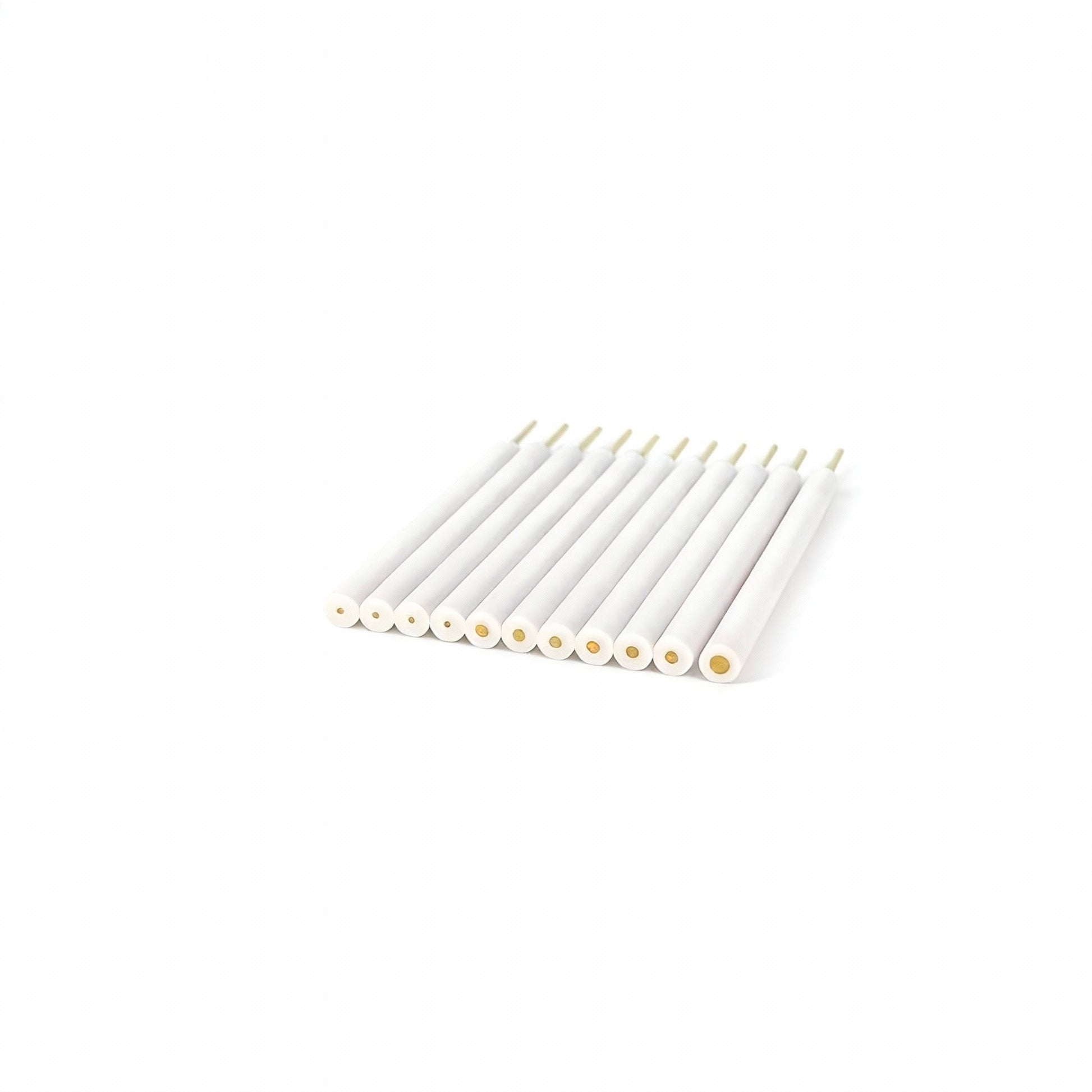

Gold Disk Electrode, >99.99% Purity
Gold Disk Electrode | High-Purity Au Working Electrode
(Straight Type / Customizable Diameter / PTFE-Insulated)
The FrankLab Gold Disk Electrode (Au) is a high-precision working electrode engineered for electrochemical studies that require exceptional stability, clean surface chemistry, and high reproducibility.
Made from ≥99.99% high-purity gold, the electrode provides an ideal platform for studies involving self-assembled monolayers (SAMs), thiol chemistry, noble-metal electrocatalysis, and redox mechanism exploration.
Each gold disk is mirror-polished to sub-micron flatness and embedded in a chemically inert PTFE body to ensure extremely low background currents and long-term durability in acidic, neutral, and alkaline media.

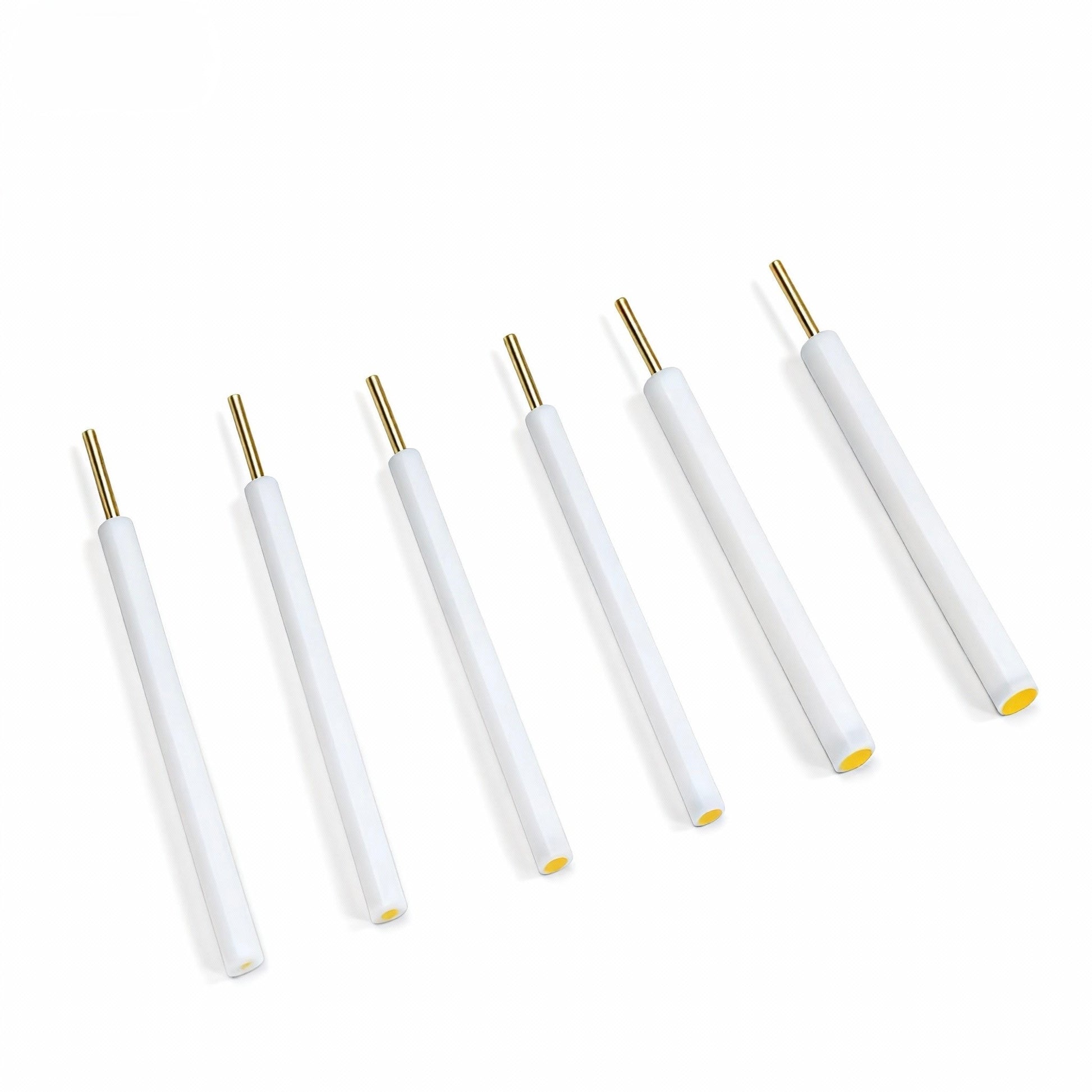

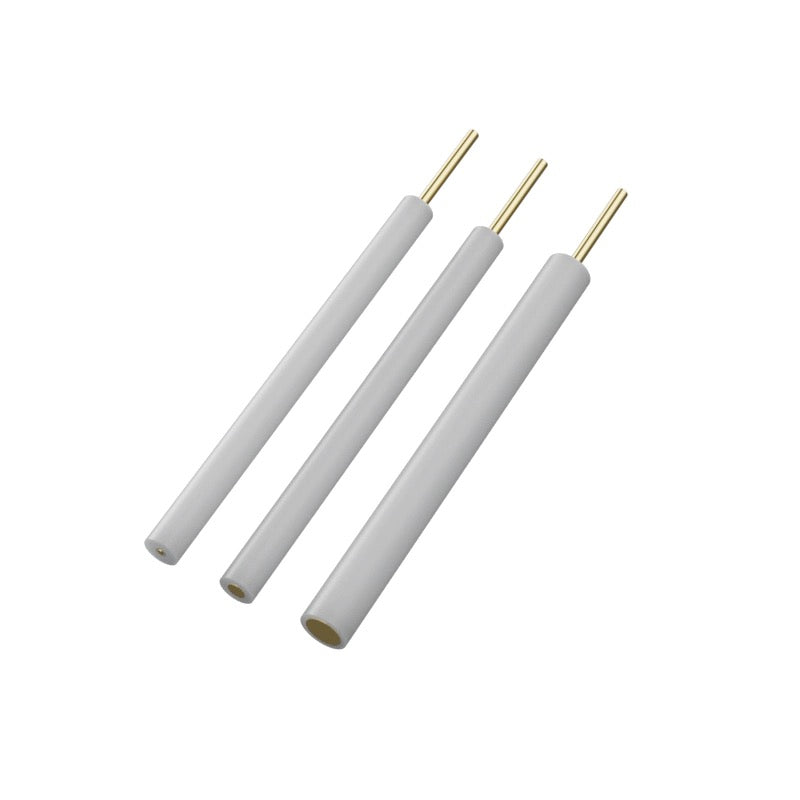

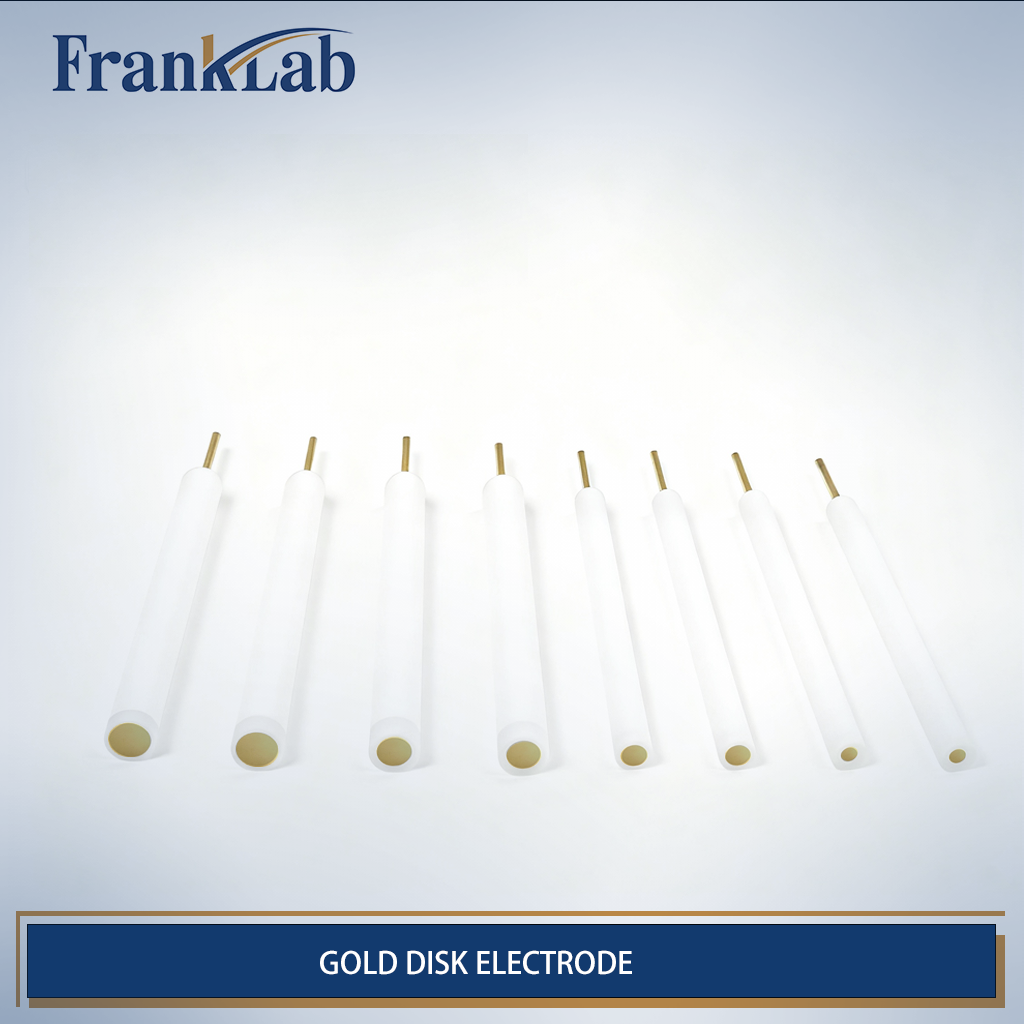

Available Diameters
| Gold Disk Diameter | Typical Use |
| 0.5 mm | Microelectrode applications, low-current systems |
| 1 mm | Analytical electrochemistry, fast electron-transfer studies |
| 2 mm | General-purpose kinetic measurements |
| 3 mm | SAM formation, catalyst studies |
| 4 mm | High-signal experiments |
| 5 mm | Standard benchmarking electrode |
| 6 mm | High-current response, surface-sensitive studies |

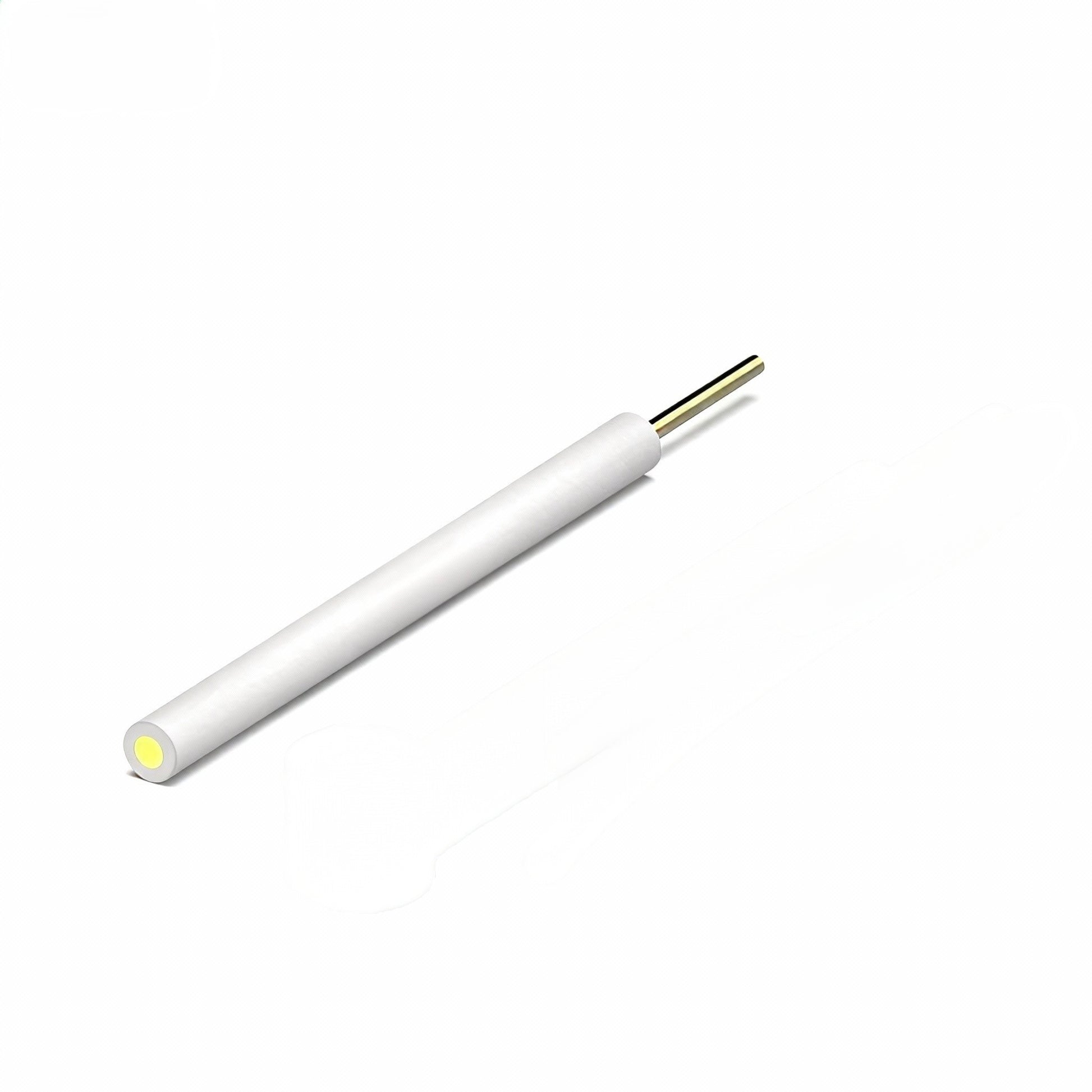

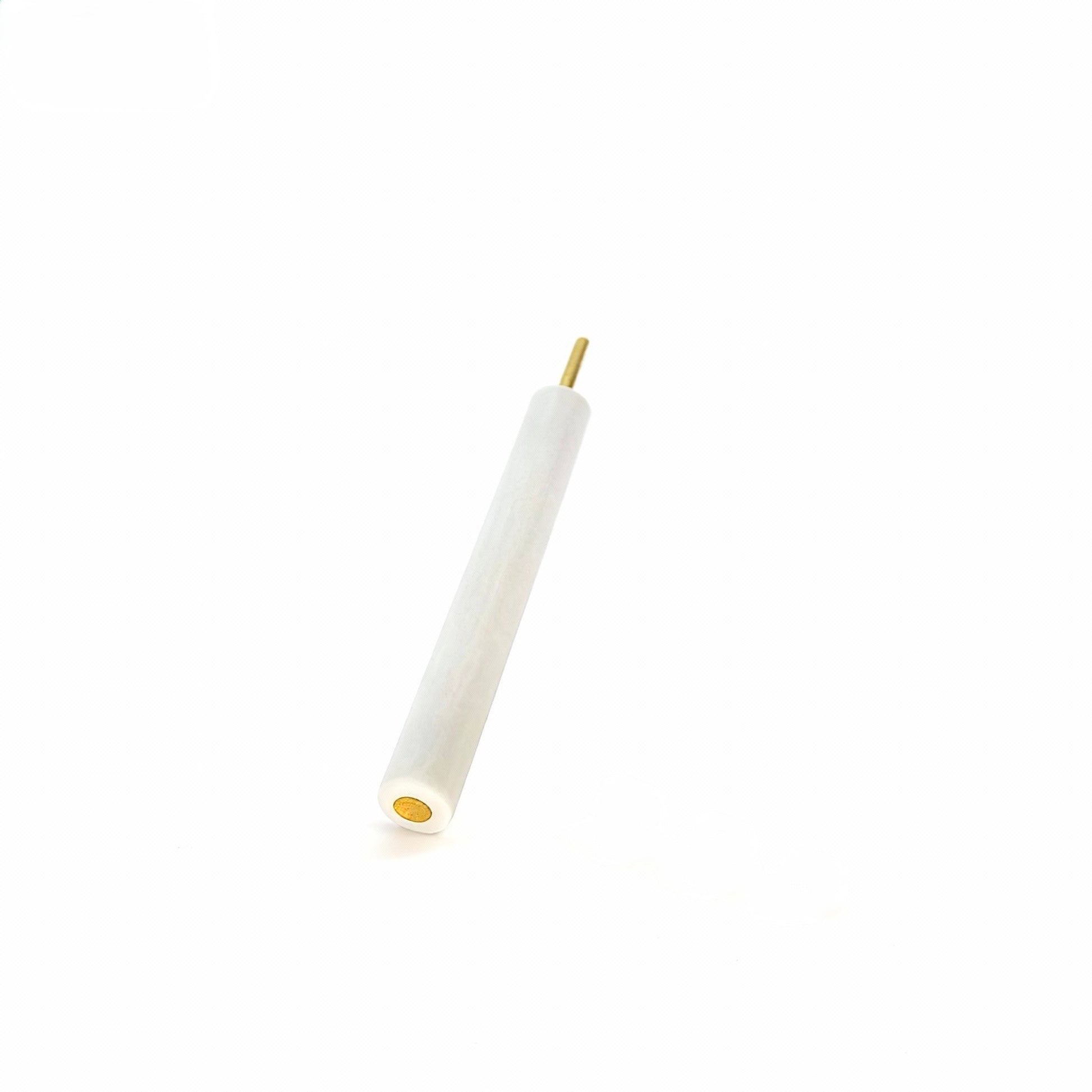

Typical Electrode Structure (Straight-Type Version)
|
Component |
Specification |
|
Gold Purity |
≥99.99% |
|
Disk Diameter |
0.5–6 mm (customizable) |
|
Insulation Material |
PTFE (PEEK optional) |
|
Insulation Size |
Ø6 × 80 mm (standard) |
|
Lead Wire Length |
20 mm (gold-plated copper or pure gold) |
|
Electrode Type |
Straight rod or L-shape / U-shape optional |
|
Surface Finish |
Mirror-polished Au, Ra < 0.05 µm |
|
Temperature Range |
−20°C to 200°C |
|
Chemical Compatibility |
Excellent resistance to acids, thiols, chloride environments |
Key Features
• High-Purity Gold (≥99.99%)
Ensures excellent electrochemical stability and reproducibility.
• Mirror-Polished Surface
Produces ultra-low background currents and sharp voltammetric signals.
• Ideal for SAM / Thiol Chemistry
Gold is the standard substrate for self-assembled monolayer formation.
• PTFE Insulated Design
Chemically inert, easy to clean, and compatible with a wide range of solvents and electrolytes.

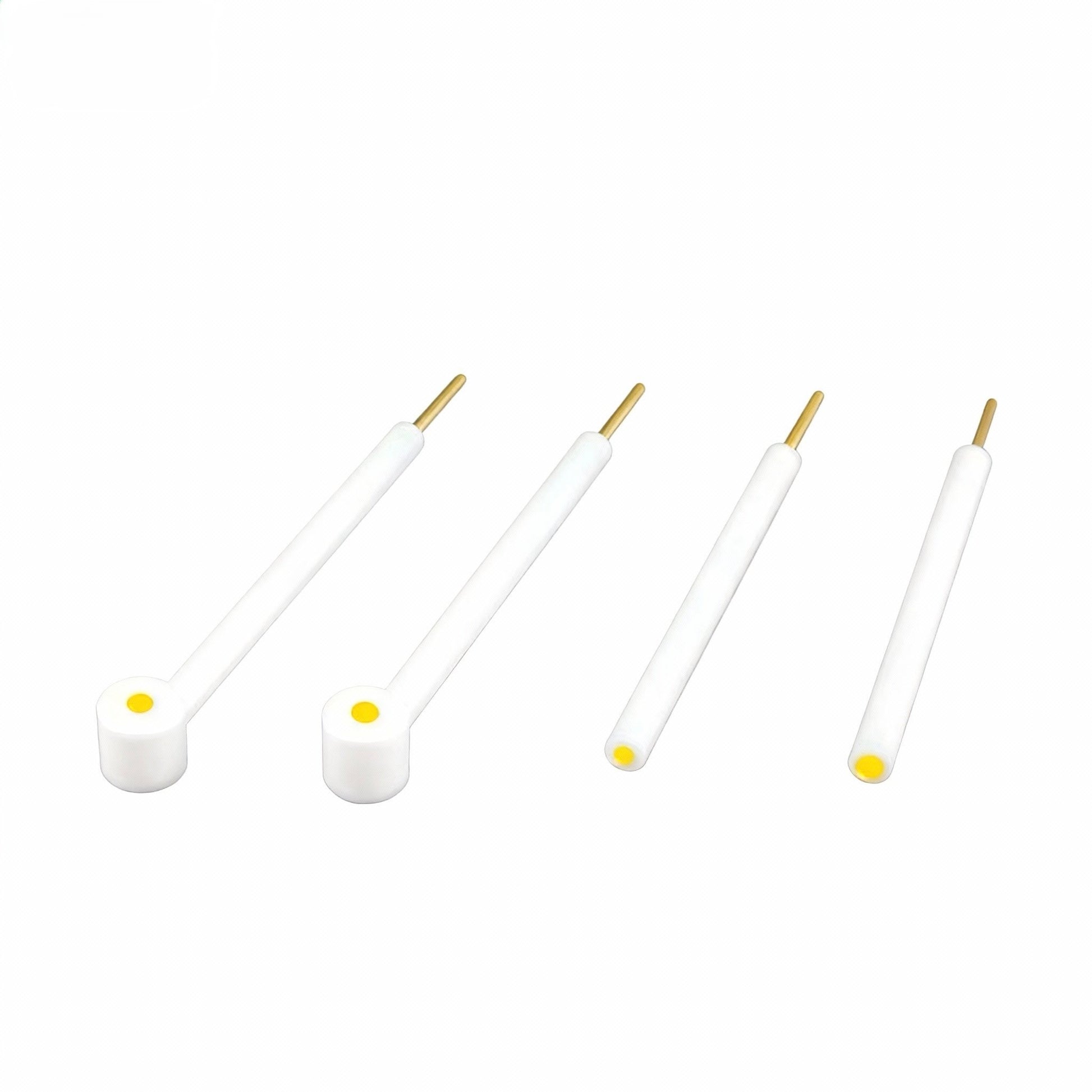

• Customizable Geometry
Straight, L-type, U-type, and other special shapes available.
• High Signal Stability
Suitable for long-term electrochemical cycling and durability studies.
Applications
• Self-Assembled Monolayers (SAMs) on Au
• Thiol-gold surface chemistry
• Electrocatalysis and noble-metal reaction studies
• Electron-transfer kinetics
• Sensor development (biosensing, chemical sensing)
• Cyclic voltammetry (CV), LSV, EIS
• Benchmarking catalyst activity and stability
Customization Options
We support complete OEM/ODM development:
• Disk diameter: 0.3–10 mm
• Insulation: PTFE / PEEK / PFA
• Electrode shape: Straight / L-Shape / U-Shape
• Lead wire: Gold, platinum, copper-gold plated
• Full engineering drawings based on customer request
• Batch coding & laser engraving
Custom drawings and quotations delivered within 24 hours.
For Custom Orders or Inquiries
If you have custom requirements or any additional questions, feel free to contact us:
Email: support@franklab.shop
Why Choose FrankLab?
FrankLab Focused on electrochemical & research materials
•Stable quality for repeatable experiments
•Flexible customization capability
•Trusted by universities, institutes, and industrial R&D labs
