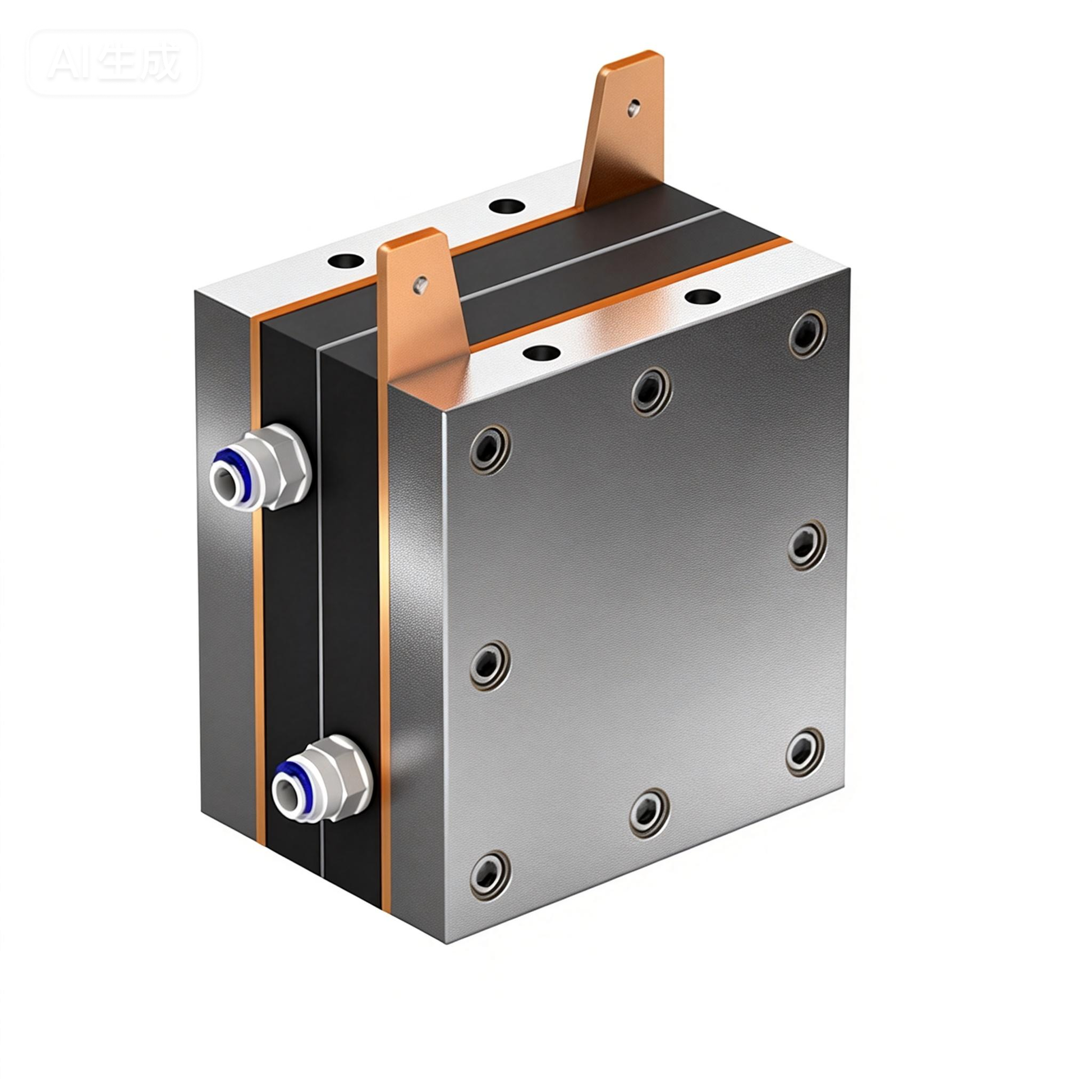

Graphite-Plate MEA Reactor Cell

(Serpentine Flow Field, SPE / MEA Configuration)

Product Overview
The Graphite-Plate MEA Reactor Cell is a laboratory-scale membrane electrode assembly (MEA) reactor designed for electrochemical performance evaluation. It is widely used in fuel cell research, electrocatalyst testing, CO₂ electroreduction, water electrolysis, as well as organic electrosynthesis and electrochemical wastewater treatment.
The reactor adopts a serpentine flow-field design combined with high-purity graphite current collectors, ensuring uniform reactant distribution, low contact resistance, and stable long-term operation.

Key Features
•High-purity graphite flow plates Manufactured from imported ultra-high-purity isostatic graphite (compressive strength ≈ 520 MPa), offering excellent electrical conductivity and chemical resistance
•High-purity titanium end plates Both side clamping/protection plates are made of high-purity titanium, providing strong mechanical stability and corrosion resistance
•Serpentine flow field design Ensures uniform reactant distribution, enhanced mass transfer, and improved electrochemical performance
•Heating-compatible design Supports heating for temperature-controlled electrochemical experiments

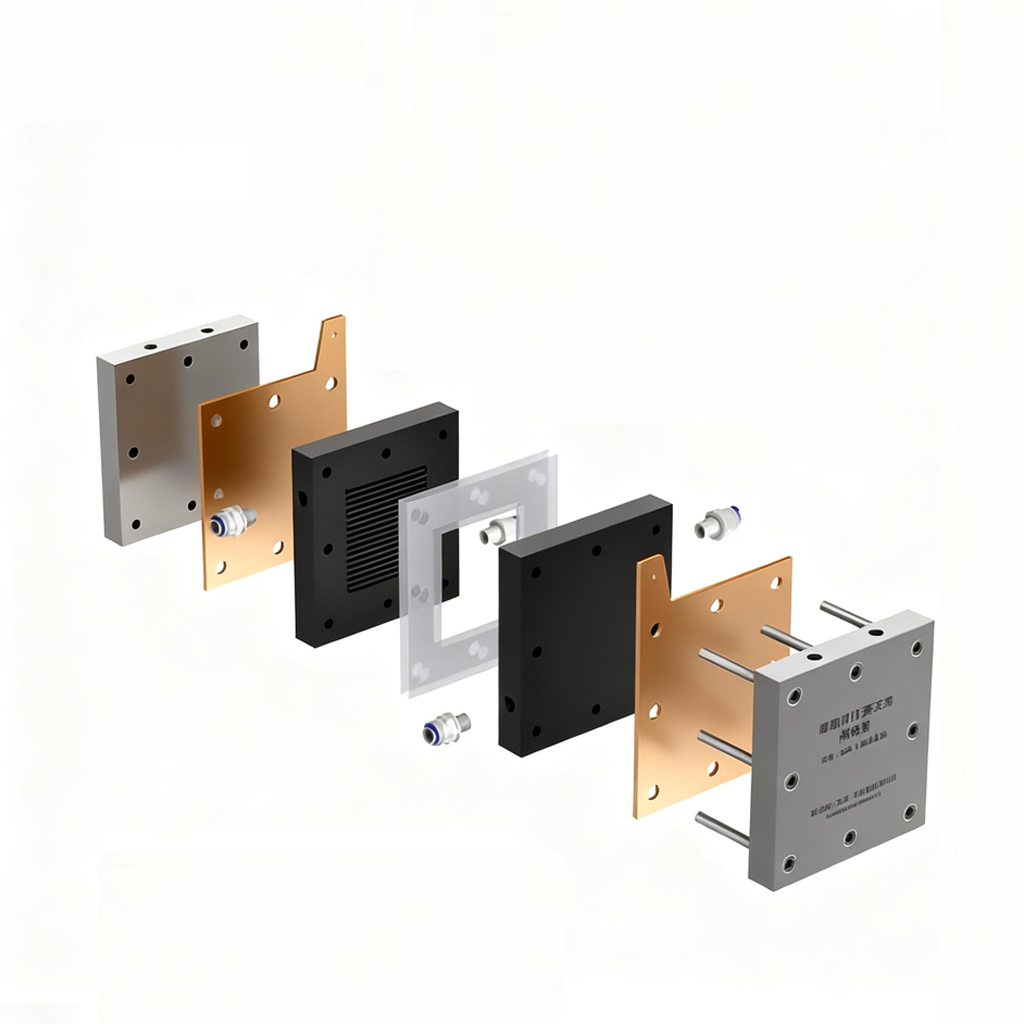

•Research-grade modular structure Easy assembly, disassembly, and MEA replacement for rapid experimental iteration

Technical Specifications
Parameter Specification
Reactor Type MEA / SPE Electrochemical Reactor
Flow Field Type Serpentine Flow Channel
Flow Plate Material Ultra-high-purity Graphite (Isostatic)
End Plate Material High-purity Titanium
Single Plate Size 90 × 90 × 15 mm
Active Flow Area 50 × 50 mm
Heating Function Supported
Typical Applications Fuel Cells, CO₂RR, Water Electrolysis, Electrosynthesis
Applications
•Fuel cell performance evaluation
•Electrocatalyst activity and durability testing
•CO₂ electrochemical reduction (CO₂RR)
•Water electrolysis research
•Organic electrosynthesis
•Electrochemical wastewater treatment

Customization Options
•Alternative flow-field designs (parallel, interdigitated, custom patterns)
•Custom active area sizes
•Heating interface customization
•Flow channel geometry optimization
•Material upgrades based on chemical environment

Why Choose This Reactor
•Designed specifically for research laboratories and pilot-scale testing
•High structural rigidity with uniform compression on MEA
•Excellent reproducibility between experiments
•Compatible with a wide range of electrochemical systems
