H-type Electrolyte Circulation Electrochemical Cell

H-type Electrolyte Circulation Electrochemical Cell

Dual-Chamber Design · Continuous Electrolyte Flow · Gas–Liquid Electrochemistry

Product Overview

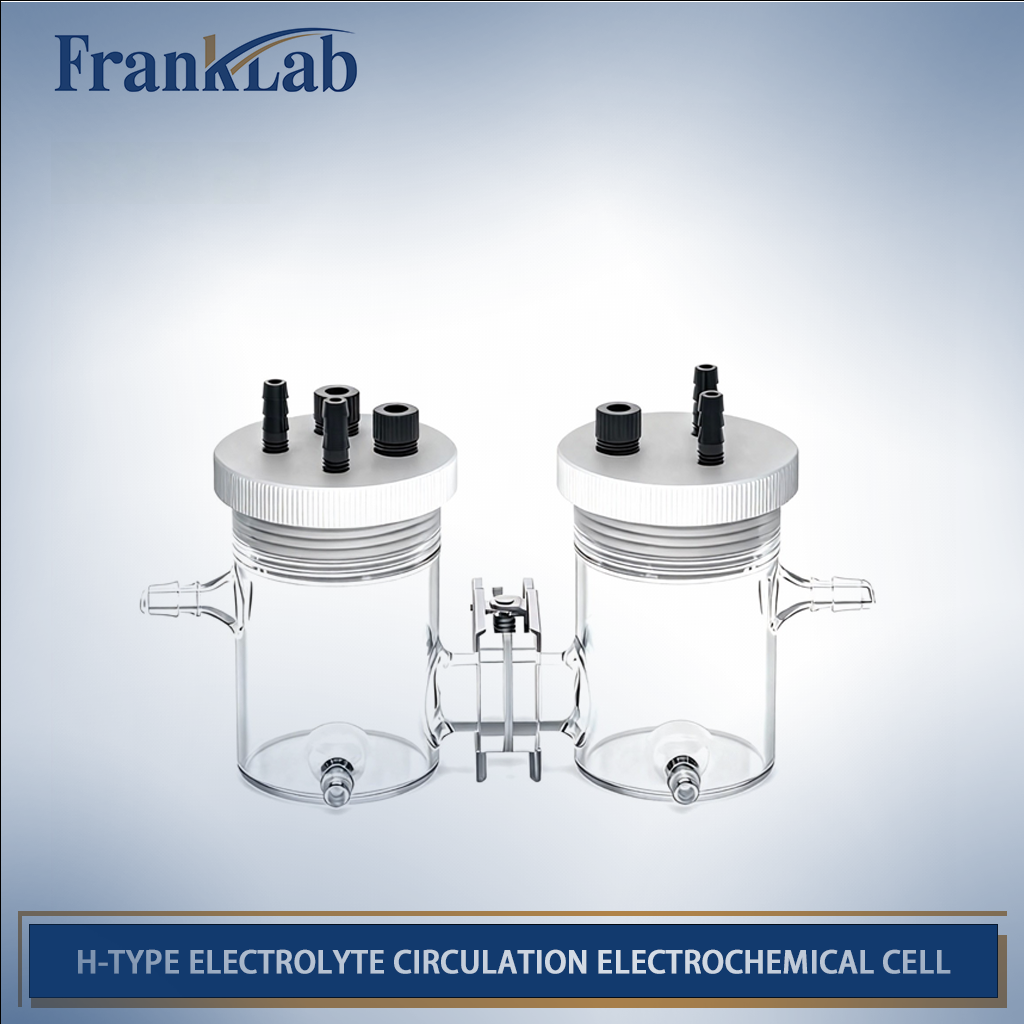

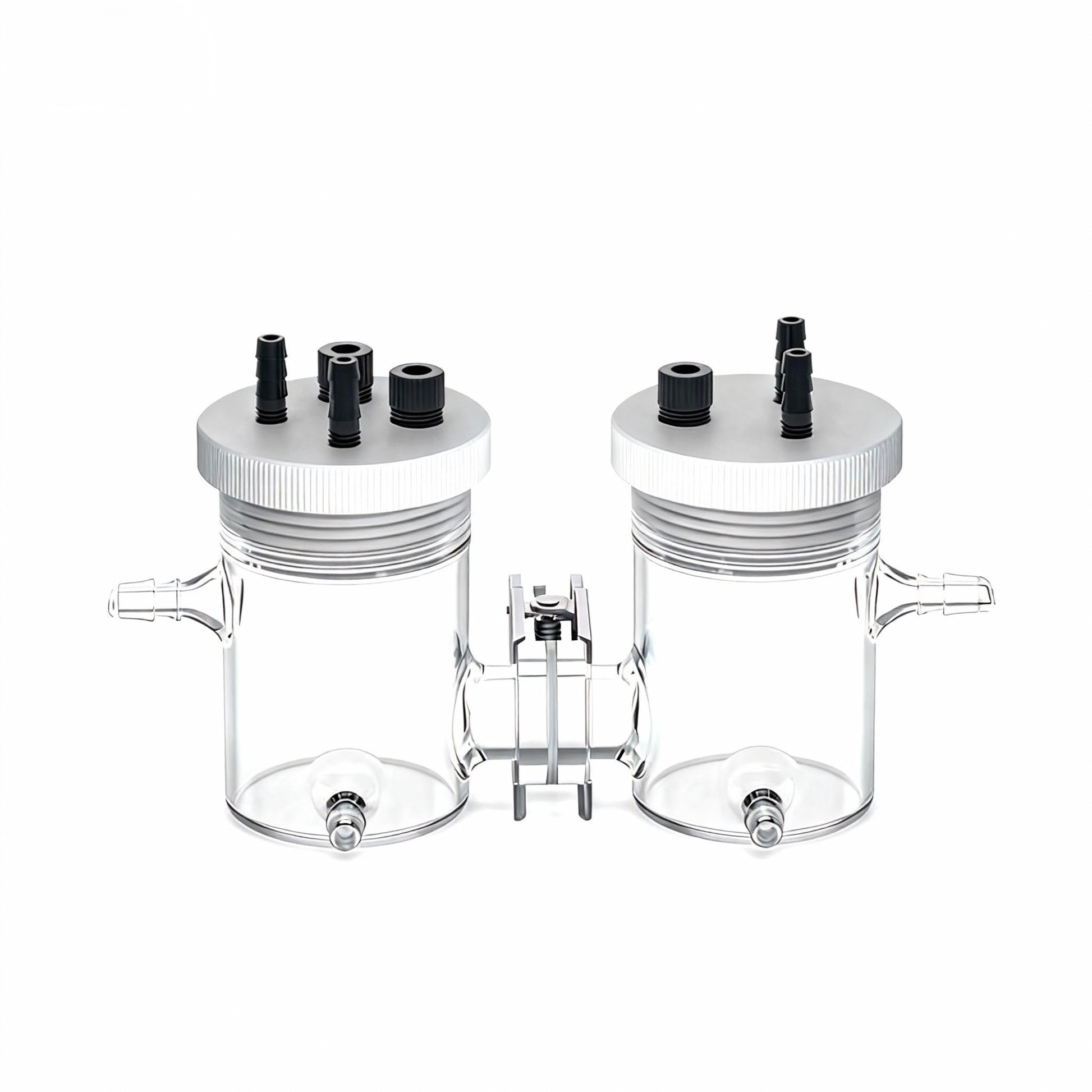

The FrankLab H-type Electrolyte Circulation Electrochemical Cell is a sealed, dual-chamber electrochemical reactor designed for long-duration electrolysis, electrolyte refresh, and flow-assisted electrochemical studies.

Unlike static H-cells, this system integrates dedicated electrolyte inlet and outlet ports on both chambers, enabling continuous circulation, concentration control, and enhanced mass transfer—critical for mechanistic studies, durability testing, and scale-up validation.

This platform is widely used in CO₂RR, water splitting, redox flow evaluation, electrosynthesis, and experiments requiring membrane separation with controlled electrolyte renewal.

Structural Design & Configuration

True H-Type Dual Chamber

•Left chamber: Working electrode compartment

•Right chamber: Counter electrode compartment

•Central membrane clamp region (ion-exchange membrane / separator)

Electrolyte Circulation System

•Independent inlet + outlet ports on each chamber

•Compatible with peristaltic pumps or syringe pumps

•Supports closed-loop or open-loop circulation

Gas Management

•Dedicated gas inlet & outlet on each chamber

•Enables independent gas atmospheres (CO₂ / Ar / N₂ / O₂)

Available Volumes

✔ Symmetric volumes ensure stable hydrodynamics and ion transport
✔ Custom asymmetric volumes available upon request

Technical Specifications

Key Advantages

•True Electrolyte Circulation Control
Continuous electrolyte refresh eliminates concentration drift, pH gradients, and product accumulation.

• Stable Long-Term Operation
Ideal for hours-to-days electrolysis, catalyst durability testing, and steady-state studies.

• Membrane-Separated Architecture
Supports Nafion®, AEMs, BPMs, porous separators, and custom membranes.

• Independent Gas & Liquid Management
Each chamber can operate under different gas and electrolyte conditions.

• Research-Grade Sealing & Modularity
All ports sealed independently; components are easy to assemble, clean, and reconfigure.

Supported Electrode Types

•Working electrode:
Glassy carbon / Pt / Au / metal plates / rods / meshes

•Counter electrode:
Pt wire, Pt mesh, graphite rod

•Reference electrode:
Ag/AgCl, Hg/HgO, SCE (via adapter)

Electrode holders available in PTFE or PEEK, straight or angled.

Typical Applications

•CO₂ Reduction Reaction (CO₂RR) with electrolyte refresh

•Water electrolysis (HER / OER) durability testing

•Redox flow battery material screening

•Electrosynthesis with product removal

•Ion-exchange membrane performance evaluation

•Gas–liquid–solid interface studies

Standard Package Contents

•Left & right glass chambers

•PTFE threaded lids

•Stainless steel membrane clamp

•Silicone membrane gaskets

•Gas fittings & electrolyte connectors

•O-rings and sealing accessories

(Electrodes and pumps sold separately)

Customization Options (On Request)

•PEEK lids for higher mechanical strength

•Larger membrane window

•Asymmetric chamber volumes

•Additional sampling ports

•Quartz chambers (photoelectrochemistry)

•Flow-optimized inlet/outlet geometry

•Full circulation skid (pump + tubing)

·FrankLab | Note

This H-type circulation cell is not a generic glassware product—it is an electrochemical research platform.
Every port, seal, and interface is designed to support reproducibility, long-term stability, and mechanistic clarity.

If your experiment involves time, flow, gas, or membranes, static cells are the bottleneck.
This system removes that bottleneck.

For Custom Orders or Inquiries

If you have custom requirements or any additional questions, feel free to contact us:

Email: support@franklab.shop

Why Choose FrankLab?

FrankLab electrochemical cells are designed by electrochemists, for electrochemists. Our focus is on:

•Clean geometry

•Chemical reliability

•Experimental reproducibility

•Compatibility with real research workflows

Used by universities, national labs, and industrial R&D teams worldwide.
