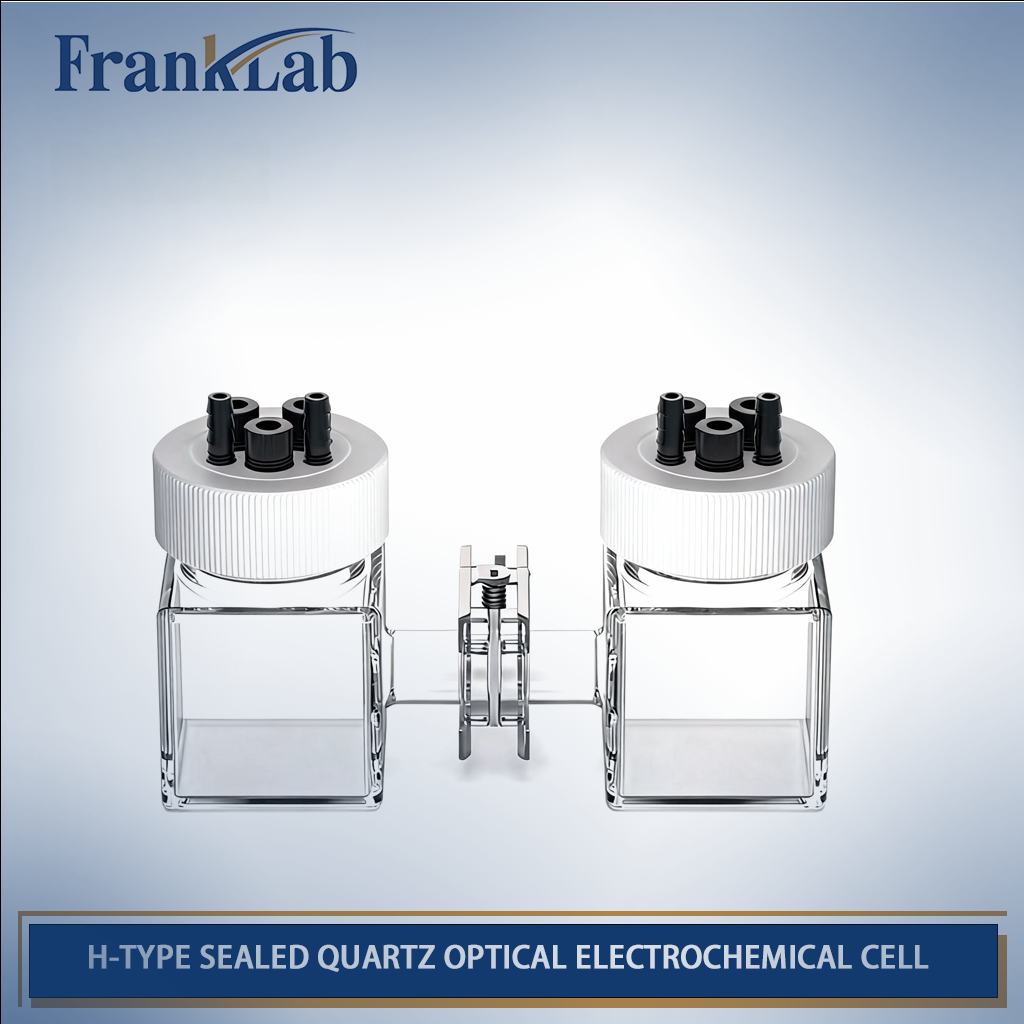

H-Type Sealed Quartz Optical Electrochemical Cell

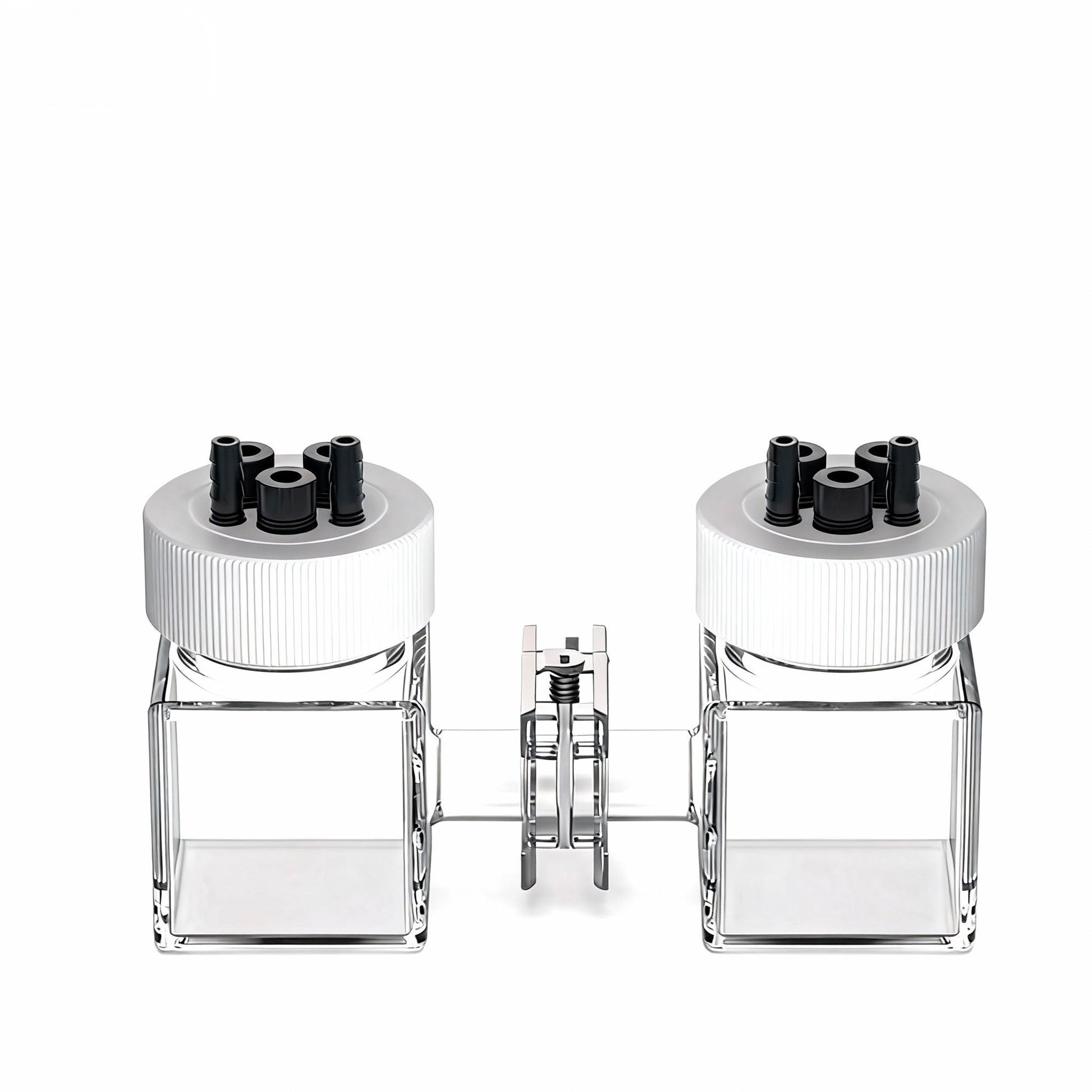

H-Type Sealed Quartz Optical Electrochemical Cell

Product Description
Shipping & Delivery
Product Overview
The FrankLab H-Type Sealed Quartz Optical Electrochemical Cell is a dual-compartment, optically accessible electrochemical reactor designed for spectroelectrochemistry and photo-electrochemical studies. This high-performance cell allows for in-situ measurements using UV-Vis, Raman, and IR spectroscopy, ideal for operando spectroscopy experiments. The single-layer configuration of this cell offers 125 mL capacity per chamber and is designed for applications such as CO₂ reduction reactions (CO₂RR), photo-electrochemical water splitting, and membrane-separated electrocatalysis.
The H-type design enables separate half-reactions with independent gas control for each chamber, minimizing product crossover and ensuring high-quality data collection.
Key Features
•Single-Layer Configuration:
125 mL per chamber
Ideal for basic electrochemical reactions that require optical access for in-situ spectroscopic measurements.
•Optical Access:
Integrated glass optical port for UV-Vis, Raman, and IR spectroscopy measurements in the reaction zone without disturbing the electrochemical setup.
•Independent Gas Control:
Gas inlet and outlet per chamber for CO₂, N₂, O₂, or Ar purging.
Allows for independent gas purging and controlled environments for each half-reaction.
•Modular Electrodes:
Compatible with a variety of electrodes, including glassy carbon, platinum, gold, and Ag/AgCl reference electrodes.
Custom options available for optical thin-layer electrodes.
•Membrane Interface:
•Flat membrane clamping zone suitable for Nafion, AEM, or CEM membranes.

Technical Specifications
Parameter Specification
Cell Type H-type sealed optical electrochemical cell
Available Volume 125 mL per chamber (2 chambers)
Body Material High-purity quartz glass
Optical Window Integrated glass optical port (quartz optional)
Sealing Method PTFE threaded caps + chemical-resistant O-rings
Gas Ports Independent gas inlet + outlet (per chamber)
Electrode Ports Working / counter / reference
Membrane Interface Flat membrane clamping zone (Nafion / AEM / CEM)
Temperature Range −20 °C to 120 °C
Pressure Atmospheric / low-pressure operation
Chamber Configuration Single-layer, two chambers
How to Use
1.Handling & Assembly:
•Wear gloves to avoid contamination.
•Use sharp blades or laser cutting to cut the materials to prevent fiber damage.
2.Electrochemical Setup:
•Ensure proper sealing between the carbon paper and the catalyst layer to reduce contact resistance.
Calibrate for gas purging and optical measurements before starting experiments.

Storage & Transportation
1.Storage Conditions:
•Store in a dry, dust-free environment.
•Temperature: 5°C–30°C, Relative Humidity: <60%.
2.Handling:
•Avoid pressure, folding, or rolling to prevent damage.
•Re-seal unused carbon paper in its original packaging to preserve its quality.

Typical Applications
•CO₂ Reduction Reaction (CO₂RR)
•Photo-electrochemical (PEC) Water Splitting
•Spectroelectrochemistry (UV-Vis, Raman, IR)
•Membrane-Separated Electrocatalysis
•Gas-Liquid Electrochemical Interfaces
•Mechanistic & Kinetic Studies

Standard Package Contents
•H-type quartz glass cell body (left + right chambers)
•PTFE sealing caps
•Electrode port screws (for electrode & gas use)
•Chemical-resistant O-rings
•Gas tubing connectors
•Membrane clamping interface
Note: Electrodes and membranes are not included and must be configured separately.

Optional Customization
Available upon request:
•Quartz optical windows (UV / deep-UV compatible)
•Custom chamber volume ratios
•Angled optical ports
•High-temperature glass
•Pressure-reinforced sealing
•Integrated electrode holders (PEEK / PTFE)
•Pre-assembled membrane module

For Custom Orders or Inquiries
If you have custom requirements or any additional questions, feel free to contact us:
Email: support@franklab.shop

Why Choose FrankLab?
FrankLab electrochemical cells are designed by electrochemists, for electrochemists. We emphasize:
•Clean Geometry
•Chemical Reliability
•Experimental Reproducibility
•Compatibility with Real Research Workflows
Used by universities, national labs, and industrial R&D teams worldwide.
