Handheld Potentiostat – Mini Portable Electrochemical Workstation，Electrochemical Analyzer

Product Overview

The Mini Portable Electrochemical Workstation is a compact, high-precision electrochemical analyzer designed for laboratory research, biosensing, and field electrochemical detection. With an ultra-small form factor and wireless Bluetooth communication, the device enables researchers to perform electrochemical measurements conveniently in both laboratory and portable environments.

Despite its compact size, the system supports multiple electrochemical testing methods commonly used in electrochemical analysis and sensor development. The workstation provides pA-level current measurement sensitivity, making it suitable for high-sensitivity electrochemical sensing applications.

The device is particularly suitable for wearable electrochemical sensors, biosensor development, educational experiments, and portable electrochemical testing.

Key Features

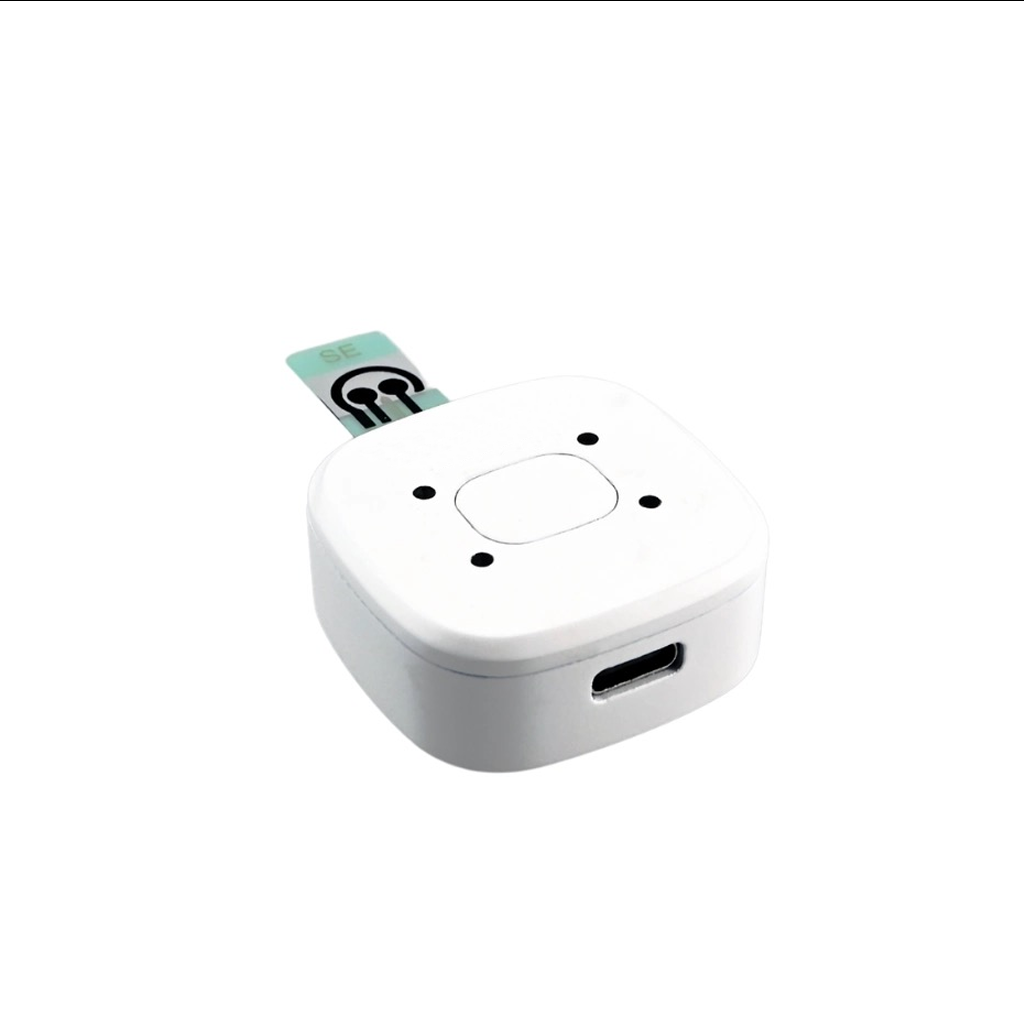

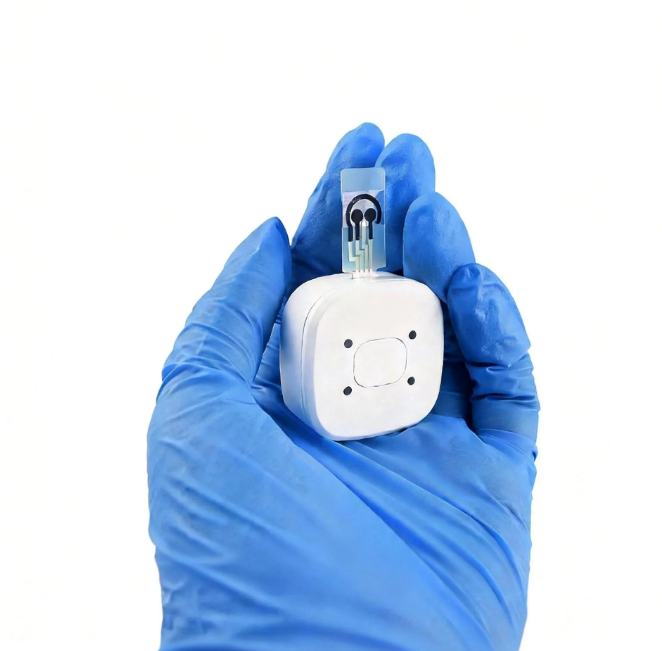

Ultra-Compact Design
Small form factor measuring only 3.7 × 3.7 × 1.5 cm, making it easy to carry and integrate into portable sensing systems.

High Sensitivity Measurement
Supports pA-level current detection, enabling precise electrochemical signal measurement.

Multiple Electrochemical Methods
Supports 7 commonly used electrochemical techniques for versatile research applications.

Wireless Data Communication
Built-in Bluetooth connectivity enables wireless data transmission and convenient device operation.

Flexible Electrode Compatibility
Compatible with common electrochemical electrode interfaces and supports dual working electrode configurations.

Supported Electrochemical Methods

Technical Specifications

Voltage Range

± 1.2 V

Potentiostatic Control Range

−1.7 V to +2.0 V

Current Measurement Range

± 3 mA

Current Ranges

•3 mA

•600 µA

•300 µA

•100 µA

•60 µA

•30 µA

•6 µA

Data Communication

Bluetooth wireless transmission

Device Dimensions

3.7 × 3.7 × 1.5 cm

Electrode Configuration

The device supports a four-electrode interface including dual working electrodes.

Typical Applications

The portable electrochemical workstation is suitable for:

•Electrochemical sensing

•Biosensor development

•Wearable electrochemical sensors

•Environmental monitoring

•Educational laboratory experiments

•Portable field electrochemical analysis

•Electrochemical research

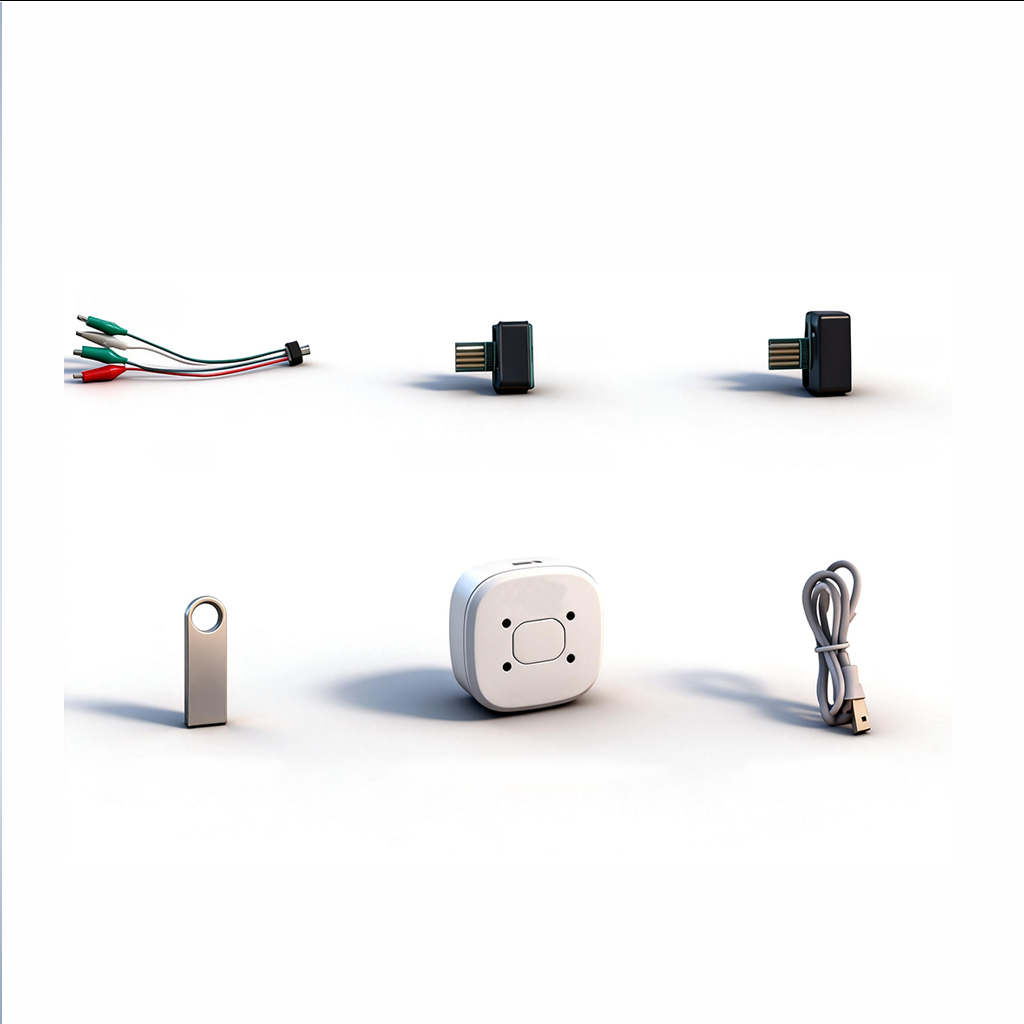

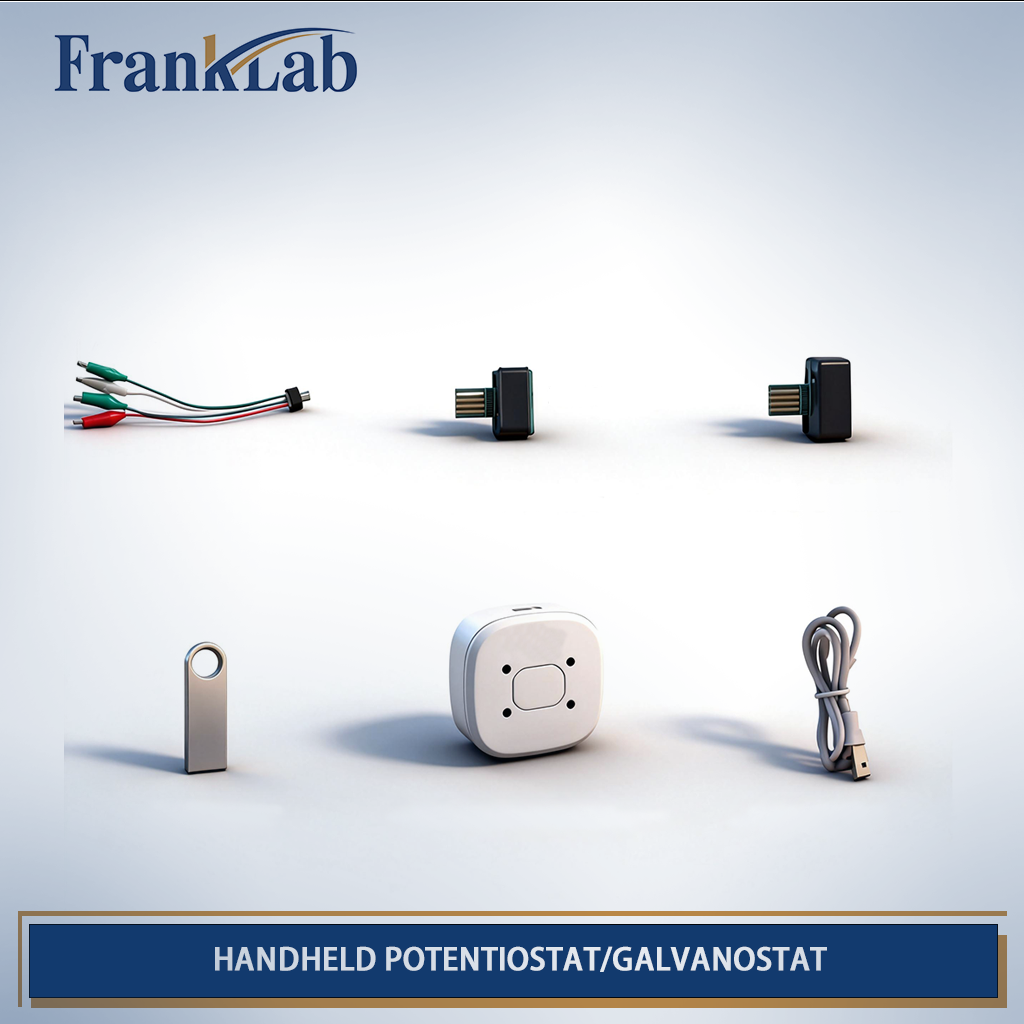

Standard Package Includes

•Portable Electrochemical Workstation (Main Unit)

•Screen-Printed Electrode Adapter (3-electrode)

•Screen-Printed Electrode Adapter (4-electrode)

•Electrode Alligator Clip Cable

•USB Charging Cable

•Software Installation USB Drive

Core Advantages

Portable Design
Ultra-compact size suitable for laboratory and field applications.

High Sensitivity Detection
Supports pA-level current measurement for advanced electrochemical sensing.

Multiple Testing Modes
Integrated electrochemical methods for diverse analytical needs.

Wireless Connectivity
Bluetooth communication enables convenient real-time data transmission.
