In-situ infrared testing chamber [transmission]

Regular price $2,780.00
Sale price $2,780.00 Regular price
Unit price
Tax included.
Internal reflection
External reflection
Compare Ask a question

Ask a Question

* Required fields

 Size guide Share

  • Estimated Delivery:Jun 13 - Jun 17

  • Worldwide Free Shipping: On all orders over $499

Guarantee safe & secure checkout

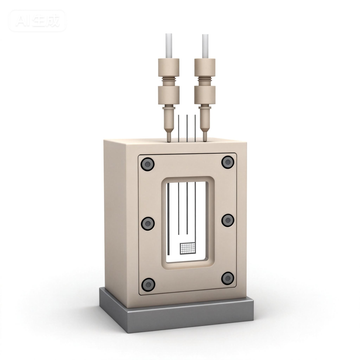

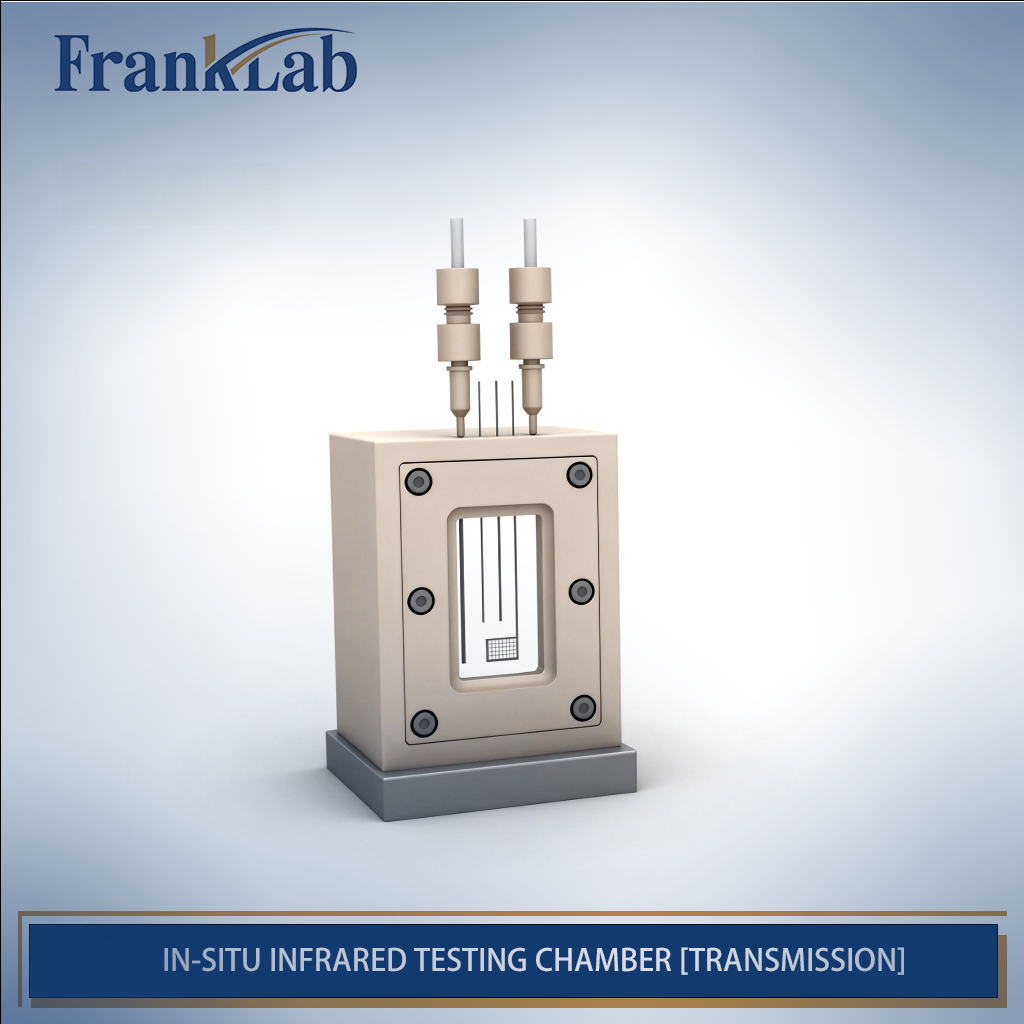

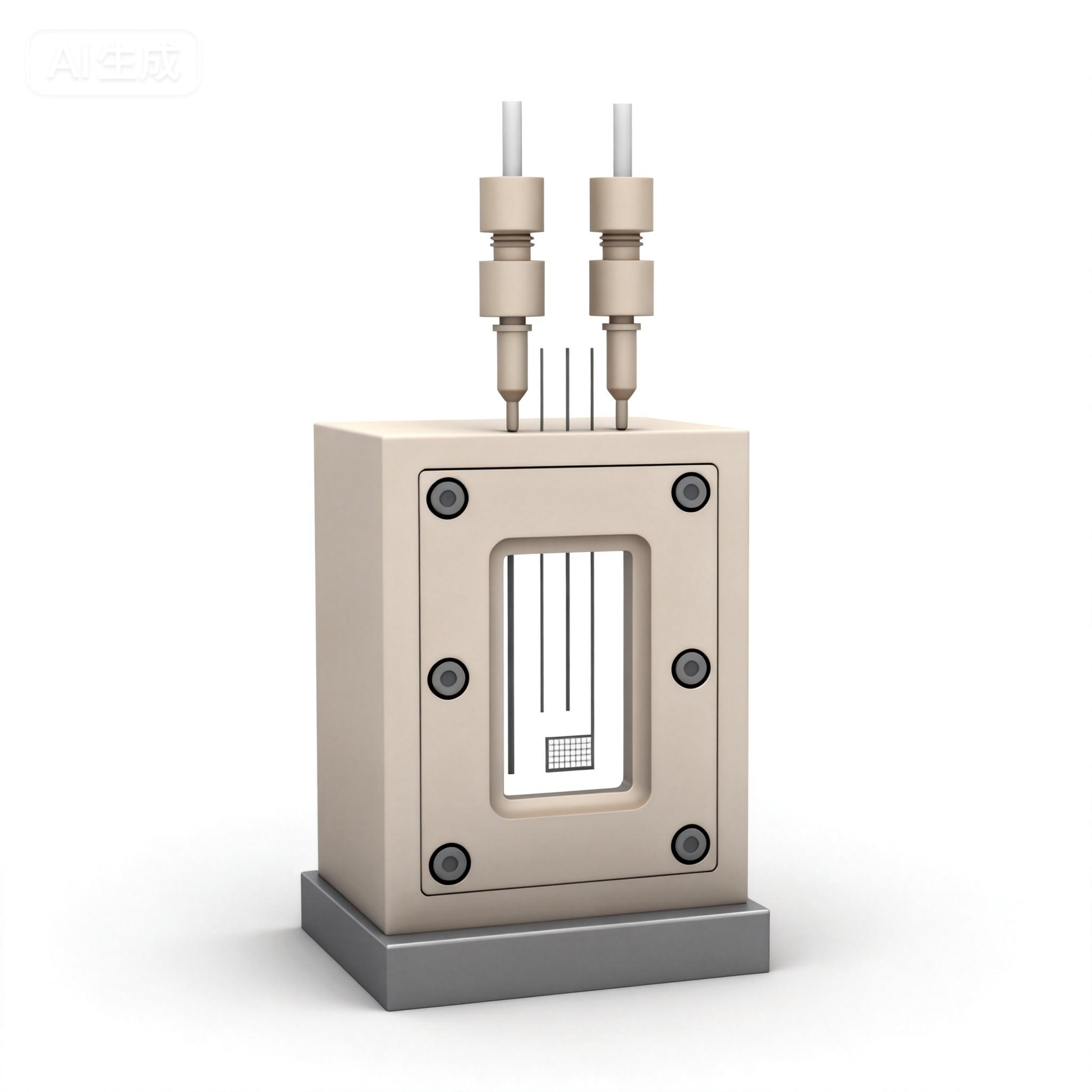

In-situ infrared testing chamber [transmission]

In-situ infrared testing chamber [transmission]

Product Description
Shipping & Delivery
Product Overview
The FrankLab In-situ Infrared Spectroelectrochemical Cell Series is a research-grade operando platform designed for real-time infrared (IR) spectroscopy during electrochemical reactions.
Engineered for ATR, external reflection, and transmission IR modes, this system enables direct observation of adsorbed intermediates, interfacial species, and reaction pathways under precisely controlled electrochemical and gas environments.
With a PEEK chemical-resistant body, CaF₂ infrared window, and ultra-thin liquid layer (0.5 mm), the cell is optimized for high signal-to-noise IR measurements in electrocatalysis, corrosion, electrochemical interfaces, and energy materials research.

Measurement Modes & Architectures
Infrared ATR (Attenuated Total Reflection)
•Internal reflection (IFA-1)
•External reflection (IFA-2)
•Ideal for surface-adsorbed species and interfacial chemistry
•Compatible with H-type ion-exchange membrane configurations
Infrared Transmission Mode
•Direct IR beam transmission through CaF₂ window
•Suitable for solution-phase intermediates
•Optimized for thin-layer electrochemical IR analysis

Electrochemical Configuration
Standard Electrode Setup
•Working electrode (WE): Platinum mesh
•Counter electrode (CE): Platinum electrode
•Reference electrode (RE): Platinum electrode
✔ Stable, noble-metal configuration minimizes parasitic IR absorption
✔ Suitable for acidic, neutral, and alkaline electrolytes
✔ Fully compatible with potentiostats and spectrometers

Optical & Structural Design
Infrared Window
•Material: CaF₂ (Calcium Fluoride)
•Excellent IR transparency
•Chemically stable in common electrochemical environments
Thin-Layer Geometry
•Liquid layer thickness: 0.5 mm
•Maximizes IR sensitivity
•Minimizes bulk absorption interference
Gas & Flow Control
•Integrated gas inlet and outlet
•Enables CO₂, CO, N₂, Ar, O₂ environments
•Supports flow or static operation

Materials & Build Quality
Cell Body
•High-performance PEEK
•Excellent chemical resistance
•IR-neutral, mechanically stable
•Easy to clean and reassemble
Sealing
•Precision-machined interfaces
•Designed for repeatable operando experiments
•Leak-tight under continuous gas flow

Available Models
Product Name Model Measurement Mode Remarks
Infrared ATR (H-type exchange membrane) IFA-1 Internal reflection Equipped with reference & counter electrodes
Infrared ATR (H-type exchange membrane) IFA-2 External reflection Equipped with meter and 10 mm glassy carbon electrodes
✔ All dimensions shown are standard reference sizes ✔ Full customization available upon request

Advanced Customization Options
•Modification of existing optical paths
•Integration with magnetic stirring
•Enhanced IR signal optimization
•Custom electrode materials and geometries
•Custom window materials and thickness
•Flow-optimized inlet/outlet designs

Typical Applications
•Electrocatalysis (CO₂RR, HER, OER, ORR)
•Surface intermediate identification
•Adsorption/desorption studies
•Electrochemical corrosion mechanisms
•Gas–liquid–solid interface analysis
•Operando reaction pathway elucidation

Package Contents
•In-situ IR electrochemical cell body
•CaF₂ infrared window
•Platinum working, counter, and reference electrodes
•Gas inlet/outlet fittings
•Sealing components
(Optical table and spectrometer not included)
