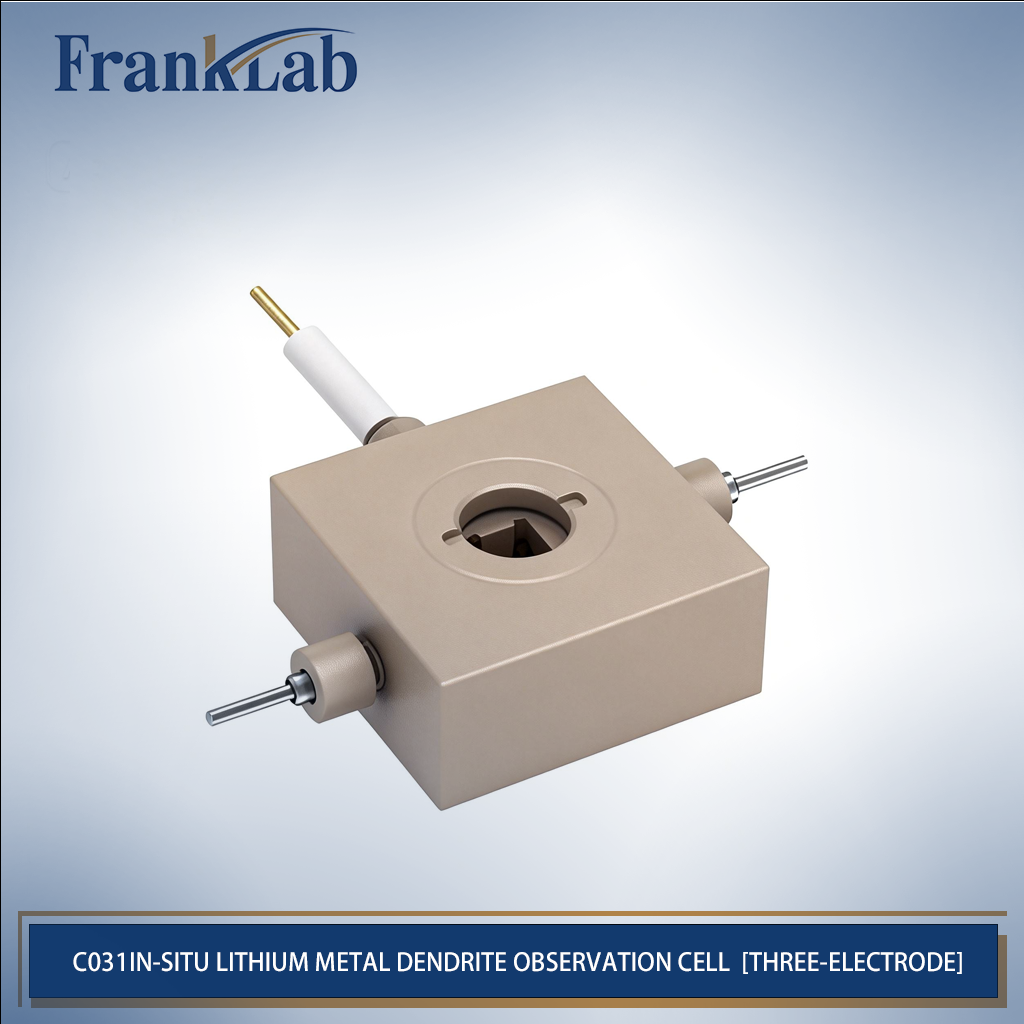

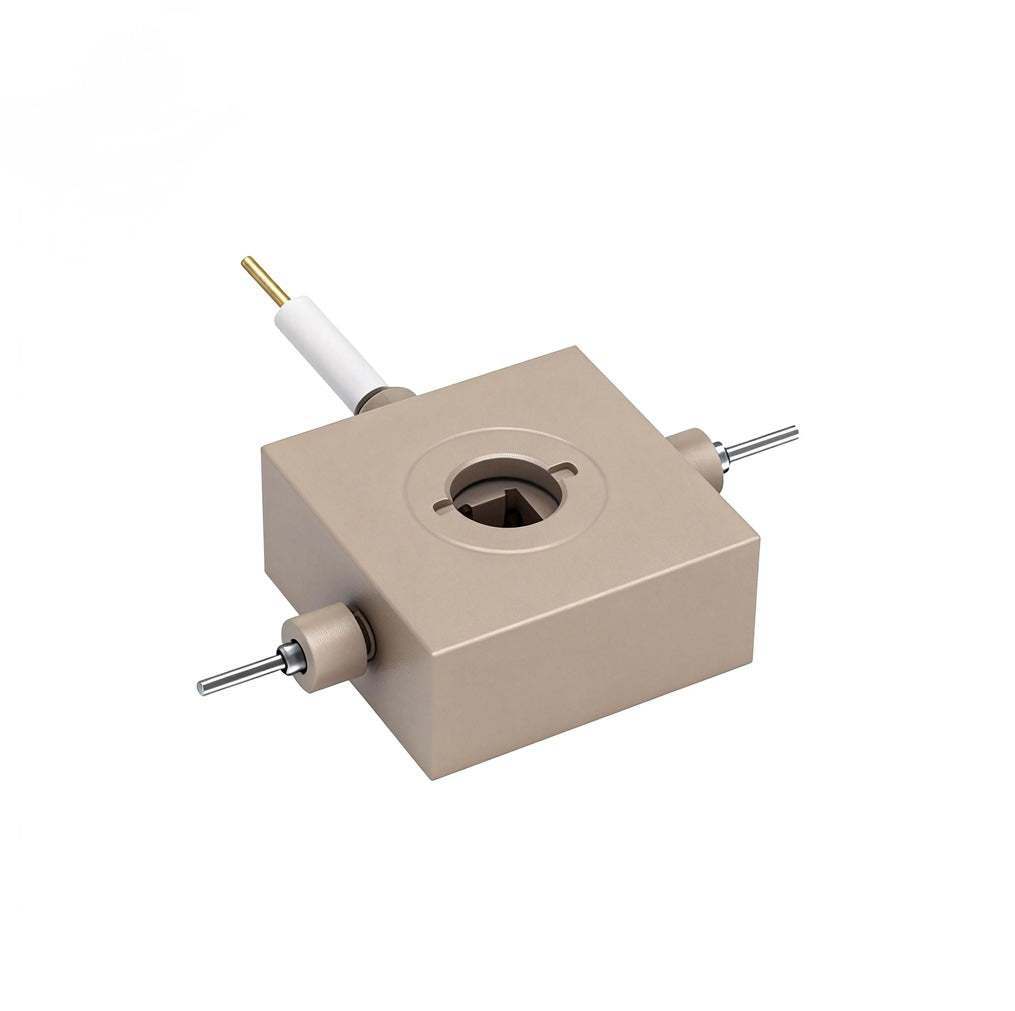

In-situ Lithium Metal Dendrite Observation Cell [Three-Electrode]

In-situ Lithium Metal Dendrite Observation Cell [Three-Electrode]

Product Description
Shipping & Delivery

Product Overview
The In-situ Lithium Metal Dendrite Observation Cell is a three-electrode upgrade of the C031-5 platform, engineered for quantitative, real-time visualization of lithium dendrite growth under precisely controlled electrochemical conditions.
By integrating a dedicated reference electrode (Ag/AgCl) into a compact optical cell, C031-5-1 enables researchers to decouple morphology from potential drift, making it suitable for mechanistic lithium metal studies, electrolyte/additive benchmarking, and SEI stability evaluation.
This platform bridges the gap between battery cycling data and physical failure modes, allowing researchers to see dendrites while accurately measuring electrochemical behavior.

Electrochemical Architecture
True Three-Electrode Configuration
•Working electrode (WE): Lithium foil or planar metal electrode
•Counter electrode (CE): User-defined
•Reference electrode (RE): Integrated Ag/AgCl (custom options available)
✔ Enables accurate potential control during Li plating/stripping
✔ Eliminates ambiguity caused by two-electrode polarization
✔ Suitable for CV, CA, CP, EIS-assisted dendrite studies

Optical & Structural Design
Direct Operando Visualization
•Sapphire optical window
•Optical transmittance > 95%
•Enables microscopy-based real-time observation
•Ideal for nucleation, branching, and short-circuit onset studies
Planar Electrode Geometry
•Supports 10 × 10 mm electrode sheets
•Uniform current distribution
•Clear, centered optical field of view

• Materials & Build Quality
Conductive Substrate / Cell Body
•High-purity titanium
•Chemically stable against lithium electrolytes
•Excellent electrical conductivity and mechanical rigidity
•Long-term cycling compatible
Optical Window
•Sapphire glass
•High hardness, chemical resistance, scratch resistance
•Suitable for extended operando experiments
Assembly
•Compact, modular construction
•Rapid assembly and disassembly
•Designed for repeated experiments and easy cleaning

Key Advantages
•Quantitative Dendrite Analysis Three-electrode configuration enables correlation of dendrite morphology with true electrode potential.
• Real-Time Failure Observation Directly observe lithium nucleation, mossy growth, and dendrite penetration.
• Battery-Relevant Geometry Planar lithium electrode format closely matches next-generation Li-metal battery designs.
• High Optical Fidelity Sapphire window ensures stable, high-contrast imaging throughout cycling.
• Glovebox-to-Ambient Workflow Assemble safely in an inert atmosphere; operate post-sealing under ambient conditions.

Technical Specifications
Parameter Specification
Model C031-5-1
Application In-situ lithium dendrite simulation & observation
Electrochemical configuration Three-electrode (WE / CE / RE)
Conductive substrate High-purity titanium
Optical window material Sapphire glass
Optical transmittance > 95%
Compatible electrode size 10 × 10 mm planar sheets
Working electrode Lithium foil or metal electrode
Reference electrode Ag/AgCl (included; customizable)
Assembly environment Glovebox compatible
Usage environment Ambient after sealing
Typical Applications
•Lithium metal dendrite nucleation and propagation studies
•SEI formation and stability analysis
•Electrolyte and additive screening for dendrite suppression
•Potential-resolved lithium plating/stripping studies
•Safety and failure-mode diagnostics for Li-metal batteries

Package Contents

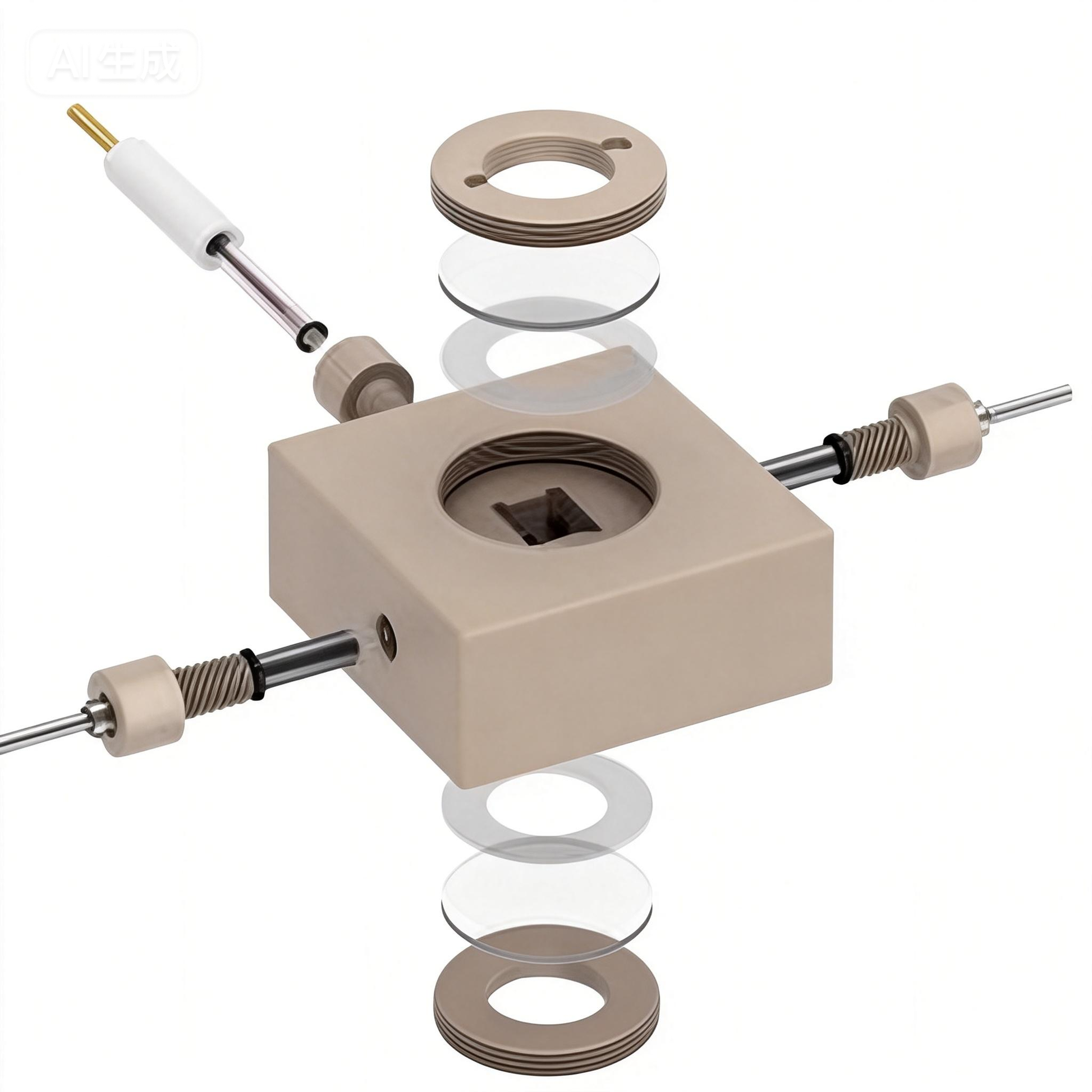

•C031-5-1 electrochemical cell body
•Sapphire optical window
•Integrated Ag/AgCl reference electrode
•Sealing components
(Working and counter electrodes supplied separately)

For Custom Orders or Inquiries

If you have custom requirements or any additional questions, feel free to contact us:

Email: support@franklab.shop
