In-situ Raman Electrochemical Cell [Disk Substrate]

In-situ Raman Electrochemical Cell [Disk Substrate]

Product Description
Shipping & Delivery

Product Overview

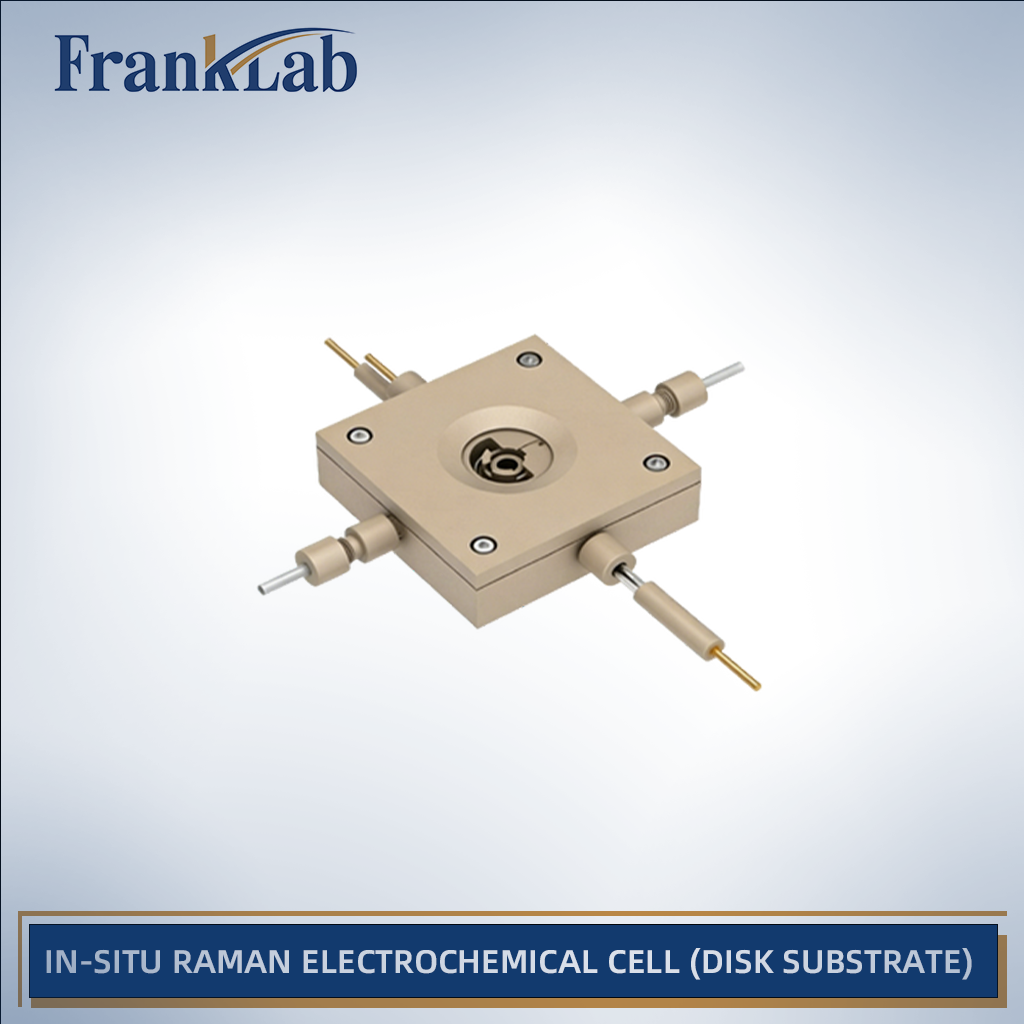

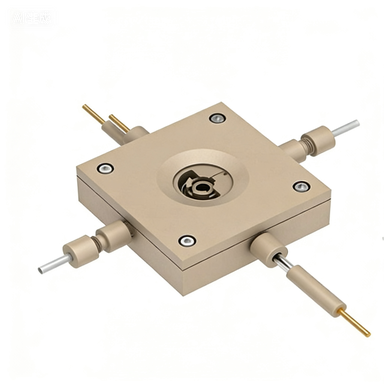

The In-situ Raman Spectroelectrochemical Cell is a compact, high-precision platform designed for real-time spectroscopic and morphological observation of electrode surfaces during electrochemical reactions.
The working electrode (WE) is positioned directly beneath a sapphire optical window, enabling Raman, optical microscopy, and other surface-sensitive techniques to probe electrochemical processes in situ. Compared with large flow or gas-diffusion systems, C031-4 focuses on high signal quality, minimal optical path length, and low solution resistance, making it ideal for fundamental electrochemical spectroscopy and materials screening.

Structural Design
Single-Chamber Optical Configuration
•Central disk-electrode architecture
•Optical window aligned coaxially above the working electrode
•Optimized geometry for Raman laser focusing and signal collection
Ultra-Short Optical Path
•< 6 mm distance between working electrode surface and sapphire window
•Minimizes laser scattering and electrolyte absorption
•Enhances Raman signal-to-noise ratio
Precision Sealing & Mechanical Stability
•Multi-screw compression structure
•Chemically resistant sealing system
•Maintains alignment during long measurements

Materials & Build Quality
•Cell body: High-purity PEEK with reinforced titanium components
•Optical window: Sapphire, 1 mm thickness
•Sealing elements: Chemically resistant elastomer O-rings
•Fast assembly: Tool-assisted but intuitive disassembly for cleaning
Designed to withstand acidic, alkaline, and organic electrolytes commonly used in electrochemical spectroscopy.

Optical & Geometric Specifications
Parameter Specification
Model C031-4
Cell type In-situ spectroelectrochemical cell
Optical window material Sapphire
Window diameter 25 mm
Window thickness 1 mm
Distance (WE → window) < 6 mm
Optical compatibility Raman, optical microscopy, spectroscopy
Filling method Injection filling
Flow compatibility Yes (low-flow compatible)
Electrode Configuration
Working Electrode (Standard)
•5 mm glassy carbon disk electrode
Supported Working Electrode Materials
(Disk-type, user-selectable)
•Gold (Au)
•Platinum (Pt)
•Silver (Ag)
•Glassy carbon
•Graphite
•Other metals or conductive materials (custom)
Custom electrode materials and diameters available upon request.
Reference & Counter Electrodes (Included)
•Reference electrode: Ag/AgCl or Ag⁺
•Counter electrode: Platinum wire
This configuration supports true three-electrode measurements with low uncompensated resistance.

Key Advantages
•Spectroscopy-Optimized Geometry Short optical distance and sapphire window maximize Raman signal quality.
• Research-Grade Chemical Resistance PEEK + sapphire construction supports aggressive electrolytes.
• Disk Electrode Precision Ideal for well-defined electrochemical interfaces and reproducible data.
• Flexible Experiment Modes Compatible with static injection experiments and gentle flow conditions.
• Rapid Cleaning & Reconfiguration Quick disassembly enables high-throughput testing across multiple samples.

Typical Applications
•In-situ Raman spectroscopy of electrocatalysts
•Surface phase transition studies
•Electrode corrosion and passivation analysis
•Redox reaction mechanism investigation
•Optical tracking of electrochemical deposition / dissolution
•Fundamental electrochemical materials research

Standard Package Contents

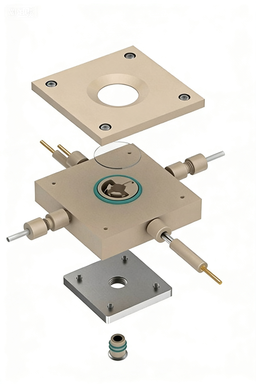

•C031-4 electrochemical cell body
•Sapphire optical window (25 mm)
•Glassy carbon working electrode (5 mm)
•Ag/AgCl reference electrode
•Platinum wire counter electrode
•Sealing components and fittings
(Alternative electrodes available separately.)

Customization Options
•Alternative disk electrode materials (Au, Pt, Ag, alloys)
•Custom electrode diameters
•Ag⁺ reference electrode configuration
•Modified inlet/outlet fittings for specific flow systems
•Integration support for Raman microscope stages



For Custom Orders or Inquiries

If you have custom requirements or any additional questions, feel free to contact us:

Email: support@franklab.shop
