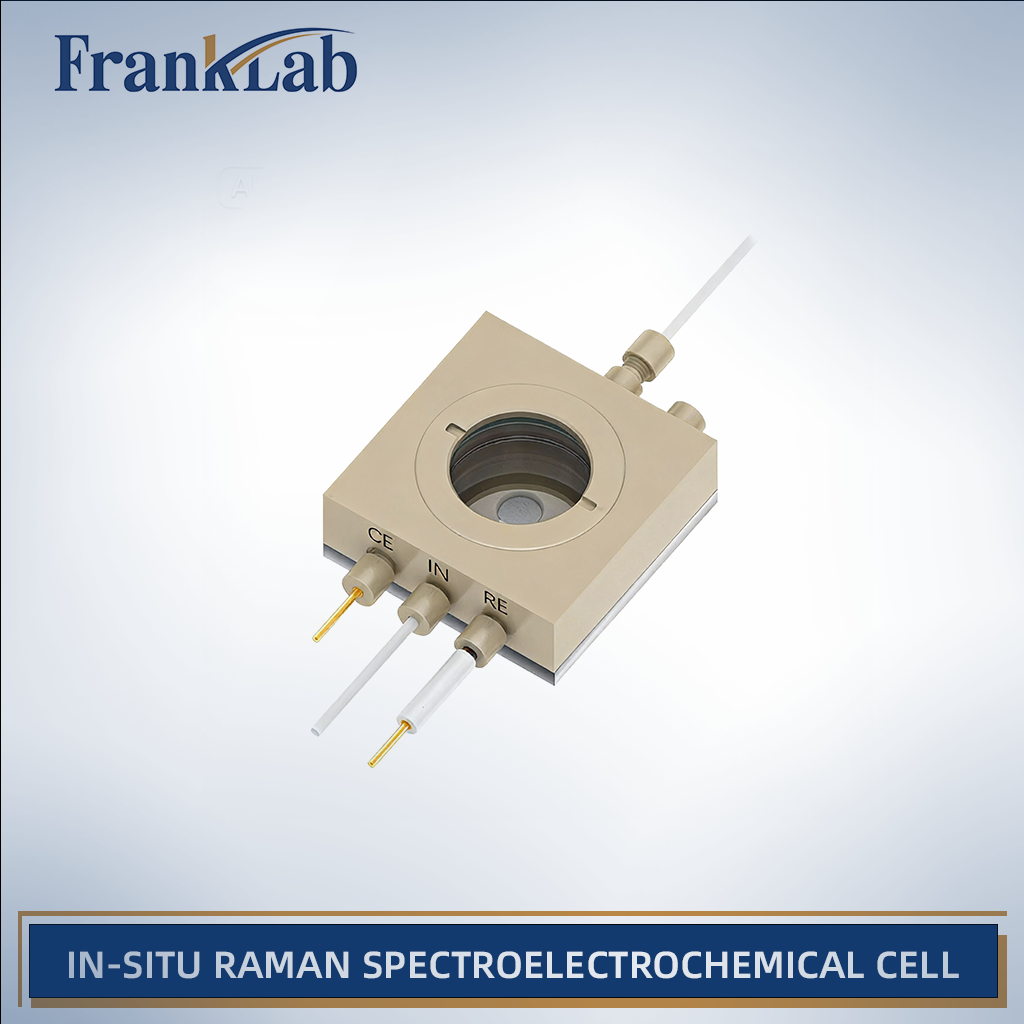

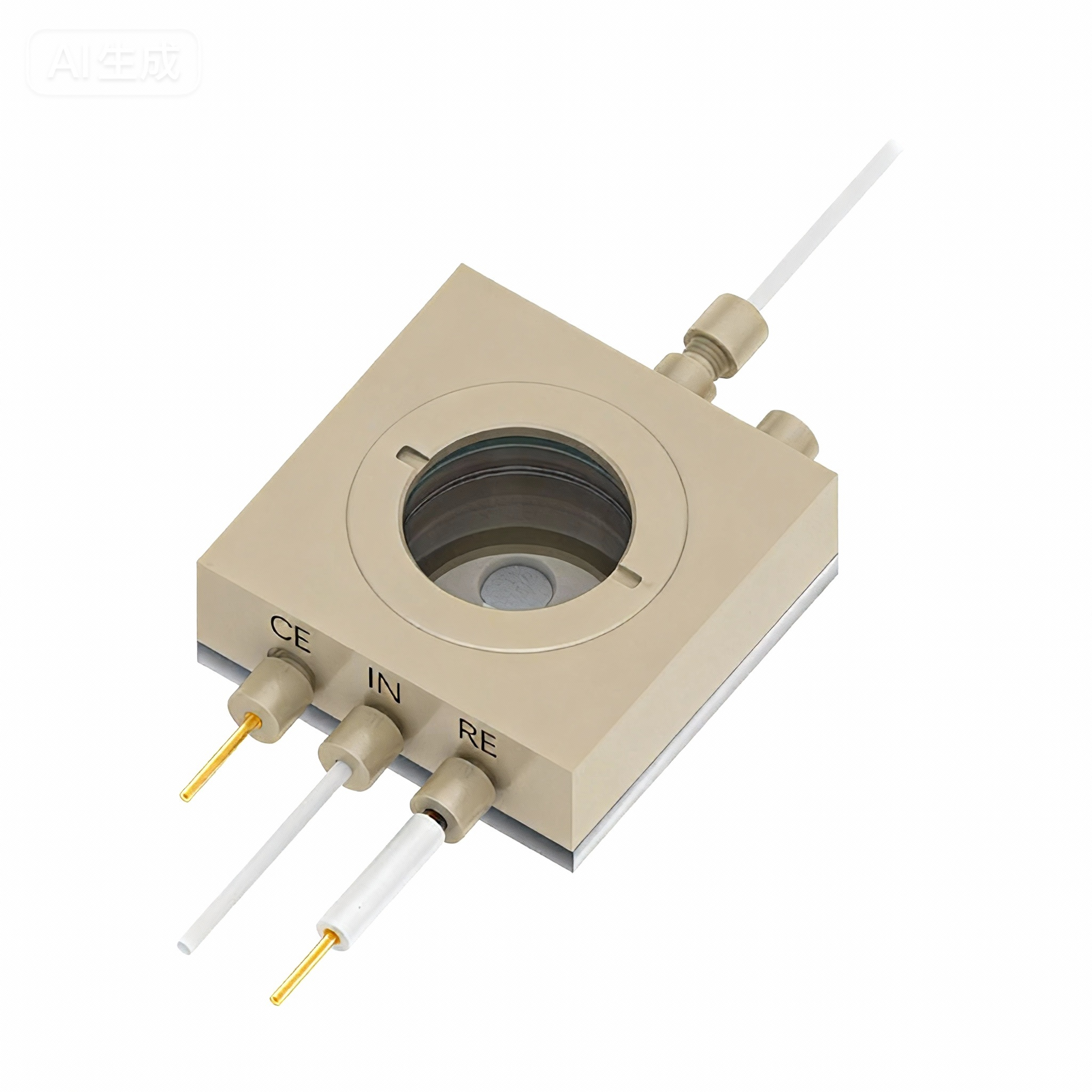

In-situ Raman Spectroelectrochemical Cell
Product Description
Key Features

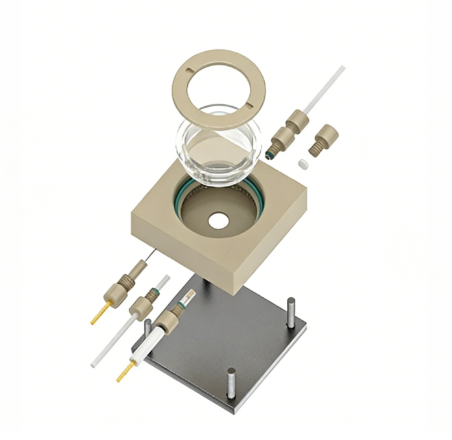

•Durable PEEK body, easy to assemble and clean
•37 mm quartz window, < 6 mm from working electrode
•Flow and injection filling compatible
•Supports multiple planar electrodes (Au, Pt, GC, ITO, etc.)
•Includes standard Ag/AgCl reference and graphite counter electrodes
Product Specifications
| Item | Specification |
| Model | C031-1 |
| Application | In-situ Raman / optical electrochemical studies |
| Cell Body Material | PEEK |
| Window Material | Quartz |
| Window Diameter | 37 mm |
| Distance (WE to Window) | < 6 mm |
| Working Electrode Area | 1 cm² (customizable) |
| Working Electrode Type | Planar electrodes (Au, Pt, GC, ITO, FTO, carbon paper; not included) |
| Reference Electrode | Ag/AgCl (standard); optional Ag⁺ |
| Counter Electrode | Graphite rod (standard); optional platinum wire (1 mm) |
| Electrolyte Filling | Injection method |
| Flow System Compatible | Yes |
| Assembly / Cleaning | Quick assembly / disassembly; easy to clean |
Package Includes
•Electrochemical cell
•Quartz optical window
•Ag/AgCl reference electrode
•Graphite rod counter electrode
•Standard fittings and sealing components
