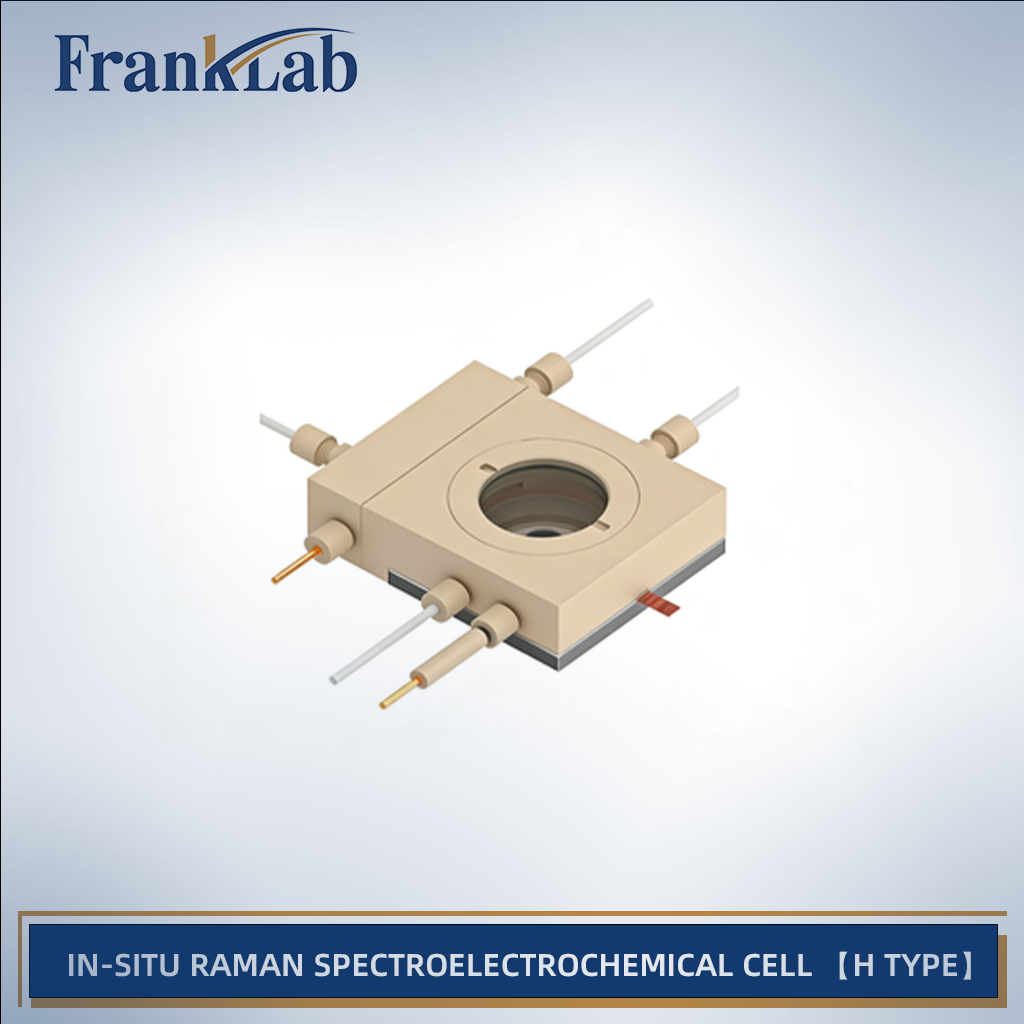

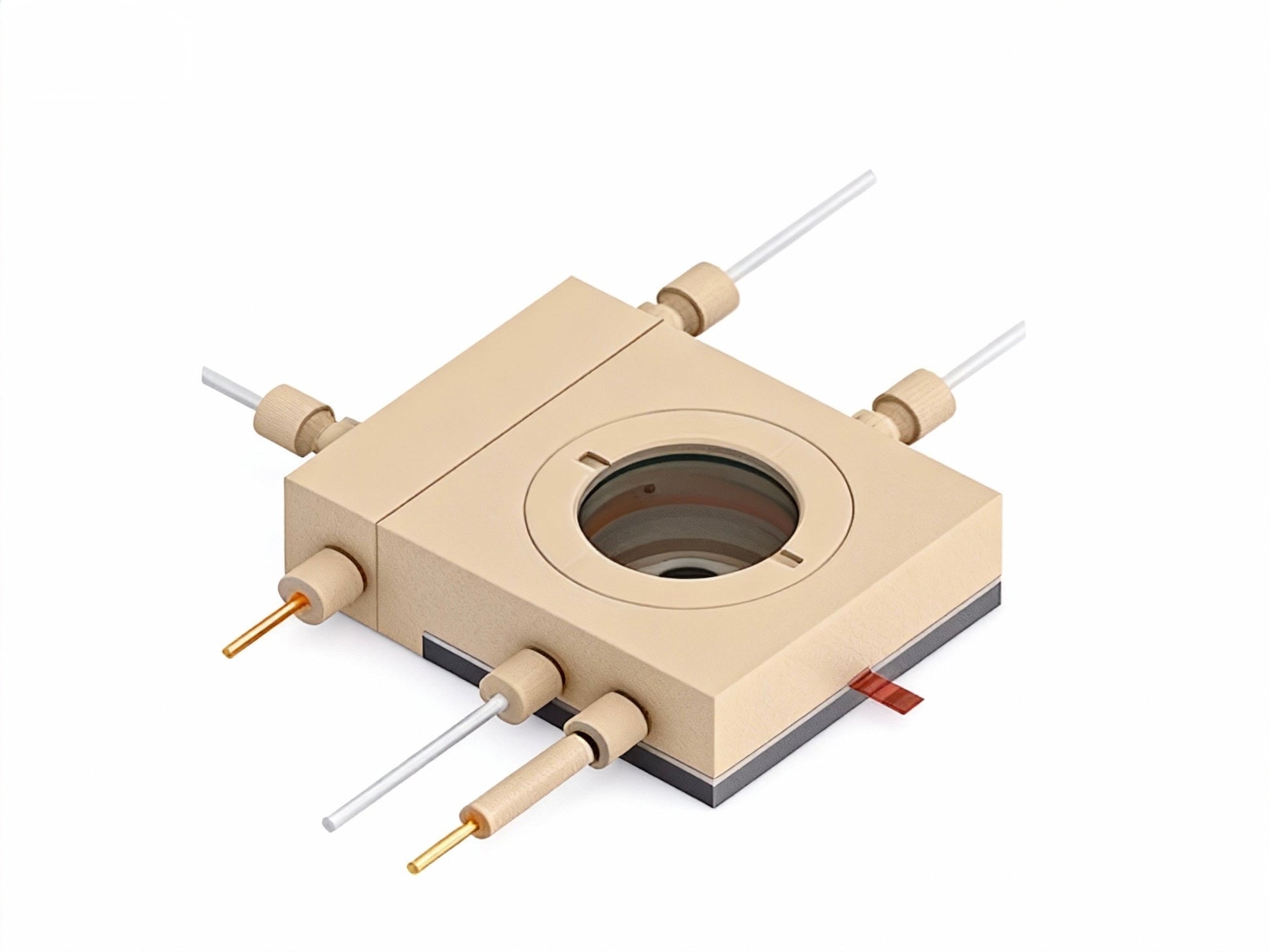

In-situ Raman Spectroelectrochemical Cell, H Type
-
Estimated Delivery:Jun 13 - Jun 17
-
Worldwide Free Shipping: On all orders over $499
Guarantee safe & secure checkout
In-situ Raman Spectroelectrochemical Cell, H Type
Product Description
Key Features

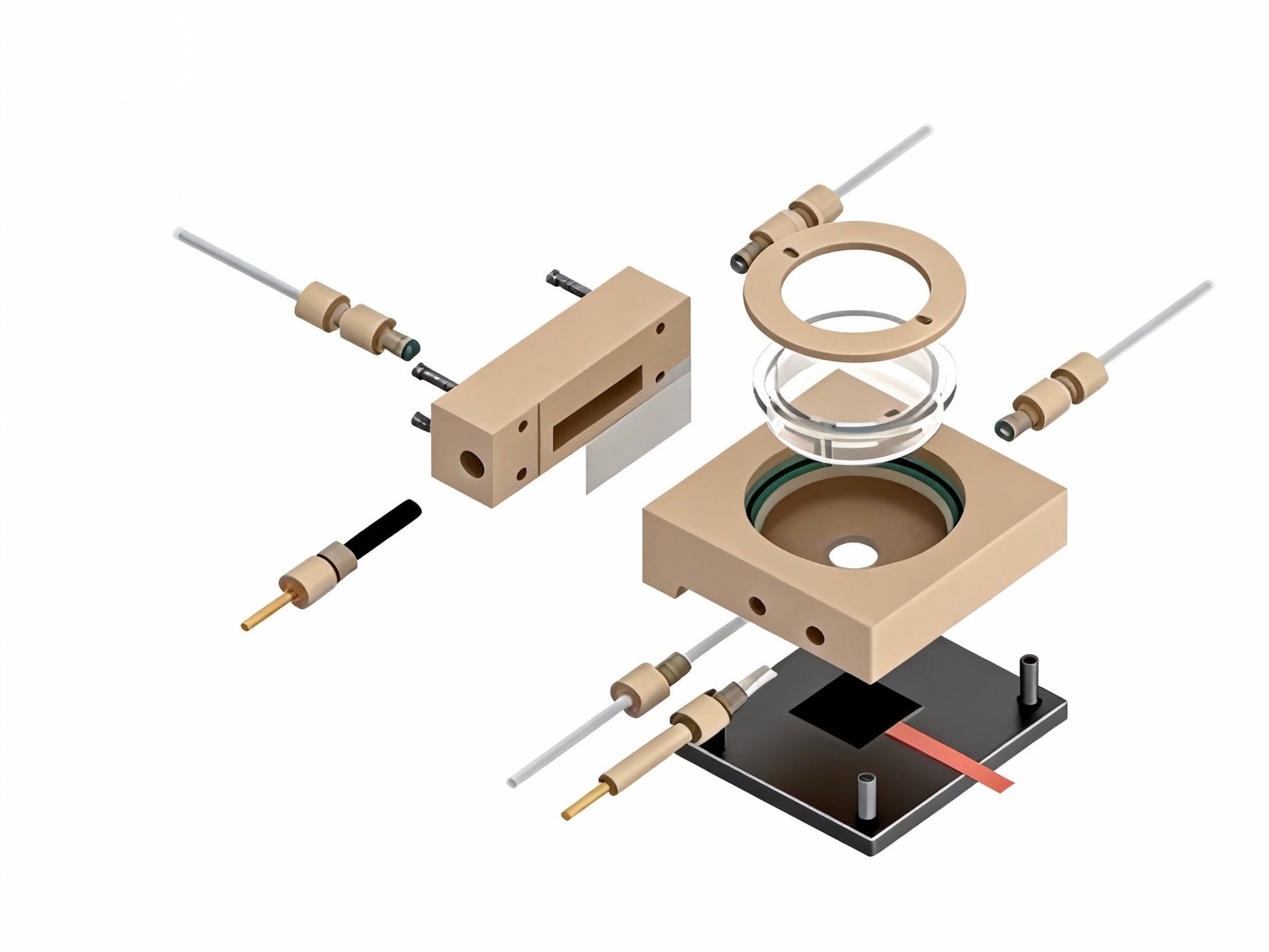

1.Robust PEEK body with quick assembly and cleaning
2. 37 mm sapphire window, < 6 mm from working electrode
3. Dual-chamber screw-sealed design for membrane integration
4. Shared chamber for working and reference electrodes (reduced R_drop)
5.Supports flow or injection filling
6. Compatible with various planar electrodes
7. Includes Ag/AgCl reference and graphite rod counter electrodes
Product Specifications
| Item | Specification |
| Model | C031-2 |
| Application | In-situ Raman / optical electrochemical studies |
| Cell Body Material | PEEK |
| Window Material | Sapphire (1 mm thickness) |
| Window Diameter | 37 mm |
| Distance (WE to Window) | < 6 mm |
| Working Electrode Area | 1 cm² (customizable) |
| Working Electrode Type | Planar electrodes (Au, Pt, GC, ITO, FTO, carbon paper; not included) |
| Reference Electrode | Ag/AgCl (standard); optional Ag⁺ |
| Counter Electrode | Graphite rod (standard); optional platinum wire |
| Electrolyte Filling | Injection method |
| Flow System Compatible | Yes |
| Membrane Type | Ion-exchange membrane (user-supplied) |
| Assembly / Cleaning | Quick assembly / disassembly; easy to clean |
Package Includes
1. Electrochemical cell
2. Sapphire optical window
3.Ag/AgCl reference electrode
4.Graphite rod counter electrode
5. Standard fittings and sealing components
