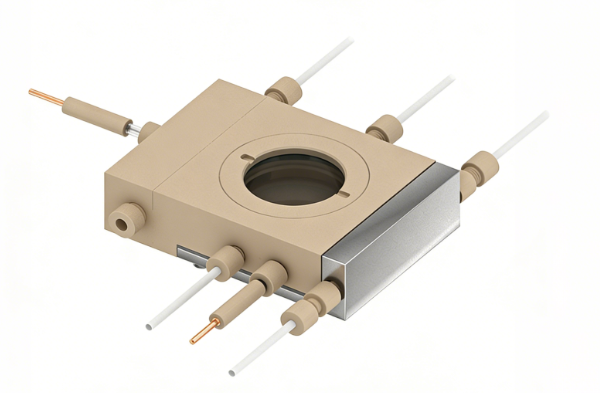

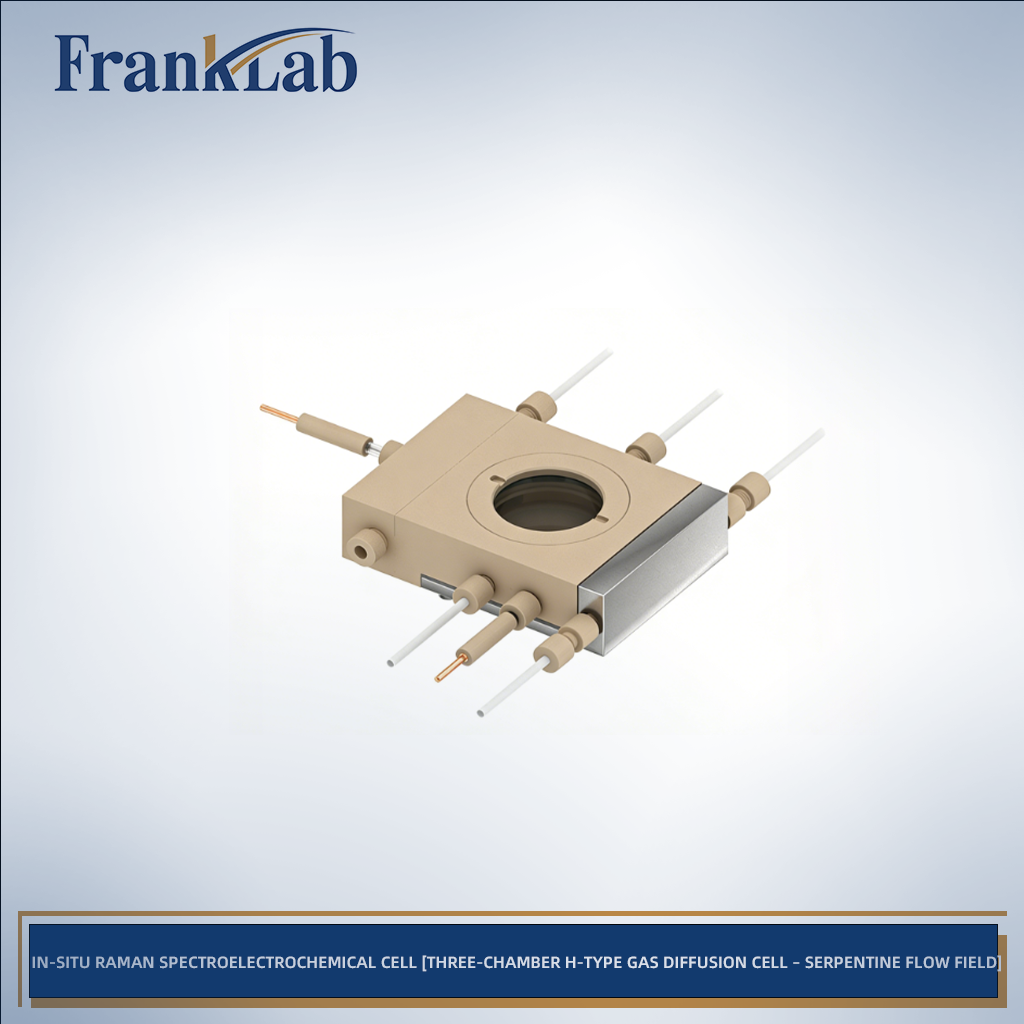

In-situ Raman Spectroelectrochemical Cell [H-Type Gas Diffusion Cell – Serpentine Flow Field]
-
Estimated Delivery:Jun 13 - Jun 17
-
Worldwide Free Shipping: On all orders over $499
Guarantee safe & secure checkout
![In-situ Raman Spectroelectrochemical Cell [H-Type Gas Diffusion Cell – Serpentine Flow Field]](http://franklab.shop/cdn/shop/files/ScreenShot_2025-12-11_155153_363.png?v=1766479530&width=360)
In-situ Raman Spectroelectrochemical Cell [H-Type Gas Diffusion Cell – Serpentine Flow Field]
Product Description
This in-situ electrochemical cell features a serpentine gas flow channel in the cathode chamber. The design extends the contact time between gas and catalyst, significantly improving gas participation in electrochemical reactions.

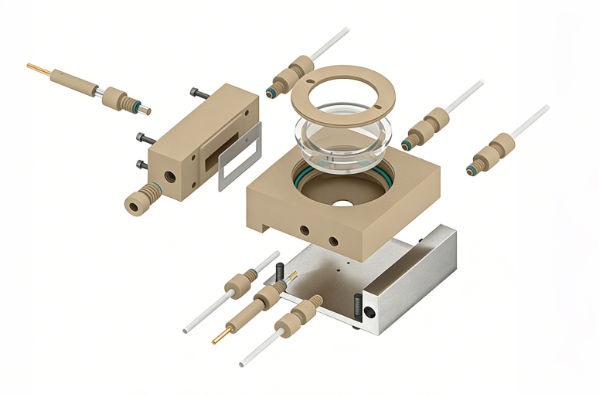

Built with a durable PEEK body and a sapphire optical window directly above the working electrode, the cell supports real-time spectroscopic analysis. The dual-chamber structure with user-supplied membrane separates cathode and anode chambers, and the built-in reference electrode minimizes R_drop.
Compatible with gas-diffusion and planar electrodes, it is suitable for both flow systems and injection-based electrolyte filling.
Key Features
•PEEK body with fast assembly and easy cleaning
•Sapphire window (37 mm), <6 mm from working electrode
•Serpentine gas flow channel in cathode chamber for improved diffusion
•Dual-chamber design with user-replaceable ion membrane
•Supports gas-diffusion and planar electrodes
•Standard Ag/AgCl RE and graphite CE (Ag⁺/Pt options available)
Injection and flow system compatible
Product Specifications
| Item | Specification |
|---|---|
| Model | C031-3S |
| Application | In-situ Raman/optical electrochemical studies |
| Cell Body Material | PEEK |
| Optical Window Material | Sapphire (1 mm thickness) |
| Optical Window Diameter | 37 mm |
| Distance (WE to Window) | < 6 mm |
| Working Electrode Area | 1 cm² (customizable upon request) |
| Supported Electrode Types | Gas-diffusion & planar electrodes (Au, Pt, GC, ITO, FTO, etc.; not included) |
| Reference Electrode | Ag/AgCl (standard); optional Ag⁺ |
| Counter Electrode | Graphite rod (standard); optional Pt wire |
| Gas Flow Channel | Serpentine flow design in cathode chamber |
| Electrolyte Filling | Injection method |
| Flow System Compatible | Yes |
| Chamber Separation | Ion-exchange membrane (user-supplied) |
Package Includes
•Electrochemical Cell (C031-3S)
•Sapphire Optical Window
•Ag/AgCl Reference Electrode
•Graphite Rod Counter Electrode
•Standard Fittings & Seals
