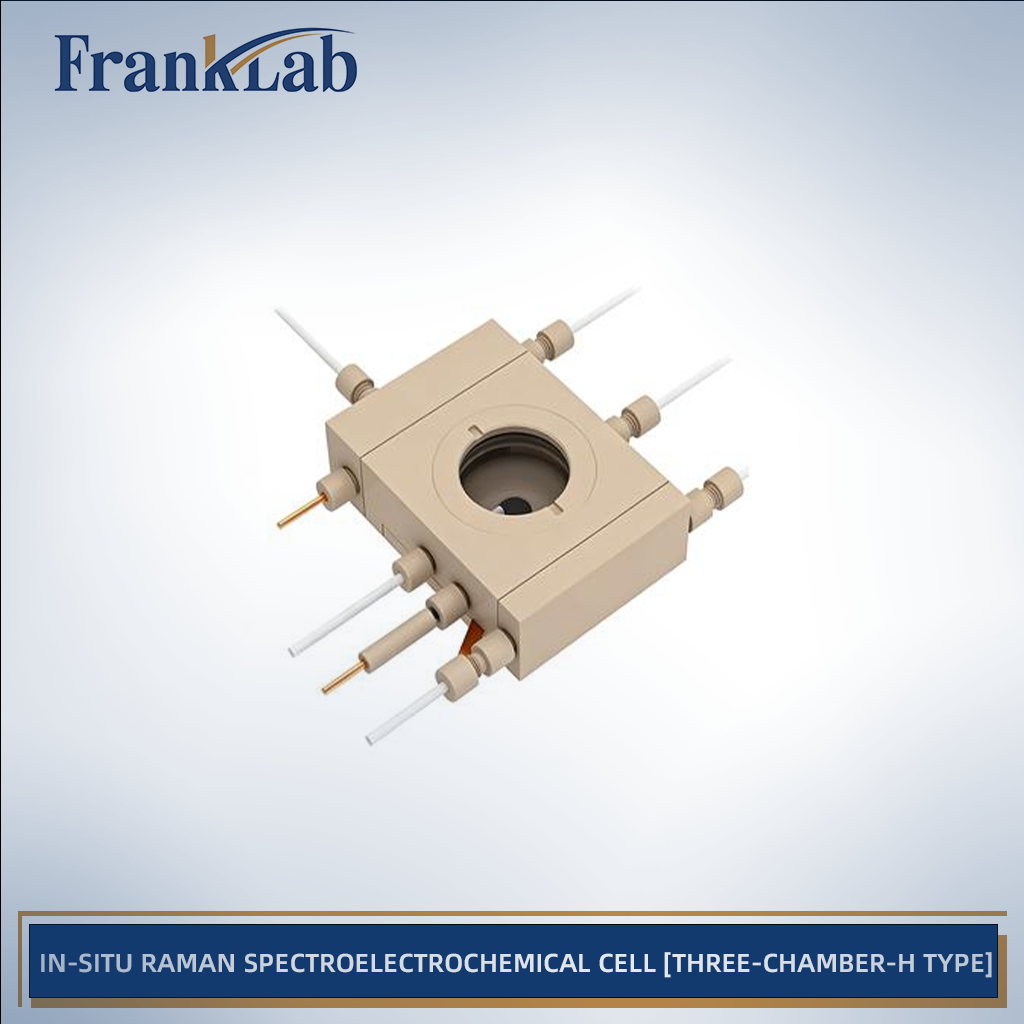

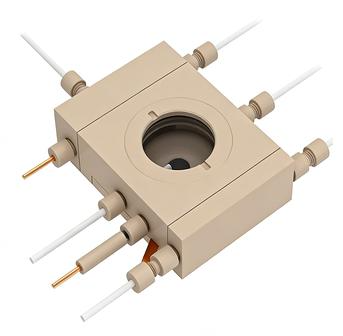

In-situ Raman Spectroelectrochemical Cell [Three-chamber H Type]

In-situ Raman Spectroelectrochemical Cell [Three-chamber H Type]

Product Description
Shipping & Delivery

Product Description

This in-situ electrochemical cell is designed for real-time optical observation of electrode reactions. With a sapphire window placed directly above the working electrode, it enables spectroscopic and morphological analysis during experiments.
Its dual-chamber design incorporates a gas-diffusion function and a user-supplied ion-exchange membrane to separate the cathode and anode chambers, minimizing interference. The integrated reference electrode is placed in the same chamber as the working electrode to reduce resistance.

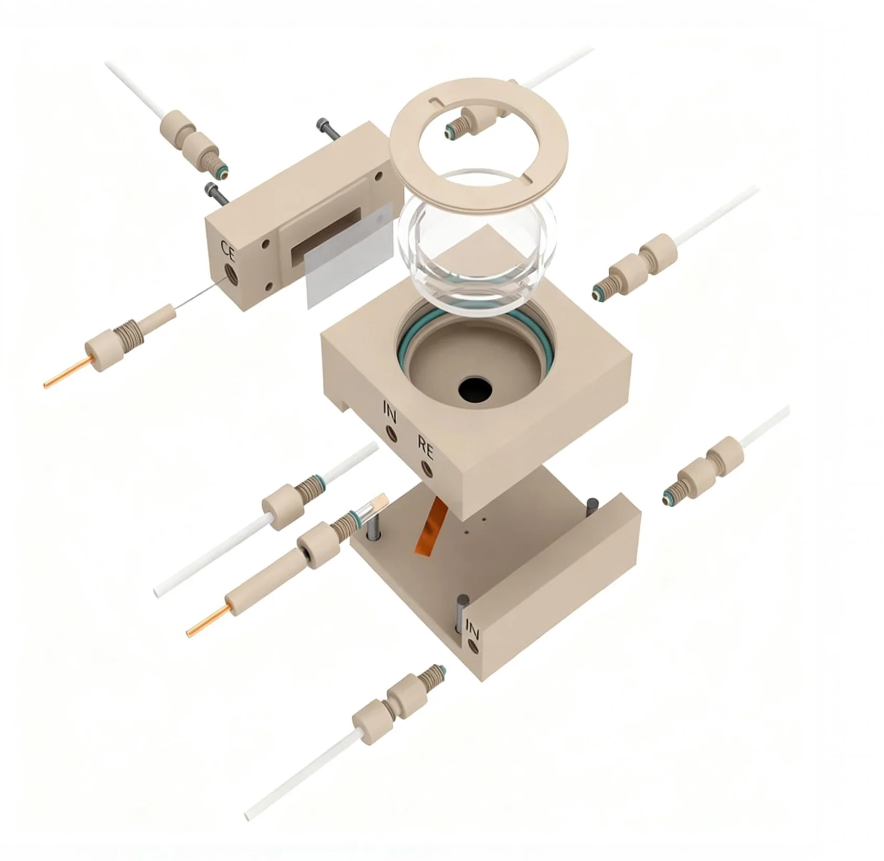

Built from durable PEEK, the cell allows quick assembly, effortless cleaning, and is compatible with both flow systems and injection filling. Ideal for use with gas-diffusion electrodes and other planar electrodes.

Key Features

•PEEK body for excellent chemical resistance

•Sapphire window (37 mm), <6 mm from working electrode

•Dual-chamber structure with screw-sealed membrane interface

•Built-in gas channel in cathode chamber for gas diffusion

•Supports flow systems and injection-based filling

•Compatible with gas-diffusion and planar electrodes

•Includes reference and counter electrodes

Product Specifications

Item Specification
Model C031-3
Application In-situ Raman/optical electrochemical studies
Cell Body Material PEEK
Optical Window Material Sapphire (1 mm thickness)
Optical Window Diameter 37 mm
Distance (WE to Window) < 6 mm
Working Electrode Area 1 cm² (customizable upon request)
Supported Electrode Types Gas-diffusion & planar electrodes (Au, Pt, GC, ITO, FTO, carbon paper, etc.)
Reference Electrode Ag/AgCl (standard); optional Ag⁺
Counter Electrode Graphite rod (standard); optional Pt wire
Electrolyte Filling Injection method
Flow System Compatible Yes
Gas Diffusion Channel Yes (built into cathode chamber)
Membrane Separation Ion-exchange membrane (user-supplied)


Package Includes

•Electrochemical Cell (C031-3)

•Sapphire Optical Window

•Ag/AgCl Reference Electrode

•Graphite Rod Counter Electrode

•Standard Fittings & Seals
