In-situ Raman Spectroelectrochemical Cell

Three-Chamber H-Type Gas Diffusion Cell with Serpentine Flow Field
Operando Raman Spectroscopy · Gas–Liquid–Solid Interfaces · Advanced Electrocatalysis

Product Overview

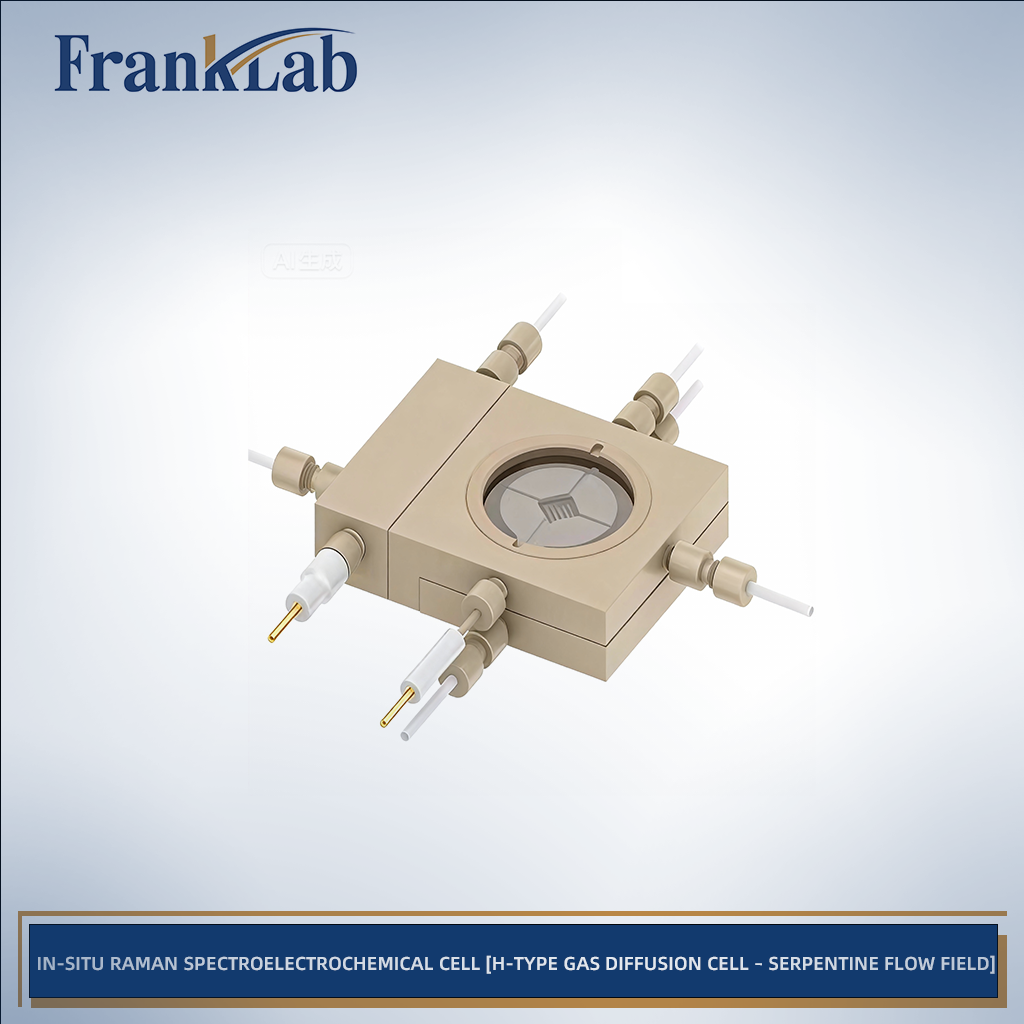

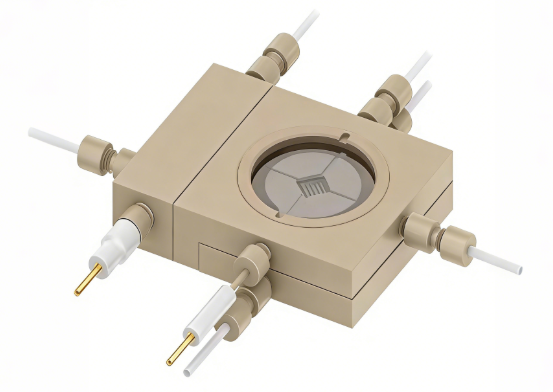

The FrankLab C031-S In-situ Raman Spectroelectrochemical Cell is a high-end research platform engineered for real-time spectroscopic and electrochemical investigation of gas-involved reactions at well-defined interfaces.
The working electrode is positioned directly beneath a large-area, high-transmittance sapphire optical window, allowing Raman and optical systems to directly monitor surface structure evolution, reaction intermediates, and catalyst reconstruction under precisely controlled electrochemical conditions.
Unlike conventional two-chamber spectroelectrochemical cells, the C031-S adopts a true three-chamber H-type architecture, consisting of a gas chamber, working electrode chamber, and counter electrode chamber. These compartments are separated by user-supplied gas diffusion electrodes (GDEs) and ion-exchange membranes, enabling clean phase isolation and accurate operando analysis of gas-electrochemical processes.
A serpentine gas flow field integrated into the gas chamber significantly enhances gas residence time and distribution uniformity, ensuring efficient gas–catalyst interaction and superior mass transport compared with flat or straight-channel designs.

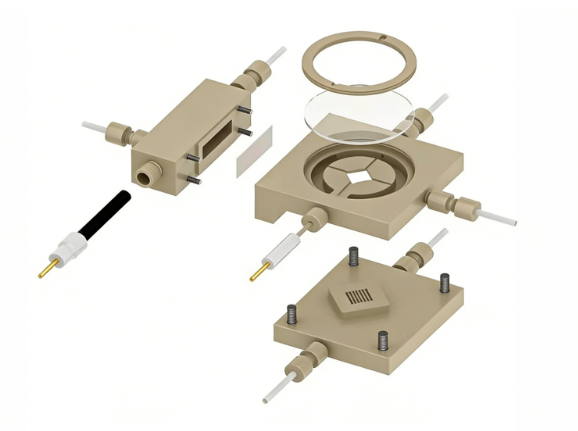

Structural Design & Architecture
Three-Chamber Configuration
Gas Chamber
•Dedicated serpentine gas flow channel
•Uniform gas delivery across the GDE surface
Working Electrode Chamber
•Hosts both working and reference electrodes
•Minimizes uncompensated resistance (low Rdrop)
•Optimized for accurate potential control
Counter Electrode Chamber
•Physically isolated to prevent parasitic reactions and product crossover
Gas Diffusion & Membrane-Separated System
Compatible with user-supplied:
•Gas diffusion electrodes (carbon paper, carbon cloth, etc.)
•Ion-exchange membranes (PEM, AEM, BPM)
Enables realistic gas–liquid–solid triple-phase boundary studies
Optical Access for Operando Raman
•Sapphire window diameter: 45 mm
•WE-to-window distance: < 3 mm
•Optical transmittance: > 95%
•Compatible with most commercial Raman spectrometers and optical setups

Materials & Construction
•Cell body: High-performance PEEK
•Excellent chemical resistance
•Mechanically stable for long-term experiments
•Suitable for acidic, alkaline, and neutral electrolytes
Optical window: Optical-grade sapphire
•High hardness and scratch resistance
•Chemically inert and thermally stable
•Ideal for high-power Raman excitation

Key Features
•True three-chamber H-type architecture for precise reaction isolation
•Serpentine gas flow field maximizing gas–catalyst contact efficiency
•Large sapphire window (45 mm) with < 3 mm optical path to the electrode
•Low Rdrop configuration with WE and RE in the same chamber
•Supports gas diffusion and planar working electrodes
•Research-grade PEEK construction for harsh electrochemical environments
•Delivered with reference and counter electrodes for immediate operation

Technical Specifications
Parameter Specification
Model C031-S
Cell type In-situ Raman spectroelectrochemical cell
Architecture Three-chamber H-type
Cell body material PEEK
Optical window material Sapphire
Window thickness 1 mm
Window diameter 45 mm
Optical transmittance > 95%
WE–window distance < 3 mm
Working electrode area 1 cm² (positioned; customizable)
Working electrode type Gas diffusion electrode (user-supplied); planar electrodes supported
Supported planar electrodes Au, Pt, glassy carbon, ITO, FTO
Electrode separation GDE + ion-exchange membrane (user-supplied)
Reference electrode Ag/AgCl (standard); optional Ag⁺
Counter electrode Graphite rod (standard); Pt wire available
Gas flow channel Serpentine
Raman compatibility Universal
Assembly / cleaning Quick disassembly, easy cleaning
Typical Applications
•Operando Raman spectroelectrochemistry
•CO₂ reduction reaction (CO₂RR)
•Oxygen reduction reaction (ORR)
•Nitrogen reduction reaction (NRR)
•Gas-involved electrocatalysis
•Catalyst reconstruction and degradation studies
•Triple-phase boundary mechanism analysis

Standard Package Contents
•C031-S spectroelectrochemical cell body
•Sapphire optical window
•Ag/AgCl reference electrode
•Graphite rod counter electrode
•Standard fittings and sealing components
Gas diffusion electrodes, ion-exchange membranes, and gas tubing are supplied separately.
