In-situ XRD Li-ion Test Cell [Three-Electrode]

Regular price $1,590.00
Sale price $1,590.00 Regular price
Unit price
Tax included.
Three-Electrode
Compare Ask a question

Ask a Question

* Required fields

 Size guide Share

  • Estimated Delivery:Jul 30 - Aug 03

  • Worldwide Free Shipping: On all orders over $499

Guarantee safe & secure checkout

In-situ XRD Li-ion Test Cell [Three-Electrode]

In-situ XRD Li-ion Test Cell [Three-Electrode]

Product Description
Shipping & Delivery

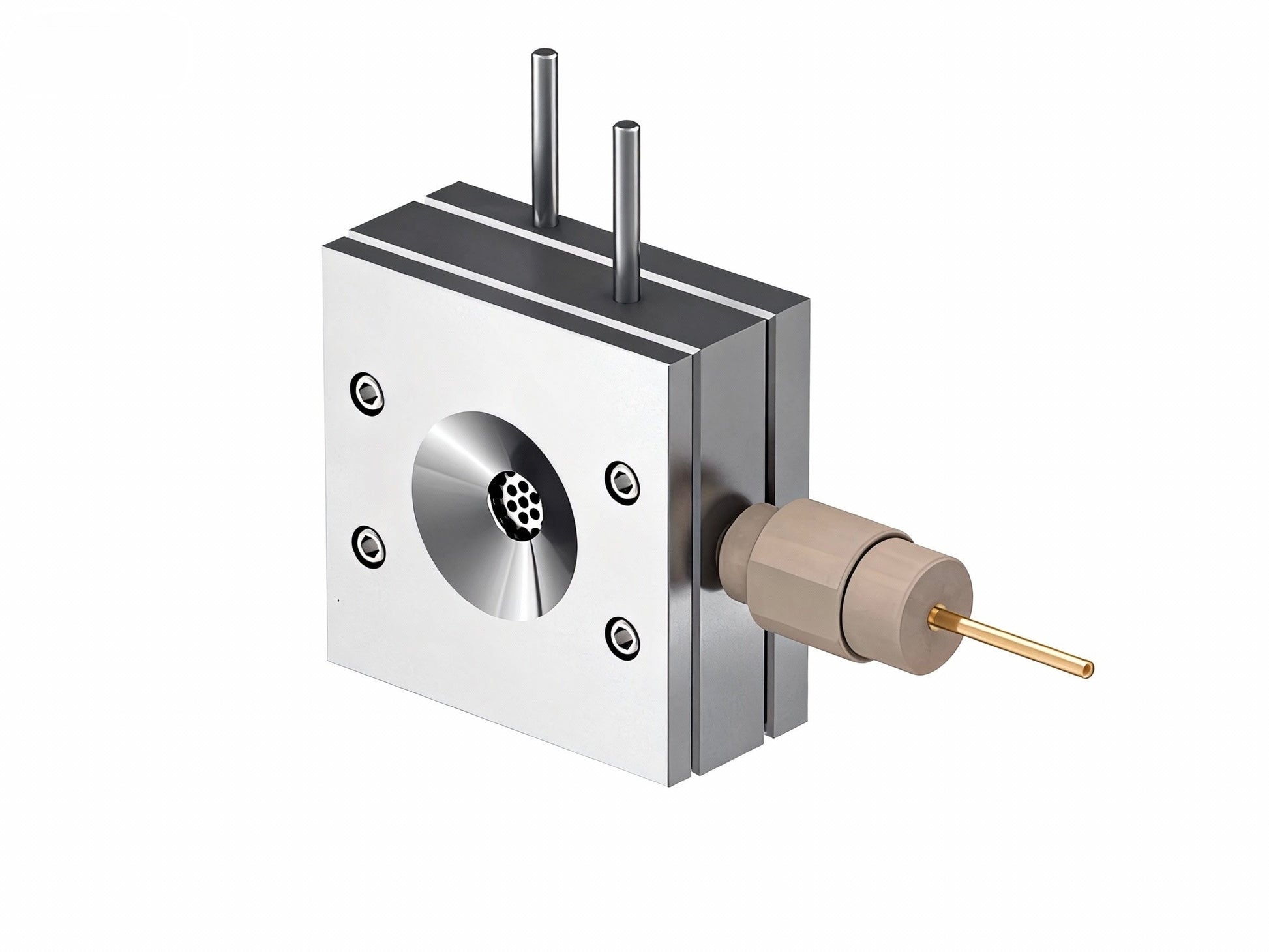

Product Overview
The In-situ Raman Electrochemical Cell is a three-electrode, operando-grade test platform engineered for real-time Raman spectroscopy and electrochemical analysis of battery and electrode materials under realistic cycling conditions.
Unlike two-electrode XRD cells, B003-RM integrates a dedicated Ag/AgCl reference electrode, enabling precise potential control, accurate kinetic measurements, and mechanistic electrochemical studies during in-situ optical observation.
Machined from high-purity titanium and equipped with a sapphire optical window positioned < 2 mm from the working electrode, B003-RM delivers exceptional Raman signal quality, mechanical stability, and long-term reproducibility—meeting the standards expected by PI-level research groups, synchrotron users, and advanced battery engineers.

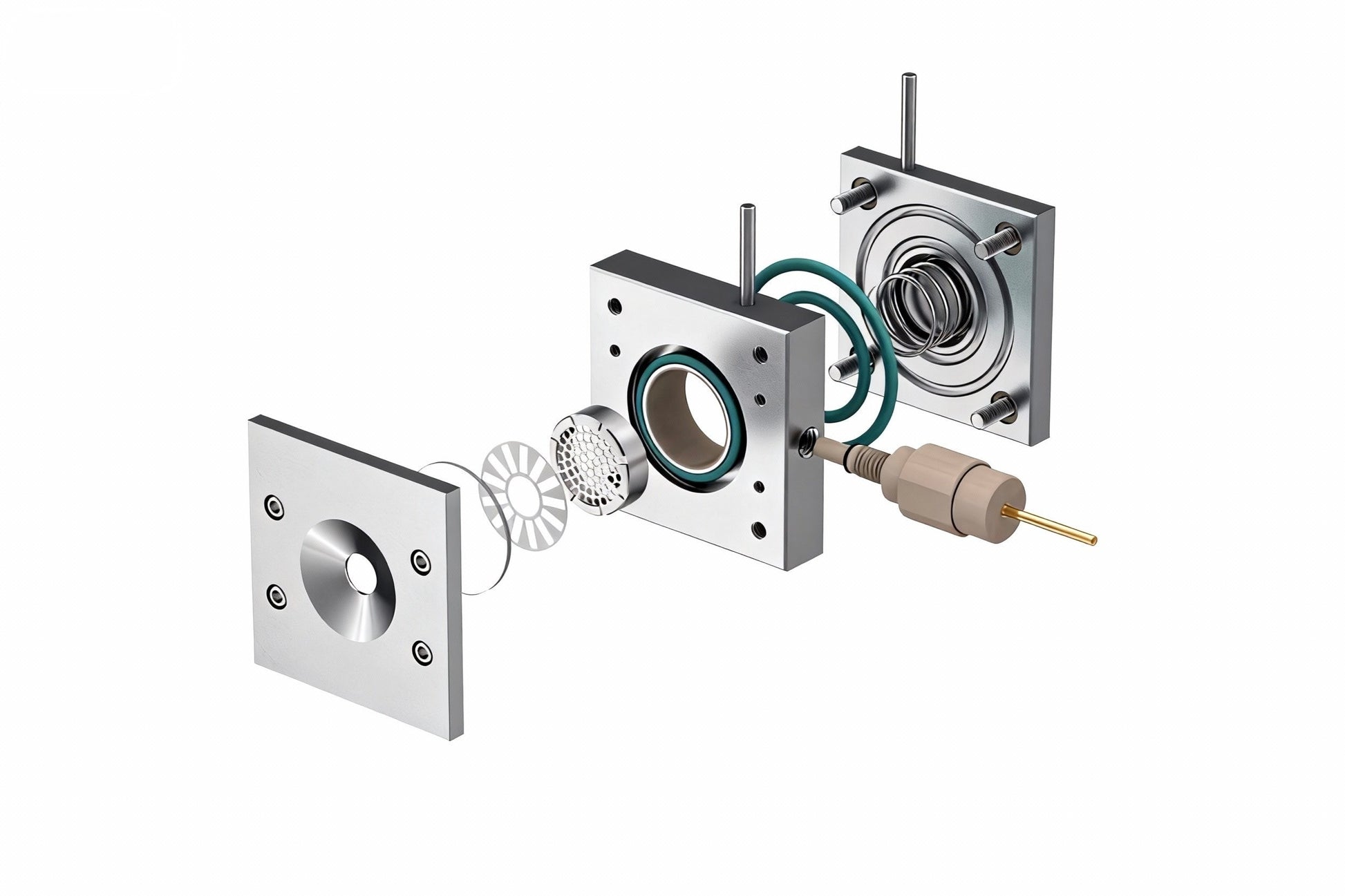

Structural Design & Electrochemical Architecture
True Three-Electrode Configuration
•Working electrode (WE)
•Counter electrode (CE)
•Ag/AgCl reference electrode (RE) ✔ Enables accurate potential referencing and separation of kinetic vs. ohmic effects ✔ Essential for mechanistic Raman-electrochemical studies
Ultra-Close Optical Access
•⌀8 mm sapphire window
•< 2 mm WE-to-window distance
•Optimized for high-signal operando Raman spectroscopy
Pressure-Controlled Stack
•Integrated spring-loaded compression system
•Enables controlled contact pressure
•Ideal for studying interfacial resistance, SEI evolution, and mechanical degradation

Materials & Sealing Integrity
Cell Body
•High-purity titanium
•Excellent chemical resistance to battery electrolytes
•Low background signal for optical spectroscopy
Sealing System
•Chemically resistant O-rings
•Screw-fastened structure for uniform compression
•Gas-tight and electrolyte-stable
Workflow Compatibility
•Fully glovebox compatible
•Can be transferred to ambient or optical platforms after sealing

Key Advantages
•True Three-Electrode Precision Enables reliable potential-controlled Raman measurements, unlike pseudo two-electrode designs.
• Operando Raman-Optimized Geometry Minimal optical path length maximizes Raman signal while reducing fluorescence and scattering losses.
•Pressure-Tunable Interfaces Spring loading allows systematic investigation of contact resistance and mechanical–electrochemical coupling.
• Battery-Relevant Engineering Designed for real cycling—not static demonstrations—supporting long experiments and repeated use.
• Rapid Assembly & Reproducibility Fast disassembly supports quick sample turnover, cleaning, and protocol iteration.

Technical Specifications
Parameter Specification
Model B003-RM
Application In-situ Raman spectroscopy (battery & electrochemical systems)
Electrode configuration Three-electrode (WE / CE / Ag/AgCl RE)
Cell body material High-purity titanium
Optical window Sapphire
Window diameter 8 mm
WE-to-window distance < 2 mm
Load control Spring-loaded pressure adjustment
Sealing mechanism O-rings + screw tightening
Dimensions (L×W×H) 50 × 50 × 24 mm
Assembly environment Glovebox compatible
Operating environment Ambient after sealing
Reusability Fully reusable; easy cleaning
Typical Applications
•Operando Raman studies of Li-ion battery electrodes
•SEI formation and evolution monitoring
•Electrode surface reconstruction during cycling
•Contact resistance and interface degradation analysis
•Fundamental electrochemical–spectroscopic coupling studies

Package Contents
•B003-RM electrochemical cell body
•Sapphire optical window
•Ag/AgCl reference electrode
•Spring-loading compression unit
•Titanium screws and O-ring sealing set
(Working and counter electrodes supplied separately unless specified)
