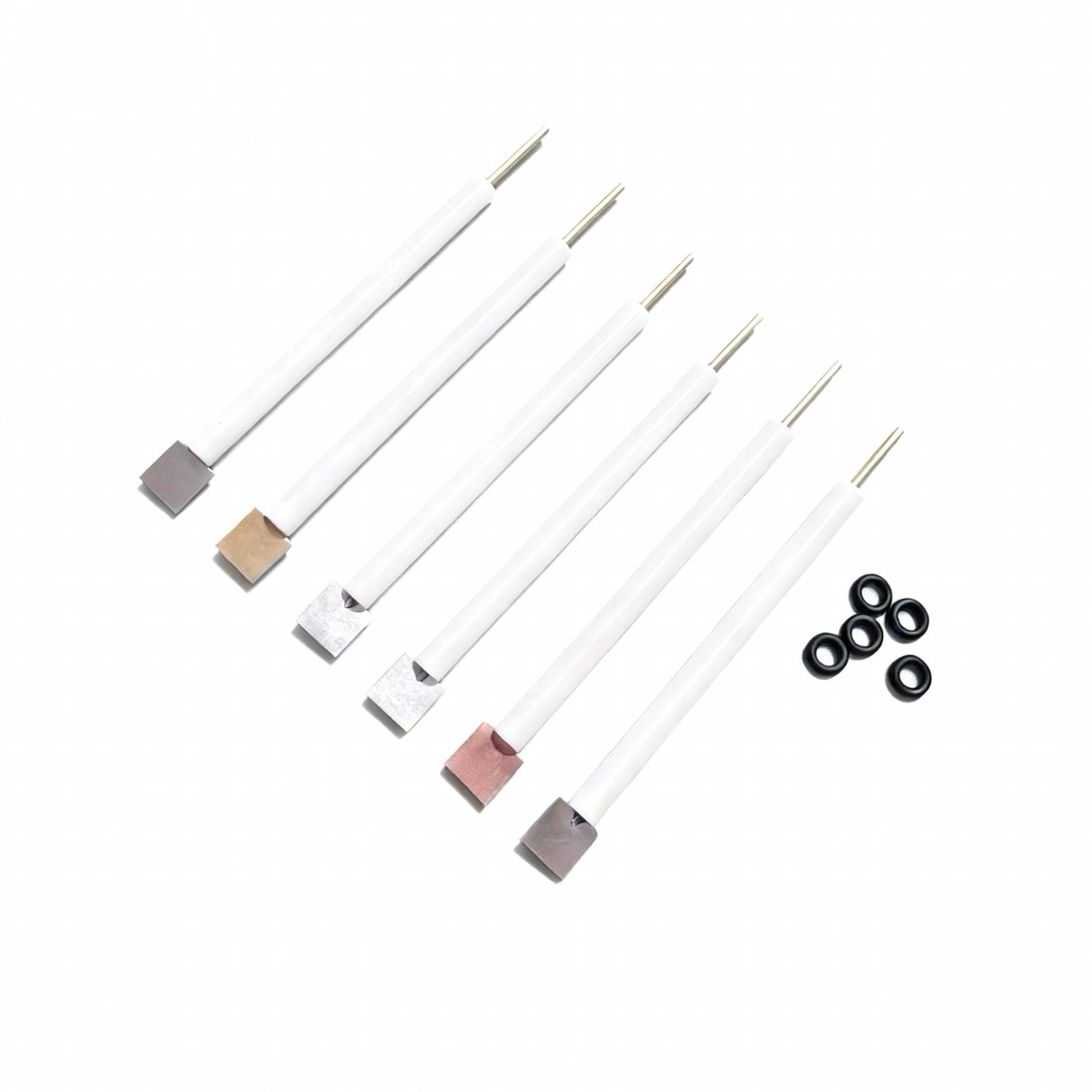

Iron Sheet Electrode | High-Purity Fe Plate | FrankLab
99.5–99.9% Purity · Reactive Metal Surface · Ideal for Corrosion Studies, Iron-Based Catalysis & Electrochemical Research

Product Overview
The FrankLab Iron Sheet Electrode is a high-purity Fe plate designed for experiments where the electrochemical activity and corrosion behavior of iron are essential. With its well-understood Fe/Fe²⁺/Fe³⁺ redox chemistry and high surface reactivity, iron sheets are commonly used in:
•Corrosion & passivation studies
•Iron-based electrocatalyst screening
•Electrochemical oxidation/reduction of Fe species
•Battery & energy storage research
•Surface oxide formation studies
•Electro-deposition and dissolution experiments
Each sheet is precision-cut for consistent thickness and geometric area, ensuring reliable and reproducible scientific measurements.

Key Features
• High-Purity Iron (Fe ≥ 99.5–99.9%)
•Stable for Fe redox chemistry
•Low impurity content → consistent results
•Suitable for academic and industrial research

• Reactive Metal Surface
Iron naturally forms oxide/hydroxide layers, enabling study of:
•Passivation
•Oxide growth kinetics
•Localized corrosion
•Iron dissolution mechanisms

• Excellent for Electrochemical Oxidation/Reduction
Ideal for:
•Fe²⁺/Fe³⁺ reactions
•Iron-based catalyst evaluations (OER/HER/ORR in alkaline)
•Surface activation and modification studies

• Uniform Thickness & Polished Options
•Enables consistent geometric area
•Optional surface polishing improves CV, LSV, and EIS reproducibility

• Easy to Cut, Drill & Shape
Iron is simple to machine for:
•Customized electrode geometries
•Reaction cell integrations
•Mounting configurations

Technical Specifications
Parameter Specification
Material High-purity iron (Fe ≥ 99.5–99.9%)
Available Thickness 0.2–3 mm (customizable)
Surface Finish As-cut / polished / mirror-polished
Density 7.87 g/cm³
Electrical Conductivity ~1.0 × 10⁷ S/m
Standard Electrode Potential Fe²⁺/Fe = –0.44 V vs SHE
Chemical Behavior Highly reactive; forms passive oxide films
Applications Corrosion, catalysis, deposition, Fe redox chemistry

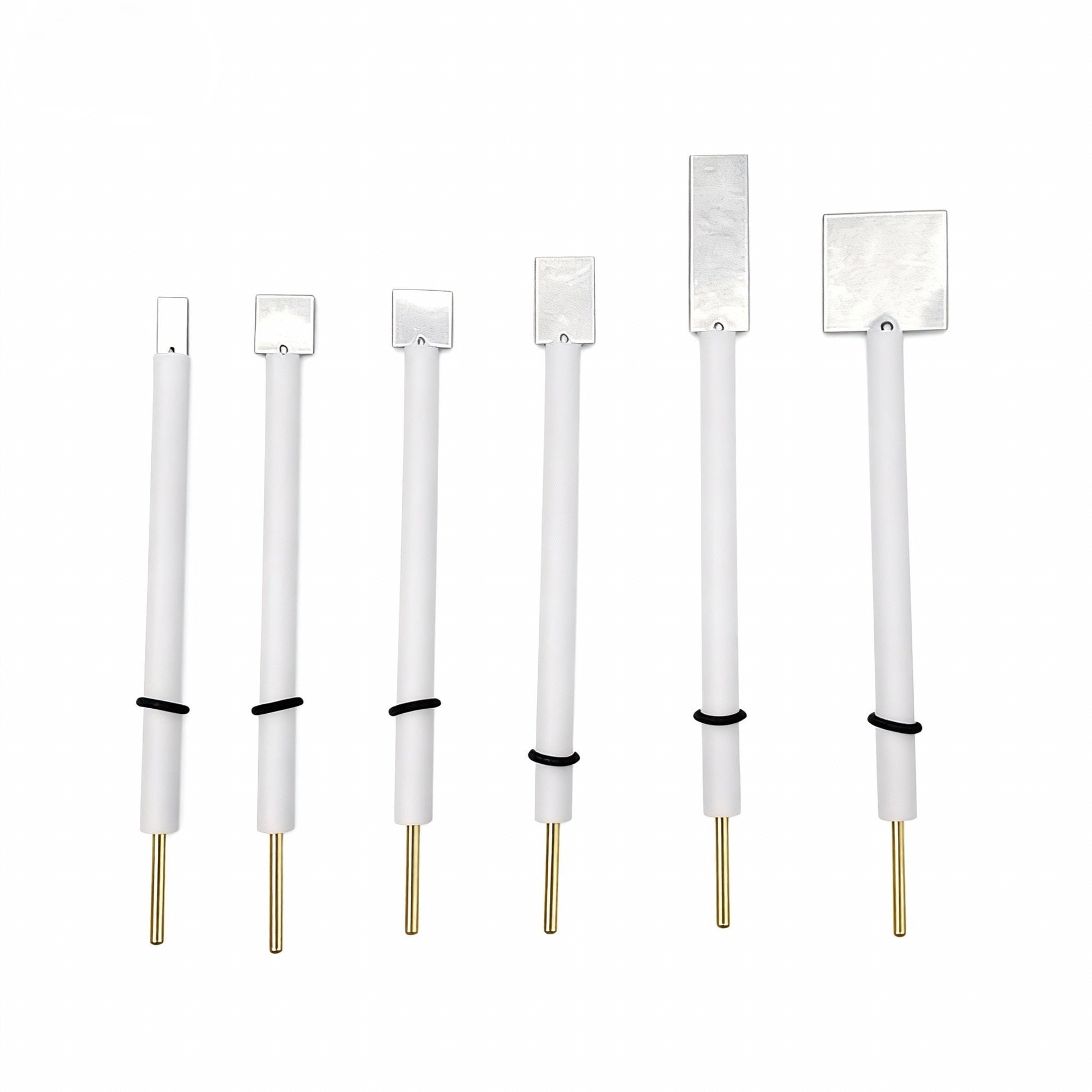

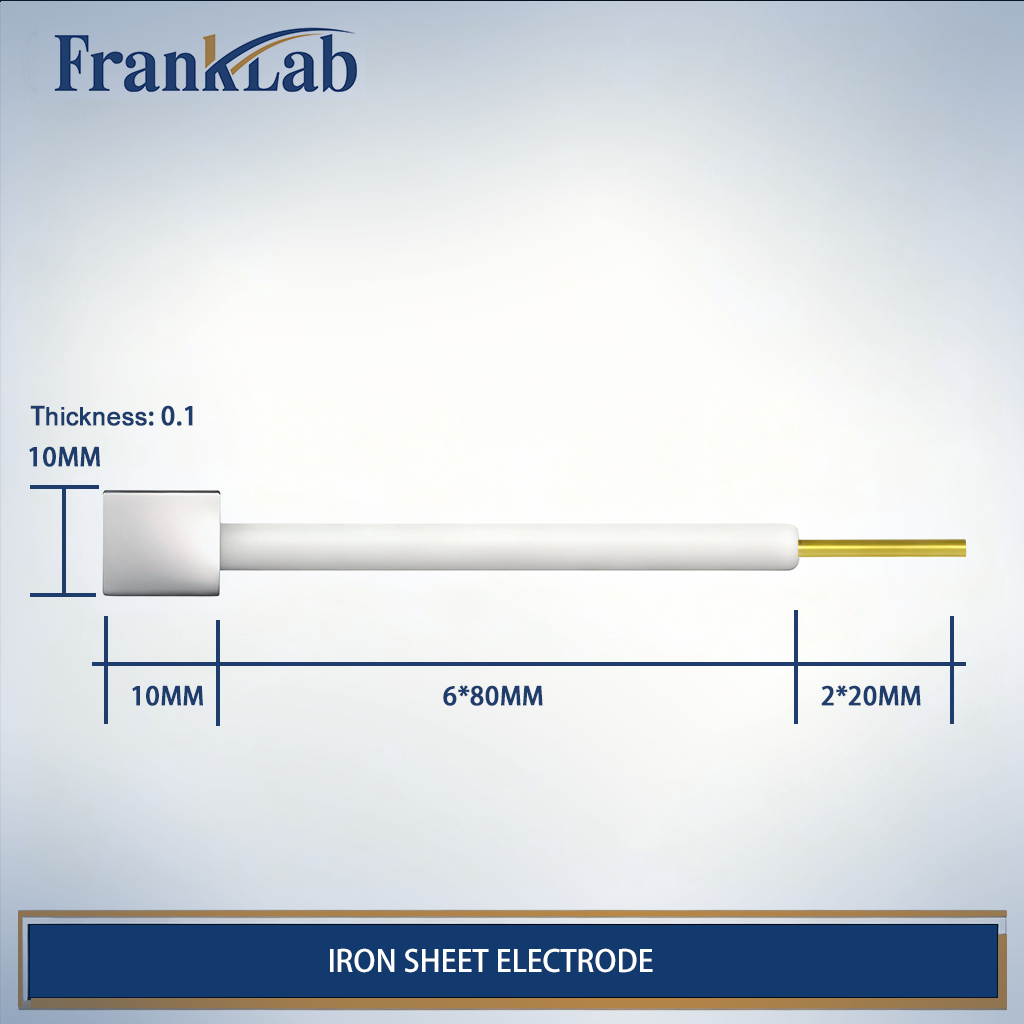

Standard Sizes (Iron Sheet Electrode)
(Length × Width × Thickness — fully customizable)
Small Format
•10 × 10 × 0.5 mm
•10 × 20 × 0.5 mm
•10 × 10 × 1 mm
•10 × 20 × 1 mm
Medium Format
•20 × 20 × 1 mm
•20 × 30 × 1 mm
•25 × 25 × 1 mm
Large Format
•30 × 30 × 1–2 mm
•40 × 40 × 1–2 mm
•50 × 50 × 1–2 mm
Custom machining and larger sheets available.

Recommended Applications
Corrosion Science
•Uniform corrosion rate measurements
•Pitting, passivation & breakdown studies
•Iron oxide/hydroxide layer formation
Electrocatalysis
•Fe-based catalysts (OER, HER, ORR in alkaline)
•Iron surface activation and modification
Battery & Energy Materials
•Fe-based electrode reactions
•Iron-air battery components
•Fe deposition/dissolution cycles
General Electrochemical Studies
•CV, LSV, EIS
•Iron oxidation/reduction kinetics
•Model substrate for coating and film growth

Customization Available
FrankLab supports full OEM fabrication:
•Dimensions from 5 mm to 300 mm
•Thickness from 0.05 mm to 5 mm
•CNC cutting, drilling, shaping
•Edges rounded or chamfered
•Polished, mirror-finished, or sanded surfaces
•Pre-cleaned packages for immediate electrochemical use
Submit your drawing or parameters for a 24-hour quotation.
