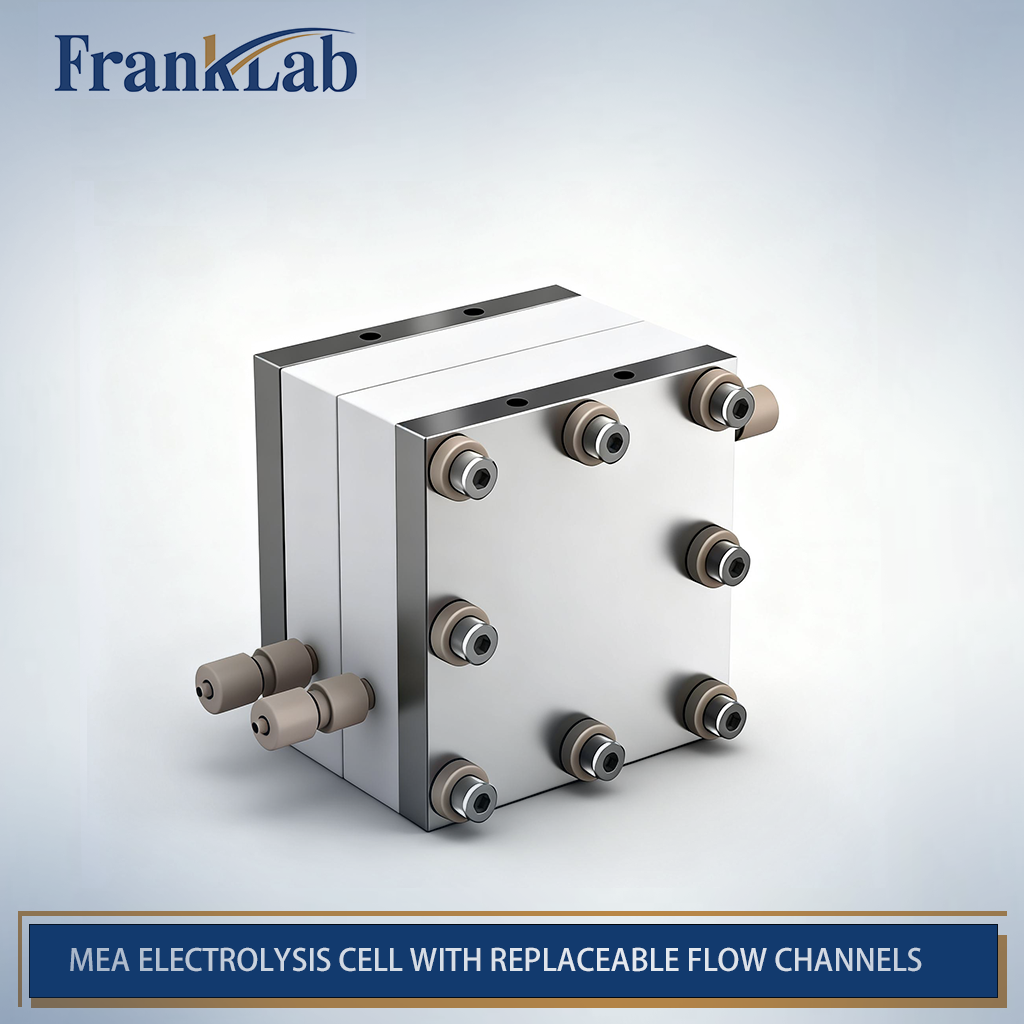

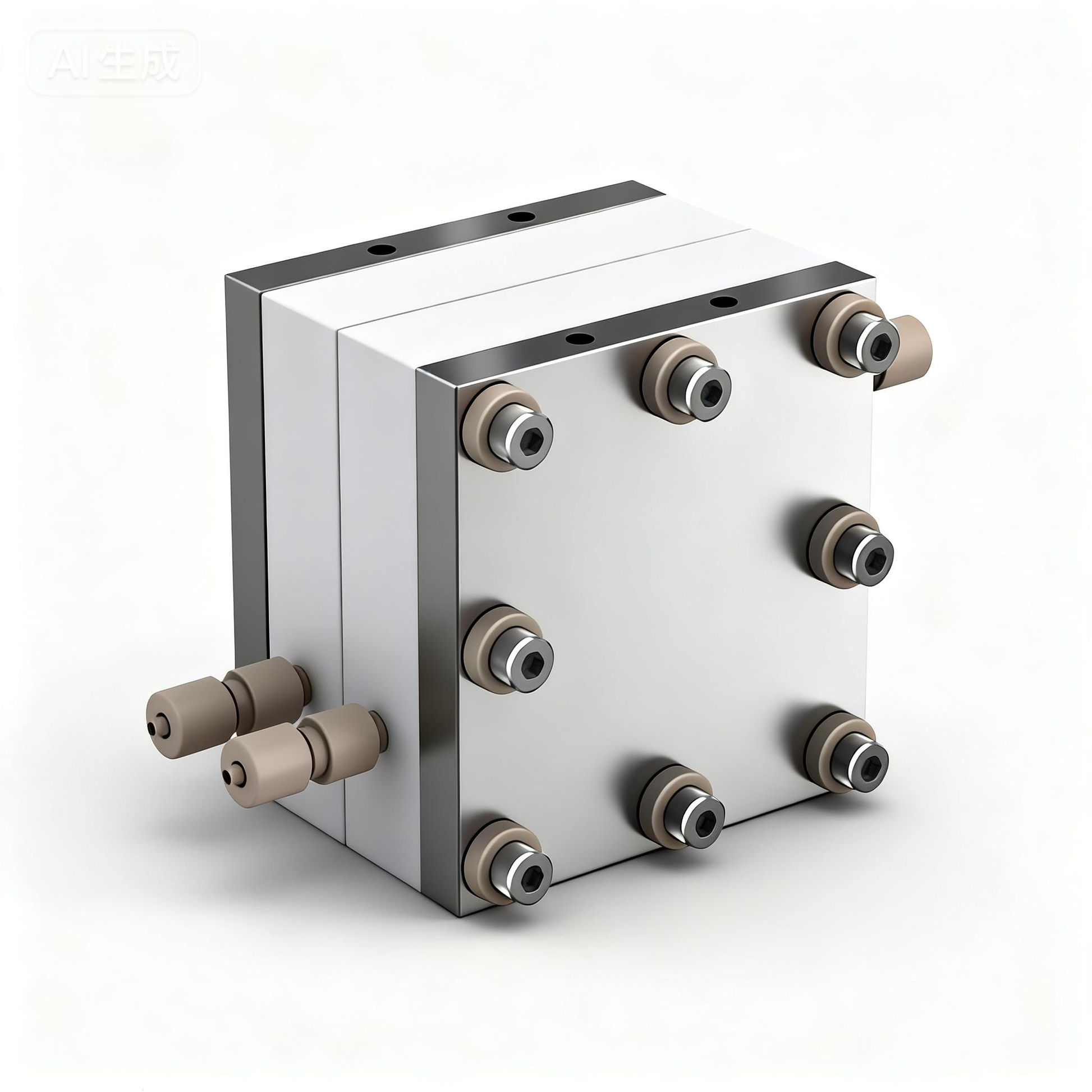

MEA Electrolysis Cell with Replaceable Flow Channels
Overview The MEA Electrolysis Cell with Replaceable Flow Channels is designed for flexible and precise electrochemical research. By allowing quick replacement of flow-field plates, the cell enables systematic studies of mass transport, pressure drop, and reaction kinetics under different channel geometries and thicknesses.
Key Features

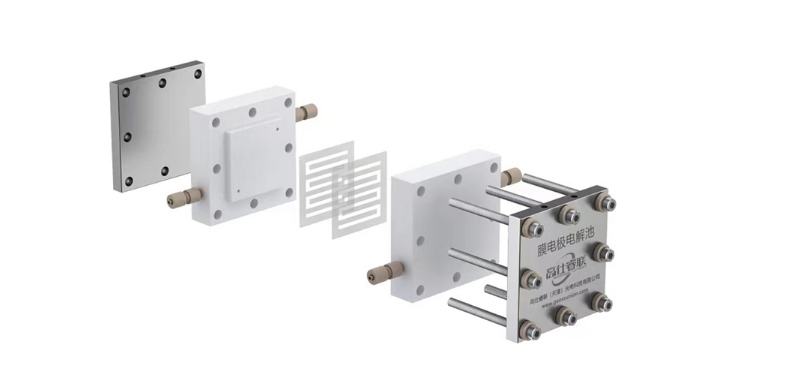

•Replaceable Flow Channels: Standard serpentine flow field; other patterns can be customized.
•Adjustable Channel Thickness: Replaceable channel plates with thickness starting from 0.1 mm, selectable according to experimental requirements.
•MEA Configuration: Compatible with various membrane electrode assemblies for electrolysis, CO₂ reduction, and related electrochemical studies.
•Robust Sealing: High-quality gaskets ensure reliable sealing during operation and repeated disassembly.
•Research Flexibility: Ideal for parameter screening, flow-field optimization, and comparative studies.
Typical Applications
•Water electrolysis
•CO₂ electroreduction
•Electrocatalysis and MEA performance evaluation
•Flow-field and mass-transport studies
