Mercury Sulfate Electrode/ Hg/Hg₂SO₄, Acidic

Mercury Sulfate Electrode/ Hg/Hg₂SO₄, Acidic

Product Description
Shipping & Delivery

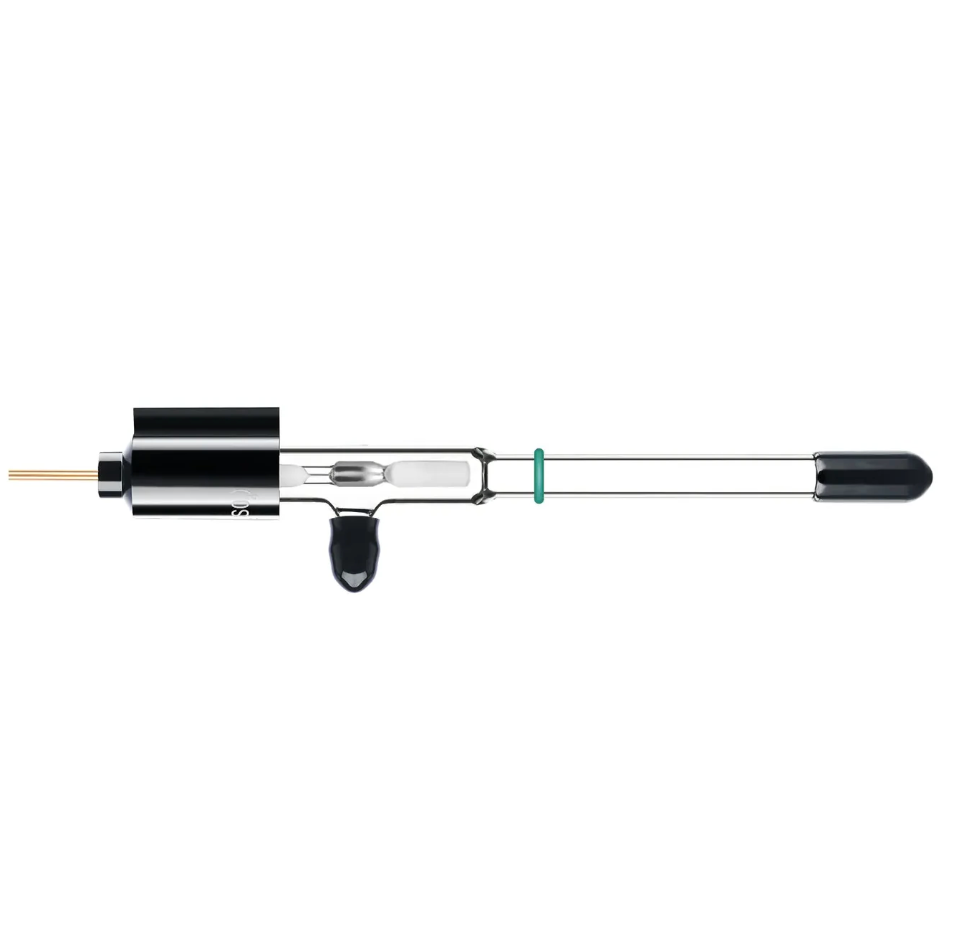

Mercury Sulfate Reference Electrode (Hg/Hg₂SO₄) | FrankLab

High-Stability, Chloride-Free Reference Electrode for Sensitive Aqueous Electrochemistry High Borosilicate Glass Body + Full Customization Available

Mercury Sulfate Electrode (Hg/Hg₂SO₄) | FrankLab

A chloride-free, highly stable aqueous reference electrode widely used in sulfate-containing electrolytes, acidic media, metal dissolution studies, corrosion testing, and environments where chloride contamination must be strictly avoided.
The FrankLab Mercury Sulfate Electrode provides a well-defined reference potential, excellent long-term stability, and superior chemical compatibility, built with a durable high borosilicate glass body and a corrosion-resistant PTFE head.

Key Features

• Chloride-Free Reference System

The Hg/Hg₂SO₄ redox couple does not involve chloride ions, making it ideal for systems where chloride must be avoided, such as:
•Metal dissolution and deposition studies
•Corrosion measurements in sulfate electrolytes
•Acidic electrocatalysis
•Battery or redox chemistry sensitive to chloride interference
Reference potential (25°C): +0.640 V vs. NHE (in saturated K₂SO₄) (FrankLab offers multiple concentration options.)

• High Borosilicate Glass Construction

All FrankLab glass electrodes are made from premium high borosilicate glass, offering:
•Excellent thermal shock resistance
•Strong chemical durability in acidic sulfate solutions
•Smooth, low-contamination surfaces
•Long-term structural stability for repeated laboratory use

• Stable & Low-Drift Potential

The mercury sulfate system exhibits:
•Highly reproducible potential
•Low drift during long-term measurements
•Reliable baseline for CV, LSV, and EIS
Ideal for kinetic studies, mechanistic research, and multi-hour corrosion tests.

• Low Leakage Junction

Available with ceramic or PTFE junctions:
•Minimal electrolyte contamination
•Reduced junction potential
•Improved performance in low-ionic-strength sulfate systems

Technical Specifications

Parameter Value
Type Mercury Sulfate Reference Electrode
Reference System Hg/Hg₂SO₄
Internal Electrolyte K₂SO₄ (various concentrations available)
Reference Potential ~ +0.640 V vs. NHE (sat. K₂SO₄, 25°C)
Body Material High Borosilicate Glass
Cap Material PTFE
Junction Ceramic or PTFE

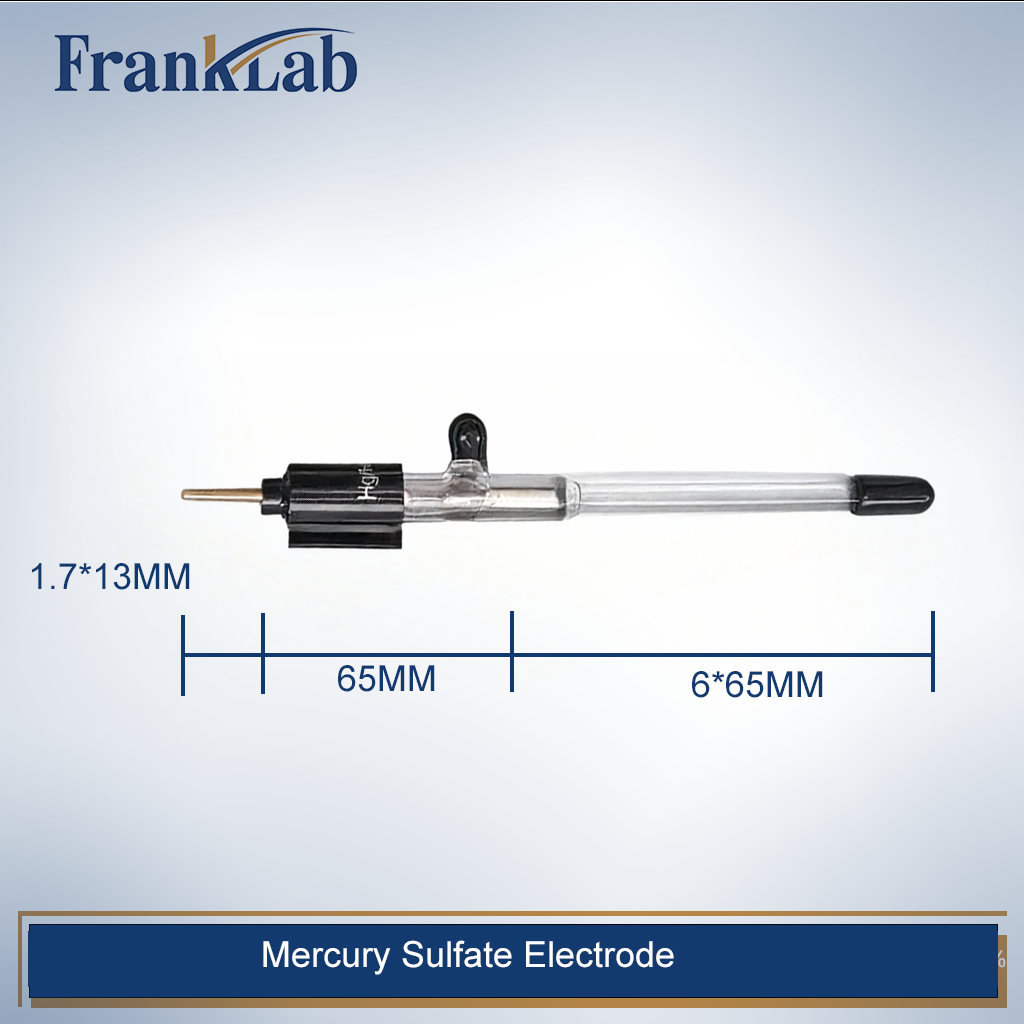

Length 65–120 mm (model dependent)
Diameter ~6–9 mm
Temperature Range 0–50°C
Storage Solution K₂SO₄
Expected Lifetime 6–12 months

Recommended Applications

•Corrosion and passivation studies
•Sulfate-based electrolyte systems
•Acidic electrocatalysis (HER, ORR, metal redox)
•Metal dissolution and deposition kinetics
•Electrochemical analysis without chloride interference
•Environmental and geochemical research
The Hg/Hg₂SO₄ electrode is the preferred reference when chloride must be excluded or carefully controlled.

Customization Available (Fully Customizable by FrankLab)

FrankLab supports full customization to match specialized research environments.

Customizable Options

•Electrode length & diameter
•Junction material（ceramic / PTFE / ultra-low-leakage）
•Internal K₂SO₄ concentration（saturated / 1 M / 0.5 M / custom）
•Intermediate chamber（for double-junction builds）
•Bent or angled geometry（30°–120°）
•Narrow-tip or microcell-compatible designs
•Special adapters for H-type, PEC, flow cells, and sealed reactors
•Salt-bridge compatible configurations
FrankLab will deliver a recommended design + quotation within 24 hours.
