Micro Sealed Electrochemical Cell /10ml

 Product Overview

The FrankLab 10 mL Micro Sealed Electrochemical Cell is a compact, fully enclosed reaction vessel engineered for high-precision electrochemical experiments where small volume, airtight operation, and flexible electrode configuration are required.

This microcell is ideal for CO₂RR, ORR, HER/OER, electrosynthesis, and studies involving air-sensitive or volatile electrolytes.

Two configurations are available:

· Standard Version
Designed for routine 3-electrode experiments.

· Upgraded Version
Adds a gas sparging tube and sampling port, enabling gas-phase reactions, in-situ monitoring, and improved mass transfer control.

Product Versions

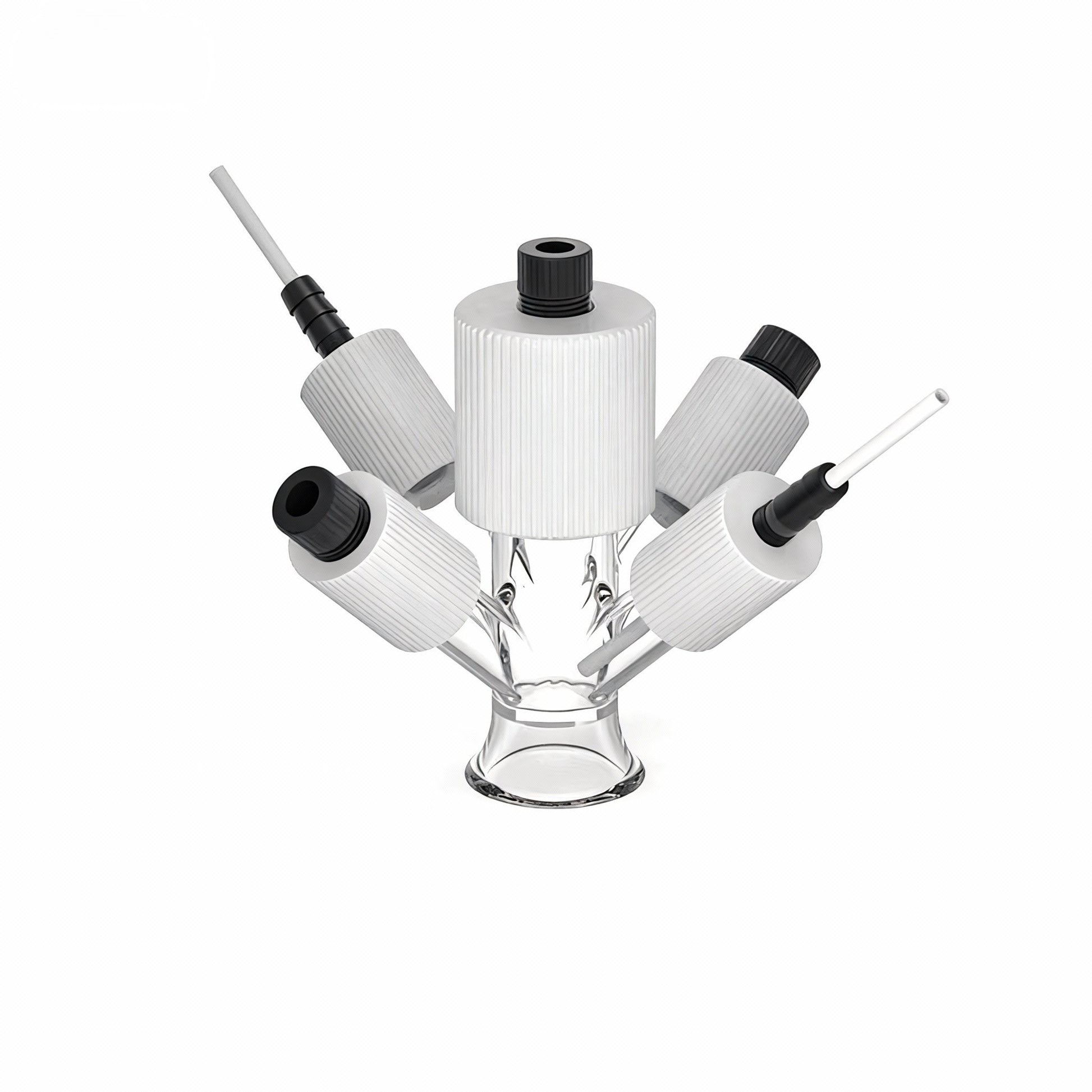

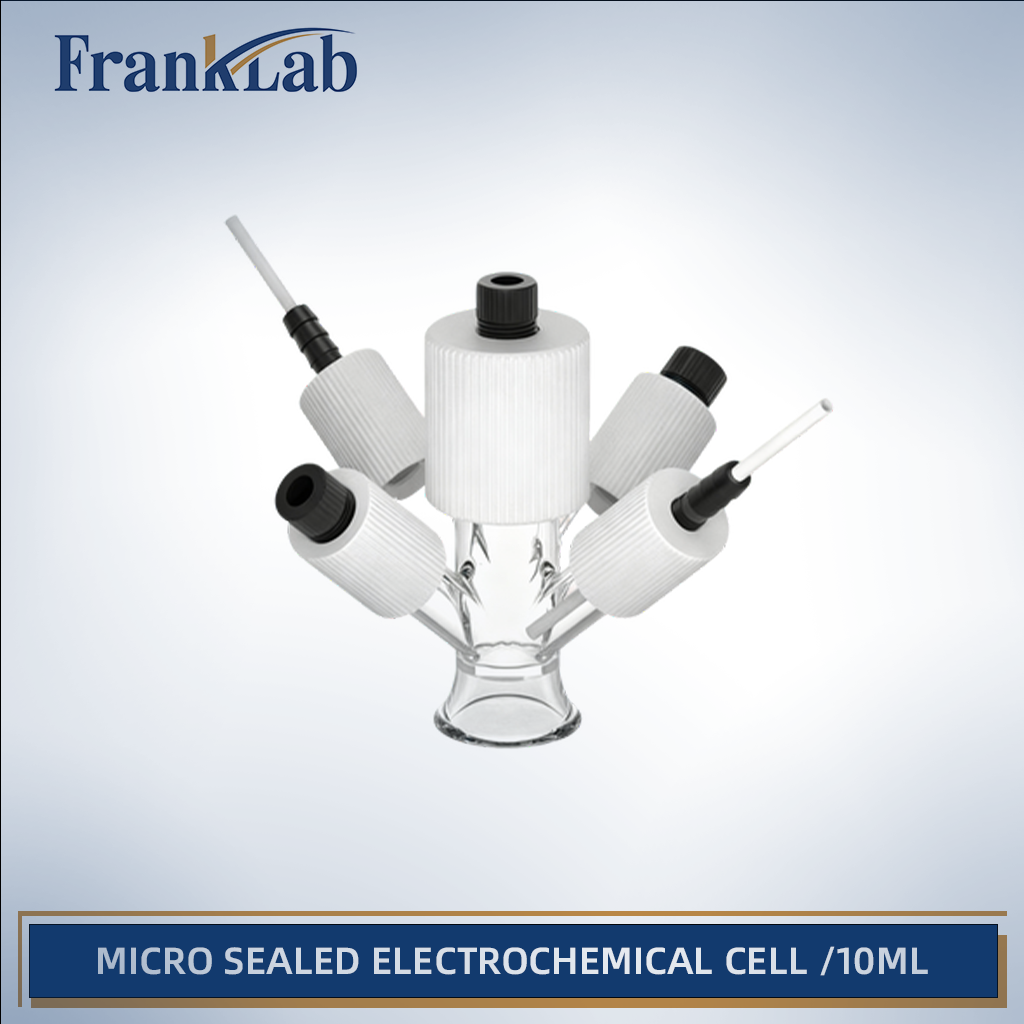

1) Standard Version (Three-Electrode Demo Shown)

· 3–5 functional ports

· For working / counter / reference electrodes

· Gas-tight PTFE threaded stoppers

· Suitable for general electrochemical measurements

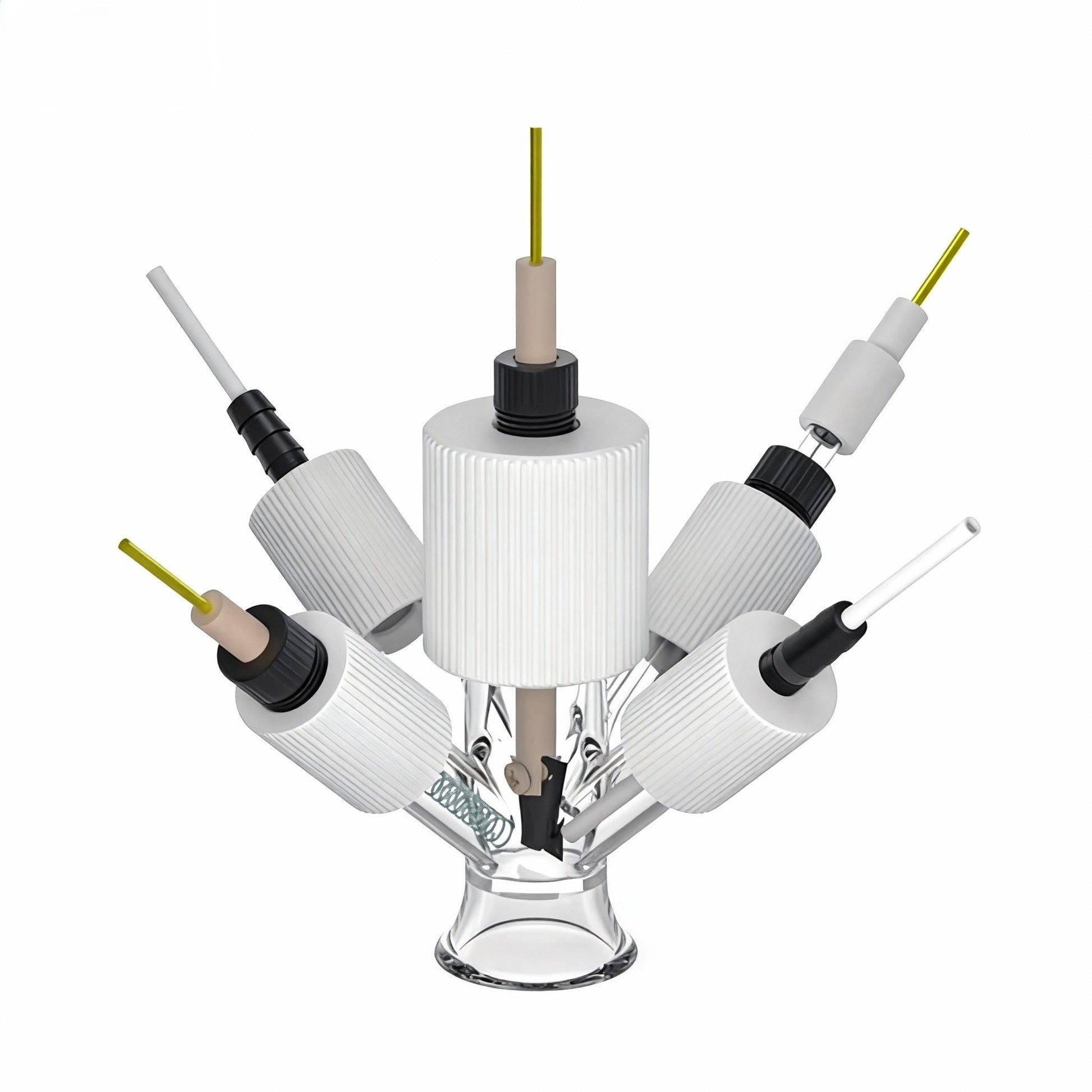

· Shown image includes electrodes for demonstration; electrodes sold separately

✔ Best choice for daily testing and catalyst evaluation

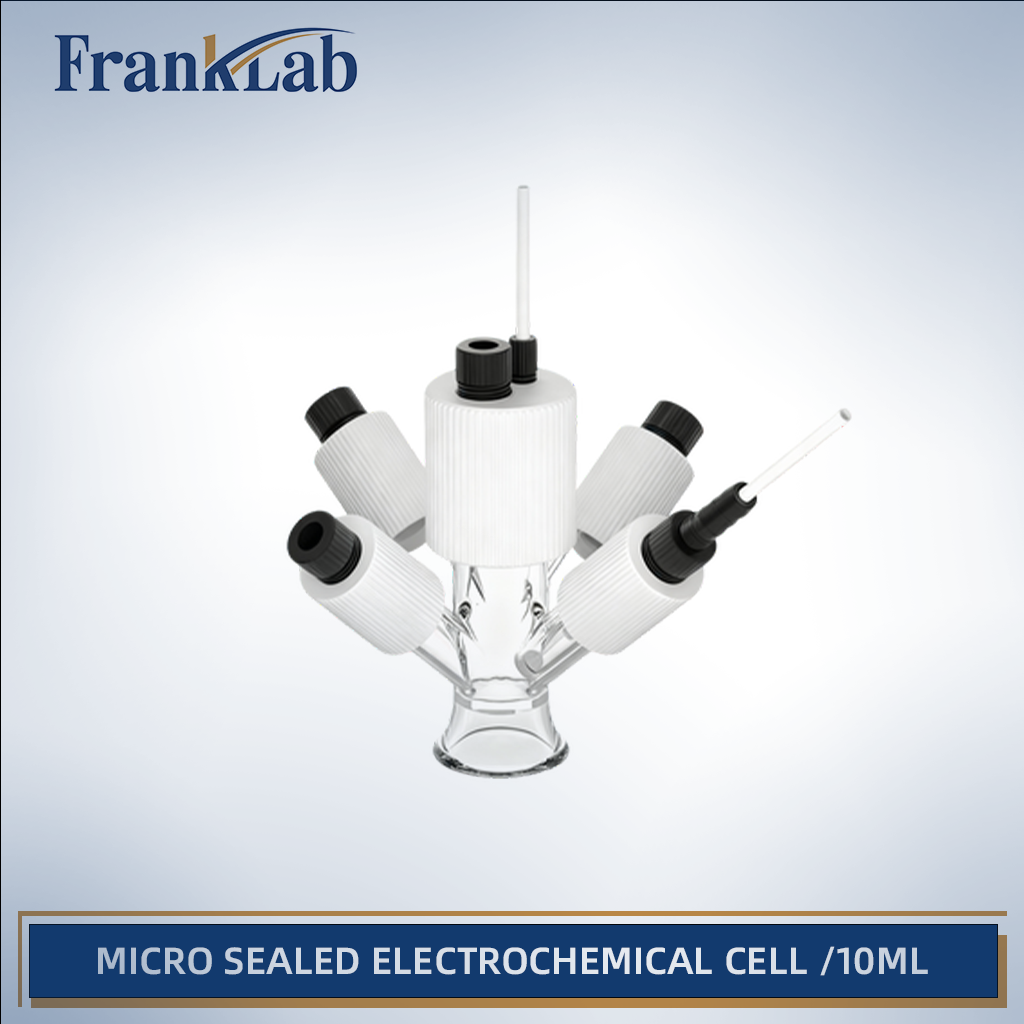

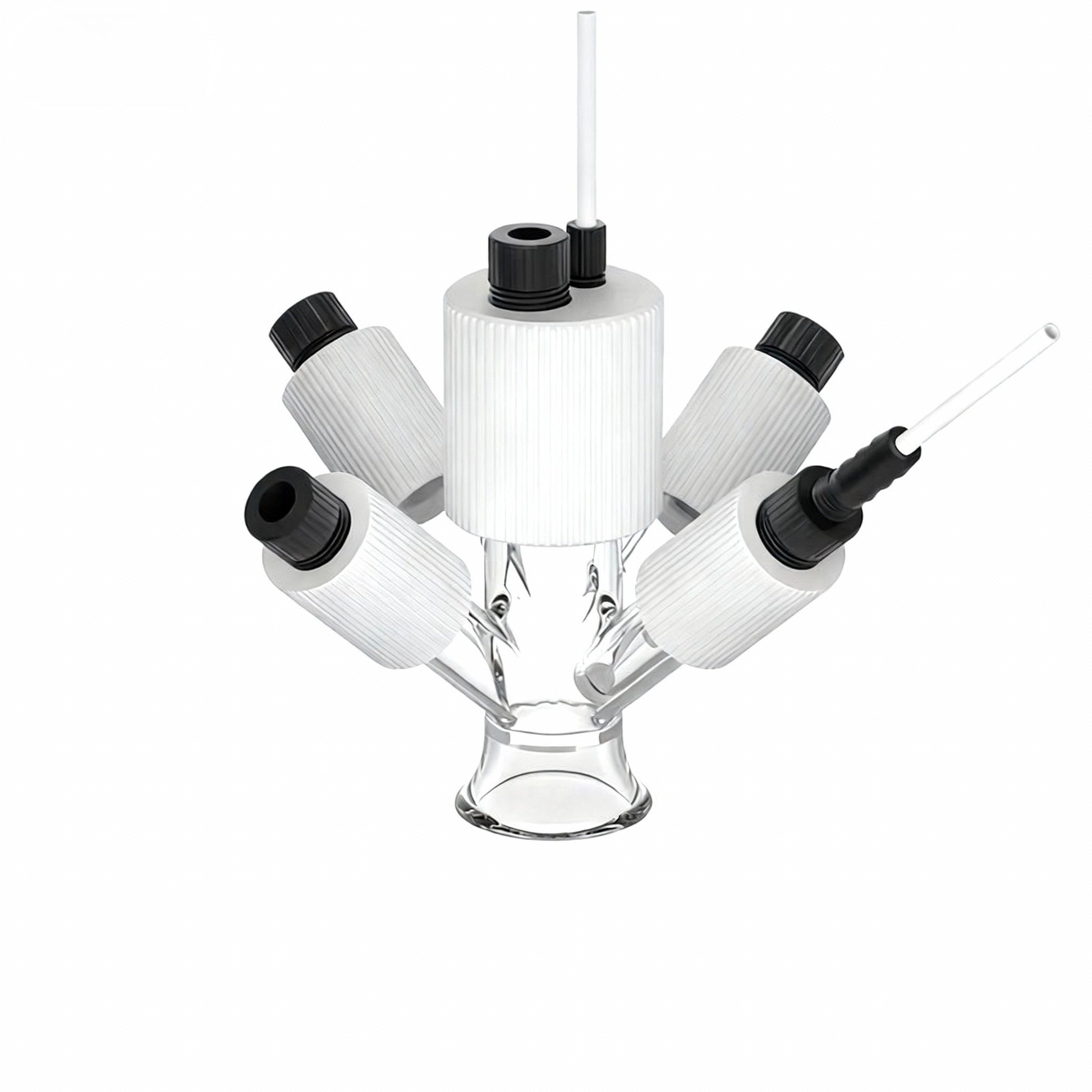

2) Upgraded Version (Gas Tube + Sampling Port Added)

Includes everything in the Standard Version, plus:

· Integrated gas inlet tube for bubbling (Ar/N₂/CO₂)

· Additional sampling / injection port

· Allows real-time intermediate analysis

· Supports precision gas–liquid electrochemistry

✔ Best choice for CO₂RR, ORR, NRR, electrosynthesis, kinetic studies

Technical Specifications

Key Features

·  Micro-Volume, High Sensitivity

Small internal volume reduces electrolyte cost, increases signal-to-noise ratio, and enables studies with rare or expensive catalysts.

·  Multi-Port Gas-Tight System

Each port seals independently, supporting:

· Inert gas purging

· Closed-system electrolysis

· Moisture-sensitive reactions

· In-situ sampling (Upgraded Version)

• Full Three-Electrode Support

Compatible with:

· Working electrode (GC / Pt / Au / metal disks or rods)

· Counter electrode (Pt wire / mesh)

· Reference electrode (Ag/AgCl / Hg/HgO / SCE)

Customizable to Your Workflow

Thread formats, port size, stopper materials, and gas accessories can all be customized.

Applications

· CO₂ Reduction Reaction (CO₂RR)

· Oxygen Reduction Reaction (ORR)

· HER / OER electrocatalysis

· Electro-organic synthesis

· Air-sensitive electrochemistry

· Gas bubbling + sampling experiments (Upgraded Version)

Differences Between Standard & Upgraded Versions

Customization Options

Available upon request:

· Quartz body (UV/Vis photoelectrochemistry)

· Port angle modification

· Additional sparging or sampling ports

· Electrode holders (PEEK/PTFE)

· Magnetic stirring integration

· Pressure-resistant lid (low-pressure sealing)

For Custom Orders or Inquiries

If you have custom requirements or any additional questions, feel free to contact us:

Email: support@franklab.shop

Why Choose FrankLab?

FrankLab electrochemical cells are designed by electrochemists, for electrochemists. Our focus is on:

•Clean geometry

•Chemical reliability

•Experimental reproducibility

•Compatibility with real research workflows

Used by universities, national labs, and industrial R&D teams worldwide.
