Multifunctional In-Situ Electrochemical Cell

Multifunctional In-Situ Electrochemical Cell

Product Description
Shipping & Delivery
Product Overview

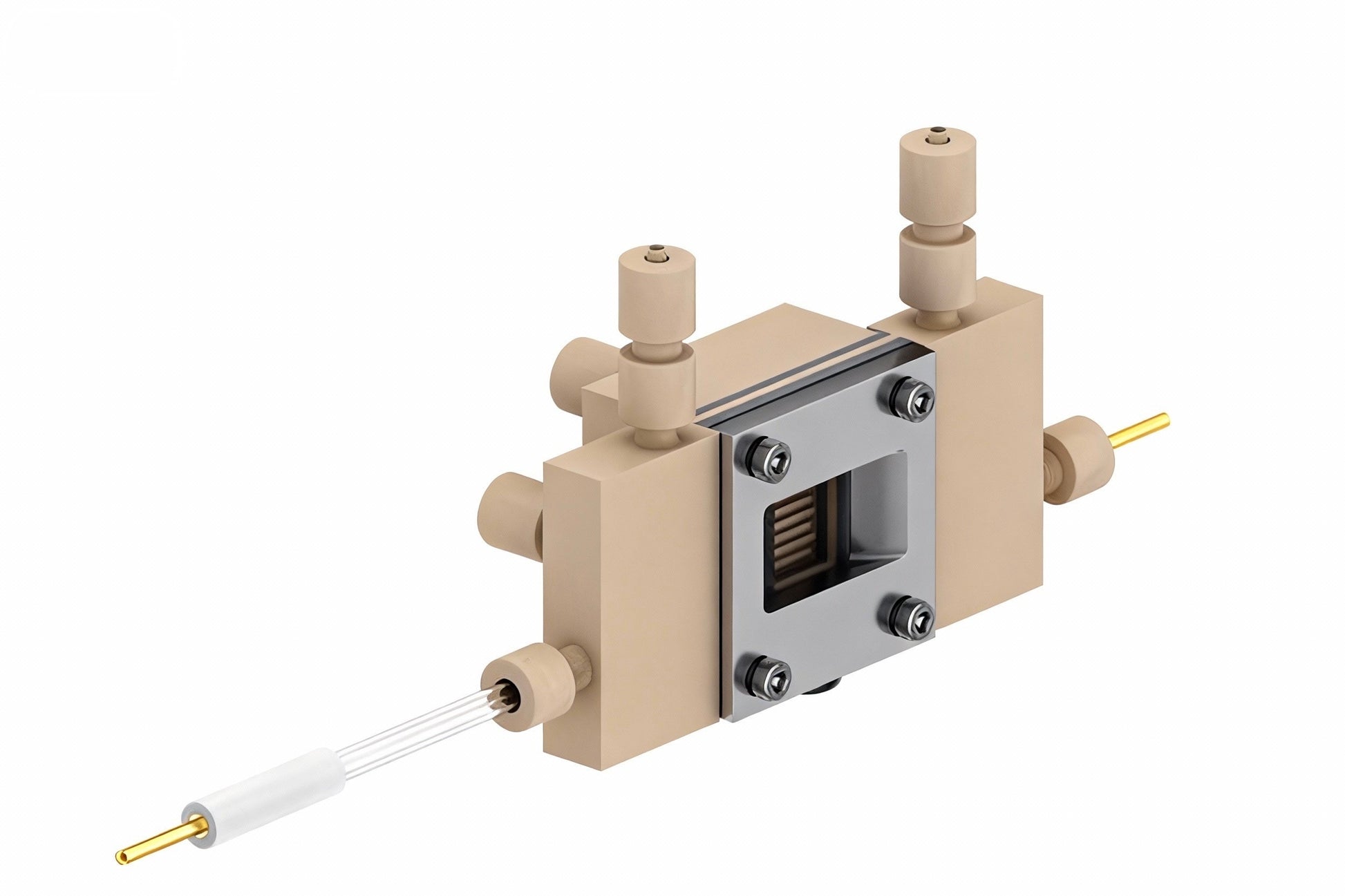

The Multifunctional In-Situ Electrochemical Flow Cell is a research-grade, modular electrochemical platform engineered for real-time electrochemical, spectroscopic, and structural characterization under controlled flow conditions.
Designed around a replaceable front-window architecture and a serpentine flow channel, this cell allows researchers to seamlessly switch between Raman, UV–Vis, XRD, XAFS, and optical microscopy without redesigning the electrochemical core.
Unlike conventional fixed-window cells, this platform decouples electrochemical functionality from optical interface selection, enabling one base cell to support multiple in-situ techniques with high reproducibility.

Core Architecture
Modular Flow-Cell Design
•Electrolyte enters the chamber via the reference electrode inlet
•Flows across the working electrode surface
•Exits through the counter electrode outlet
•Forms a closed, well-defined flow loop with minimal dead volume
Serpentine Flow Field
•Channel size: 15 × 15 mm
•Channel depth: 1.2 mm
•Enhances mass transport and residence time
•Ideal for kinetics-sensitive reactions and durability tests
Dual Working-Electrode Modes
•Standard planar contact mode
•Gas diffusion electrode (GDE) mode for gas-involved reactions

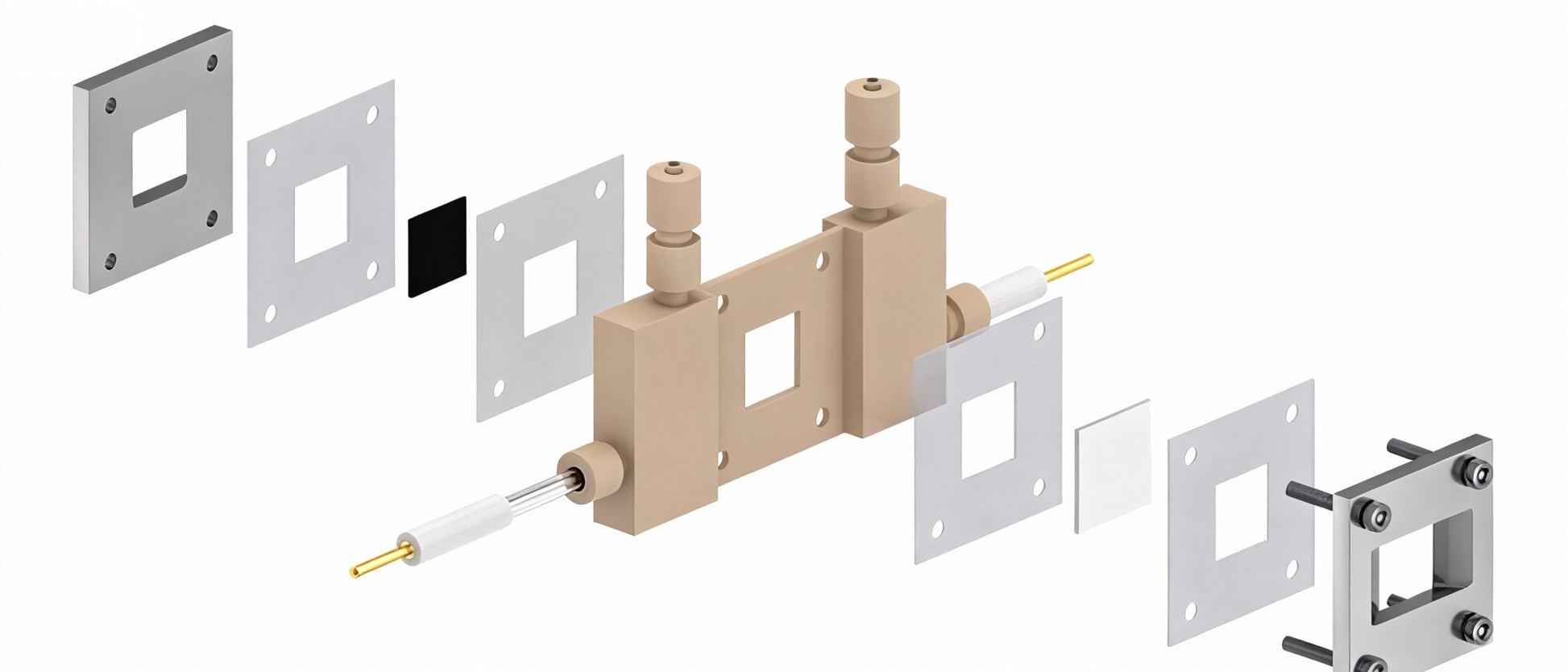

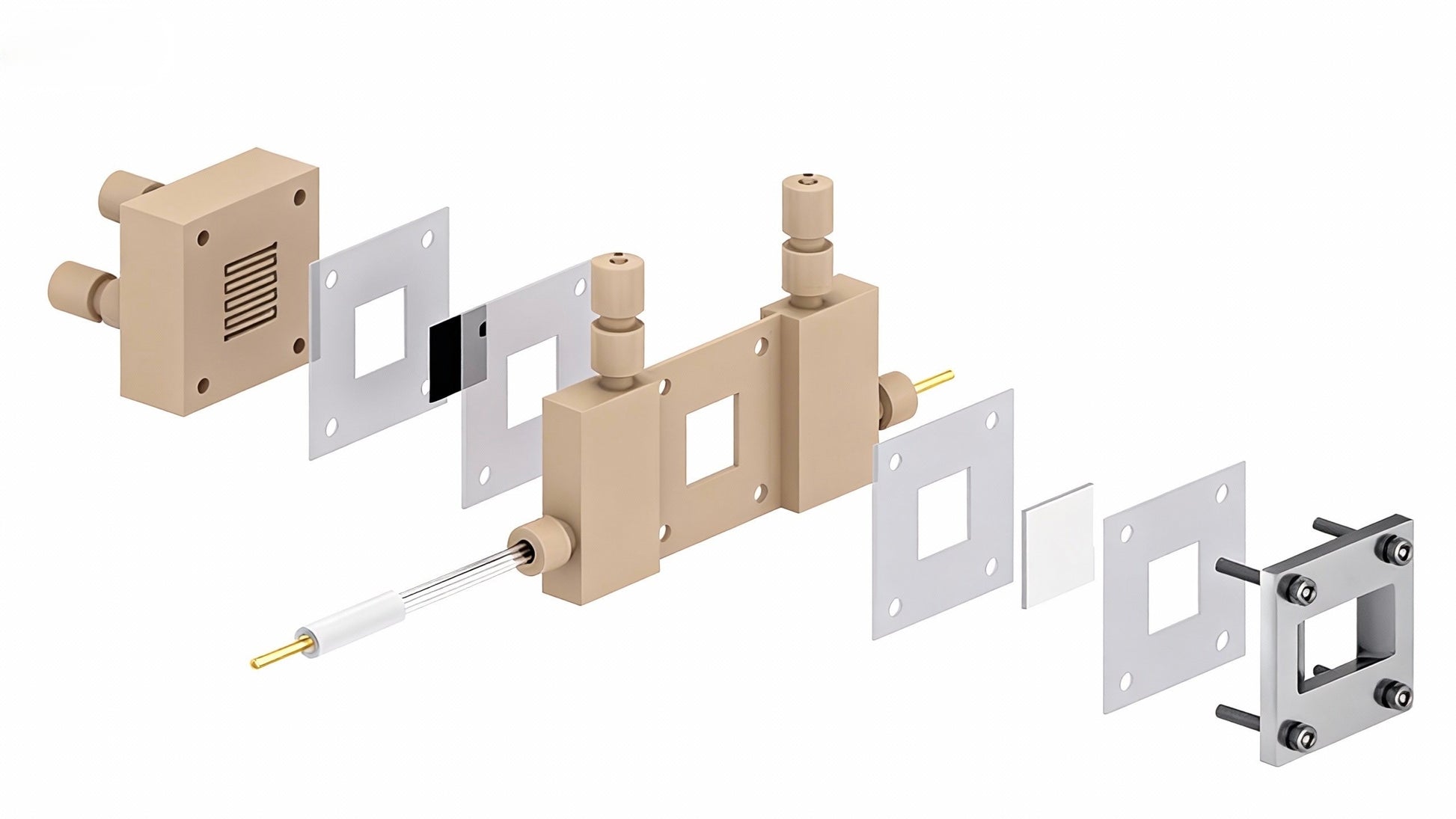

Window-Exchange System (Key Differentiator)
The front observation window is fully replaceable, allowing rapid adaptation to different characterization techniques:
Window Material Application
Quartz Optical imaging, UV–Vis
Sapphire In-situ Raman, UV
Kapton (PI) XAFS
Beryllium (Be) In-situ XRD
✔ No redesign of the electrochemical body required
✔ Maintains identical electrochemical geometry across techniques
✔ Ideal for cross-technique data correlation

Materials & Construction
Component Material
Cell body PEEK (chemically resistant)
Structural reinforcement High-purity titanium
Flow plates Precision-machined metal
Sealing Chemical-resistant gaskets
Fasteners Stainless steel
Designed for rapid assembly / disassembly and easy cleaning, even during frequent window changes.

Electrode Configuration
Working Electrode
•Planar electrodes or gas diffusion electrodes
•Compatible materials: Au, Pt, Ag, GC, graphite, carbon paper, custom substrates
Reference Electrode
•Ag/AgCl or Ag⁺
Counter Electrode
•Platinum wire or graphite rod
All electrodes are positioned to minimize solution resistance (Rₛ) and ensure stable potential control.

Technical Specifications
Parameter Specification
Cell type Multifunctional in-situ flow electrochemical cell
Flow channel depth 1.2 mm
Flow field Serpentine
Active area 15 × 15 mm
Window format Modular, replaceable
Electrolyte mode Continuous flow
Gas compatibility Yes (GDE mode)
Assembly Tool-assisted, modular
Cleaning Fully disassemblable
Typical Applications
•In-situ Raman spectroscopy under flow
•In-situ XRD during electrochemical phase transitions
•XAFS studies with Kapton window
•Gas-involved electrochemistry (CO₂RR, ORR, HER)
•Catalyst stability and degradation studies
•Correlative electrochemistry–spectroscopy workflows

Standard Package Contents
•Electrochemical flow cell body
•Serpentine flow plate
•Modular window frame
•Sealing gaskets
•Electrode ports and fittings
(Windows, electrodes, membranes selected according to experiment and supplied separately or as configured kits)

For Custom Orders or Inquiries

If you have custom requirements or any additional questions, feel free to contact us:

Email: support@franklab.shop
