H-Type Replaceable Membrane Electrolyzer [Sealed/ Non-Sealed]

Product Description
Shipping & Delivery
Product Overview
The FrankLab H-Type Replaceable Membrane Electrolyzer is a modular, dual-chamber electrochemical reactor designed for membrane-separated electrolysis, electrocatalysis, and gas-involved electrochemical studies.
Featuring a classic H-type configuration with a replaceable ion-exchange membrane, this system enables strict separation of anodic and cathodic environments while maintaining excellent chemical compatibility and experimental reproducibility.
Both non-sealed and fully sealed versions are available, allowing users to select the optimal configuration based on gas control, pressure requirements, and experimental complexity.
This electrolyzer is widely used in water electrolysis, CO₂ reduction, nitrogen reduction, redox mediator studies, and fundamental electrochemical mechanism research.

Cell Configuration

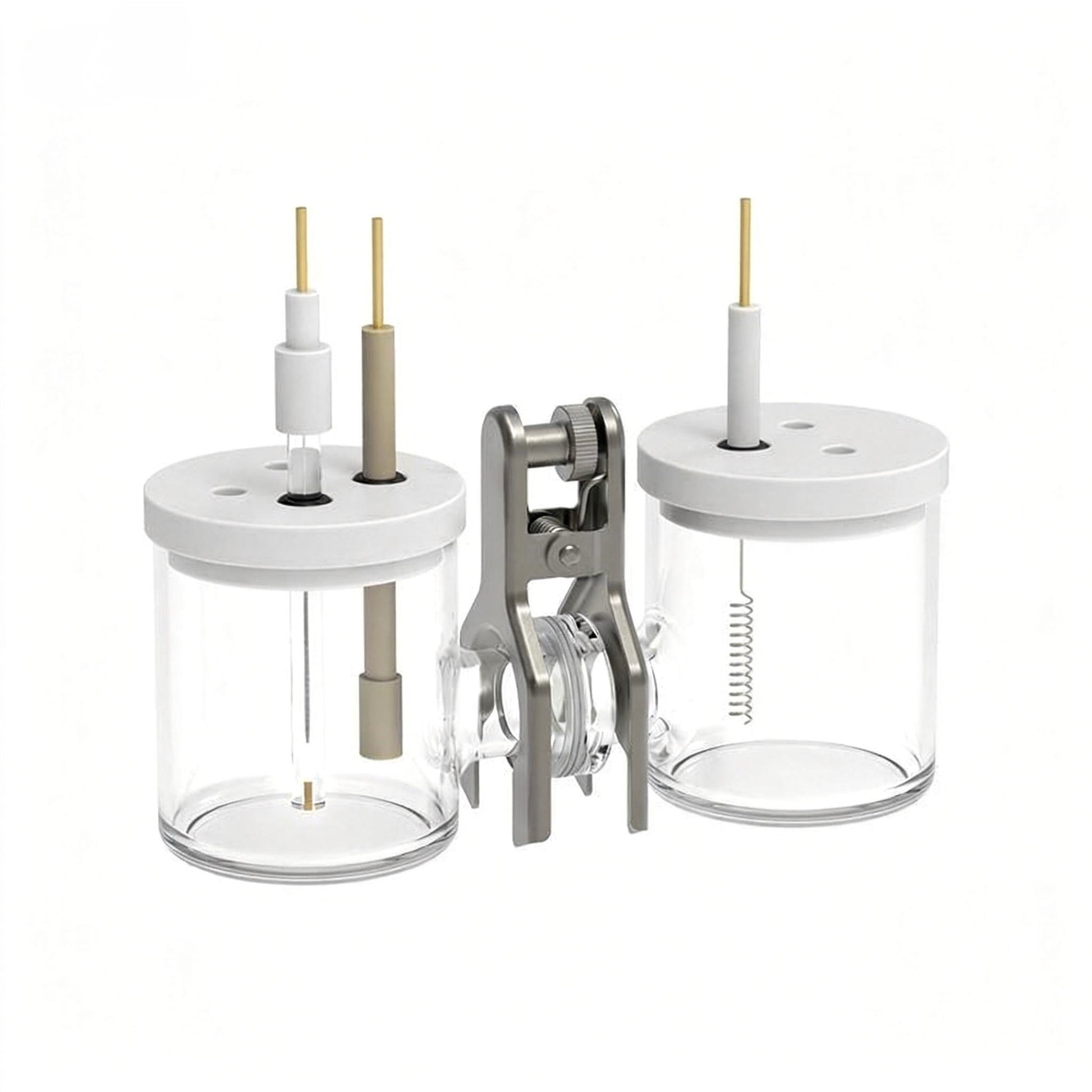

H-Type Dual Chamber Structure
•Two symmetric reaction chambers (anode / cathode)
• Central flat membrane clamping interface
• Independent electrolyte environments
• Classic H-type geometry for clear half-reaction separation
Ideal for membrane-dependent electrochemical systems and crossover-sensitive reactions

Structure Options

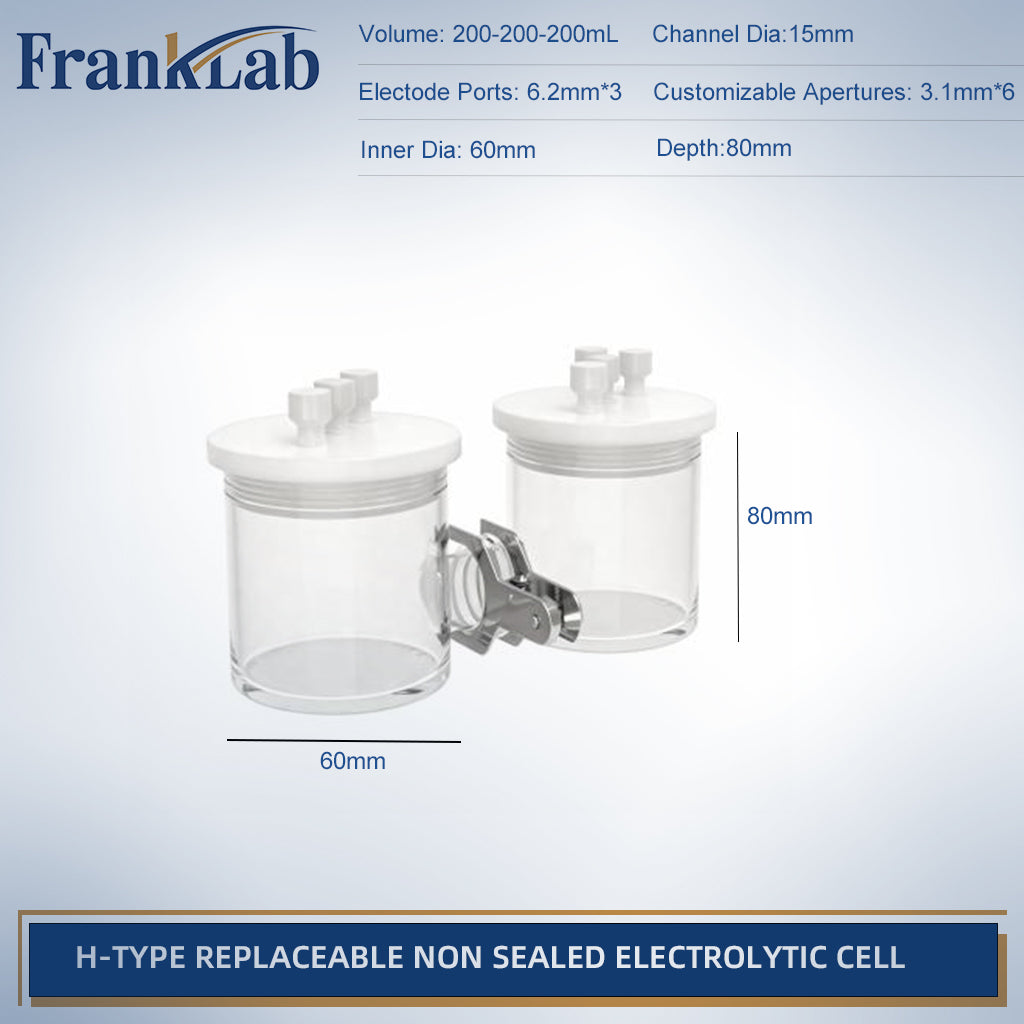

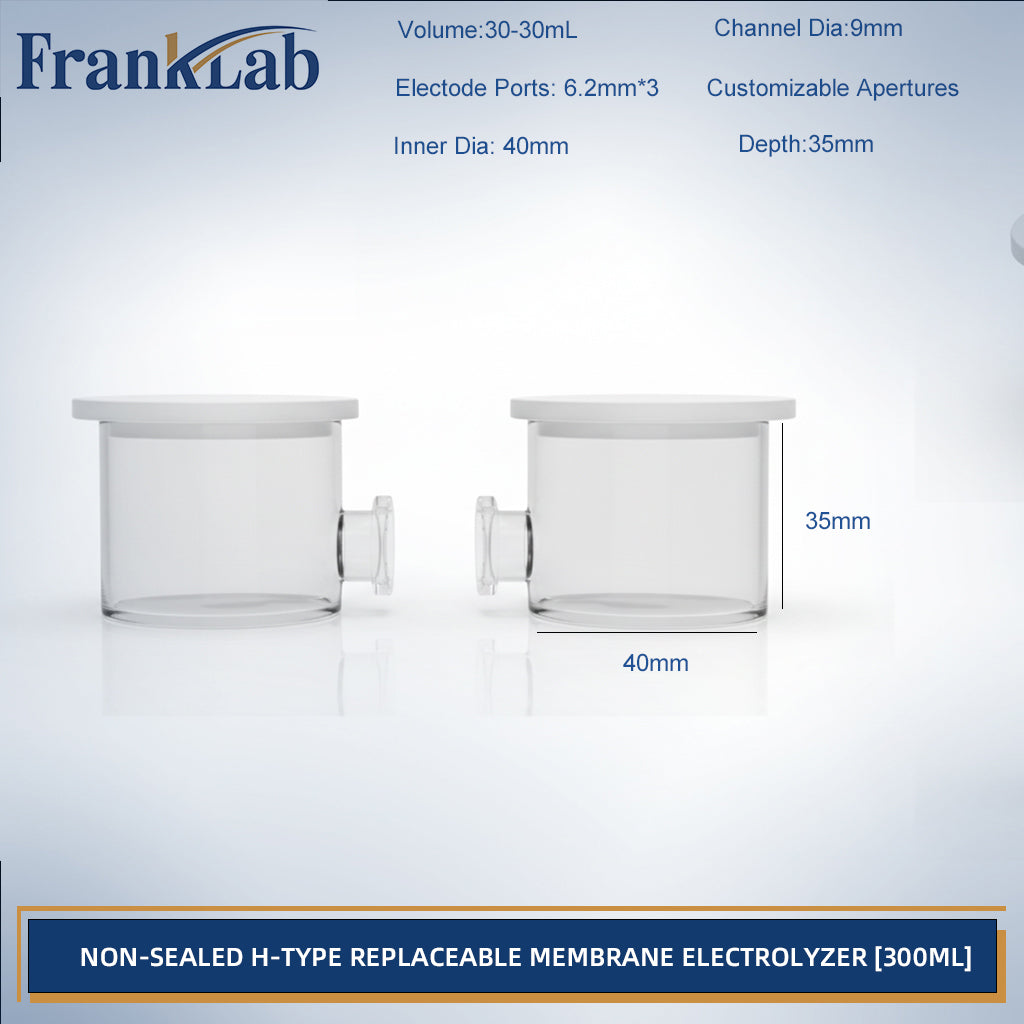

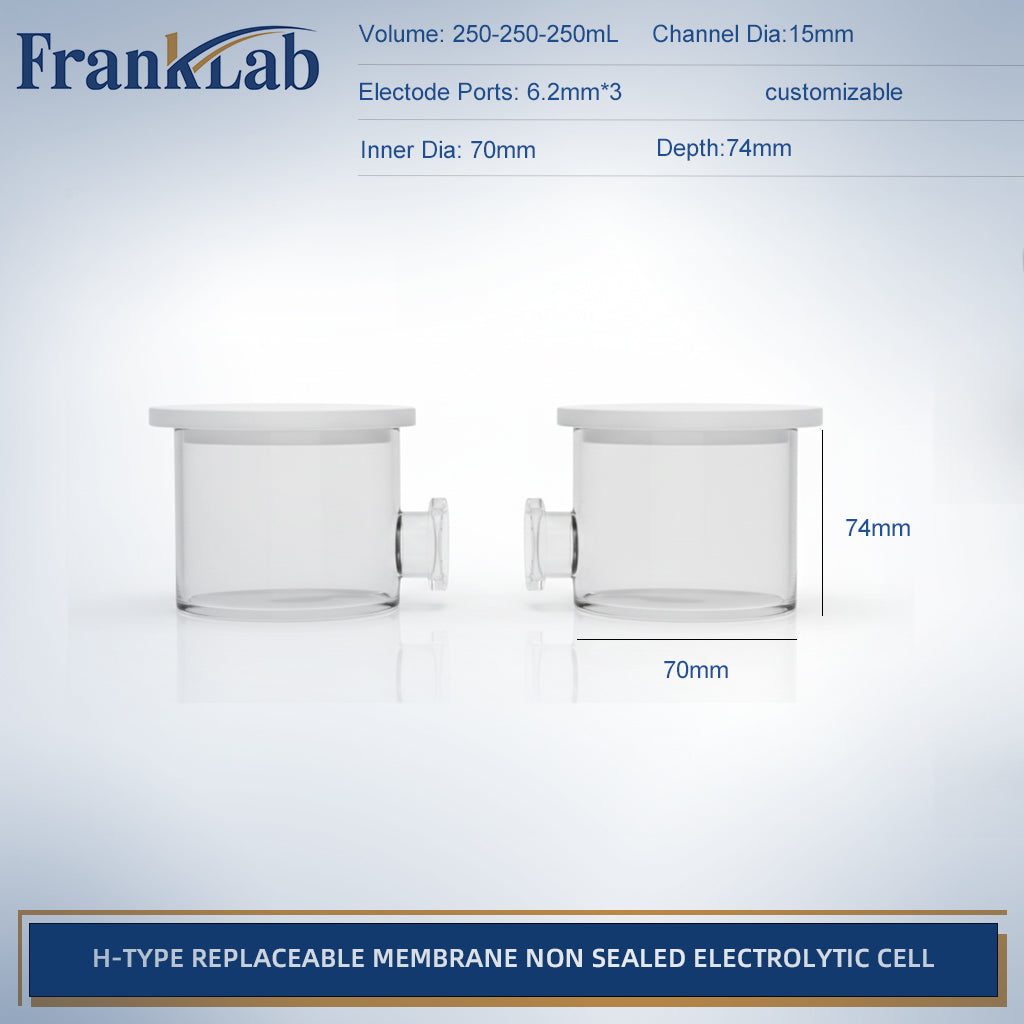

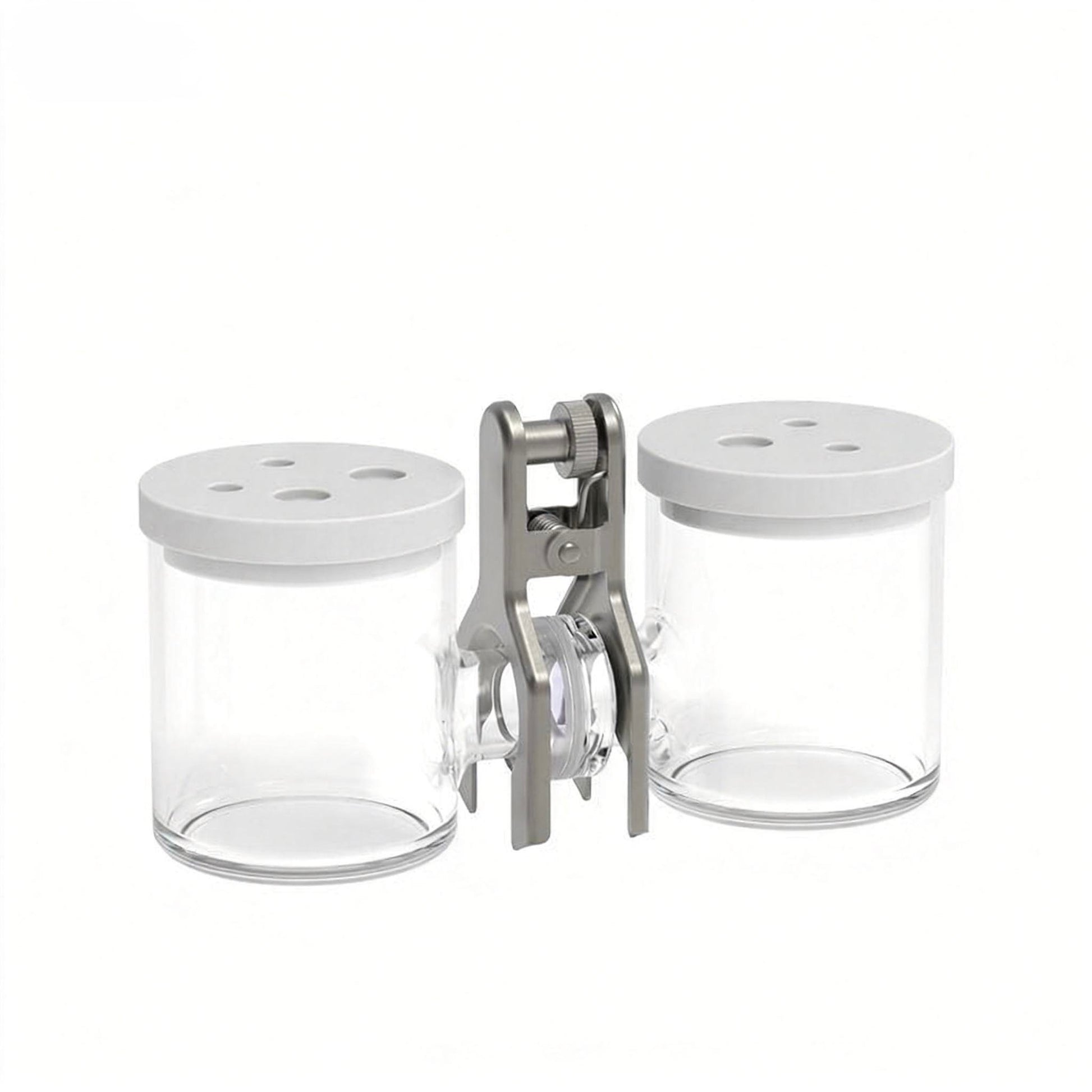

Non-Sealed Version
• Open structure (no gas-tight sealing)
• Simple assembly and operation
• Suitable for liquid-phase electrolysis and basic electrochemical studies
Recommended for routine lab experiments and teaching use

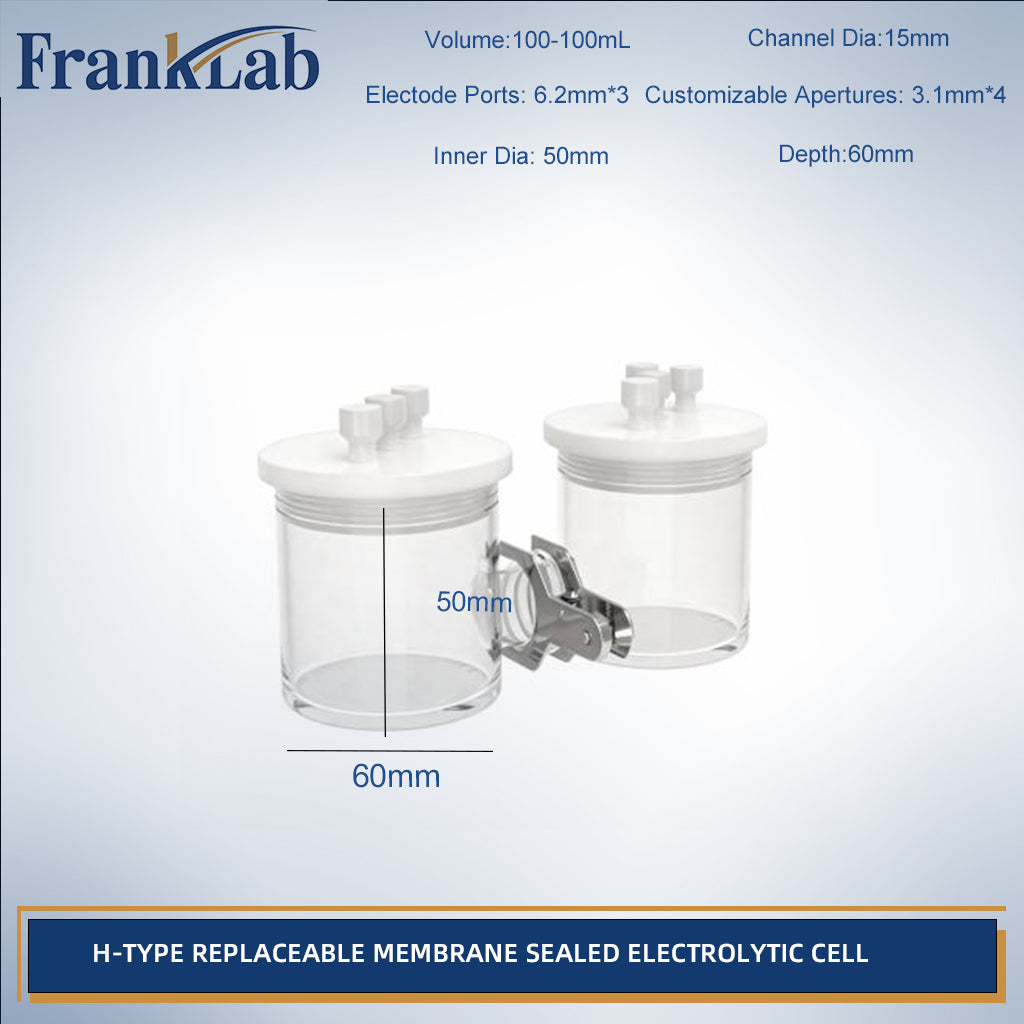

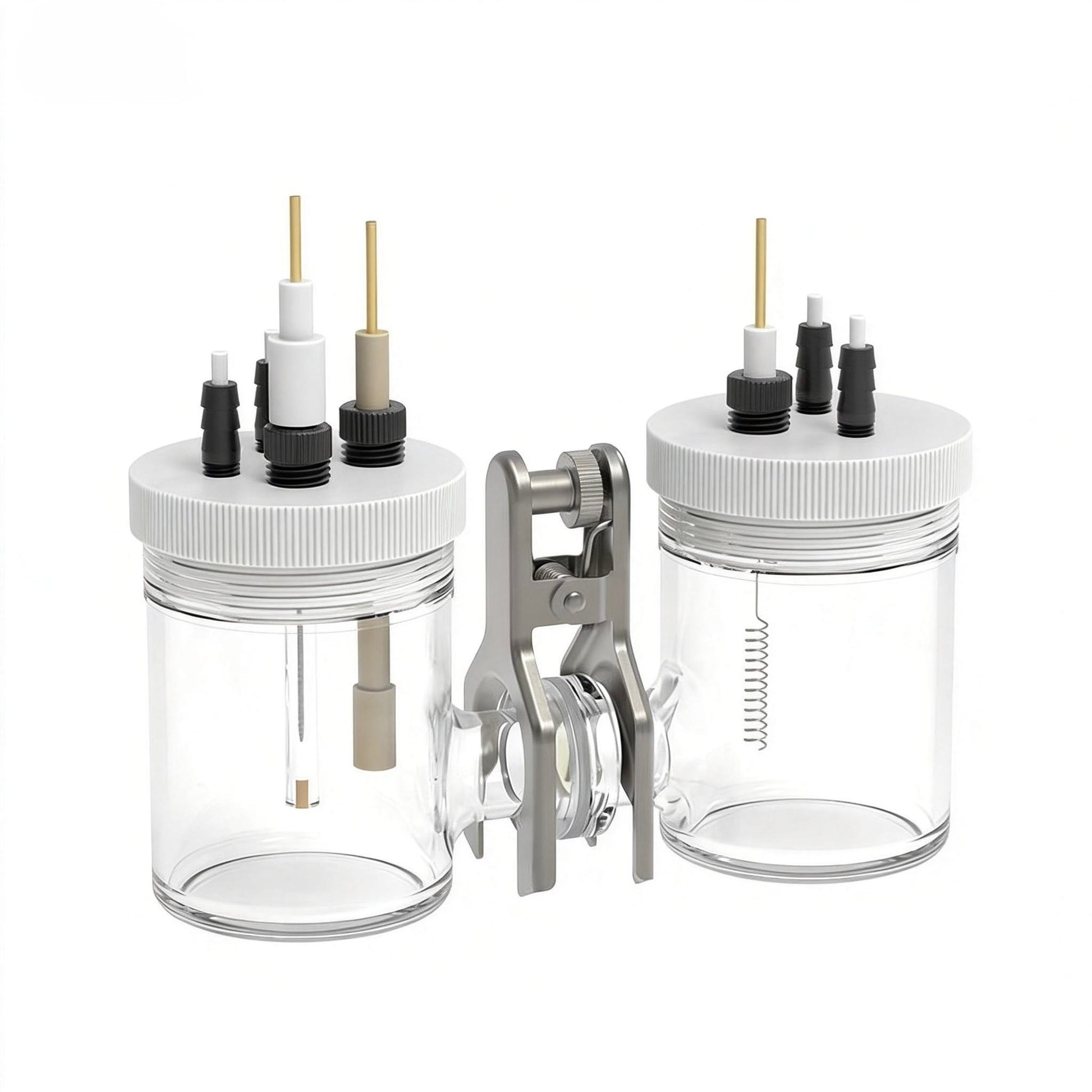

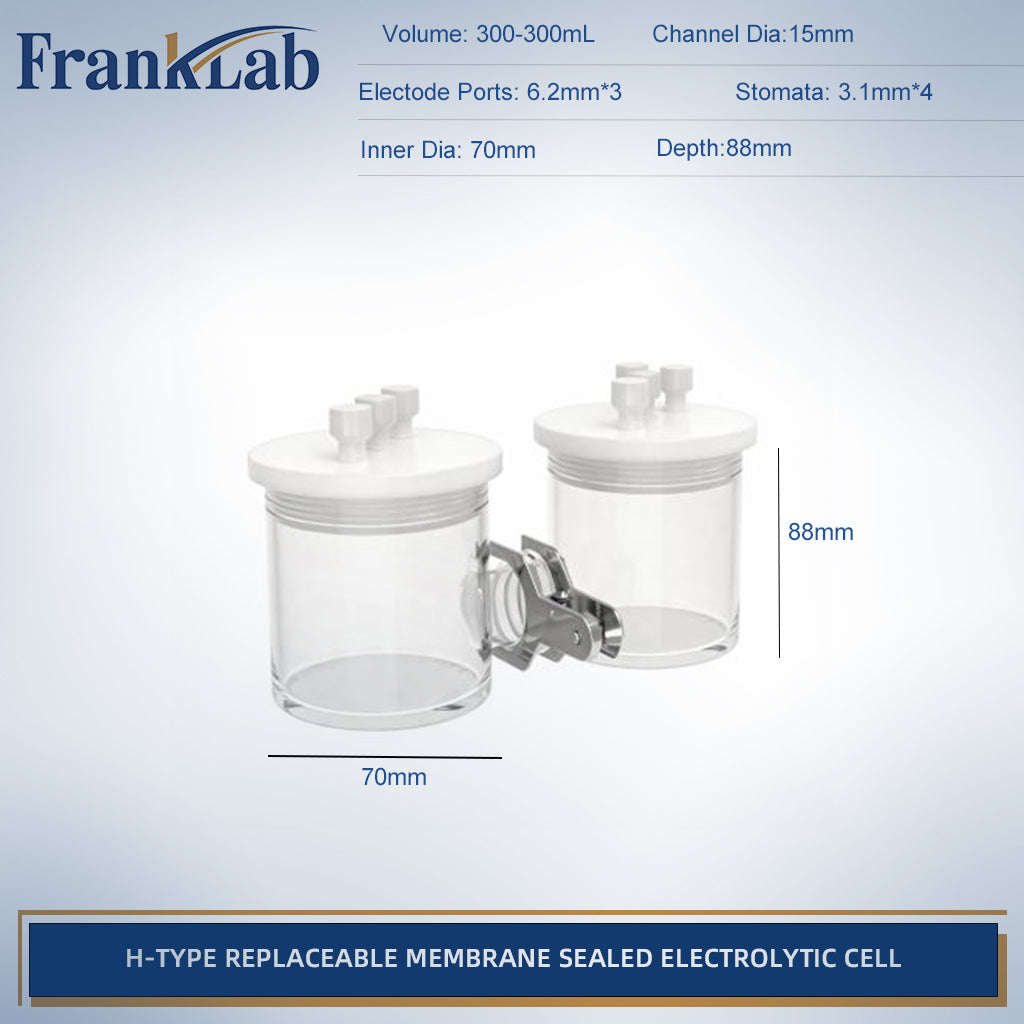

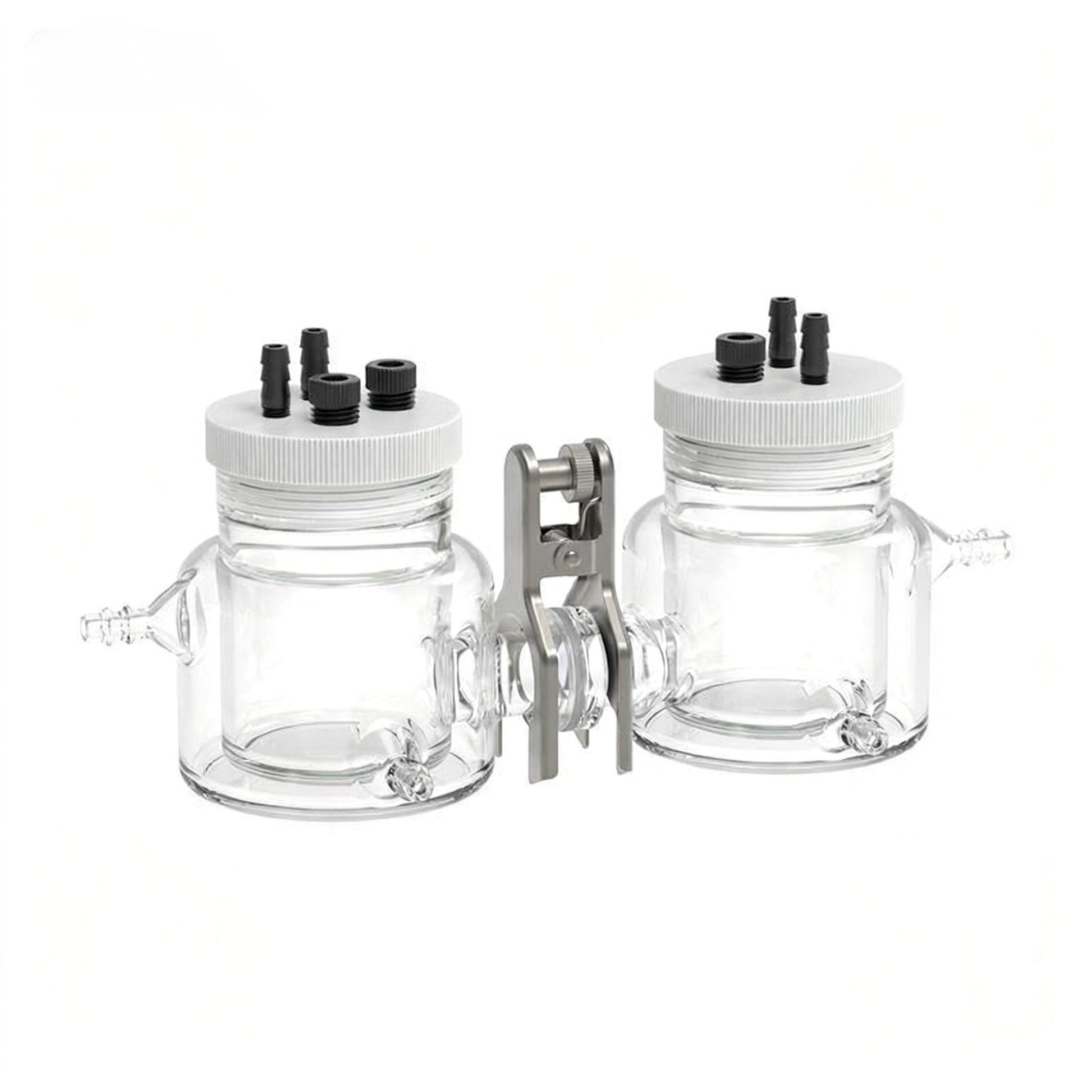

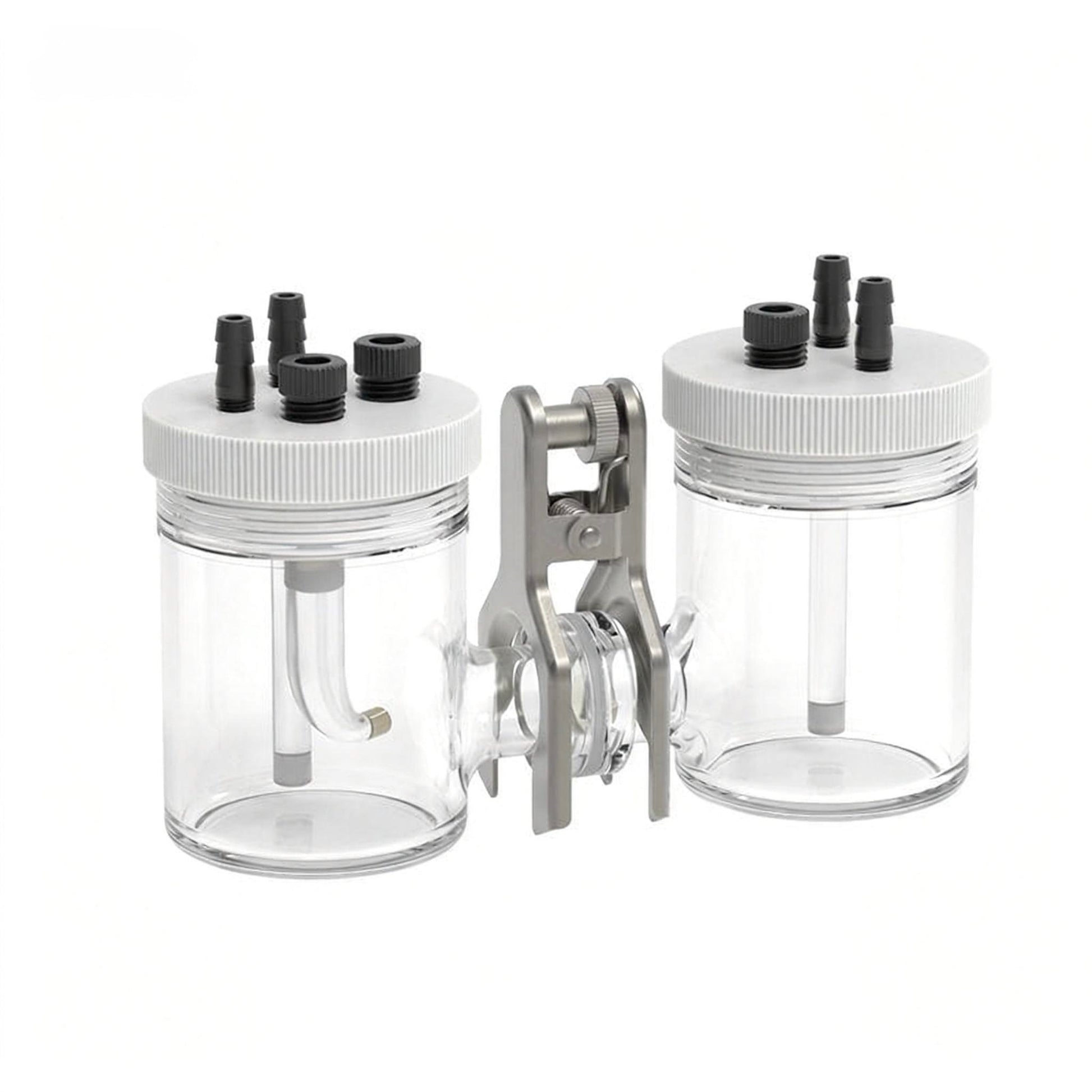

Sealed Version
• Fully sealed PTFE cap structure
• Independent gas inlet & outlet ports
• Supports controlled gas atmosphere and gas collection
• Reduced contamination and electrolyte evaporation
Recommended for gas-sensitive reactions and long-term experiments

Available Capacity Options
(Per Chamber)
• 30 mL – 30 mL
• 50 mL – 50 mL
• 100 mL – 100 mL
• 150 mL – 150 mL
• 200 mL – 200 mL
• 250 mL – 250 mL
• 300 mL – 300 mL
• 500 mL – 500 mL
Custom volumes are available upon request.

Technical Specifications
Parameter Specification
Cell type H-type replaceable membrane electrolyzer
Body material High-purity borosilicate glass
Sealing material PTFE caps + chemical-resistant O-rings (sealed version)
Membrane interface Flat clamping zone
Compatible membranes Nafion / AEM / CEM / custom membranes
Electrode ports Working / Counter / Reference
Gas ports Inlet & outlet (sealed version only)
Operating mode Atmospheric or controlled gas environment
Temperature range Depends on glass & membrane selection
Key Features
Replaceable Membrane Design
• Fast membrane installation and replacement
• Compatible with most commercial ion-exchange membranes
• Enables systematic membrane comparison studies

True Half-Reaction Separation
• Independent electrolytes on both sides
• Minimizes product crossover
• Enables accurate Faradaic efficiency and mechanism analysis

Flexible Sealing Options
• Non-sealed: simple, efficient, cost-effective
• Sealed: gas-tight, atmosphere-controlled, research-grade
One platform, multiple experimental scenarios

Excellent Chemical Compatibility
• Resistant to acids, bases, and common organic electrolytes
• Suitable for long-term electrolysis experiments

Typical Applications
• Water electrolysis (HER / OER)
• CO₂ reduction reaction (CO₂RR)
• Nitrogen reduction reaction (NRR)
• Redox mediator systems
• Membrane performance evaluation
• Electrochemical mechanism and kinetics studies

Standard Package Contents
• H-type glass cell body (left & right chambers)
• Membrane clamping interface
• PTFE caps (sealed version)
• Gas port fittings (sealed version)
• Chemical-resistant O-rings
Electrodes and membranes are not included by default and can be configured separately.

Optional Customization
Available upon request:
• Custom chamber volumes
• Quartz glass version
• Additional gas ports
• Reinforced sealing for extended operation
• Integrated electrode holders
• Pre-assembled membrane modules
