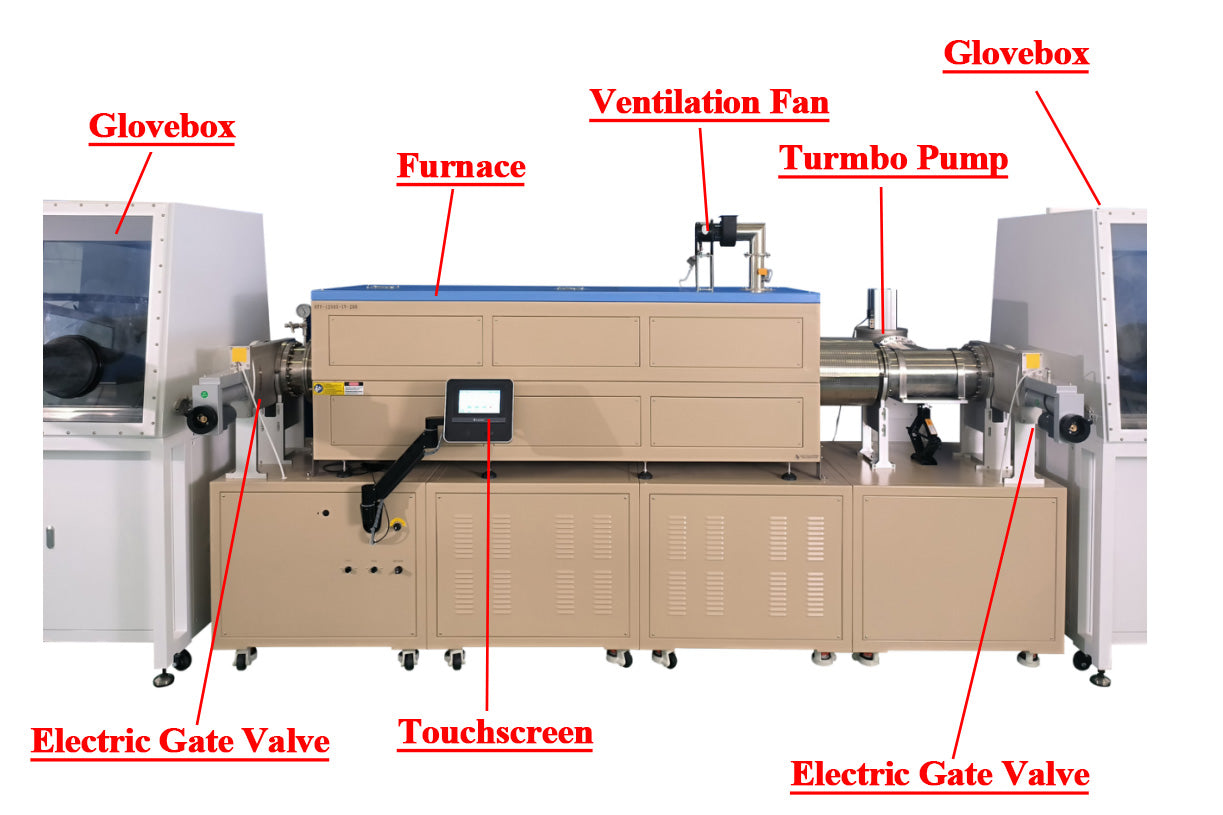

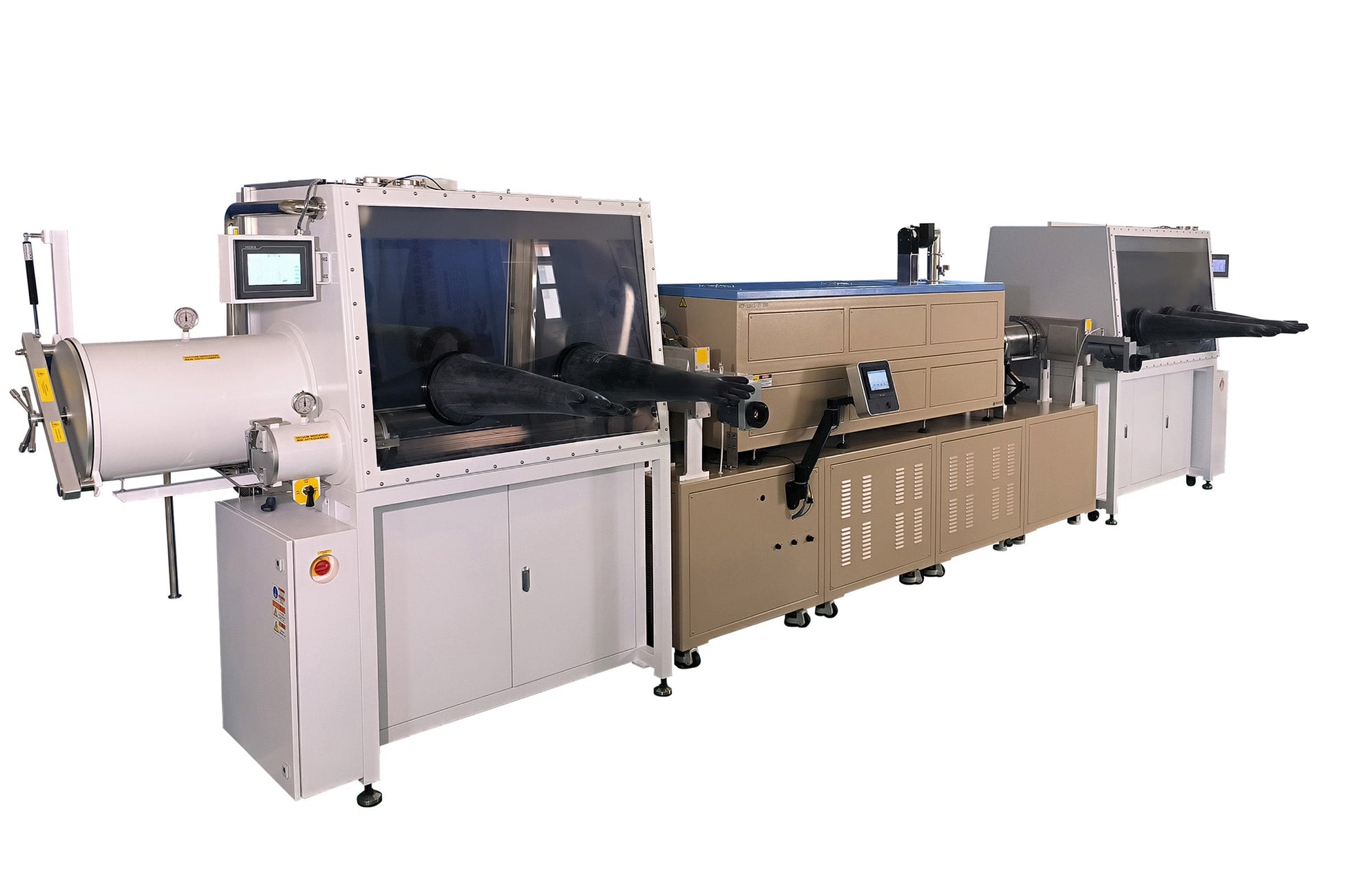

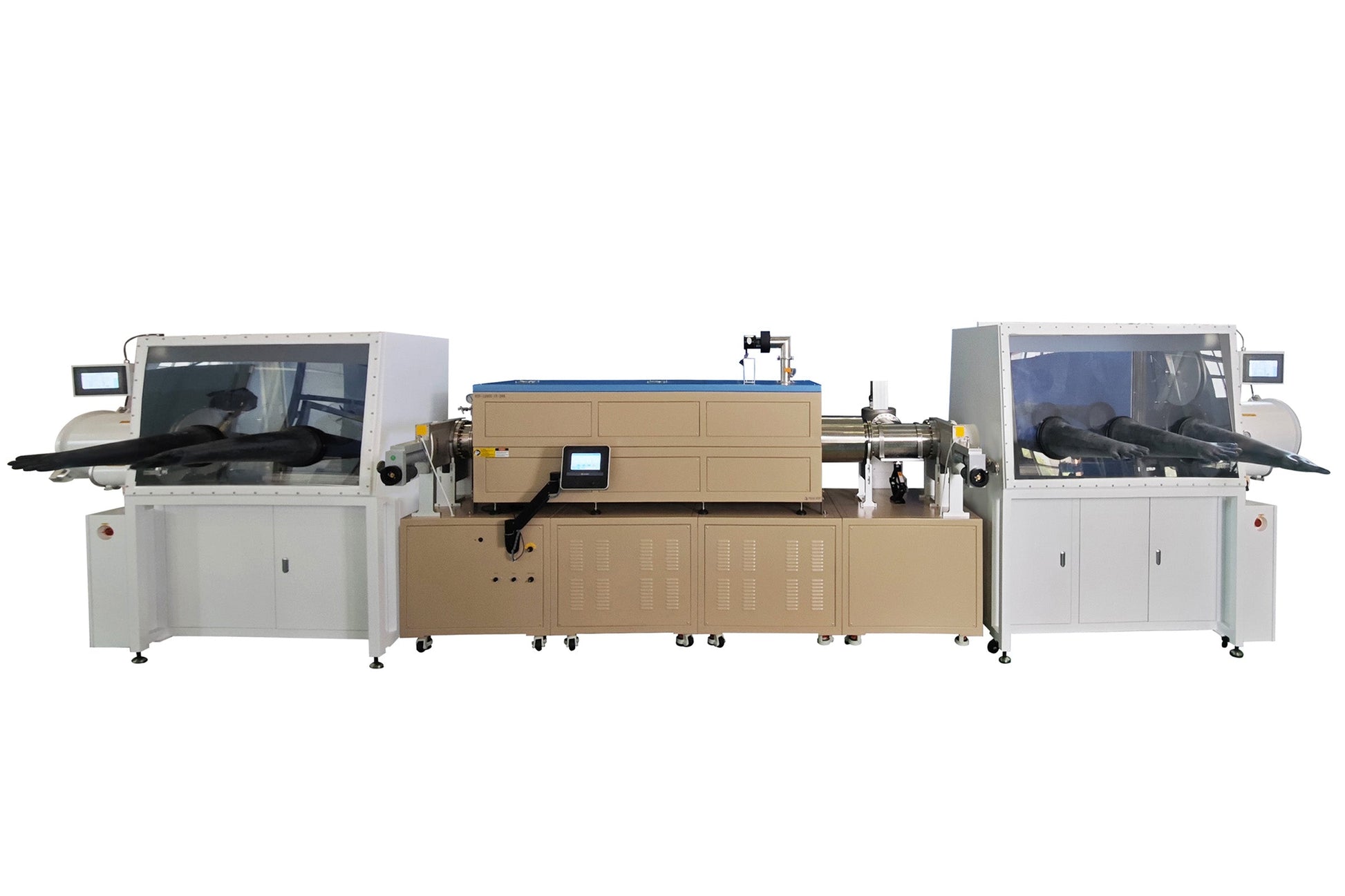

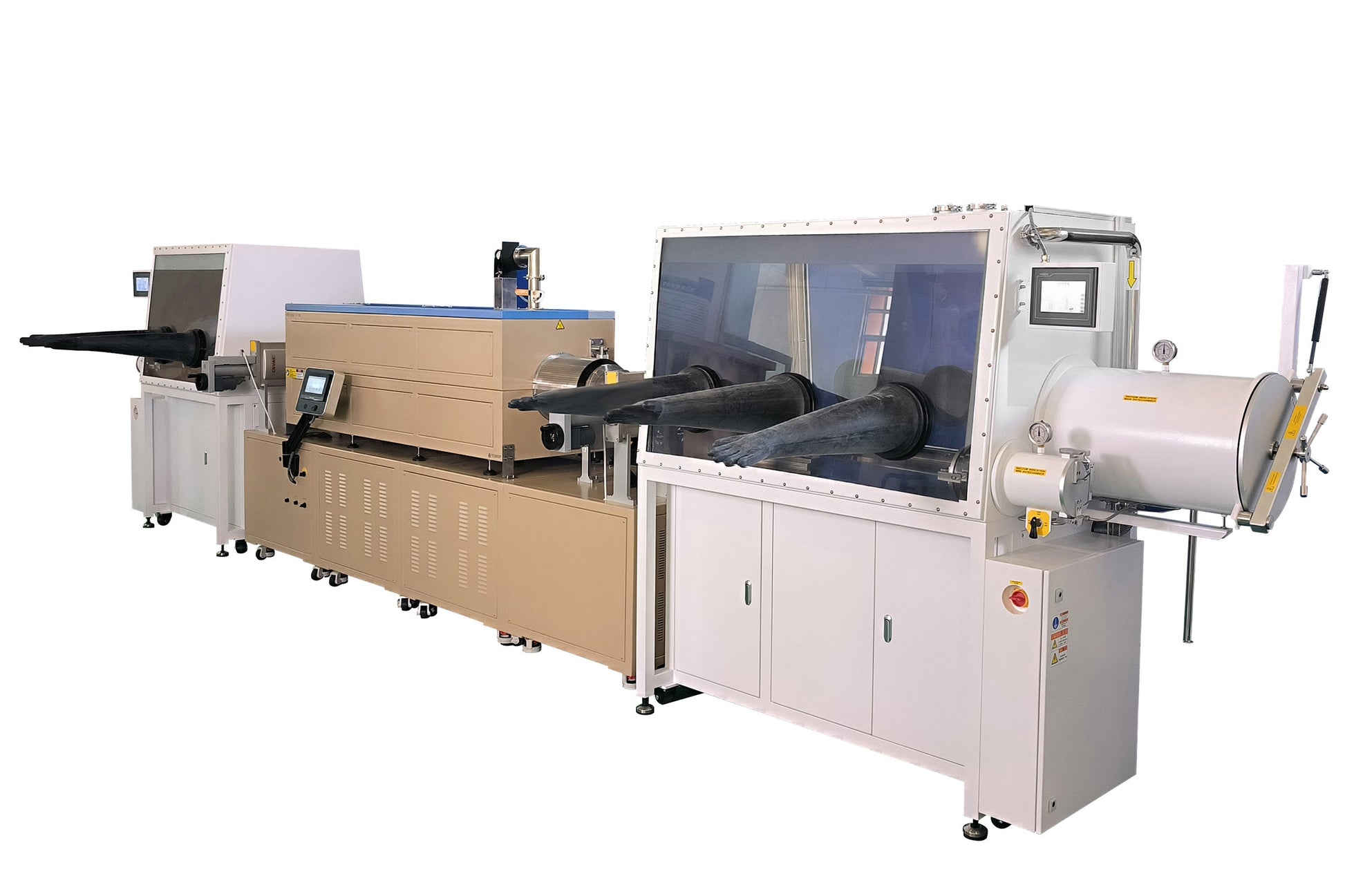

Dual-Glovebox Integrated 1200°C Four-Zone Tube Furnace-OTF-1200X-IV-GB

Gloveboxes

• Two gloveboxes configuration
• Hinged front window panel (tempered glass, 3mm thickness)
• Chamber Material: Stainless Steel 304
• Dimension(individual): 1200mm x 1000mm x 900mm (L x W x H)
• Built-in LED light
• Sample storage shelf, 300mm x 250mm x 300 (L x W x H)
• Large Antechamber Dimension: Φ 360mm x 600mm Length, equipped with a sliding tray.
• Small Antechamber Dimension: Φ150 mm x 300mm Length
• Pressure Control: Set freely within +/- 10 mbar

Connections with Gloveboxes

• Left Side: CF200 interface for glovebox connection, DN200 electric gate valve, φ 6.35mm inlet with on-off valve, and mechanical pressure gauge
• Right Side: CF200 interface for glovebox connection, DN200 electric gate valve, interface for turbo pump connection, electric gate valve, and φ6.35mm exhaust port with valve.

•  Water and oxygen concentration: <1ppm (20 °C, 1 atm)
• Concentration accuracy: 0.1 ppm
• Working gas: Inert gas such as N2, Ar, He
• Auto regeneration process with pre-defined parameters

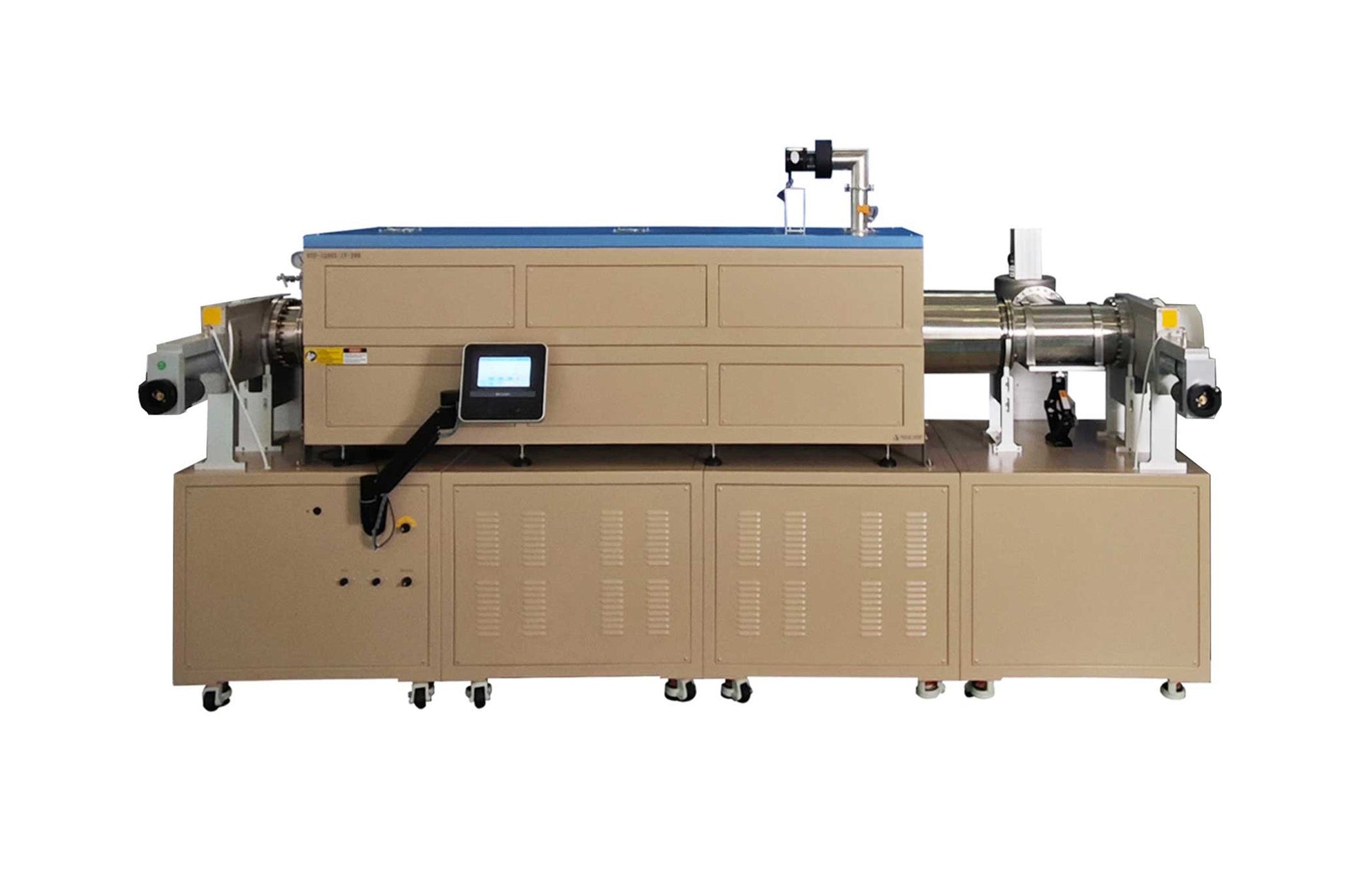

Tube Furnace

• Dual-layer steel casing with an air-cooling system to keep the furnace surface temperature lower than 60 °C
• High-purity fibrous alumina insulation for energy saving
• Special alumina refractory coating to increase heating efficiency and furnace life
• A quartz tube is utilized to enhance internal cleanliness and vacuum performance
• Electric furnace door for easy operation

• Furance: choice of voltage
  • 208-240, 380-415, 460-480VAC, three-phase, 50/60 Hz
  • 35 KVA

• Glovebox: choice of voltage
  • 100-120, 208-240 VAC, single phase, 50/60 Hz
  • 1.5 KVA each.

Heating Zone

• Heating Zone: φ 320mm - 1800mm
• 4 heating zone:

1. Zone #1 Length: 200mm
2. Zone #2 Length: 400mm
3. Zone #3 Length: 200mm
4. Zone #4 Length: 1000mm

•  Quartz Tube is optional from 8' to 11' Nominal as below

1. 8.5' O.D x 8.1' I.D x 98' L (216mm O.D x 208mm I.D x 2500mm L)
2. 11' O.D x 10.6' I.D x 98' L (216mm O.D x 272mm I.D x 2500mm L)

• Maximum Quartz Tube, 11' O.D

• Multi-stack quartz block

•  Fe-Cr-Al doped by Mo

• K-Type Thermocouple, 4 units

• Max. Heating Temperature: 1200°C, less than 30 min
• Continuous Working Temperature: 0 - 1100°C
• Max. Heating Rate: 20 °C/min
• Recommended Heating Rate: 10 °C/min

• One pair of Stainless-Steel 304 vacuum flanges with double high-temperature silicone O-ring
• One vacuum/pressure gauge and needle valve are installed on one side flange with a φ 6.35mm gas inlet
• A KF40 vacuum port and a φ 6.35mm gas outlet with an adjustable pressure relief valve are installed on the other side flange.

• PID programmable temperature controller
• Up to 50 programmable temperature segments
• Control accuracy: ±1°C
• Eurotherm temperature controller is optional, with accuracy up to ±0.1℃

Control Panel & Software

• Touchscreen temperature control panel to control 4 heating zones independently.
• Multiple-zone operation includes automatic recording and preset heating curve function
• LabVIEW-based software for remote PC control, monitoring, and data logging (optional, upon request at an extra cost)
• Ethernet communication port for PC control

• A rotary vane pump is included to reach a vacuum of 10^-2 torr
• Optional: Max. Vacuum to 10^-5 torr by a turbopump

Water Chiller

(Optional)

•  15 L/min, 5-25 °C chilled water is required
• Digital Temperature Controlled Recirculating Water Chiller with 16L/min flow, KJ5300 is recommended but not included

• NRTL Certification (UL or CSA) is available upon request at an extra cost
