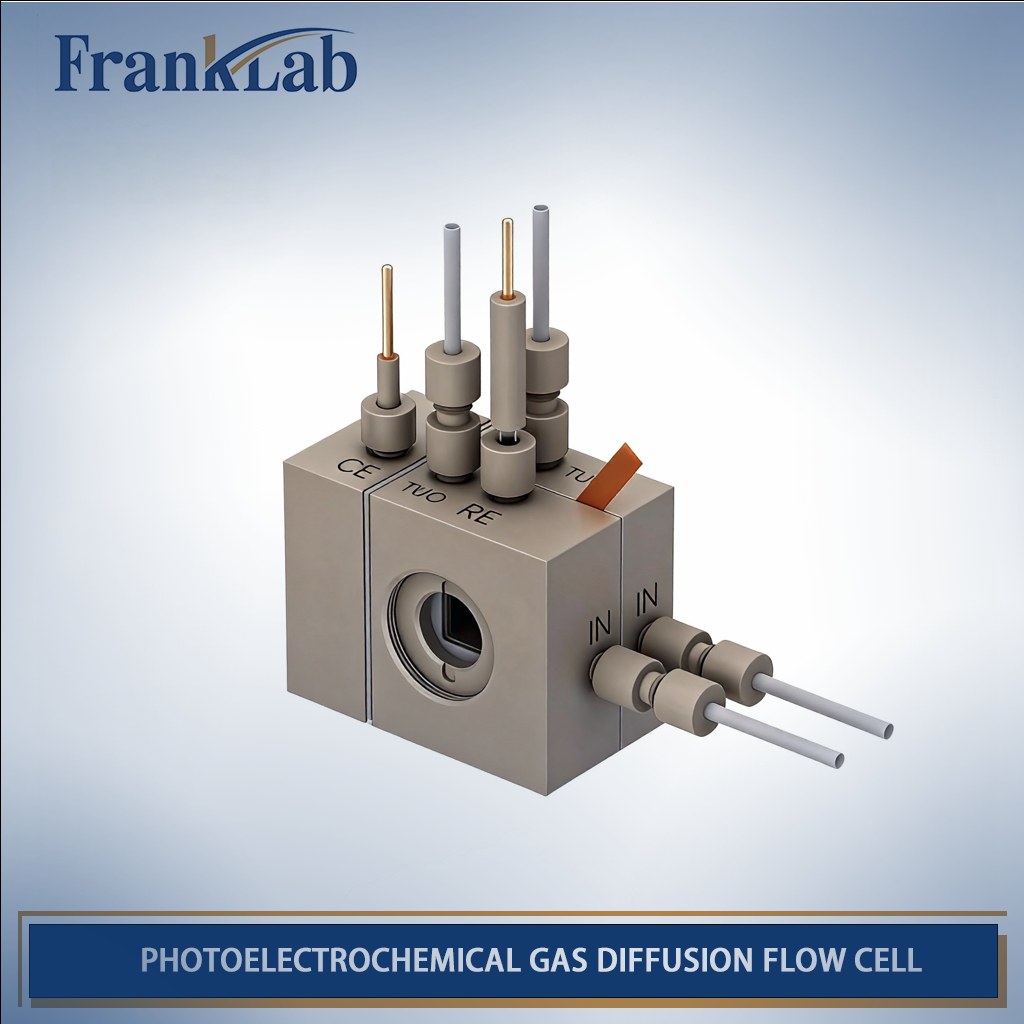

Photoelectrochemical Gas Diffusion Flow Cell with Exchangeable Membrane
Product Description

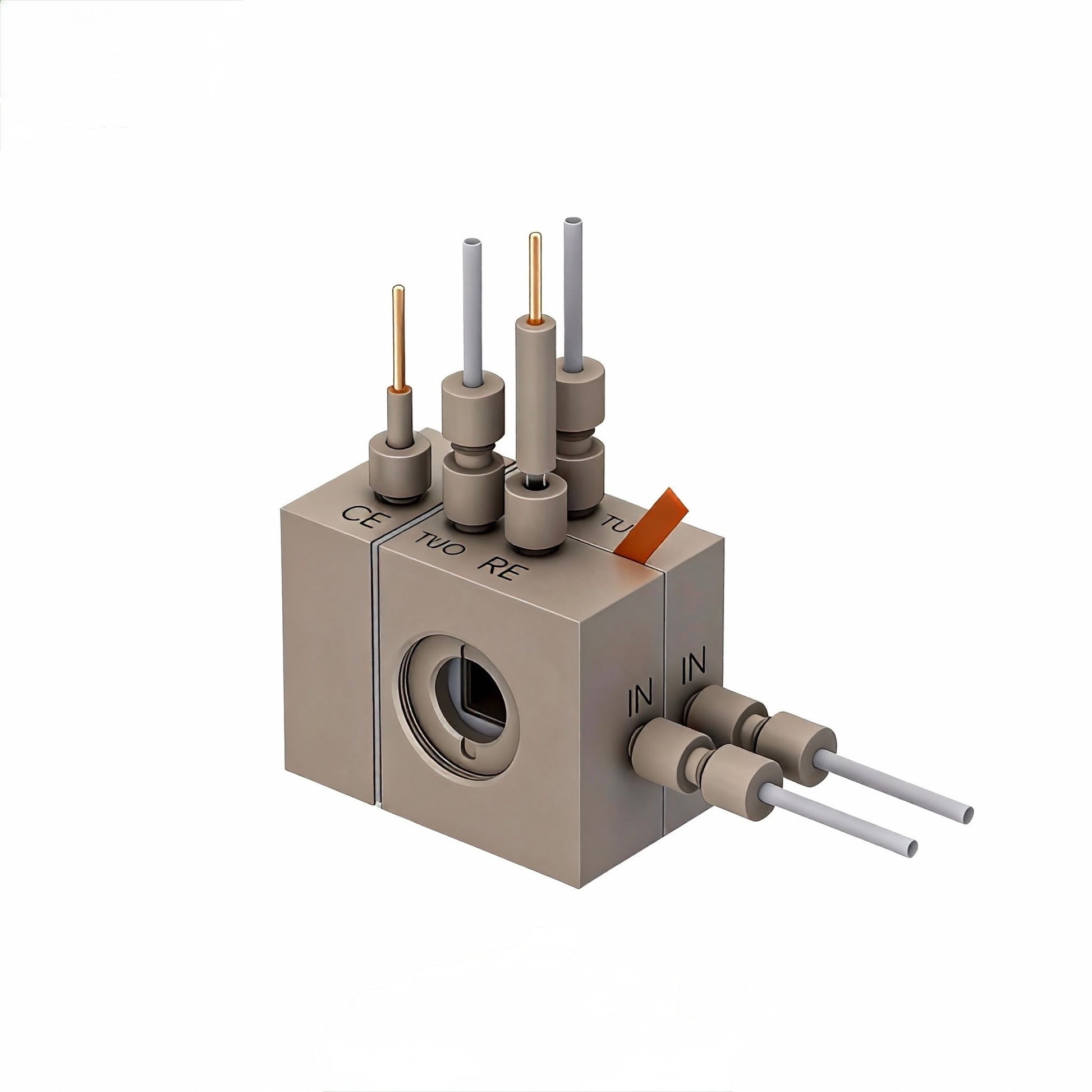

The Photoelectrochemical Gas Diffusion Flow Cell with Exchangeable Membrane is a modular in-situ photoelectrochemical (PEC) reactor specifically designed for gas-involving photoelectrochemical reactions. The cell integrates a photoelectrode flow chamber with optical window, a dedicated gas chamber, and a membrane-separated counter electrode flow chamber, enabling efficient light utilization, controlled gas transport, and independent product collection.
By employing a gas-diffusion-type photoelectrode, this flow cell effectively overcomes the light-blocking limitations commonly encountered in conventional liquid-phase PEC systems. Gas reactants such as CO₂ or N₂ are delivered directly to the catalyst layer through the gas diffusion interface, while the illuminated photoelectrode maintains stable electrochemical contact with the electrolyte.
The exchangeable membrane design allows rapid replacement of ion-exchange membranes (CEM, AEM, or BPM), supporting systematic investigations into ion transport, selectivity, and reaction mechanisms. The flow-cell configuration enables continuous operation and quantitative collection of both gas and liquid products, making it well suited for advanced PEC reduction studies.

Key Features

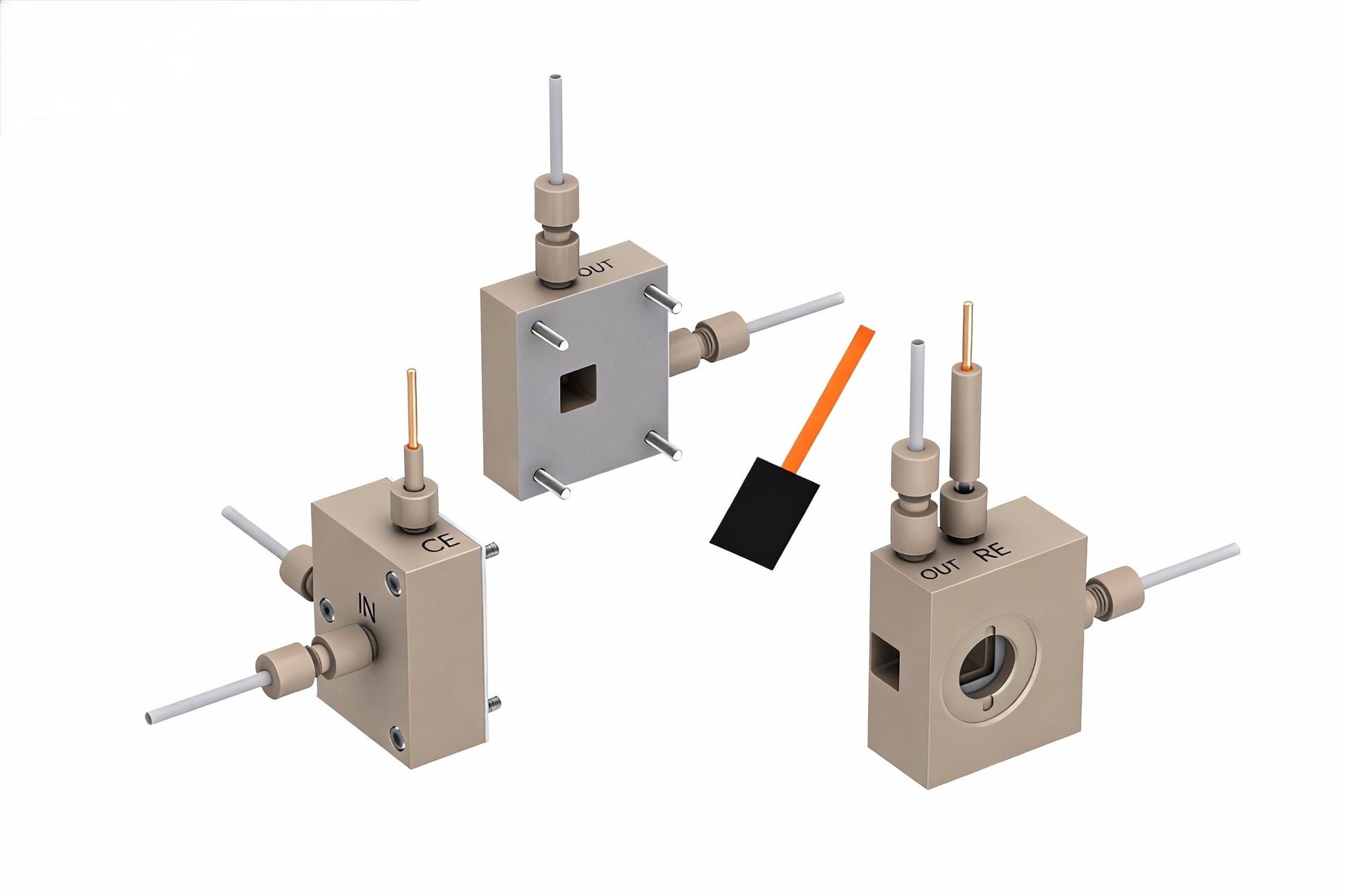

•Integrated photoelectrode flow chamber with optical window, gas chamber, and counter flow chamber
•Gas diffusion photoelectrode compatibility for CO₂/N₂ reduction and other gas-phase PEC reactions
•Eliminates light blocking issues present in conventional PEC cells
•Exchangeable membrane design for flexible ion-transport studies
•Independent gas and liquid product collection under flow conditions
•High-quality O-ring sealing ensures excellent gas and liquid tightness

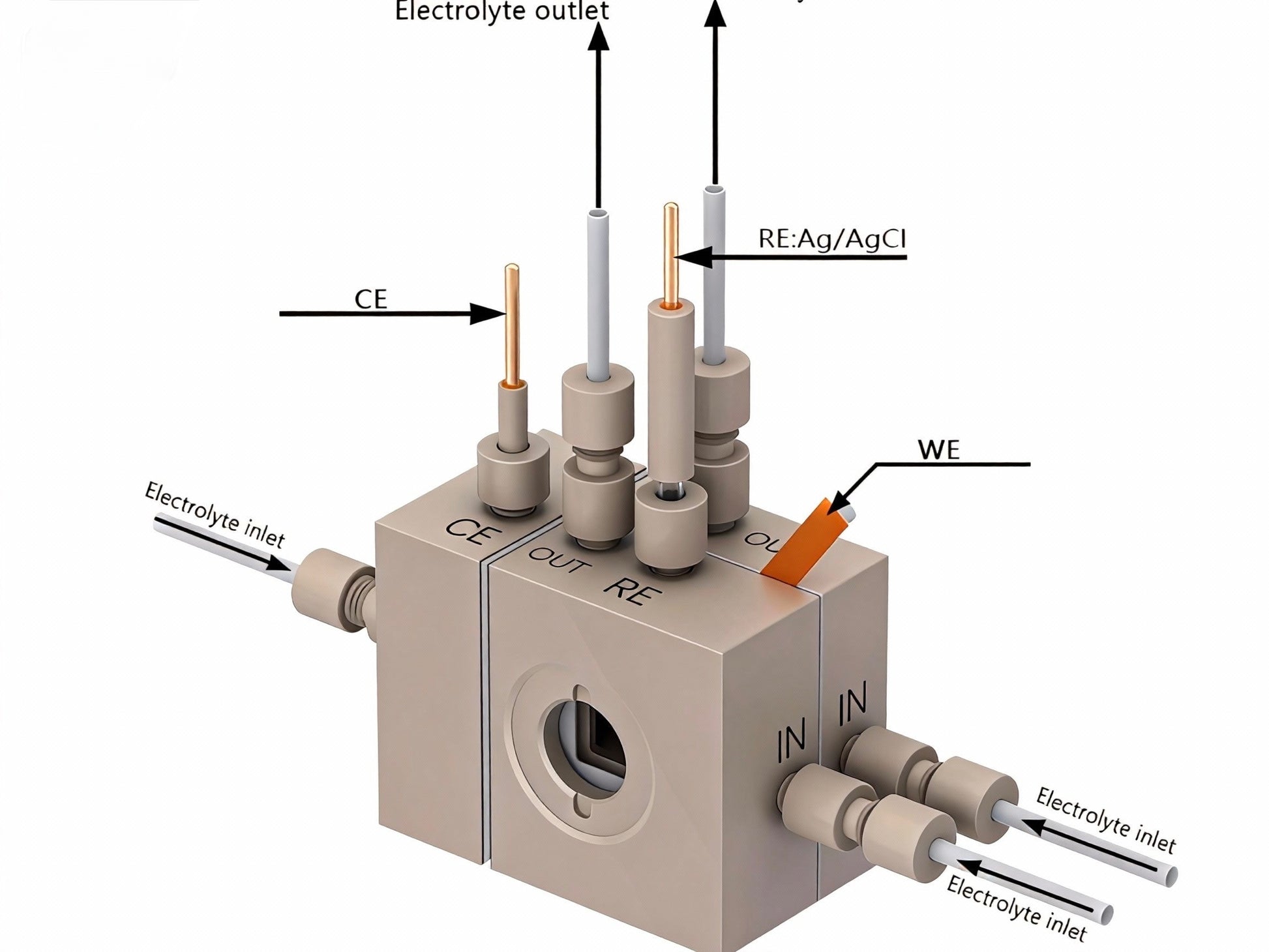

•Supports three-electrode configuration with precise potential control
•Compatible with continuous flow, long-term illumination experiments

Product Specifications
Item Specification
Application Photoelectrochemical gas reduction (CO₂RR, NRR, etc.)
Cell Type Gas diffusion photoelectrochemical flow cell
Working Electrode Gas-diffusion photoelectrode (user-supplied)
Counter Electrode Pt electrode (supported / included)
Reference Electrode Ag/AgCl (included)
Membrane Exchangeable ion-exchange membrane (CEM / AEM / BPM, user-supplied)
Optical Illumination Area 3.15 cm²
Flow Configuration Dual flow chambers with membrane separation
Product Collection Gas and liquid products collectable
Sealing Method O-rings, high-integrity sealing
Inlet / Outlet Fittings 1/4″ O.D. tube fittings
Operation Mode Flow-cell, continuous PEC operation
Light Source Compatibility Solar simulator, LED, monochromatic sources
Package Includes
•Photoelectrochemical Gas Diffusion Flow Cell body
•Optical window assembly
•Counter electrode (Pt)
•Reference electrode (Ag/AgCl)
•Standard O-rings and sealing components
•1/4″ inlet and outlet fittings

Typical Use Scenarios
•Photoelectrochemical CO₂ reduction with gas diffusion photoelectrodes
•Photoelectrochemical N₂ reduction and gas-phase PEC catalysis
•Membrane effect and ion-transport studies in PEC systems
•Quantitative gas/liquid product analysis under continuous flow
•Stability and performance testing of photoelectrodes
This flow cell provides a research-grade PEC platform for laboratories requiring accurate light exposure, efficient gas transport, and reproducible electrochemical control in gas-involving photoelectrochemical experiments.
