Platinum-Coated Titanium Sheet Electrode

Platinum-Coated Titanium Sheet Electrode

Product Description
Shipping & Delivery
Platinum-Coated Titanium Electrode | FrankLab
PTFE Electrode Rod | Gold-Plated Copper Terminal | High-Durability Pt/Ti Electrode

Product Overview
The FrankLab Platinum-Coated Titanium Electrode is a high-performance electrode designed for electrochemical systems requiring exceptional durability, corrosion resistance, and catalytic activity. By combining a high-purity titanium substrate with a uniform platinum coating, this electrode provides the catalytic behavior of platinum with the mechanical strength and corrosion resistance of titanium.
Pt-coated Ti electrodes are widely used in OER, chlorine evolution, electrosynthesis, wastewater treatment, electroplating, and harsh acidic/alkaline electrochemical systems.

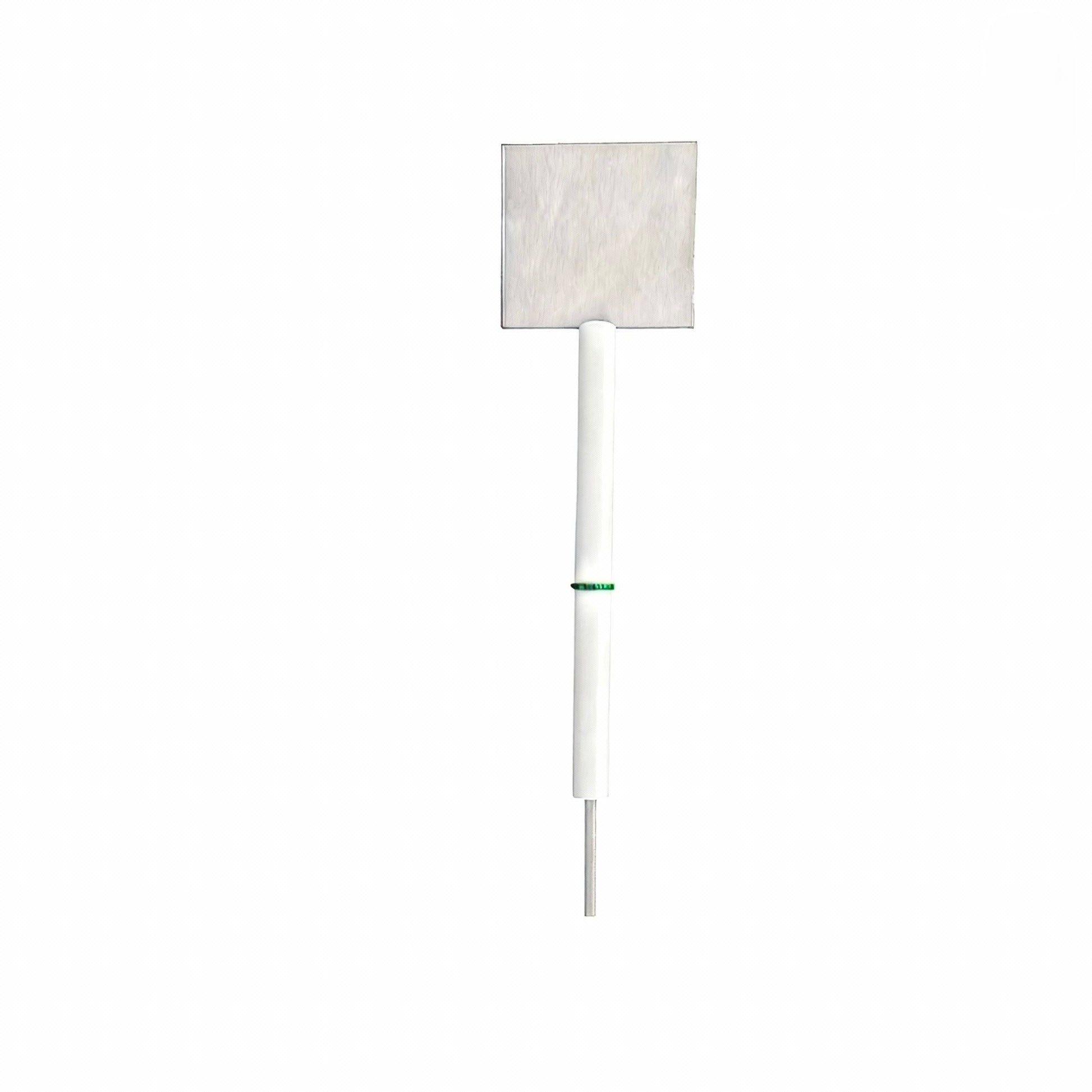

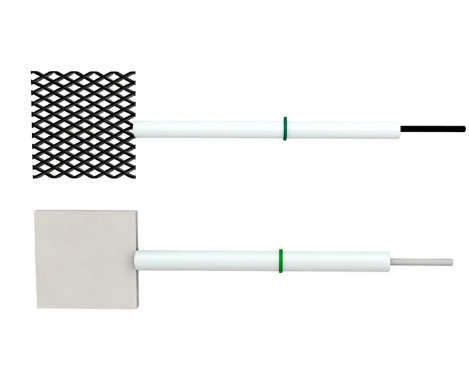

Each electrode consists of:

•Platinum-Coated Titanium Plate / Mesh（customizable）

•PTFE Electrode Rod（chemically inert, stable）

•Gold-Plated Copper Terminal（FrankLab standard, low resistance）

•Optional reinforcement or edge finishing

This electrode offers the performance of noble metal catalysts while reducing material cost and enhancing long-term stability.

Key Features
• Platinum-Coated Titanium Active Surface
• High catalytic activity comparable to pure Pt
• Strong adhesion of Pt to Ti substrate
• Superior durability in acidic and oxidative environments
• Ideal for OER, CE reactions, and high-potential electrochemistry

• Titanium Substrate (Grade 1 or Grade 2)
• Outstanding corrosion resistance
• Lightweight, mechanically strong
• Stable under high current densities
• Proven long life in industrial electrolyzers

• PTFE Electrode Rod
• Inert to strong acids, bases, halides, and organic solvents
• Ensures stable geometry and prevents contamination

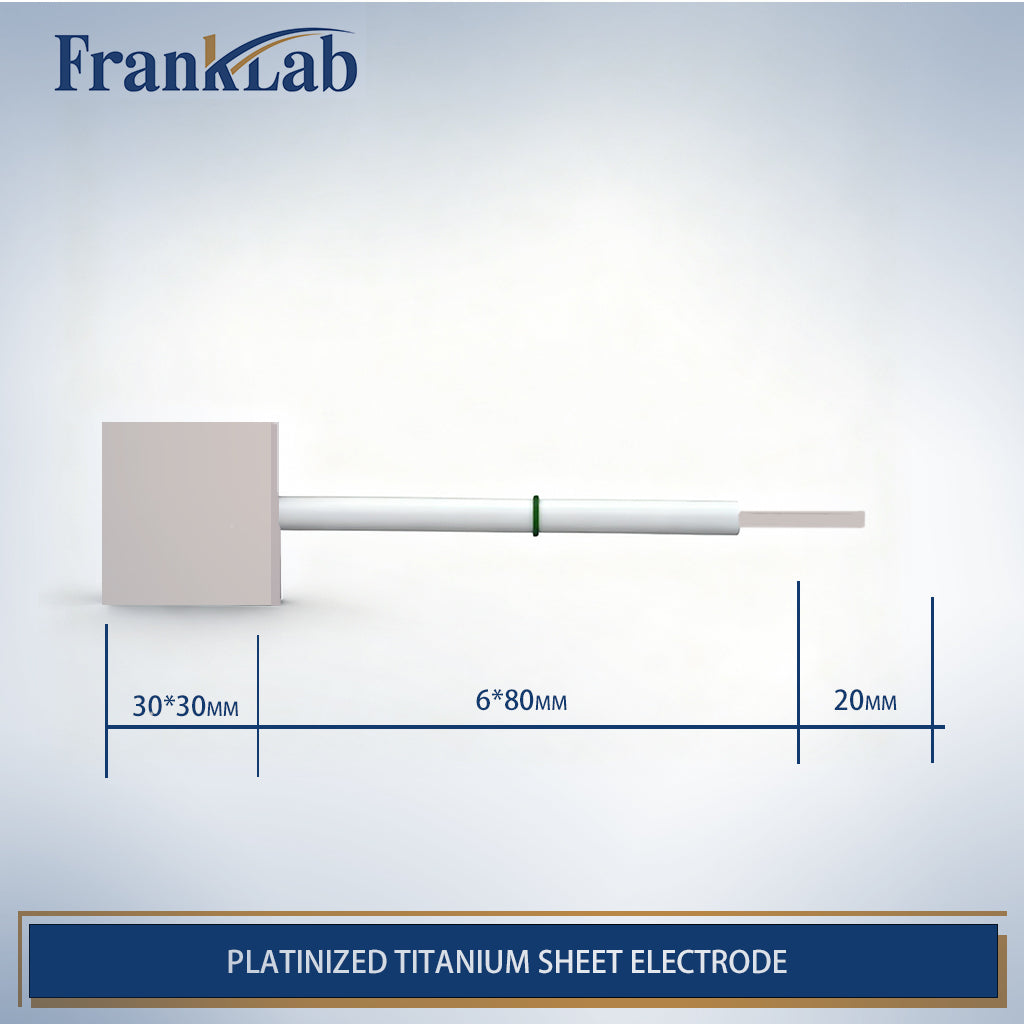

• Standard length: 80–120 mm（customizable）

• Gold-Plated Copper Terminal (FrankLab Standard)
• Highly conductive
• Corrosion-resistant, non-reactive
• Maintains stable potential with minimal noise
• Compatible with all standard electrochemical workstations
(Custom terminal materials available: Ni-plated Cu, stainless steel, titanium.)

Technical Specifications
Component Specification
Active Material Platinum coating on titanium substrate
Titanium Grade Grade 1 or Grade 2
Coating Thickness 0.1–5 μm (custom available)
Geometry Sheet, plate, mesh, expanded mesh
Rod Material PTFE
Terminal Gold-plated copper
Chemical Resistance Excellent in acid, base, chloride, oxidizing systems
Operating Potential Suitable for high-potential OER/CE systems
Recommended Applications
Electrocatalysis
• Oxygen Evolution Reaction (OER)
• Chlorine Evolution Reaction (CER)
• Anode reactions requiring noble-metal catalysts
Industrial & Environmental Electrochemistry
• Wastewater electro-oxidation
• Electro-chlorination
• Metal finishing & electroplating
• Electro-organic synthesis
General Electrochemical Research
• CV, LSV, EIS
• Accelerated corrosion testing
• High-potential stability studies

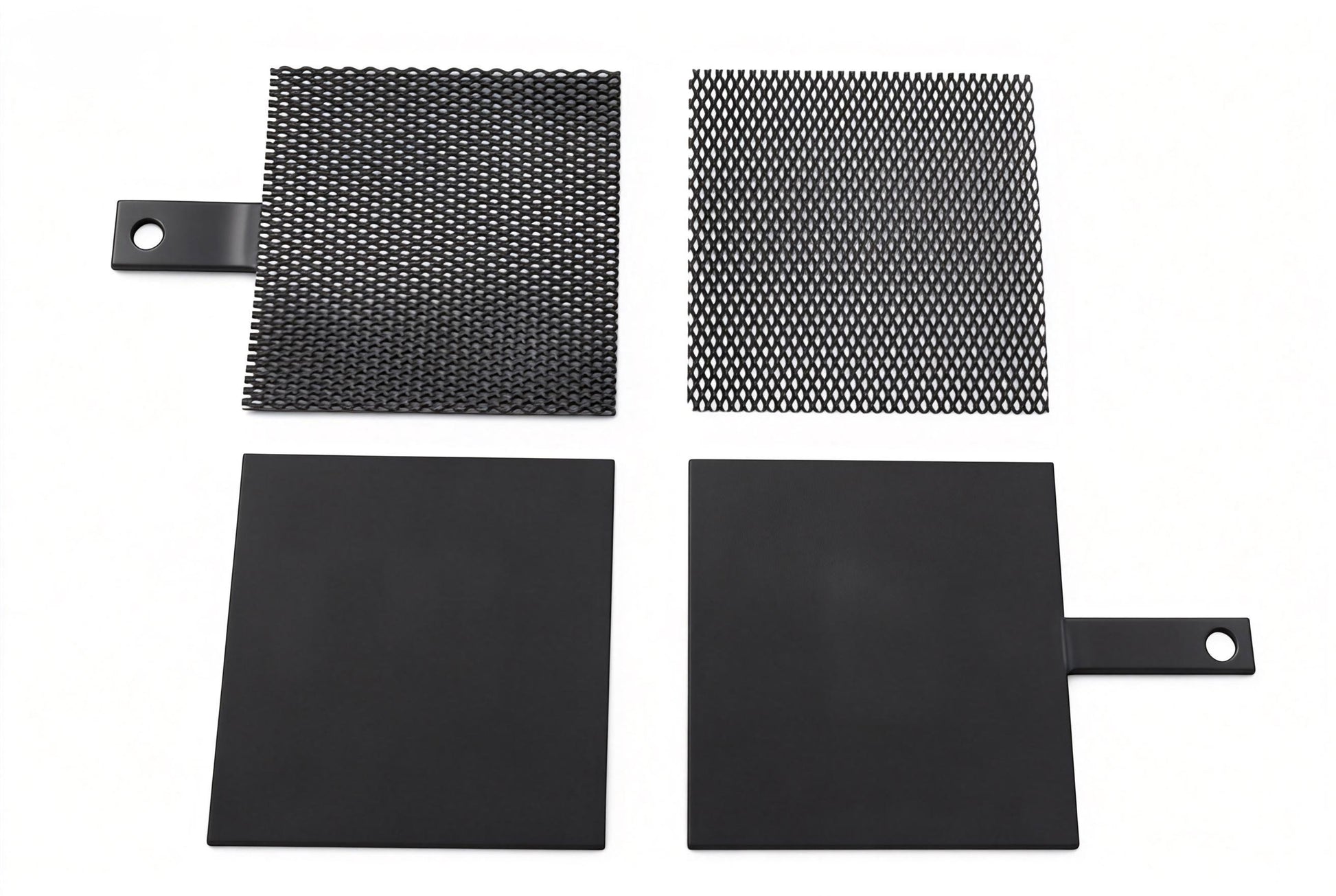

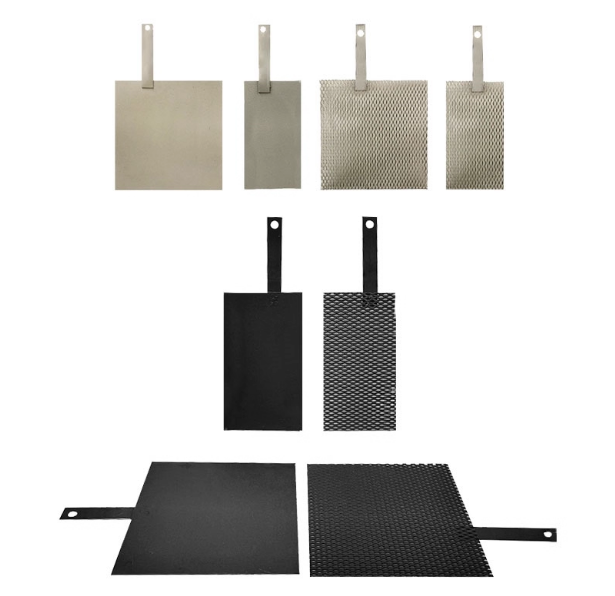

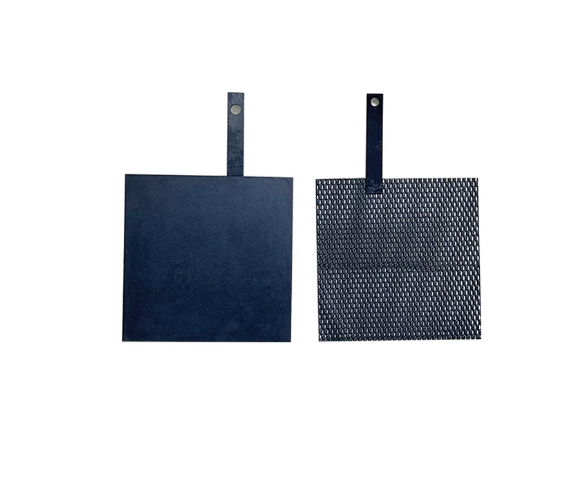

⭐ Available Forms / Size Options

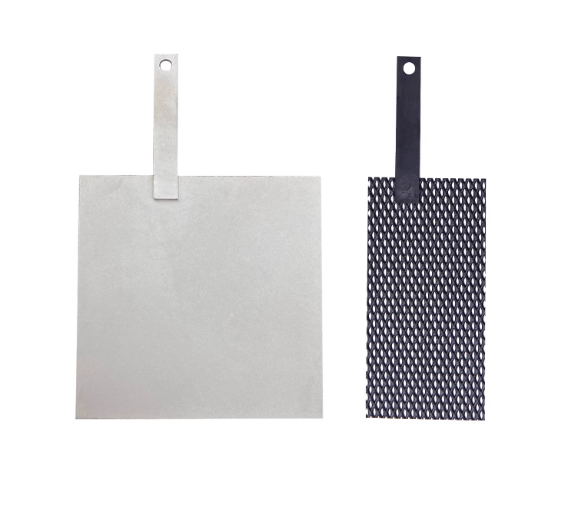

✔ Platinum-Coated Titanium Plate
Common sizes:
• 5×5 mm
• 10×10 mm
• 10×20 mm
• 20×20 mm
• 25×25 mm
• 30×30 mm
• 40×40 mm
• 50×50 mm
Thickness: 0.1–2.0 mm customizable.

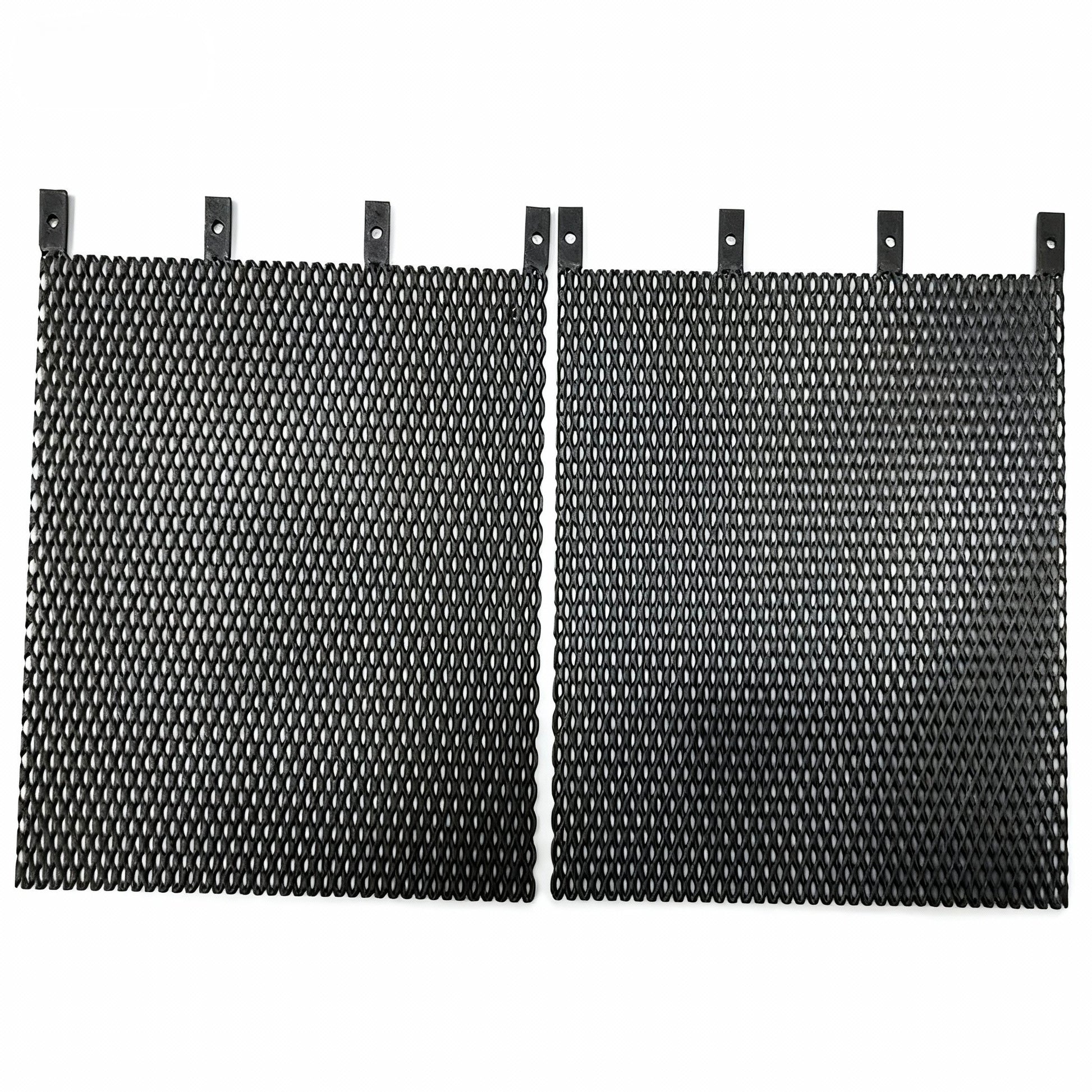

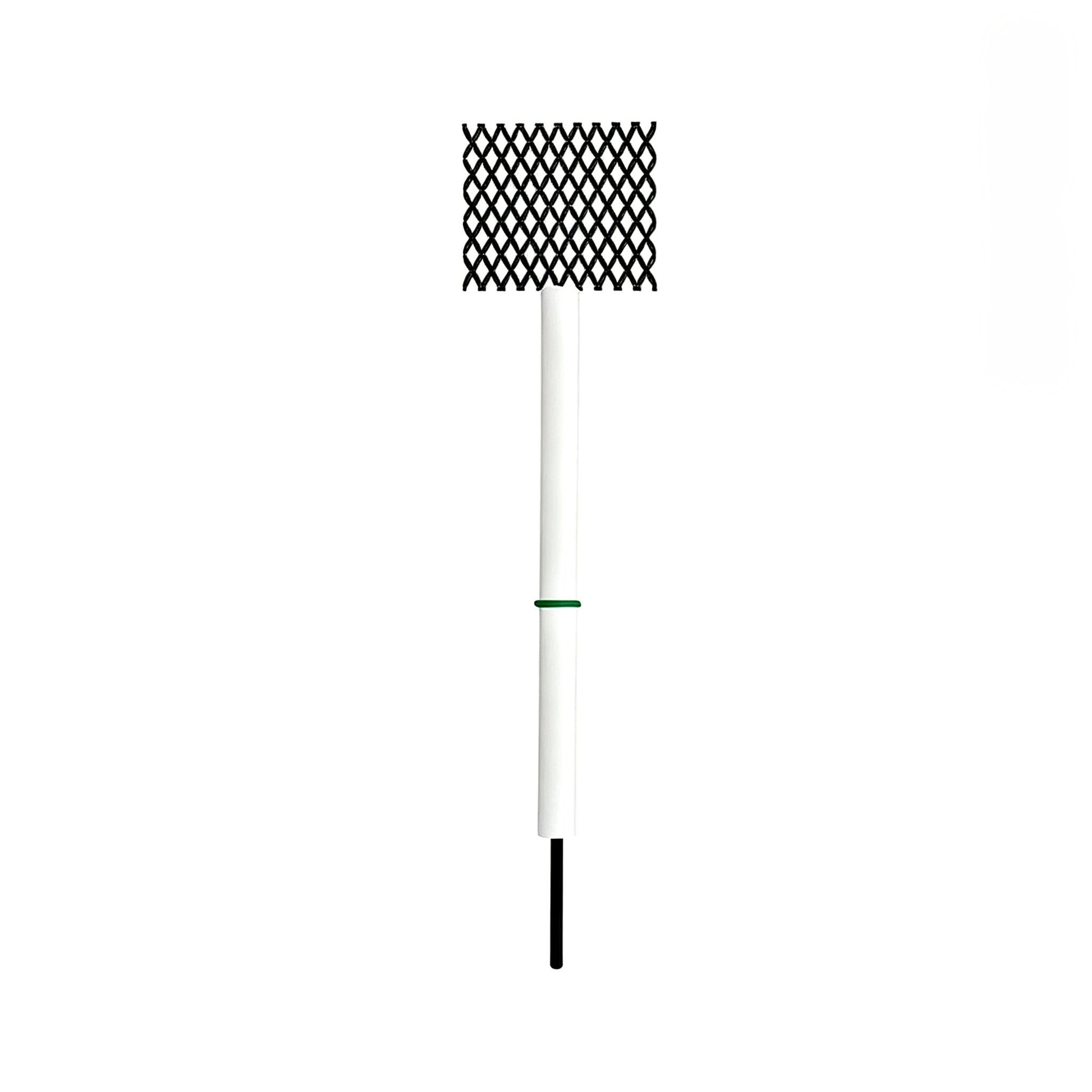

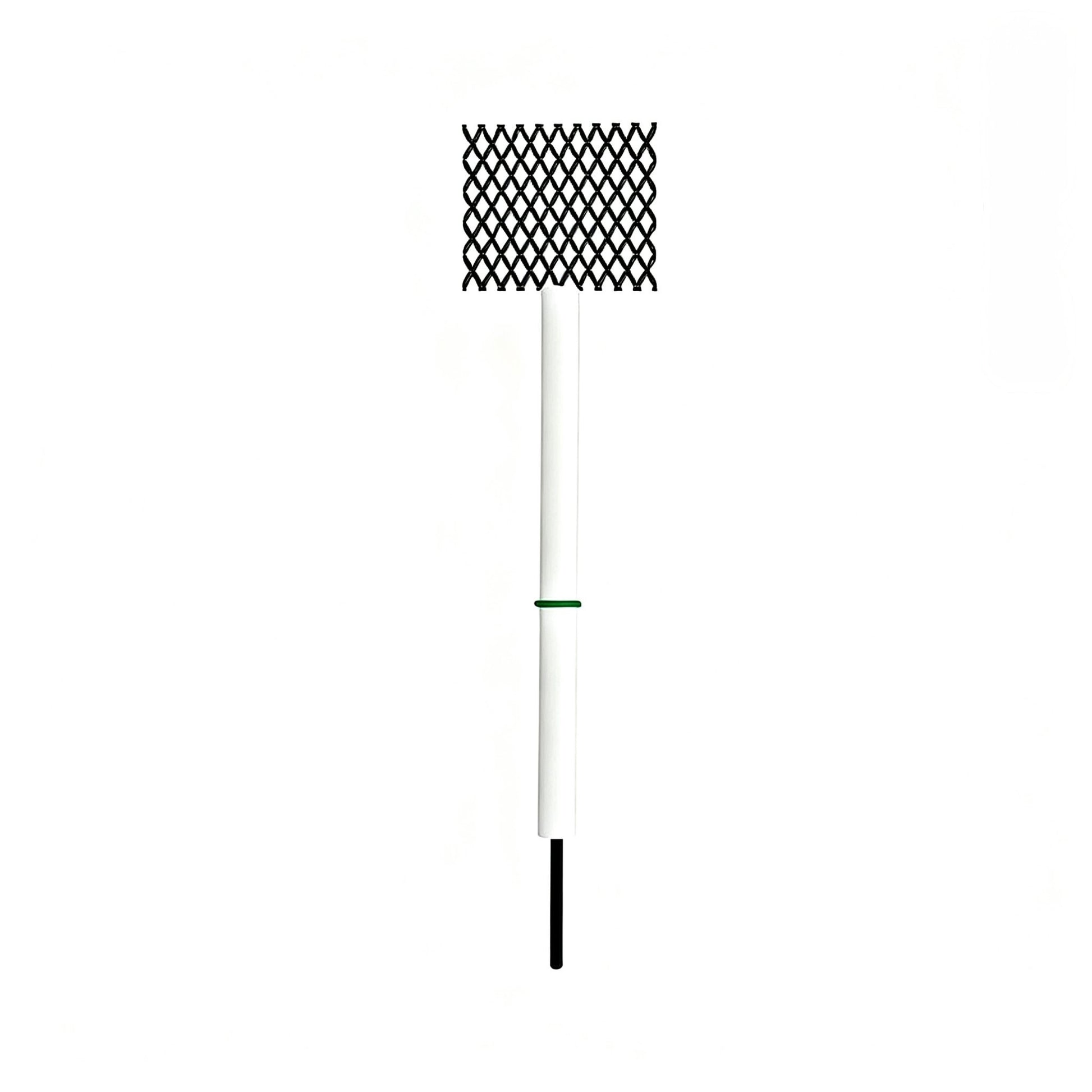

✔ Platinum-Coated Titanium Mesh
• Mesh sizes same as Pt mesh / Ti mesh series
• Optional diagonal reinforcement
• Suitable for OER, CER, and high-surface-area reactions

✔ Special Geometries Available
• Round plates
• Rectangular blades
• Expanded mesh
• Flow-cell optimized shapes
• Large-area industrial electrodes

Customization Available
FrankLab supports custom Pt/Ti electrode manufacturing.
Customizable Options
• Pt coating thickness（0.1–5 μm）
• Pt loading amount（mg/cm²）
• Titanium grade（1 or 2）
• Mesh size / plate thickness / shape
• PTFE rod length / diameter
• Terminal materials
• Reinforcement structures
• Temperature-resistant or flow-cell designs

We deliver a customized design + quotation within 24 hours.


For Custom Orders or Inquiries

If you have custom requirements or any additional questions, feel free to contact us:

Email: support@franklab.shop


Why Choose FrankLab?

FrankLab Focused on electrochemical & research materials

•Stable quality for repeatable experiments

•Flexible customization capability

•Trusted by universities, institutes, and industrial R&D labs
