Platinum Column Electrode
Platinum Column Electrode | Platinum Rod Electrode | >99.99% Pt | FrankLab
High-Purity Platinum Rod · Chemically Inert · Ideal for CV/LSV/EIS, Redox Studies, Catalysis, and Fundamental Electrochemistry
Product Overview

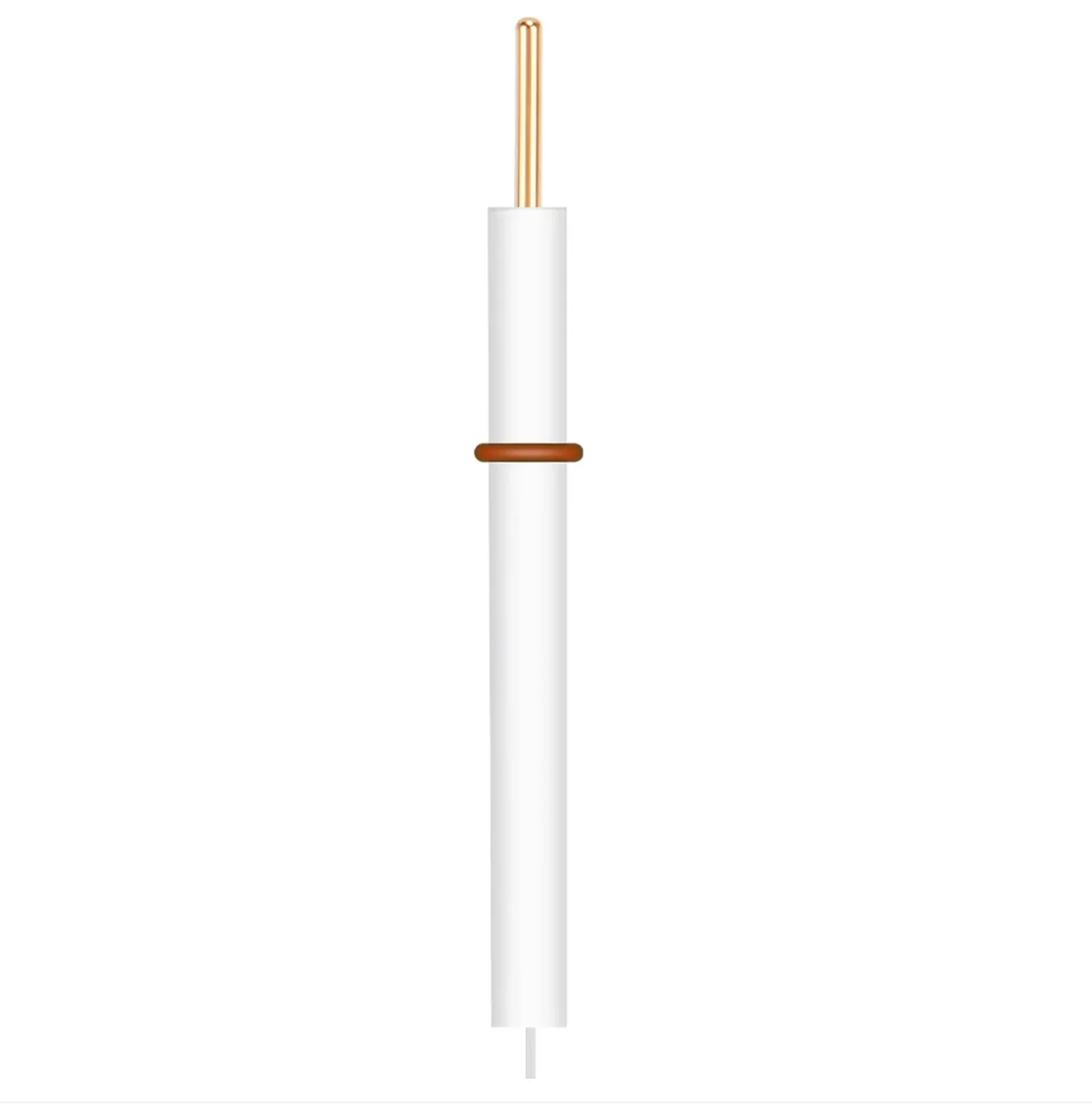

The FrankLab Platinum Column Electrode (also called Platinum Rod Electrode) is manufactured using a solid platinum rod (>99.99% purity) mounted inside a chemically resistant PTFE or PEEK body, with a gold-plated copper terminal ensuring a stable electrical connection.
Compared with platinum wire electrodes, platinum column (rod) electrodes offer:
• Larger geometric area
• Higher mechanical strength
• More stable temperature behavior
• Improved durability under high-current conditions
They are widely used in:
• Cyclic voltammetry (CV), linear sweep voltammetry (LSV), electrochemical impedance spectroscopy (EIS)
• Redox mechanism studies
• Electrocatalyst evaluation
• Oxygen/hydrogen evolution reactions
• Analytical electrochemistry
• Electrochemical sensors
Key Features
• Solid Platinum Rod (>99.99% Purity)
• High chemical and electrochemical stability
• Excellent catalytic activity
• Suitable for a wide electrochemical potential window
• Robust Mechanical Strength
Solid Pt rod provides:
• Higher durability than Pt wire
• Suitable for repeated polishing & long-term usage
• Stable in high-current applications
• PTFE or PEEK Electrode Body
|
Material |
Advantages |
|
PTFE |
Superb chemical resistance; ideal for general electrochemistry |
|
PEEK |
Higher mechanical strength & temperature resistance |
• Gold-Plated Copper Terminal
Standard for all FrankLab electrodes:
• Low contact resistance
• Corrosion-resistant
• Ensures reliable electrical performance
Technical Specifications
|
Parameter |
Specification |
|
Platinum Purity |
>99.99% |
|
Rod Diameters |
1 mm (standard); other diameters customizable |
|
Exposed Pt Lengths |
5 mm, 10 mm, 37 mm (from your list) |
|
Electrode Body Materials |
PTFE / PEEK |
|
Body Diameter |
Ø6 mm standard |
|
Body Length |
25 mm / 40 mm / 60 mm / 80 mm options |
|
Terminal Material |
Gold-plated copper |
|
Cleaning |
Flame clean, electrochemical clean, or polish |
|
Applications |
CV, LSV, EIS, catalysis, redox chemistry, sensor R&D |
Standard Models (Based on Your Spreadsheet)
PTFE-Body Platinum Column Electrode
|
Pt Rod Size |
Body |
Notes |
|

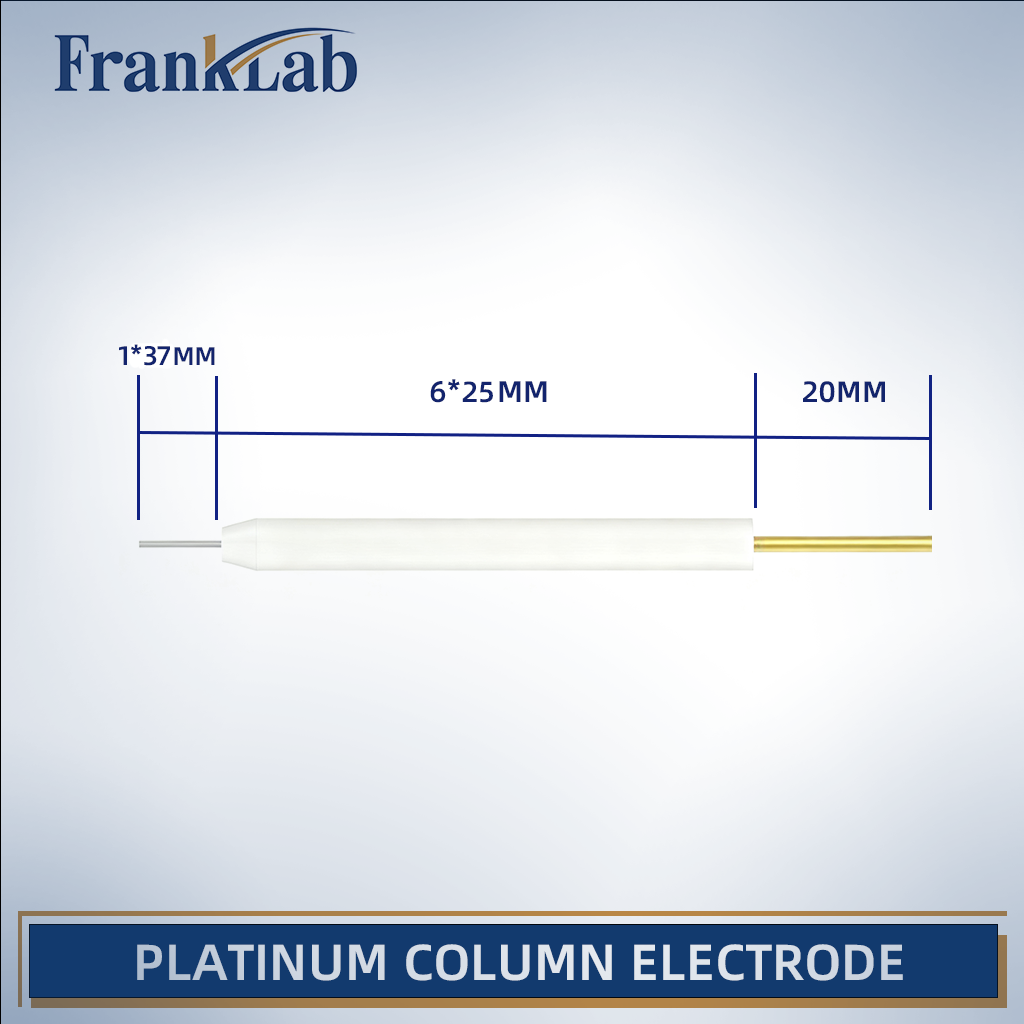

1 × 37 mm |
PTFE Ø6×25 mm |
Short body |
|
1 × 37 mm |
PTFE Ø6×40 mm |
Medium length |
|
1 × 37 mm |
PTFE Ø6×60 mm |
Deep insertion |
|
1 × 37 mm |
PTFE Ø6×80 mm |
Large reactor applications |
|
1 × 5 mm |
PTFE Ø6×60 mm |
Small-area electrode |
|

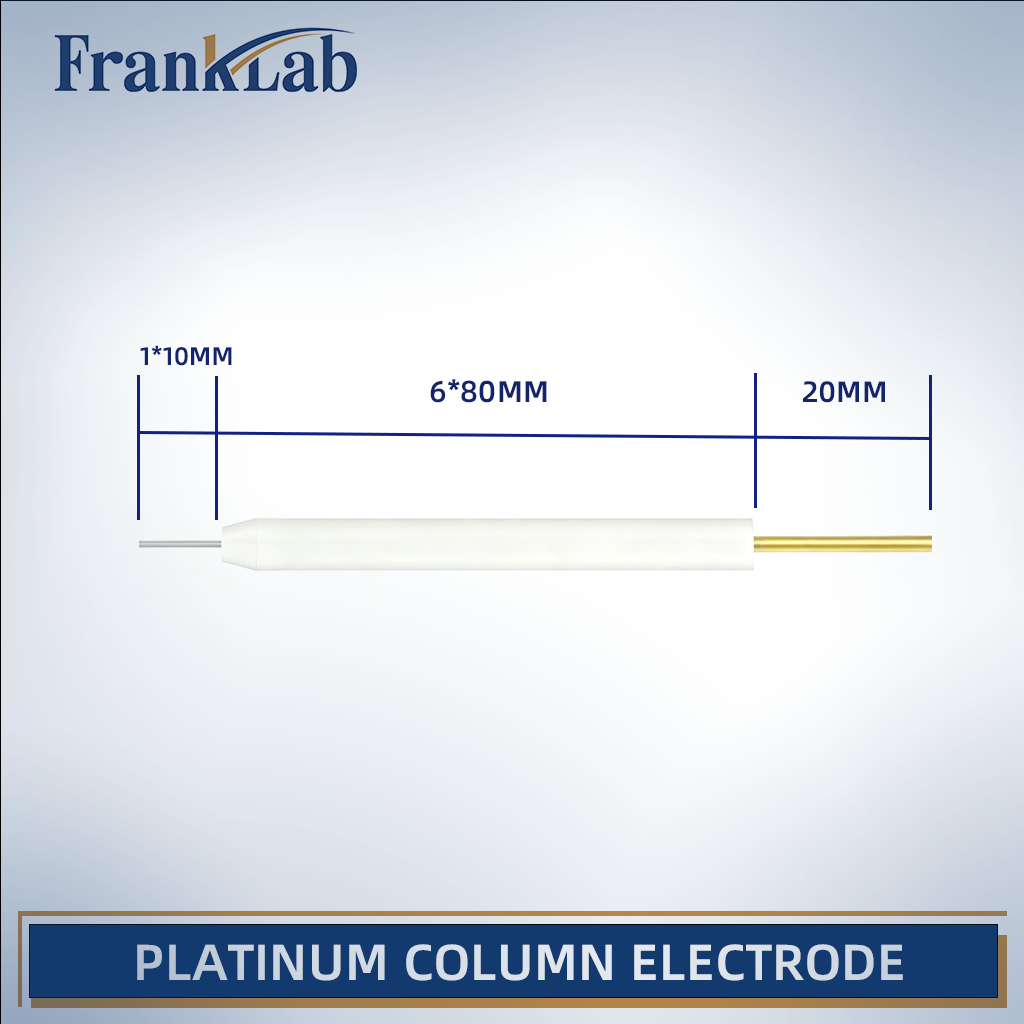

1 × 10 mm |
PTFE Ø6×80 mm |
Medium-area electrode |
PEEK-Body Platinum Column Electrode
|
Pt Rod Size |
Body |
Notes |
|
1 × 37 mm |
PEEK Ø6×25 mm |
Compact design |
|
1 × 37 mm |
PEEK Ø6×40 mm |
Higher rigidity |
|

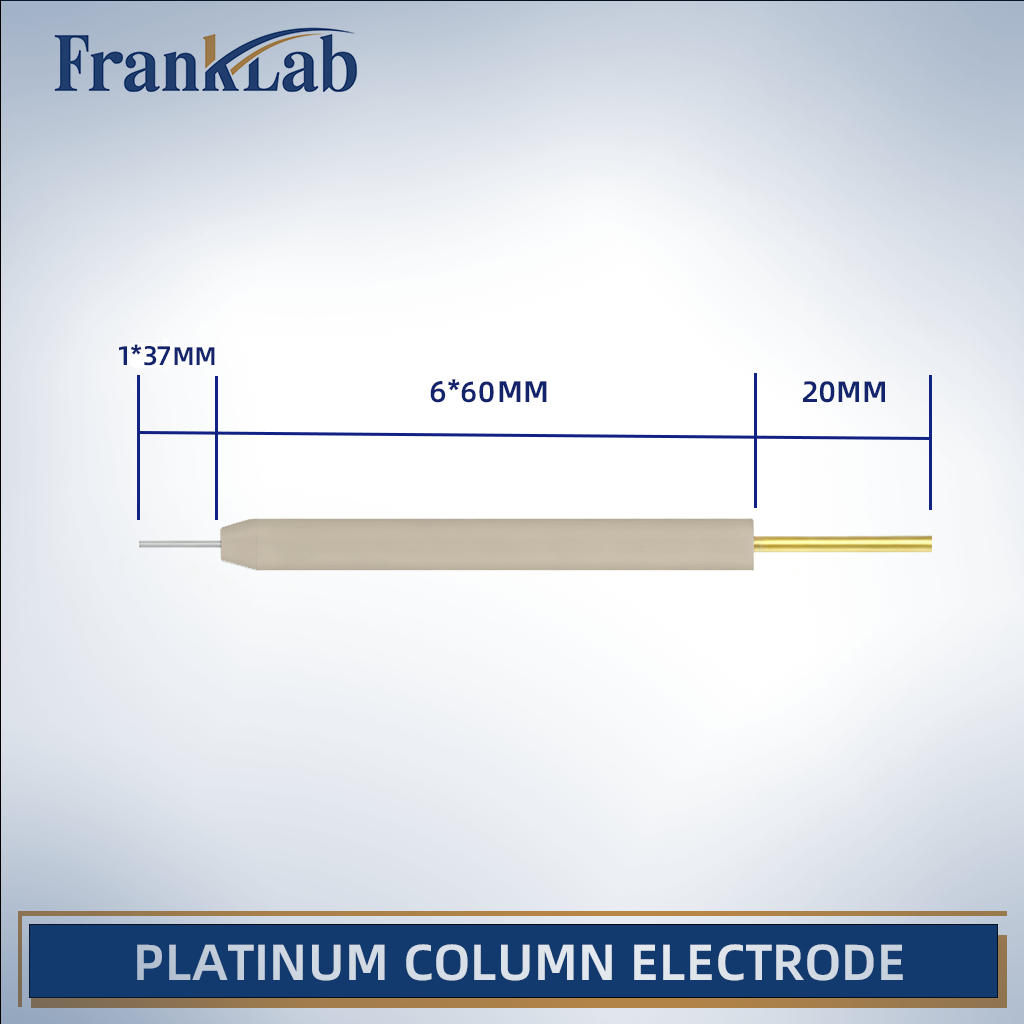

1 × 37 mm |
PEEK Ø6×60 mm |
Stronger chemical resistance |
|
1 × 37 mm |
PEEK Ø6×80 mm |
High-temperature use |
|
1 × 5 mm |
PEEK Ø6×60 mm |
Small-area electrode |
|
1 × 10 mm |
PEEK Ø6×80 mm |
Longer exposed area |
Recommended Applications
Electrocatalysis & Energy Research
• HER / OER studies
• Platinum catalyst benchmarking
• Fuel cell testing
Fundamental Electrochemistry
• Redox reaction kinetics
• Standard electrode measurements
• High-precision analytical chemistry
Electrochemical Sensor Development
• Pt-based biosensors
• Organic electrochemical reactions
General Laboratory Use
• Stable inert working electrode for a wide variety of experiments
Customization Available
FrankLab provides complete OEM customization:
• Rod diameters (0.5–3 mm)
• Exposed platinum length (2–50 mm)
• PTFE / PEEK body length & diameter
• Gold-plated or alternative terminals
• Multi-electrode assemblies
• Polished or pre-cleaned Pt surfaces
Send drawings or specifications → 24-hour quotation.
