Platinum Disk Electrode/Pt Disk, >99.99% Purity,

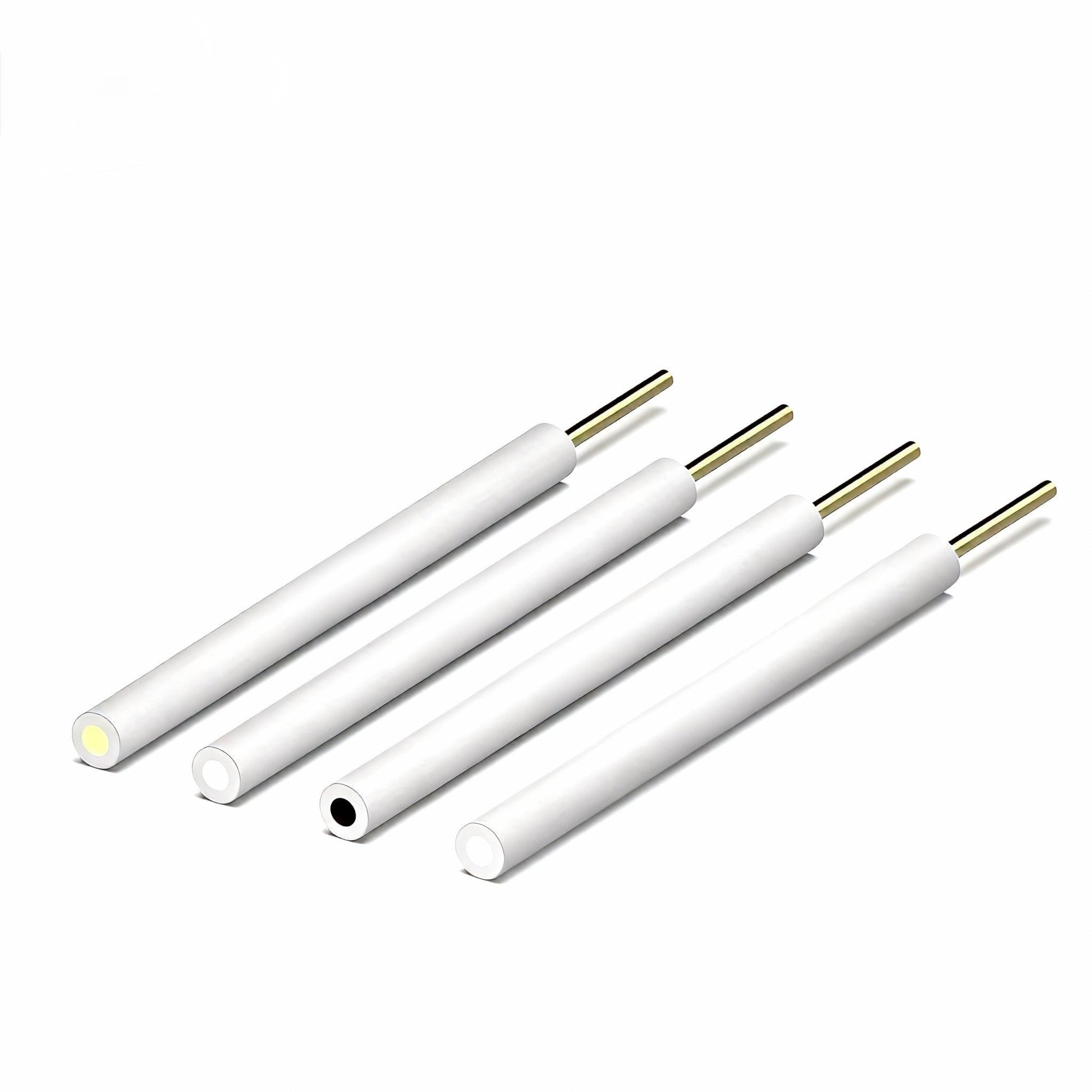

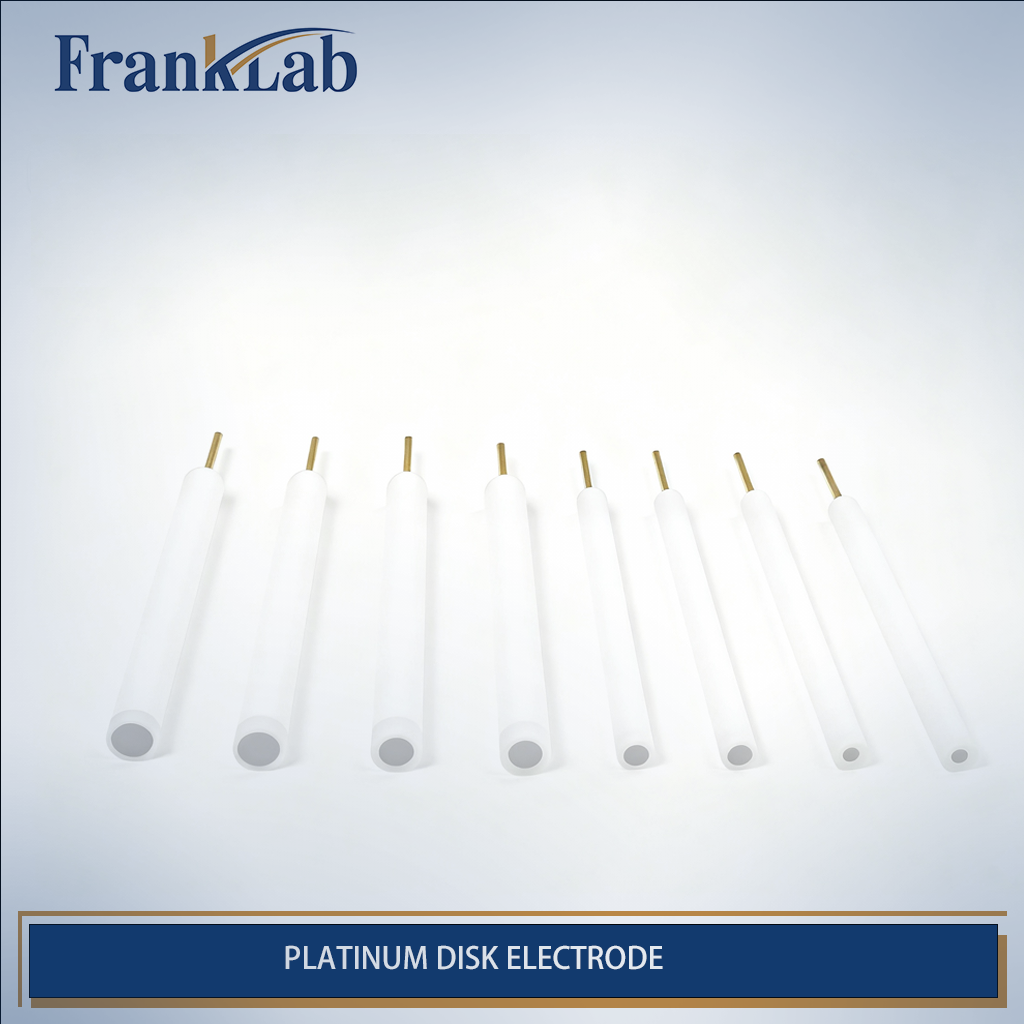

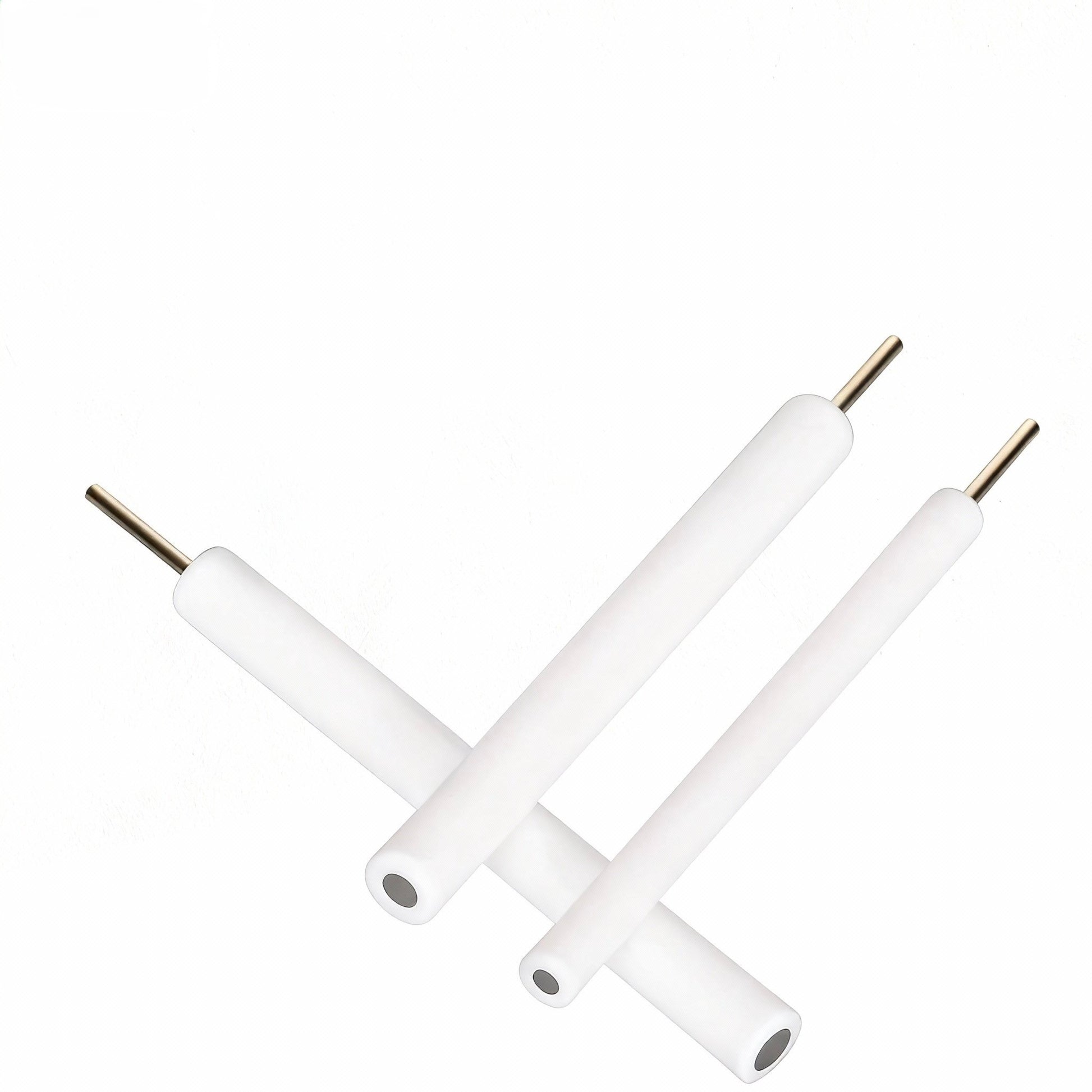

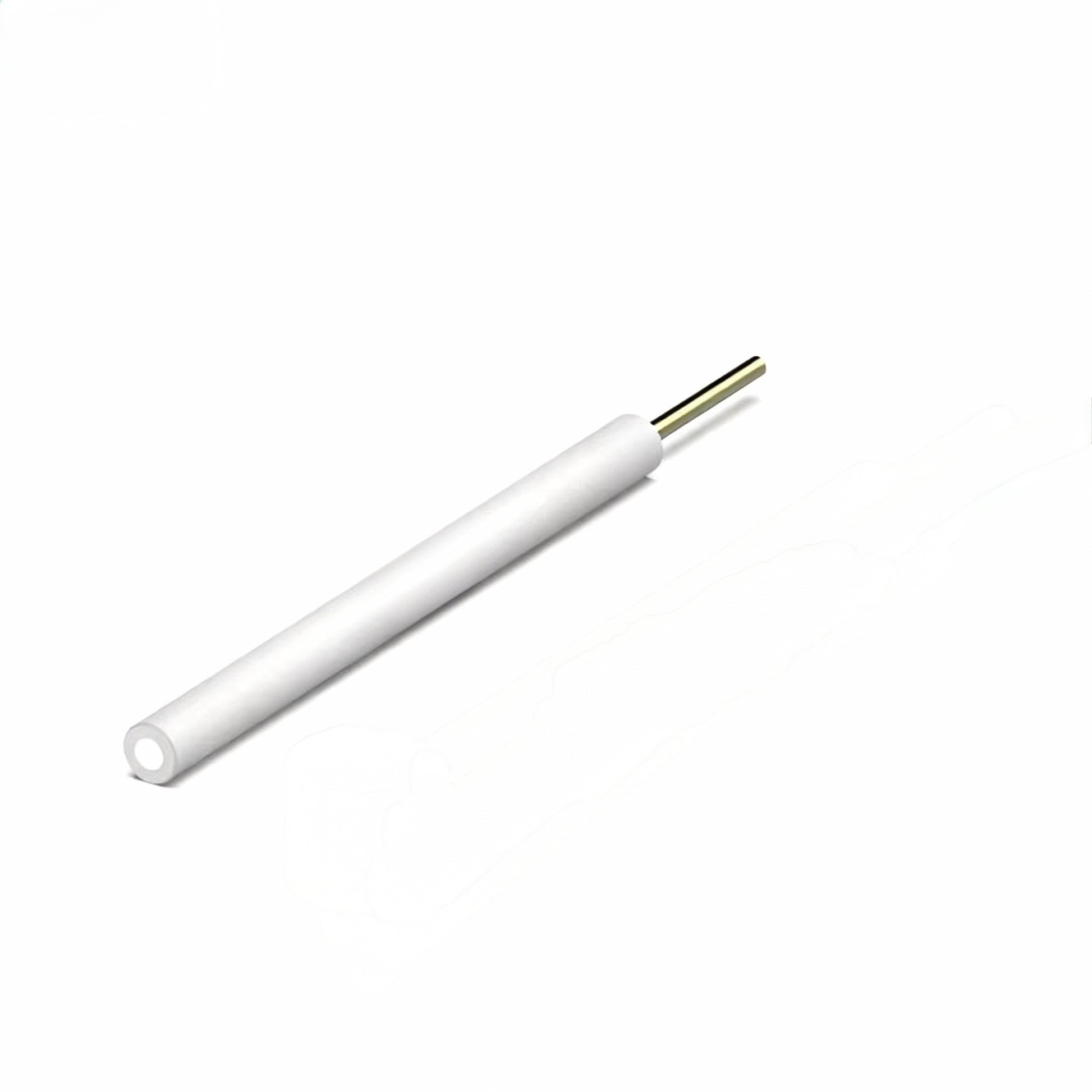

Platinum Disk Electrode (Pt) — High-Purity,
The FrankLab Platinum Disk Electrode is designed for high-accuracy electrochemical measurements where stability, corrosion resistance, and long-term durability are essential. Using ≥99.99% purity platinum and precision polishing technology, each electrode delivers exceptionally low background current and highly reproducible electrochemical responses.
Ideal for applications including HER/OER, oxygen evolution studies, reference kinetics benchmarking, catalyst evaluation, and fundamental electron-transfer mechanism research.
Available Diameters
|
Diameter Options |
Purity |
|
Ø0.5 mm |
≥99.99% Pt |
|
Ø1 mm |
≥99.99% Pt |
|
Ø2 mm |
≥99.99% Pt |
|
Ø3 mm |
≥99.99% Pt |
|
Ø4 mm |
≥99.99% Pt |
|
Ø5 mm |
≥99.99% Pt |
|
Ø6 mm |
≥99.99% Pt |
(Custom machining available from 0.3 mm to 10 mm.)
Technical Specifications
|
Parameter |
Value |
|
Electrode Material |
Platinum (≥99.99%) |
|
Disk Diameter Options |
Ø0.5–6 mm (as listed above) |
|
Rod Protection Sleeve |
PTFE / PEEK (optional) |
|
Lead Wire |
Gold-plated copper, welded |
|
Total Length |
80 mm PTFE section + 20 mm metal tail (typical) |
|
Insulator Diameter |
Ø6–8 mm depending on model |
|
Surface Finish |
Mirror-polished (Ra < 0.05 µm) |
|
Temperature Range |
−20°C to 200°C |
|
Chemical Resistance |
Strong acids, chloride systems, oxidizers |
Key Features
• Ultra-stable platinum surface for high-precision voltammetry
• Mirror-polished finish ensures minimal noise and superior reproducibility
• Strong chemical and thermal resistance suitable for harsh acidic and oxidative media
• Perfect for kinetic benchmarking (HER, OER, ORR reference tests)
• Custom insulation options (PTFE / PEEK) for different chemical environments
• Re-polishing service supported for extended product lifetime
Applications
• Hydrogen evolution reaction (HER)
• Oxygen evolution reaction (OER)
• Redox kinetics studies
• Catalyst benchmarking and standard electrodes
• Electrochemical sensor development
• Fuel cell and electrolyzer R&D
Customization Options
FrankLab supports full OEM/ODM manufacturing:
• Custom platinum diameter: 0.3–10 mm
• Custom electrode length and sleeve diameter
• PTFE or PEEK insulation
• Logo engraving, batch coding
• Electro-polishing, mirror polishing
• Special shapes (square, rectangular, beveled, hemispherical)
Quotation available within 24 hours.
