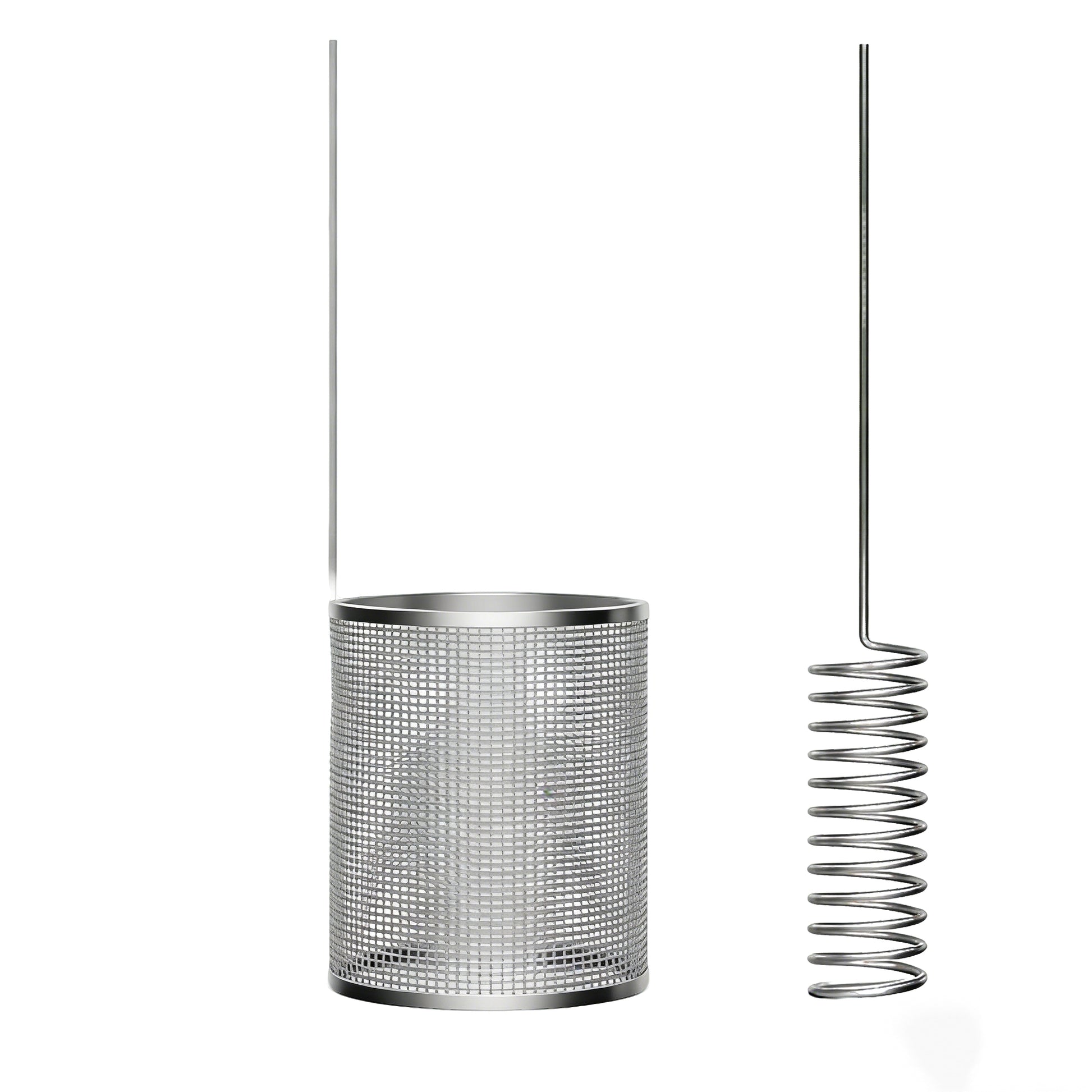

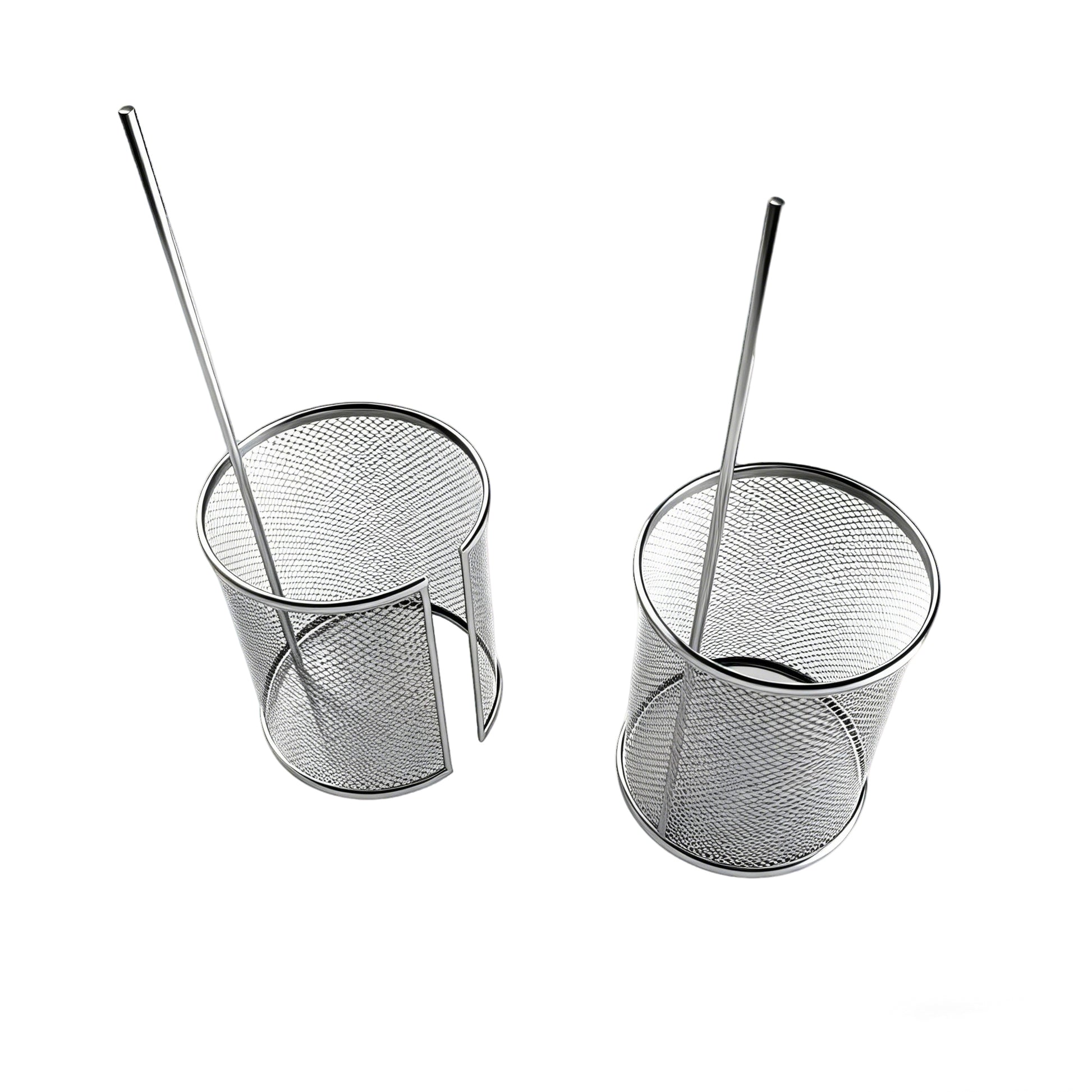

Platinum Gauze Electrode (99.99% Pt) – Platinum Mesh Electrode for Electrochemical Analysis
-
Estimated Delivery:Jun 13 - Jun 17
-
Worldwide Free Shipping: On all orders over $499
Guarantee safe & secure checkout
Platinum Gauze Electrode (99.99% Pt) – Platinum Mesh Electrode for Electrochemical Analysis
| Property | Value |
| Platinum Purity | ≥99.99% |
| Density | 21.45 g/cm³ |
| Melting Point | 1769°C |
| Parameter | Value |
| Platinum Mesh | 52 mesh |
| Mesh Cylinder Diameter | 40 mm |
| Mesh Cylinder Height | 40 mm |
| Total Height (Mesh + Wire) | 120 mm |
| Side Support Wire | Platinum Wire |
| Wire Diameter | 1.5 mm |
| Wire Height | 120 mm |

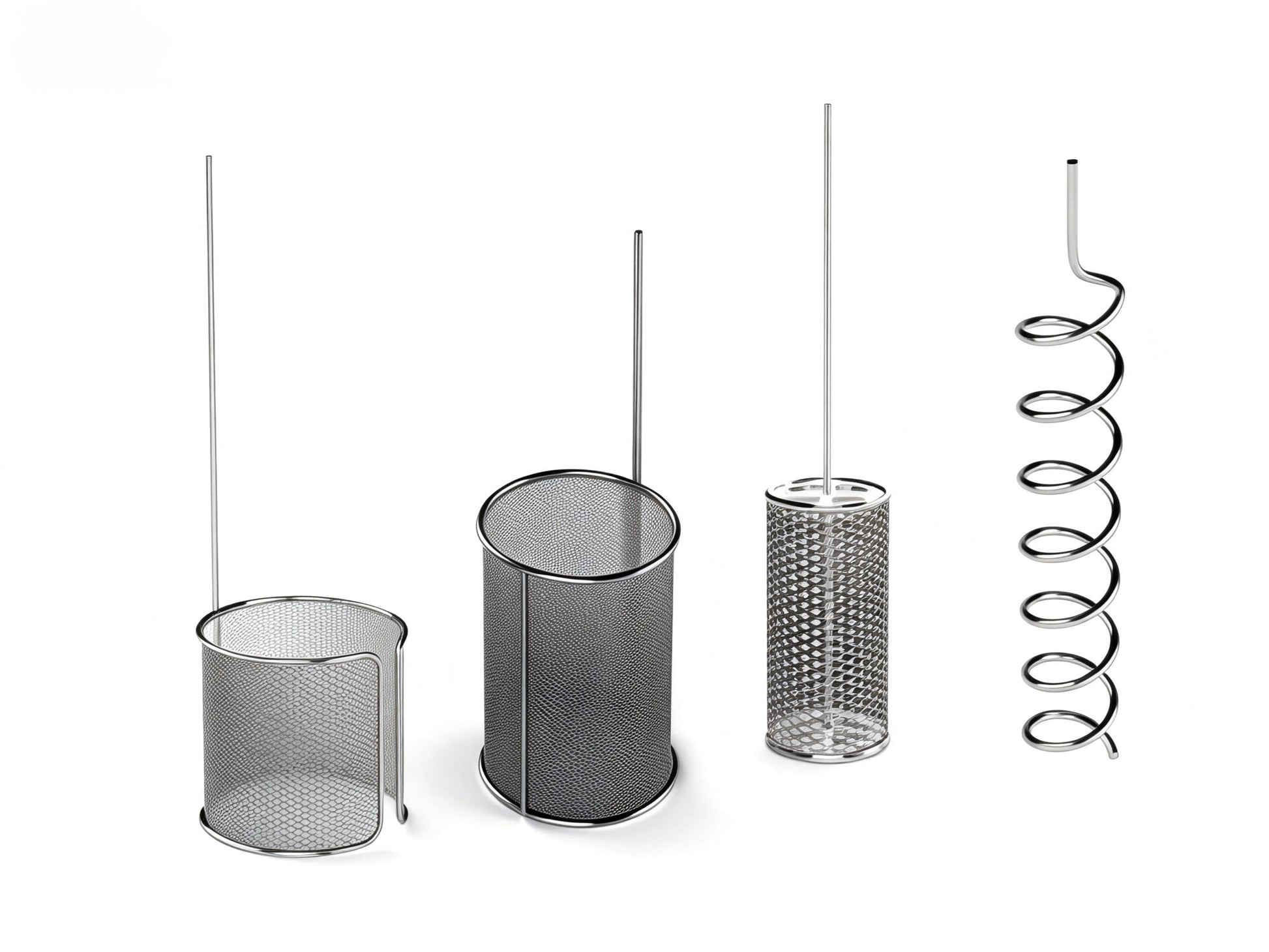

| Mesh Size | Notes |
| 50 Mesh | Standard configuration |
| 100 Mesh | Optional |
| Custom Mesh | Available upon request |
| Application | Description |
| Copper Content Determination | Electrochemical analysis according to GB/T5121 standard |
| Electron Beam Evaporation | Thin film deposition processes |
| Thermal Evaporation | Vacuum coating and material deposition |
| Electrochemical Experiments | High surface area electrode for laboratory electrochemistry |
