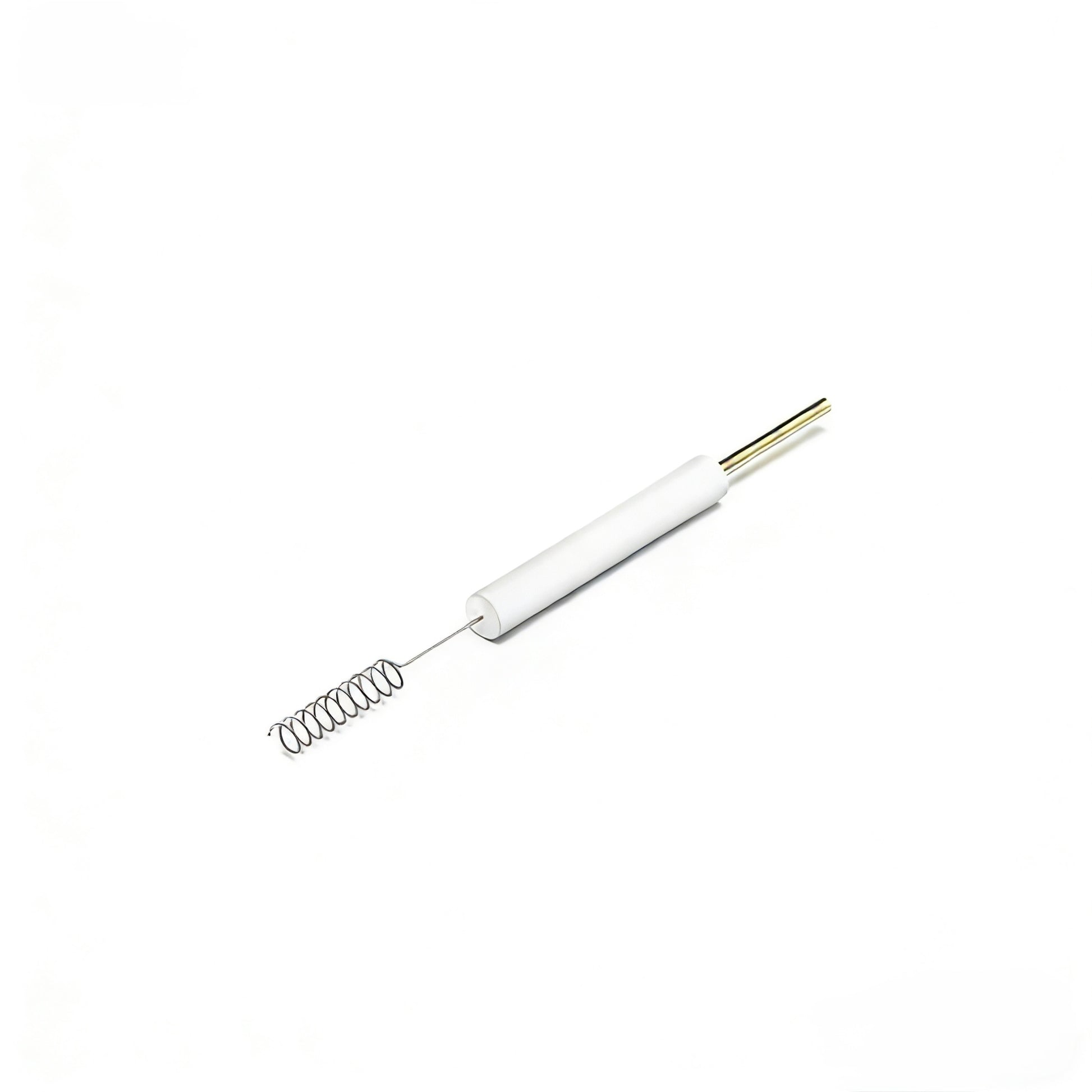

Platinum Ring Electrode

Product Overview

The FrankLab Platinum Ring Electrode is fabricated from high-purity platinum wire (>99.99%), formed into a precise circular ring and mounted inside a chemically resistant PTFE or PEEK body with a gold-plated copper terminal.

Compared with standard Pt disk or rod electrodes, a Pt ring electrode offers:

• Uniform radial current distribution

• Reduced ohmic drop

• High mass-transfer sensitivity

• Improved signal-to-noise ratio in analytical experiments

These advantages make Pt ring electrodes ideal for:

• Hydrodynamic systems

• Mechanistic electrochemistry

• RRDE (rotating ring) related measurements

• Electrocatalyst screening

• Dissolved oxygen / peroxide detection

• Electrochemical kinetic studies

Key Features

• High-Purity Platinum Wire (>99.99%)

• Excellent catalytic activity

• Large electrochemical stability window

• Resistant to oxidation, corrosion & high temperature

• Precision-Formed Ring Geometry

• Highly reproducible electrochemical response

• Ideal for laminar flow and diffusion studies

• Sensitive to intermediate species (e.g., H₂O₂, radicals)

• PTFE or PEEK Electrode Body

• Gold-Plated Copper Terminal（标准配置）

• Low contact resistance

• Strong corrosion resistance

• Ensures stable long-term signal integrity

Other terminal materials customizable.

• Compatible with Most Laboratory Electrochemical Cells

Can be used in:

• Beakers

• Flow cells

• RRDE systems

• Custom reactors

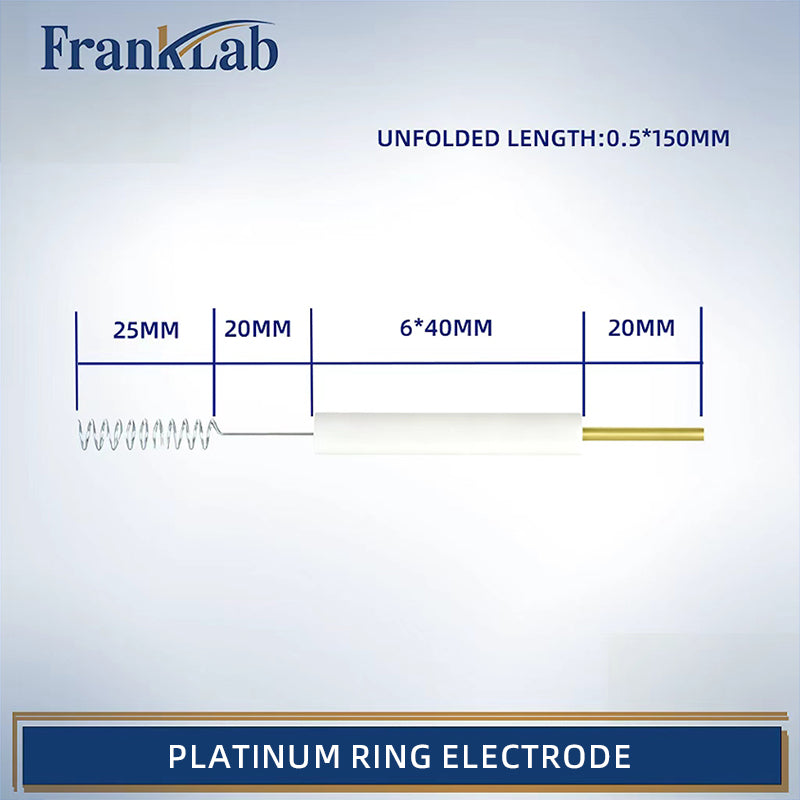

Technical Specifications

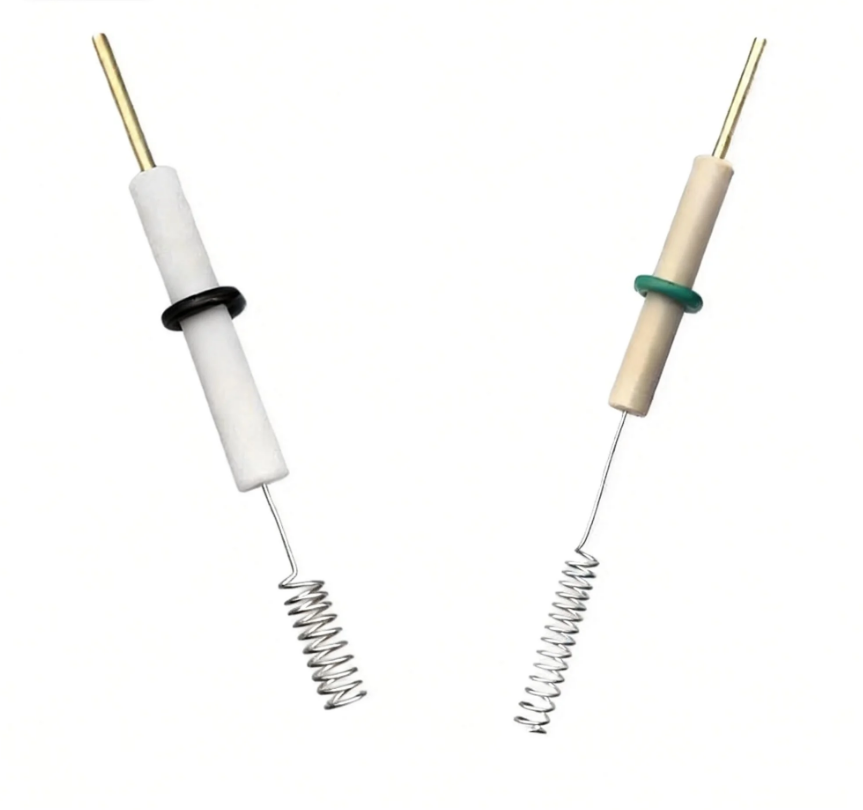

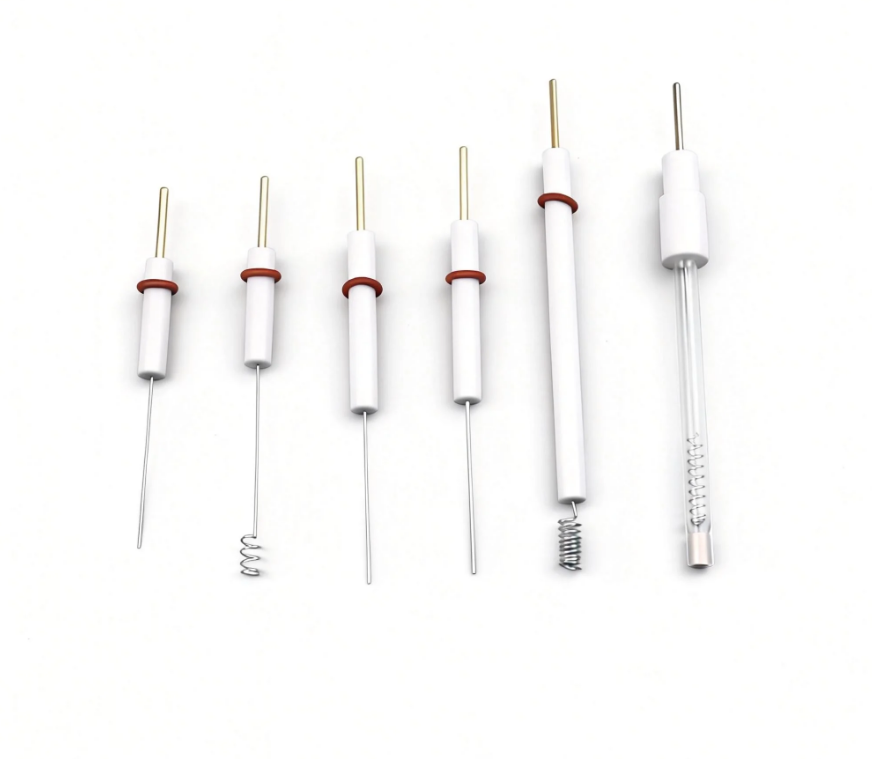

Standard Models

PTFE Body

PEEK Body

Recommended Applications

Electrochemical Mechanism Studies

• Identification of transient intermediates

• Detecting reaction products in real time

Hydrodynamic & Mass-Transfer Experiments

• Ring electrodes are highly sensitive to diffusion control

• Ideal for rotating ring-disk (RRDE)-related testing

Catalysis Research

• ORR/HOR kinetics

• H₂O₂ formation & detection

• Oxygen reduction intermediate analysis

Analytical Chemistry

• Detection of trace species

• Sensor calibration & development

General Electrochemical Use

• Stable inert Pt surface for broad research needs

Customization Available

FrankLab supports full customization:

• Pt wire diameter (0.1–2.0 mm)

• Ring inner/outer diameter

• PTFE/PEEK body dimensions

• Custom terminal materials

• Multi-ring assemblies

• Polished or flame-cleaned Pt surfaces

• Custom geometries for RRDE compatibility

Send your drawing or specifications → 24-hour quotation.

For Custom Orders or Inquiries

If you have custom requirements or any additional questions, feel free to contact us:

Email: support@franklab.shop

Why Choose FrankLab?

FrankLab Focused on electrochemical & research materials

•Stable quality for repeatable experiments

•Flexible customization capability

•Trusted by universities, institutes, and industrial R&D labs
