Franklab
Platinum Wire Electrode, >99.99% Purity,PTFE/PEEK
Platinum Wire Electrode, >99.99% Purity,PTFE/PEEK
Regular price
$69.90 USD
Regular price
Sale price
$69.90 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Share
Product Description
Platinum Wire Electrode | >99.99% Purity Pt Wire | FrankLab
High-Purity Platinum · Chemically Inert · Ideal for Electrochemistry, Redox Studies & Reference Reactions
Product Overview

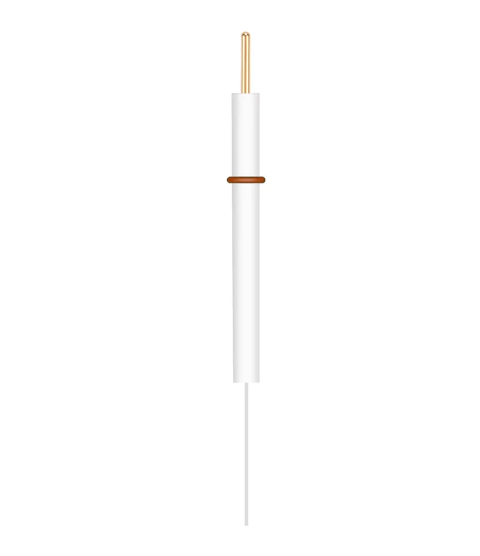

The FrankLab Platinum Wire Electrode is a high-purity (>99.99%) platinum wire sealed into a chemically resistant PTFE or PEEK electrode body, featuring a gold-plated copper terminal for stable electrical connection.
Platinum (Pt) is one of the most stable, inert, and widely used electrode materials in electrochemistry. It offers excellent resistance to oxidation, strong catalytic activity, and a wide electrochemical potential window.
This makes Pt wire electrodes suitable for:
• CV / LSV / EIS
• Redox reaction studies
• Analytical electrochemistry
• Sensor development
• Electrocatalyst evaluation
• Hydrogen evolution / oxygen evolution studies
Available in multiple diameters, exposed lengths, and body materials.
Key Features
• Ultra-High Purity Platinum (>99.99%)
• Excellent catalytic activity
• Superior chemical and thermal stability
• Ideal for analytical and research-grade electrochemistry
• PTFE or PEEK Electrode Body
Choose depending on chemical and temperature requirements:
| Body Material | Properties |
| PTFE | Excellent chemical resistance, ideal for general electrochemistry |
| PEEK | High-temperature stability, strong mechanical rigidity |
• Gold-Plated Copper Terminal
All FrankLab electrodes use gold-plated copper terminals for:
• Low contact resistance
• Strong corrosion resistance
• Stable signal transmission
Other terminal materials available upon request.
• Stable and Easily Cleaned Pt Surface
Platinum wire can be flame-cleaned, electrochemically cleaned, or polished depending on your experimental needs.
Technical Specifications
| Parameter | Specification |
| Material | >99.99% Platinum Wire |
| Wire Diameters | 0.5 mm (other diameters customized) |
| Exposed Pt Lengths | 15 mm, 20 mm, 37 mm (customizable) |
| Body Materials | PTFE or PEEK |
| Body Diameter | Ø6 mm standard (25–80 mm length options) |
| Terminal Material | Gold-plated copper (standard) / customizable |
| Chemical Resistance | Excellent in acid, neutral, and alkaline environments |
| Applications | Redox chemistry, CV/LSV/EIS, catalysis, sensors, H₂/O₂ reactions |
Standard Models (Based on Your Spreadsheet)
PTFE-Body Platinum Wire Electrodes
| Model | Pt Wire Size |

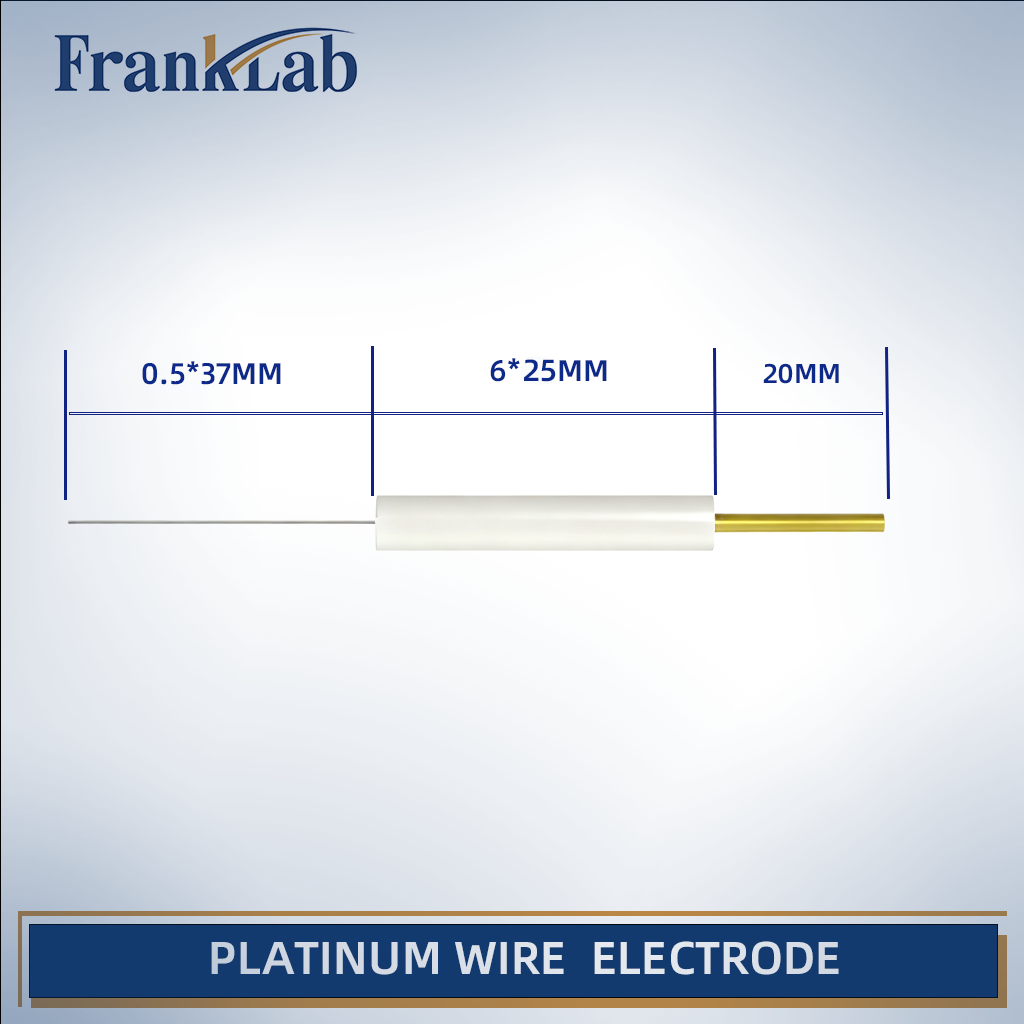

| PTFE Ø6×25 mm | 0.5 × 37 mm |
| PTFE Ø6×40 mm | 0.5 × 37 mm |
| PTFE Ø6×60 mm | 0.5 × 15 mm / 20 mm / 37 mm |

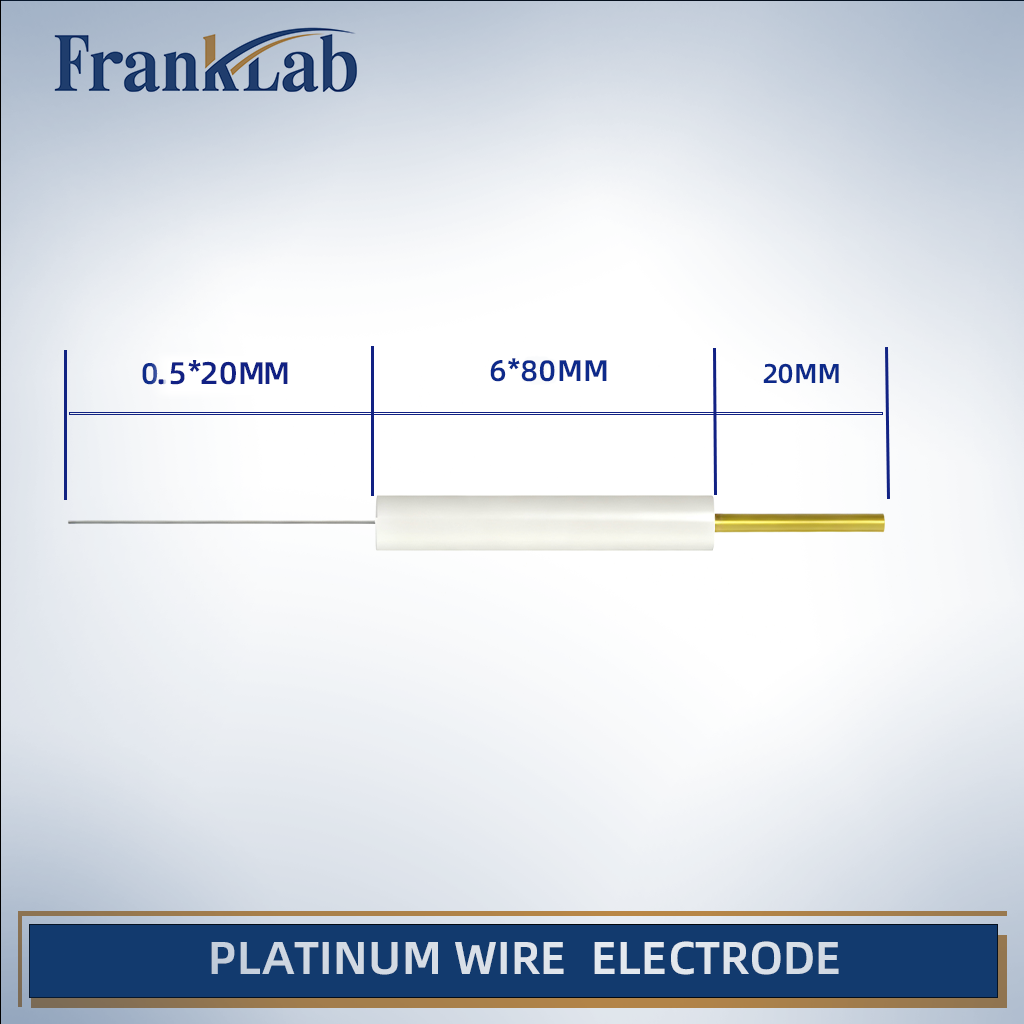

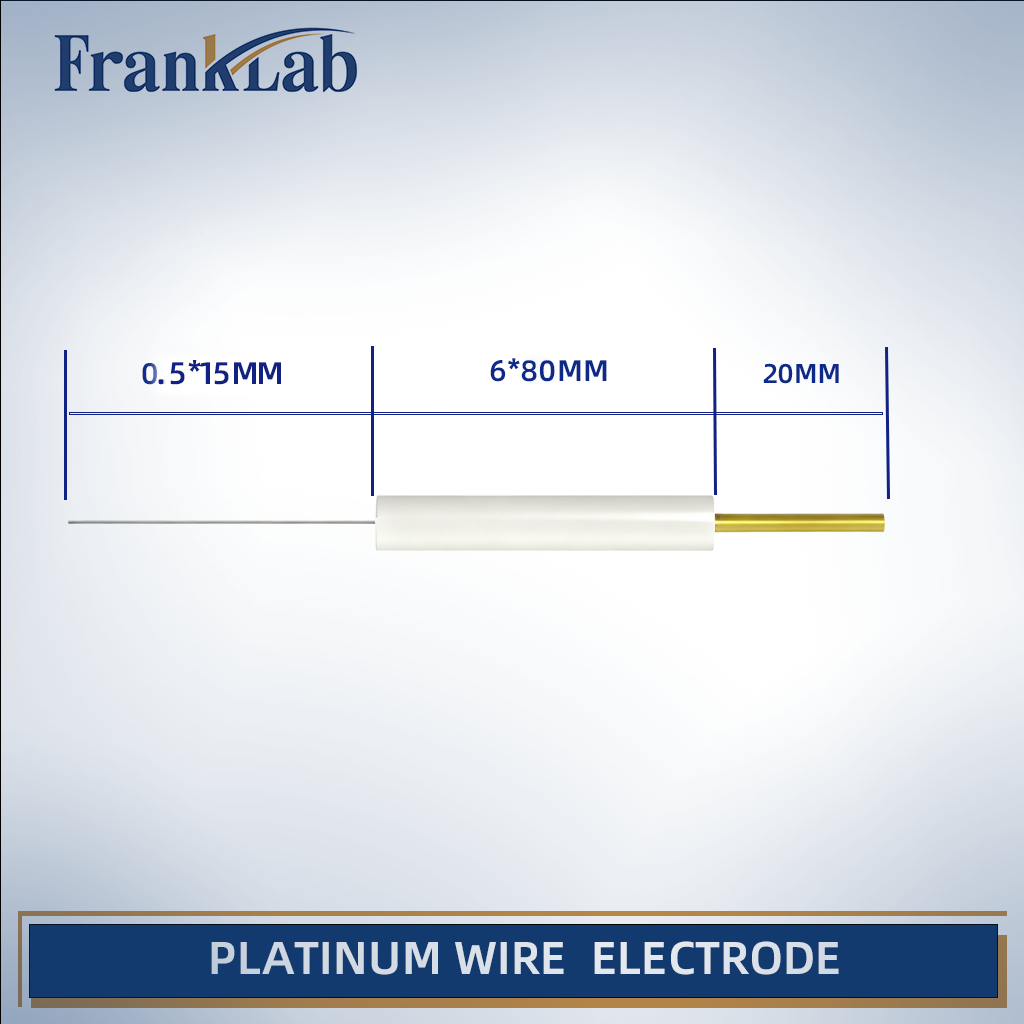

| PTFE Ø6×80 mm | 0.5 × 15 mm / 20 mm / 37 mm |
PEEK-Body Platinum Wire Electrodes
| Model | Pt Wire Size |

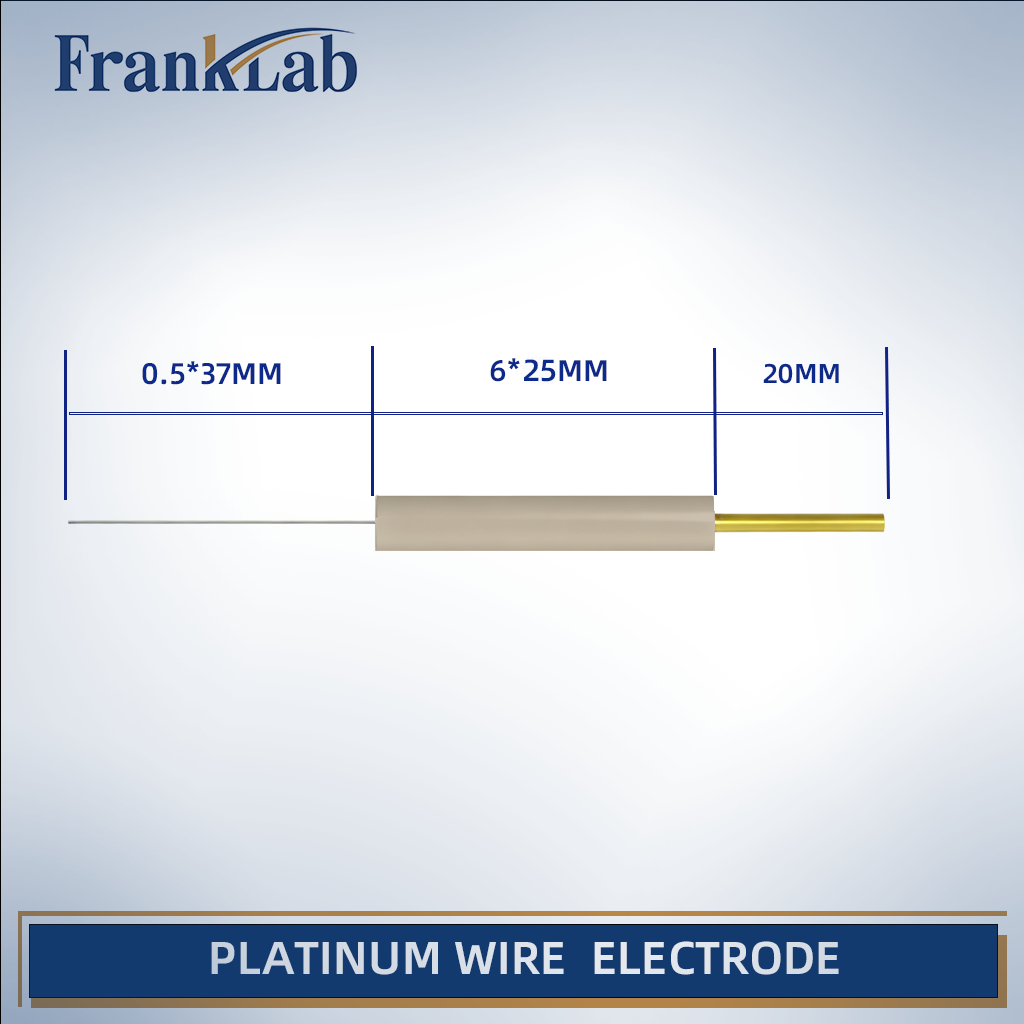

| PEEK Ø6×25 mm | 0.5 × 37 mm |
| PEEK Ø6×40 mm | 0.5 × 37 mm |
| PEEK Ø6×60 mm | 0.5 × 15 mm / 20 mm / 37 mm |
| PEEK Ø6×80 mm | 0.5 × 15 mm / 20 mm / 37 mm |
Recommended Applications
Fundamental Electrochemistry
• CV, LSV, EIS
• Redox kinetics
• Analytical chemistry
Catalysis & Energy Research
• HER / OER studies
• Pt-based catalyst benchmarking
• Fuel cell research
Electrosynthesis & Sensors
• Pt-based catalytic reactions
• Biosensor electrode base
• Organic electrochemical reactions
General Laboratory Use
• Stable inert electrode for broad applications
Customization Available
We support full OEM customization:
• Custom wire diameter (0.1–2.0 mm)
• Custom exposed Pt length
• PTFE or PEEK body shape and size
• Custom terminal materials
• Multi-electrode assemblies
• Flame-cleaned or polished platinum surface
• Serialized & batch-coded electrodes for QA tracking
Send your drawings or specifications → 24-hour quotation.
