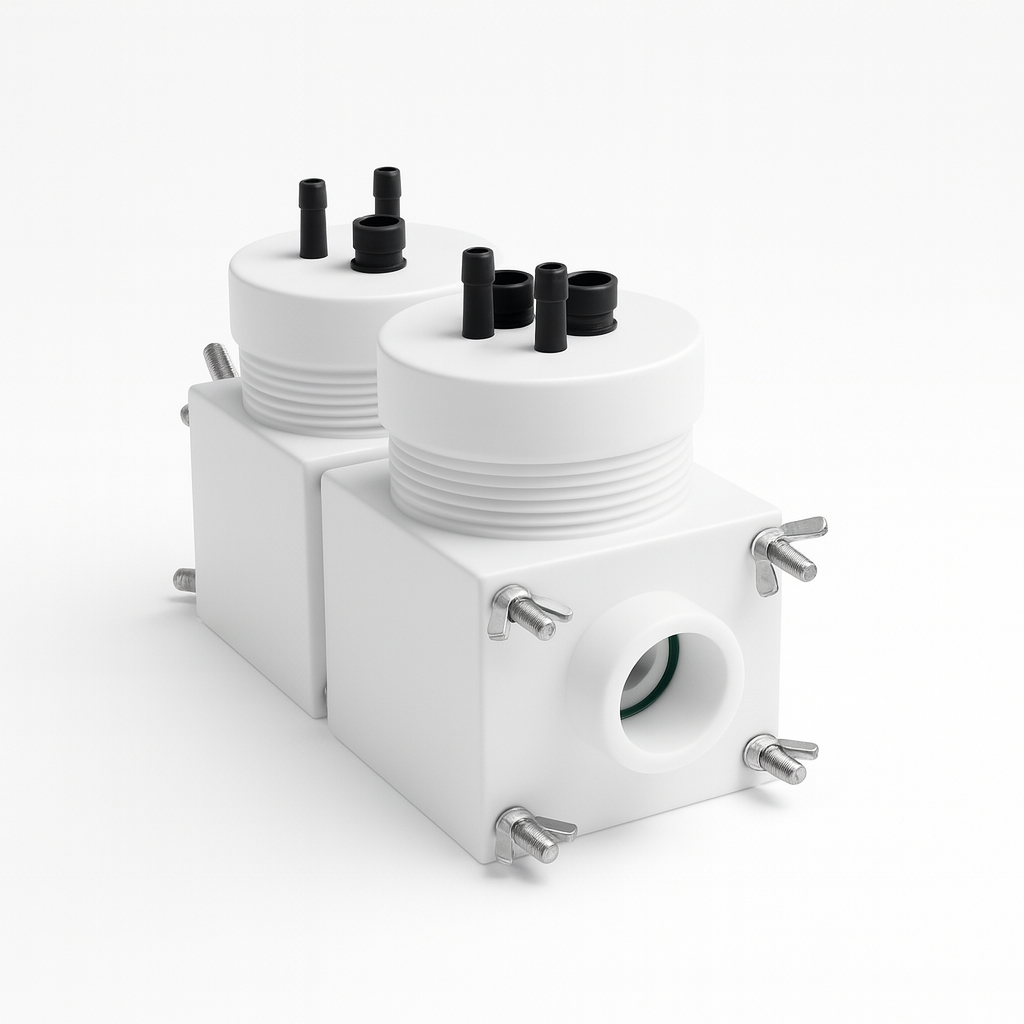

PTFE H-type Optical Electrochemical Cell

PTFE H-type Optical Electrochemical Cell

Product Description
Shipping & Delivery

PTFE H-type Optical Electrochemical Cell

Sealed Configuration · Quartz Optical Window · Replaceable Ion-Exchange Membrane

Product Overview
The PTFE H-type Optical Electrochemical Cell is a fully sealed, dual-chamber electrochemical reactor designed for photoelectrochemistry, spectroelectrochemical analysis, and gas-involved electrochemical reactions.
Constructed with chemically inert PTFE cell bodies and high-transmittance quartz optical windows, this system enables simultaneous electrochemical control and in-situ optical access under strictly sealed conditions.
A replaceable ion-exchange membrane (PEM / AEM / diaphragm) is clamped between the two chambers, allowing controlled ionic transport while maintaining physical separation of anodic and cathodic compartments.
This model is supplied only in sealed configuration, ensuring excellent gas-tightness and reproducibility.

Cell Configuration
H-type dual-chamber design (sealed)
•Left chamber: working electrode compartment
•Right chamber: counter / reference electrode compartment
•Central membrane interface: replaceable ion-exchange membrane
•Side-mounted quartz optical window for in-situ illumination and spectroscopy
✔ Designed for closed-system experiments, gas control, and optical measurements ✔ Not available in non-sealed version

 Available Volumes
Chamber Volume (L / R)
30 mL – 30 mL
40 mL – 40 mL
50 mL – 50 mL
100 mL – 100 mL
150 mL – 150 mL
200 mL – 200 mL
250 mL – 250 mL
500 mL – 500 mL
Custom chamber volumes available upon request

Optical Window Specifications
Cell Volume Quartz Window Ø Effective Illumination Ø
50 mL 29 mm 24 mm
≥100 mL 41 mm 35 mm
•Optical material: UV-grade fused quartz
•Optical transmittance: >95% (UV–Vis range)
•Window sealed via compression flange + O-ring system

Technical Specifications
Parameter Specification
Cell body material PTFE (polytetrafluoroethylene)
Optical window Fused quartz
Configuration Sealed H-type, dual chamber
Membrane position Central clamped interface
Membrane compatibility Nafion, AEM, BPM, porous diaphragm
Electrode ports Multi-port threaded PTFE caps
Gas ports Inlet & outlet (sealed)
Seal type O-ring compression sealing
Chemical resistance Strong acid / alkali / organic solvents
Operating temperature Typically −20 °C to 120 °C (PTFE limited)
Key Features
• Fully Sealed, Gas-Tight System
Designed for closed electrochemical environments, enabling:
•Gas purging (Ar / N₂ / CO₂)
•Oxygen exclusion
•Gas collection and sampling
•Stable long-term electrolysis

• Integrated Optical Access
Side-mounted quartz optical window allows:
•In-situ UV-Vis spectroscopy
•Photoelectrochemical illumination
•Real-time observation of electrode behavior

• Replaceable Ion-Exchange Membrane
Central membrane interface supports:
•PEM / AEM / BPM
•Custom membrane thickness
•Adjustable channel size upon request
Ideal for separated anode–cathode reactions.

• PTFE Construction for Maximum Chemical Stability
•No metal contamination
•Excellent corrosion resistance
•Suitable for aggressive electrolytes

• Rotatable Inner PTFE Caps
Inner PTFE lids support 360° rotation, allowing precise alignment between:
•Electrode
•Optical window
•Sample position

Typical Applications
•Photoelectrochemical water splitting
•CO₂ reduction (photo-assisted or dark)
•Spectroelectrochemistry (UV-Vis)
•Gas-phase electrochemical reactions
•Membrane-separated electrocatalysis
•In-situ optical monitoring of electrode processes

Standard Delivery Contents
•PTFE optical cell body (Left) ×1
•PTFE optical cell body (Right) ×1
•Inner PTFE caps ×2
•Outer PTFE caps ×2
•Quartz optical windows ×2
•Optical window compression flanges ×2
•Optical window O-rings ×4
•Threaded connection rods ×5
•Butterfly nuts / fasteners (set)
•Sealing screws (electrode & gas ports) – assorted
•O-rings (electrode & gas ports) – assorted
•PTFE tubing (gas lines) – approx. 3 m
⚠ Electrodes and membranes are not included unless specified.

Customization Options
Available upon request:
•Membrane type & thickness
•Optical window diameter
•Port number & thread type
•Reference electrode adapters
•Pressure-resistant sealing upgrade
•Special volume ratios (asymmetric chambers)
