Franklab

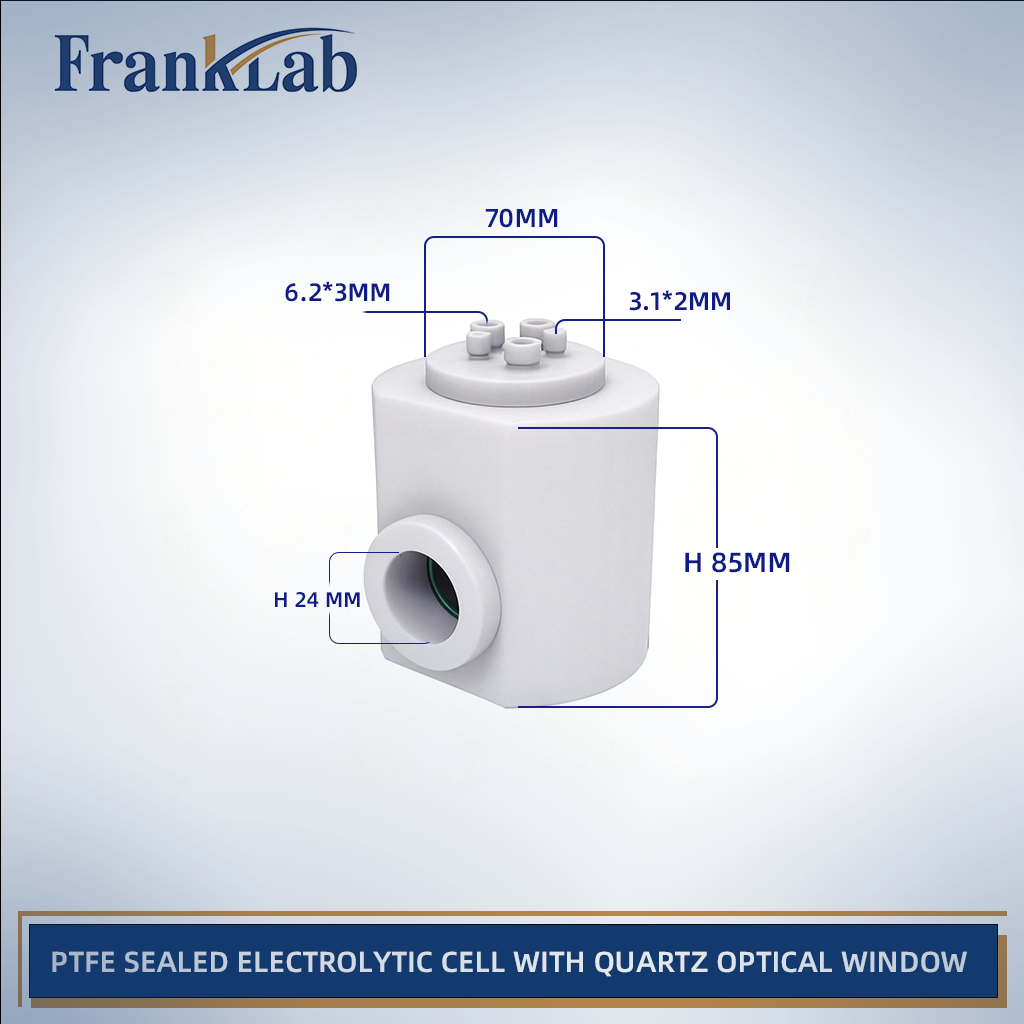

PTFE Sealed Electrolytic Cell with Quartz Optical Window
PTFE Sealed Electrolytic Cell with Quartz Optical Window
Regular price
$179.00 USD
Regular price
Sale price
$179.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Share
Product Description
PTFE Electrolytic Cell with Quartz Optical Window
Sealed Version / Non-Sealed Version · Optical Access · Chemically Inert Design
Product Overview
The FrankLab PTFE Electrolytic Cell with Quartz Optical Window is a chemically inert electrochemical reactor designed for optical electrochemistry, photo-electrochemical studies, and corrosive electrolyte systems where conventional glass cells are not suitable.

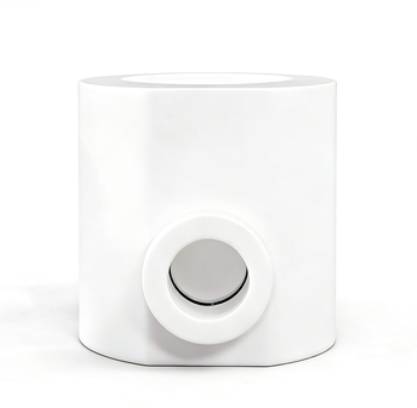

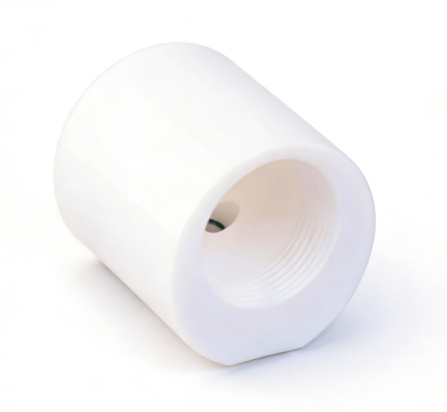

The cell body is machined from high-purity PTFE, combined with a quartz optical window that provides excellent UV–Vis light transmission while maintaining chemical resistance and structural stability.
Two configurations are available to match different experimental needs:
•PTFE Non-Sealed Electrolytic Cell – open system for routine optical electrochemistry
•PTFE Sealed Electrolytic Cell – gas-tight system for controlled atmosphere experiments
Product Versions
-
PTFE Non-Sealed Electrolytic Cell (Quartz Optical Window)
Designed for routine laboratory electrochemical and optical measurements under ambient conditions.
Key characteristics:
•Open, non-sealed structure
•Easy electrode insertion and adjustment
•Rapid electrolyte replacement
•Optical access through quartz window
✔ Best choice for UV-Vis monitoring, photo-electrochemistry, and method development
-

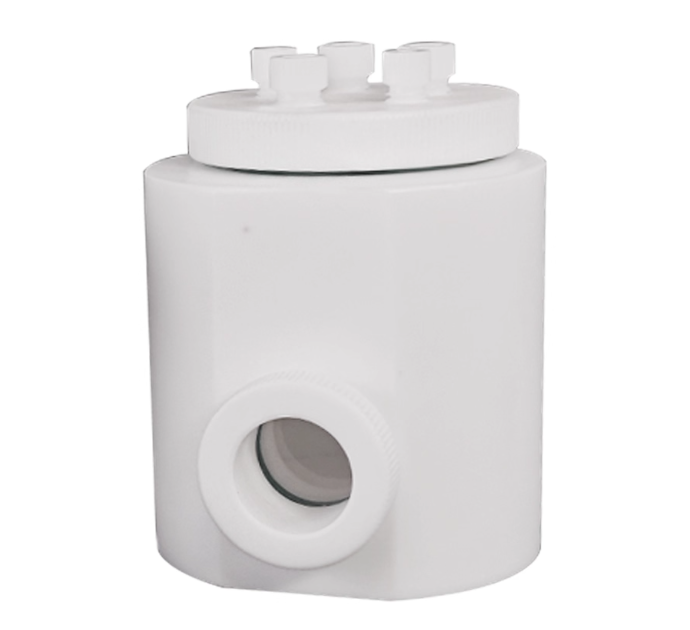

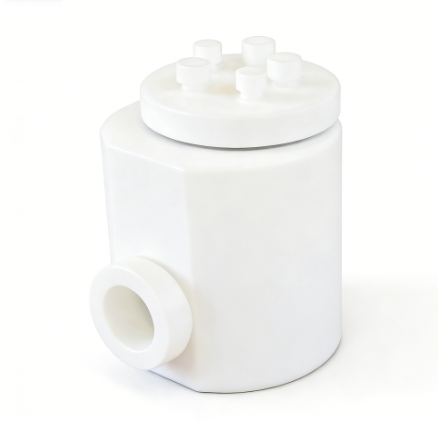

PTFE Sealed Electrolytic Cell (Quartz Optical Window)
Designed for experiments requiring gas isolation, controlled atmospheres, or volatile electrolytes.
Additional features:
•Gas-tight PTFE sealing system
•Dedicated gas inlet and outlet ports
•Reduced oxygen / moisture interference
•Stable optical path during long-term testing
✔ Best choice for CO₂RR, air-sensitive reactions, operando optical studies
Available Volumes
Both versions are available in the following working volumes:
•50 mL
•100 mL
•150 mL
•200 mL
•300 mL
•500 mL
Custom volumes and asymmetric designs are available upon request.
Technical Specifications
| Parameter | Specification |
| Cell body material | High-purity PTFE |
| Optical window | Quartz (UV–Vis compatible) |
| Cell type | Single-compartment electrolytic cell |
| Sealing options | Non-sealed / Fully sealed |
| Electrode ports | Working / Counter / Reference |
| Gas ports | (Sealed version) Gas inlet & outlet |
| Chemical resistance | Strong acids, strong bases, organic solvents |
| Optical compatibility | UV–Vis / photo-electrochemical setups |
| Operating pressure | Atmospheric (non-sealed) / Low-pressure (sealed) |
Key Features
• Quartz Optical Window for In-Situ Monitoring
The integrated quartz window enables real-time optical observation of electrochemical processes without disturbing the electrode configuration.
Supports:
•UV-Vis absorption
•Photo-electrochemical reactions
•Optical tracking of intermediates
• PTFE Construction for Maximum Chemical Compatibility
PTFE provides exceptional resistance to:
•Strong acids (H₂SO₄, HCl, HNO₃)
•Strong bases (KOH, NaOH)
•Organic solvents
✔ Ideal for aggressive or non-standard electrolytes
• Flexible Electrode Configuration
Compatible with:
•Glassy carbon, Pt, Au, metal rod electrodes
•Wire or plate counter electrodes
•Standard reference electrodes (Ag/AgCl, Hg/HgO, SCE)
Electrode port size and threading can be customized.
• Sealed or Open — Choose Your Workflow
•Non-Sealed: fast operation, high flexibility
•Sealed: controlled gas environment, improved reproducibility
Both versions share identical optical geometry.
Typical Applications
•Photo-electrochemical (PEC) experiments
•Optical electrochemistry (UV-Vis coupling)
•CO₂ electroreduction (sealed version)
•Corrosive electrolyte systems
•Catalyst screening under illumination
•Mechanistic electrochemical studies
Standard Package Contents
Non-Sealed Version:
•PTFE cell body
•Quartz optical window
•PTFE cap
•Electrode port fittings
•O-rings

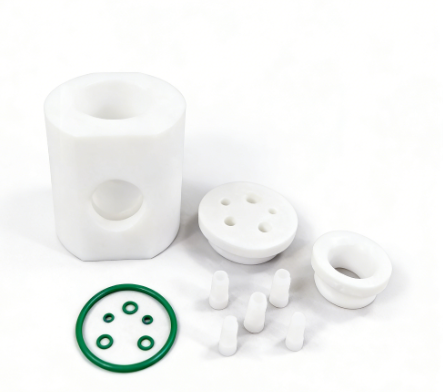

Sealed Version:
•PTFE cell body
•Quartz optical window
•PTFE sealed cap
•Electrode & gas port fittings
•Chemical-resistant O-rings
Electrodes and gas tubing are not included by default and can be configured separately.
Customization Options
Available upon request:
•Custom window size or position
•Quartz thickness upgrade
•Additional gas or sampling ports
•PEEK / PTFE electrode holders
•High-temperature PTFE variants
•Integrated light guide interface
Why FrankLab
FrankLab electrochemical cells are designed with real laboratory workflows in mind, balancing:
•Optical performance
•Chemical resistance
•Experimental reproducibility
•Modular expandability
Trusted by research laboratories, universities, and industrial R&D teams.
For Custom Orders or Inquiries
If you have custom requirements or any additional questions, feel free to contact us:
Email: support@franklab.shop
